Rotoitipakau Details
| Property | Value |
|---|---|
| Rupture Count | 4,581 |
| Ruptures Above Sect Min Mag | 4,504 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.17, 8.14] |
| Length Range | [10, 525] km |
| Total Rate | 8.413608E-4 /yr |
| Multi-Fault Rate | 8.413608E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 76 |
Table Of Contents

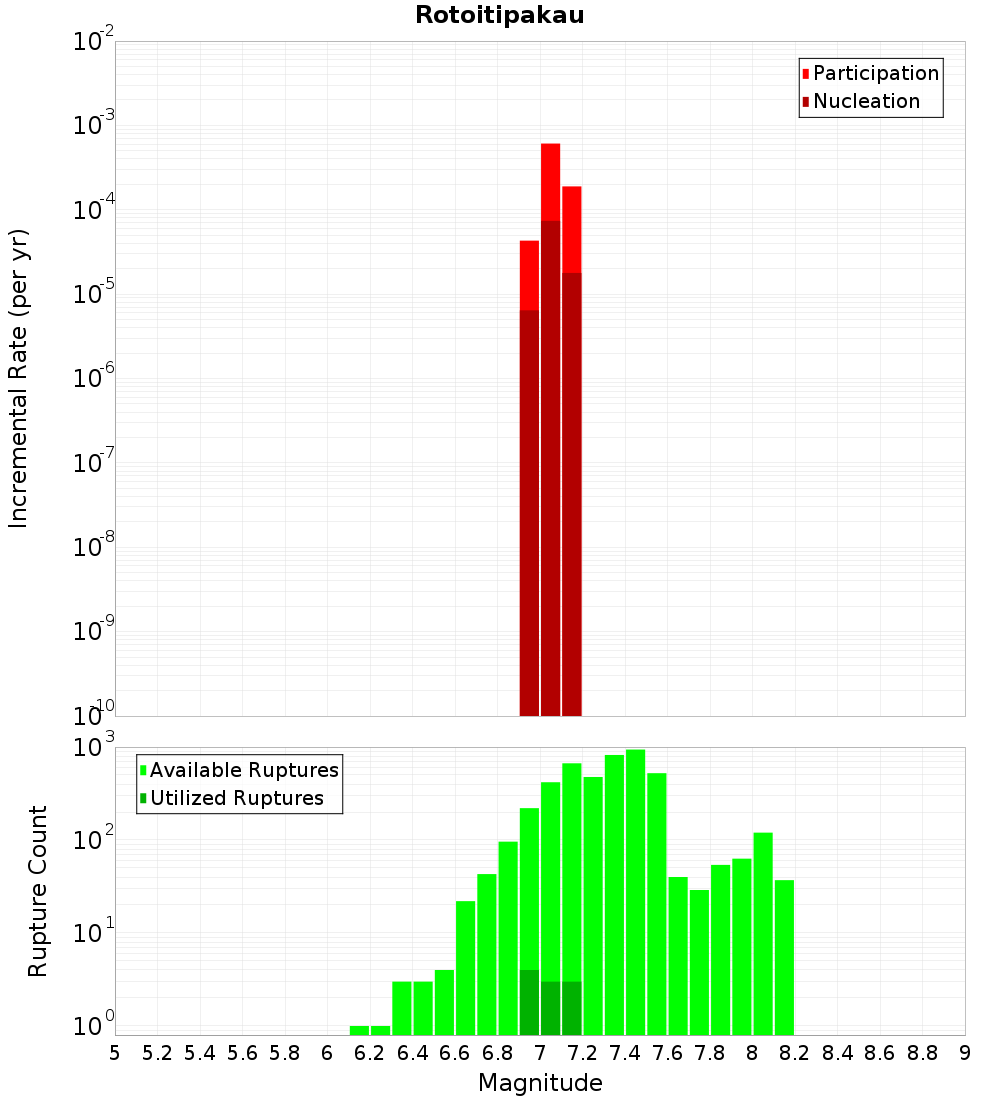

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

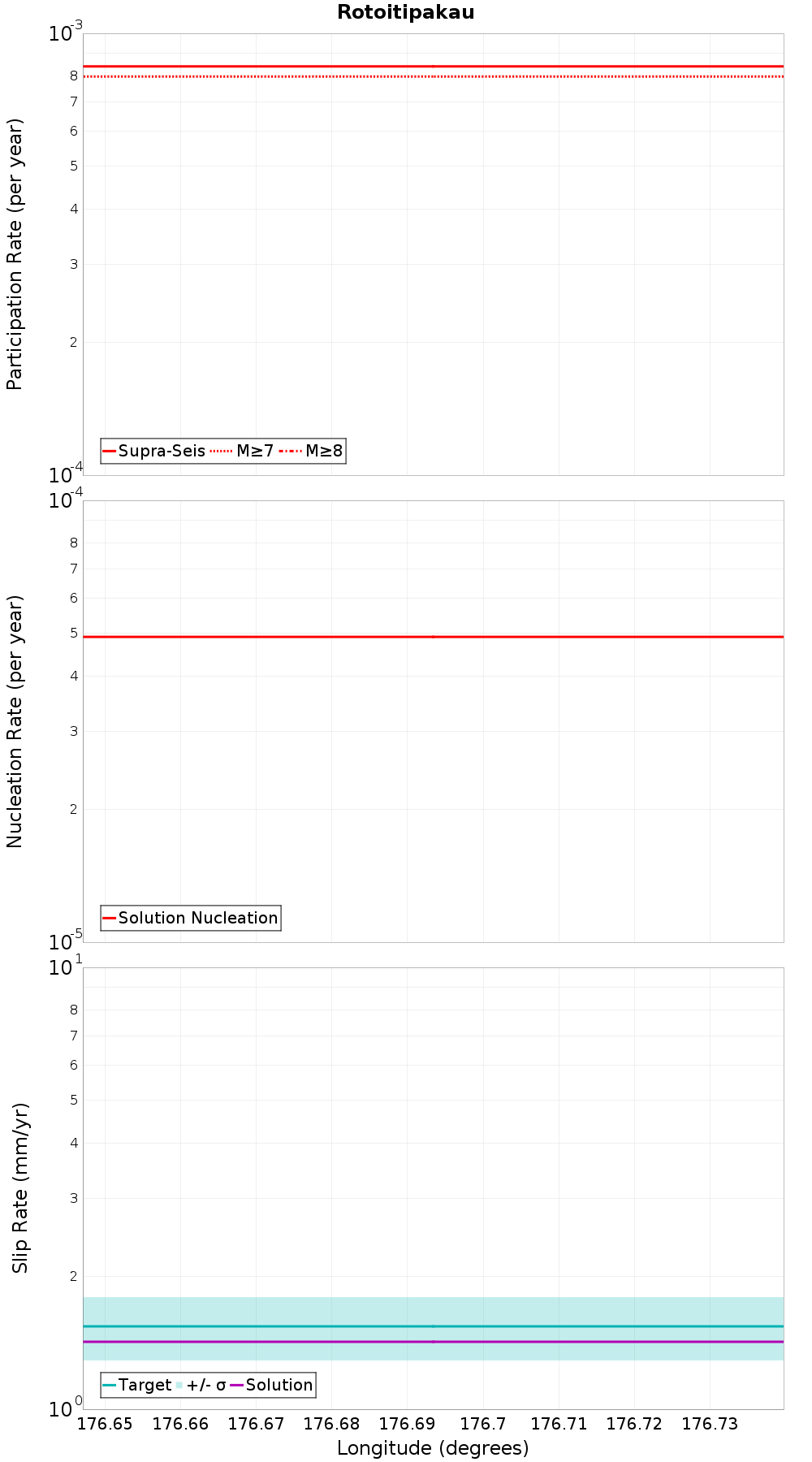

Along-Strike Values
Moment-Rates and b-Values

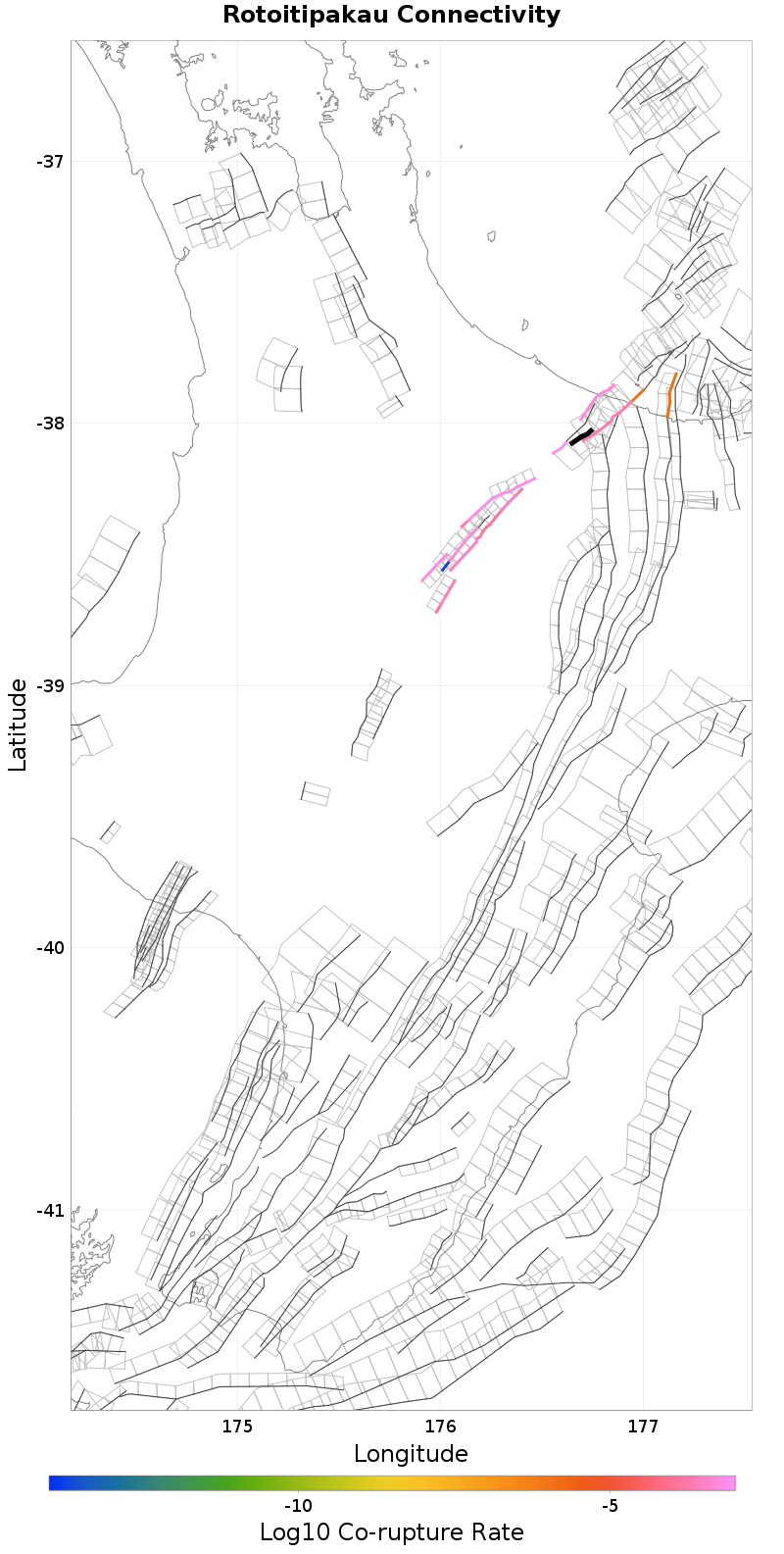

Connectivity
 |  |
|---|
Nearby Sections
Braemar, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.14 km |
| Min Rate-Weighted Dist | 0.77 km |
| Co-rupture Count | 4,706 |
| Co-rupture Rate | 8.4023183E-4 |
Awakeri, 0.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.24 km |
| Co-rupture Count | 881 |
| Co-rupture Rate | 0.0 |
Edgecumbe 1987, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.37 km |
| Min Rate-Weighted Dist | 0.37 km |
| Co-rupture Count | 2,042 |
| Co-rupture Rate | 1.8916158E-4 |
Waiohau: North, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.38 km |
| Co-rupture Count | 609 |
| Co-rupture Rate | 0.0 |
Matata, 5.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.64 km |
| Min Rate-Weighted Dist | 5.64 km |
| Co-rupture Count | 2,219 |
| Co-rupture Rate | 5.3292094E-4 |
Edgecumbe Coastal, 14.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,987 |
| Co-rupture Rate | 1.8916158E-4 |
Whakatane: North, 14.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
