Te Whaiti South Details
| Property | Value |
|---|---|
| Rupture Count | 10,275 |
| Ruptures Above Sect Min Mag | 10,270 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.75, 8.26] |
| Length Range | [20, 646] km |
| Total Rate | 7.507473E-5 /yr |
| Multi-Fault Rate | 7.507473E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 94 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

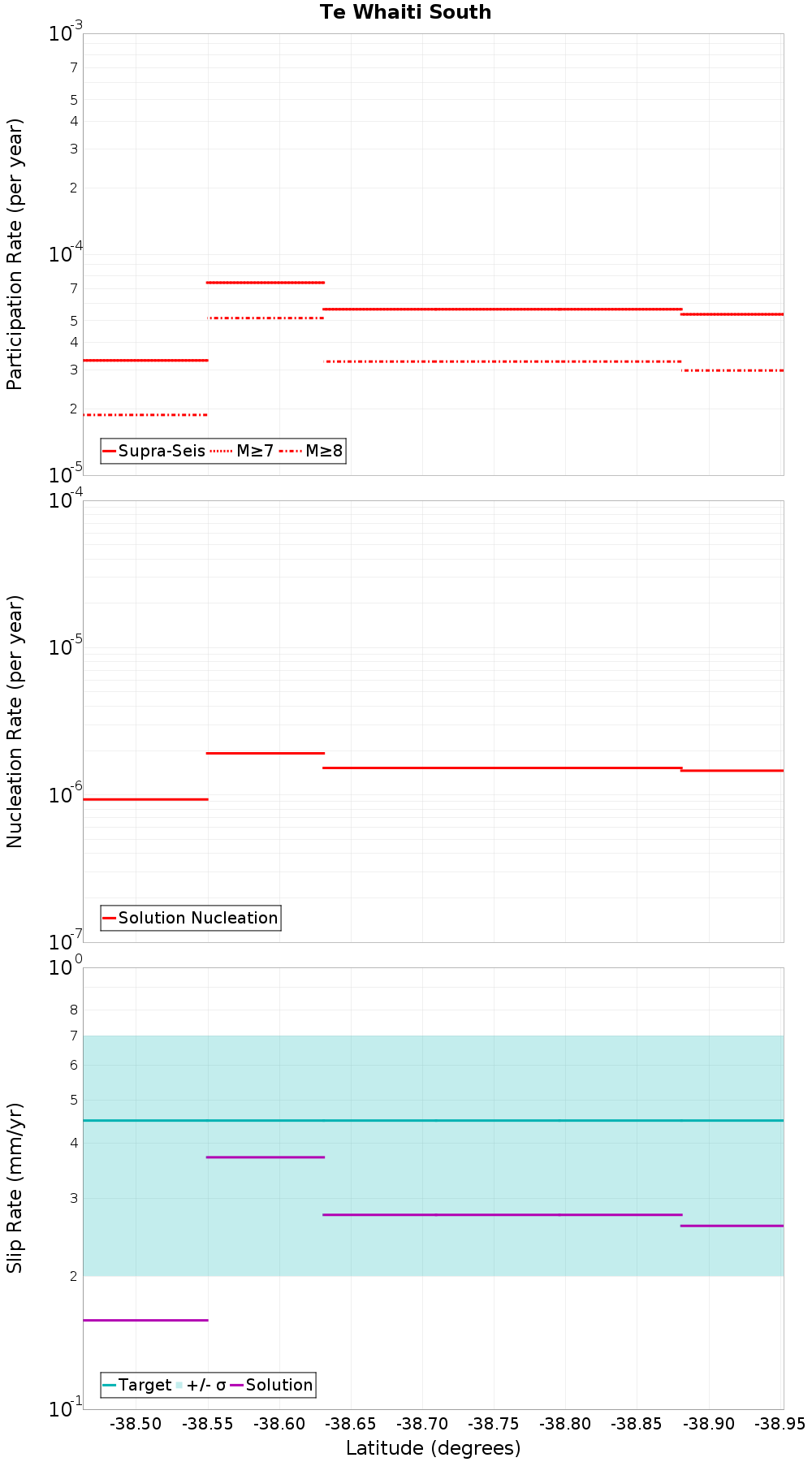

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Te Whaiti North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 1,142 |
| Co-rupture Rate | 3.3061573E-5 |
Wheao: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 52 |
| Co-rupture Rate | 0.0 |
Wheao: South, 0.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.47 km |
| Min Rate-Weighted Dist | 5.63 km |
| Co-rupture Count | 2,251 |
| Co-rupture Rate | 2.901862E-6 |
Waiohau: South, 0.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.47 km |
| Min Rate-Weighted Dist | 1.47 km |
| Co-rupture Count | 1,046 |
| Co-rupture Rate | 1.872933E-5 |
Waiohau: North, 1.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.47 km |
| Min Rate-Weighted Dist | 2.1 km |
| Co-rupture Count | 7,203 |
| Co-rupture Rate | 4.1333715E-5 |
Ruahine: North, 9.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.06 km |
| Min Rate-Weighted Dist | 9.06 km |
| Co-rupture Count | 8,441 |
| Co-rupture Rate | 7.507473E-5 |
Whakatane: South, 11.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Whakatane: North, 14.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 619 |
| Co-rupture Rate | 1.872933E-5 |
Waimana: South, 14.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mohaka: North, 15.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 31 |
| Co-rupture Rate | 0.0 |
Waiotahi: South, 18.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
