The Humps Details

PropertyValue
Rupture Count88
Ruptures Above Sect Min Mag87
Ruptures w/ Nonzero Rates4
Magnitude Range[6.83, 7.78]
Length Range[20, 231] km
Total Rate1.1994811E-4 /yr
Multi-Fault Rate1.1994811E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults22

Table Of Contents

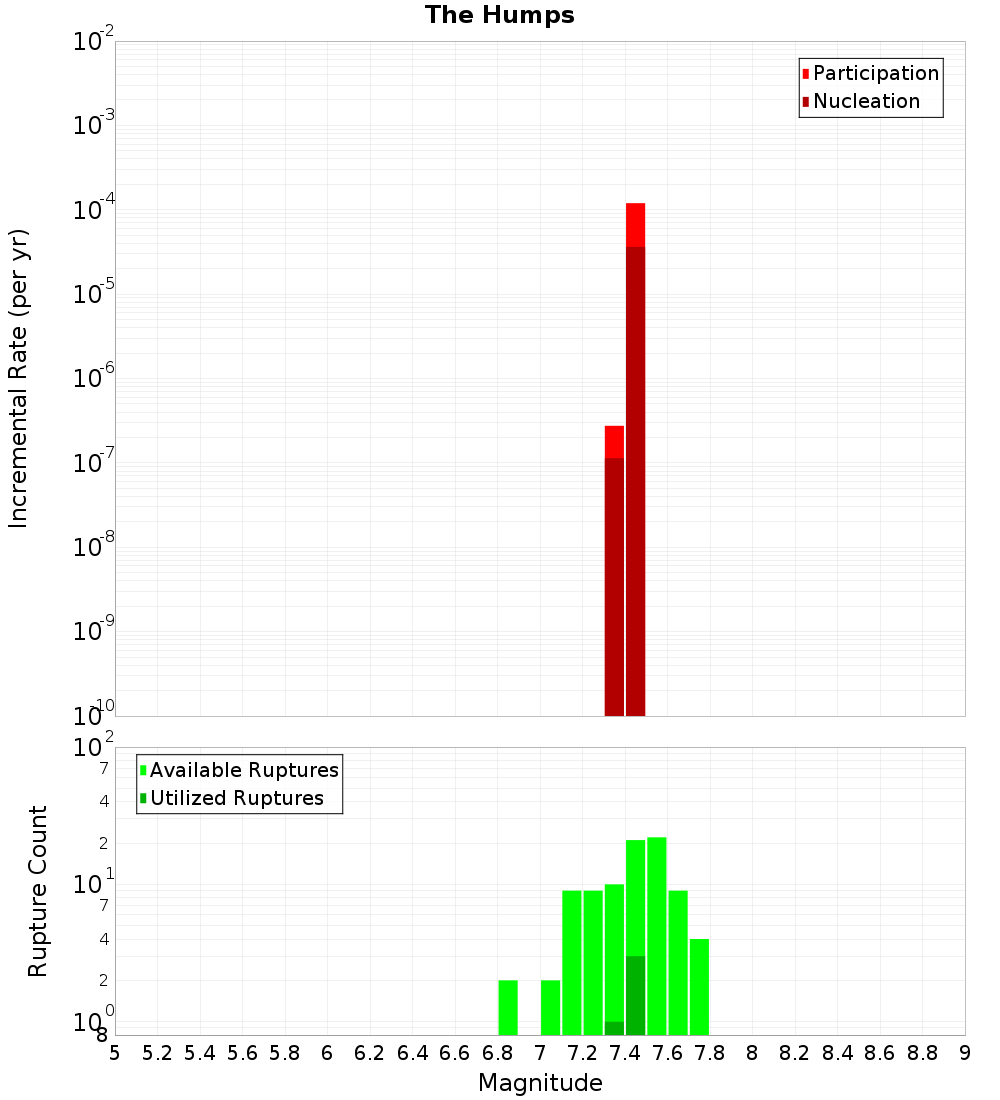

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

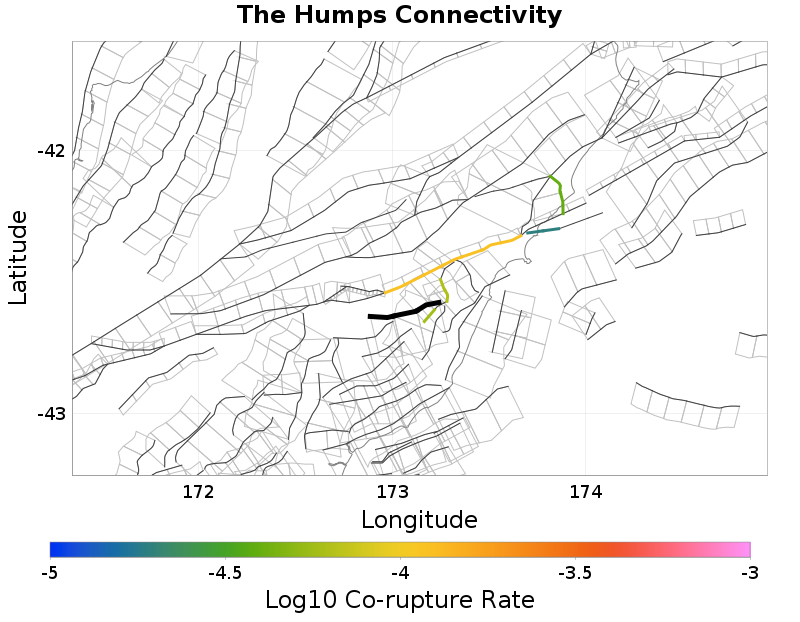

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Kaiwara North, 0.03 km awayHope: Conway, 10.44 km away
Leader: South, 0.4 km awayHope: Hanmer SW, 10.61 km away
Hundalee, 0.43 km awayHawkswood, 11.32 km away
Mt Culverden, 1.71 km awayStoneJug, 14.2 km away
Leader: Central, 2.9 km awayHope: Hanmer NW, 15.26 km away
Leonard Mound, 4.74 km awayDoctors, 15.37 km away
Hope: Hanmer SE, 7.7 km awayBalmoral, 16.03 km away
Lowry, 8.16 km awayAlexander, 16.23 km away
Hanmer, 9.2 km awayHurunui Peak, 19.06 km away
Leader: North, 9.77 km away

Kaiwara North, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.4 km
Min Rate-Weighted Dist0.4 km
Co-rupture Count50
Co-rupture Rate5.767551E-5

Hundalee, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.43 km
Co-rupture Count17
Co-rupture Rate0.0

Mt Culverden, 1.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.71 km
Co-rupture Count8
Co-rupture Rate0.0

Leader: Central, 2.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.9 km
Min Rate-Weighted Dist2.9 km
Co-rupture Count12
Co-rupture Rate6.227261E-5

Leonard Mound, 4.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.74 km
Co-rupture Count9
Co-rupture Rate0.0

Hope: Hanmer SE, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Lowry, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.16 km
Co-rupture Count2
Co-rupture Rate0.0

Hanmer, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Leader: North, 9.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count63
Co-rupture Rate1.1994811E-4

Hope: Hanmer SW, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Hawkswood, 11.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

StoneJug, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 15.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 15.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 16.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 16.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 19.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
