Waimana: North Details

PropertyValue
Rupture Count8,586
Ruptures Above Sect Min Mag8,578
Ruptures w/ Nonzero Rates11
Magnitude Range[6.64, 8.32]
Length Range[18, 758] km
Total Rate3.055451E-4 /yr
Multi-Fault Rate3.055451E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults113

Table Of Contents

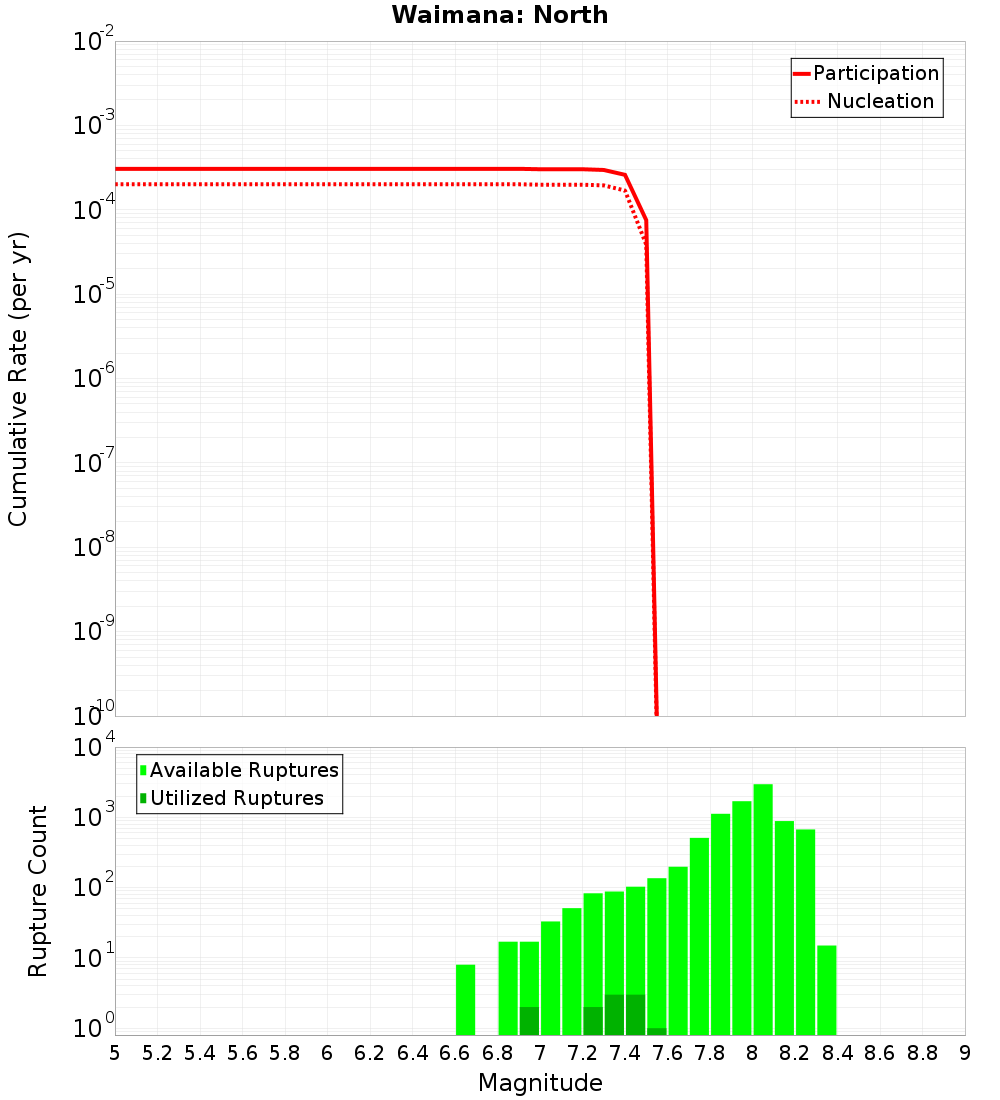

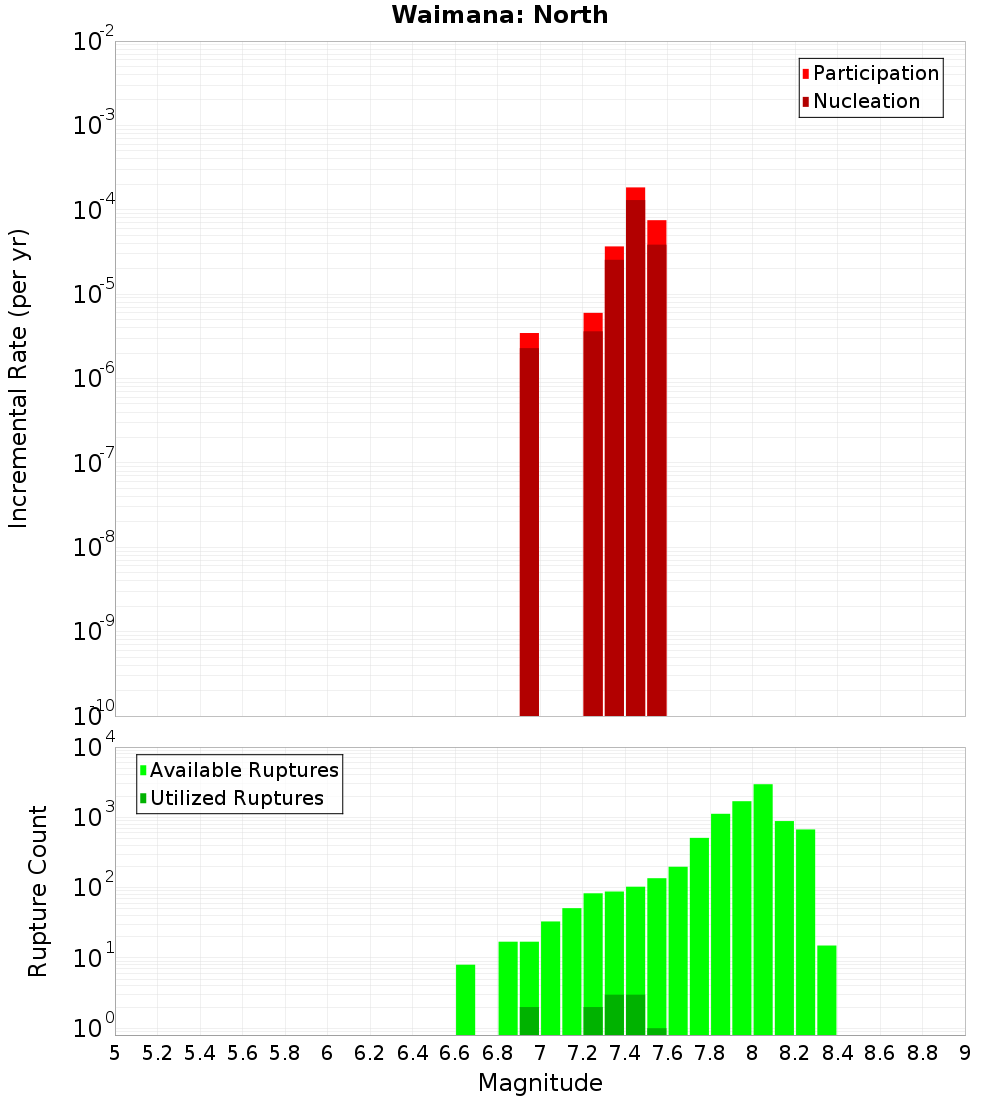

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

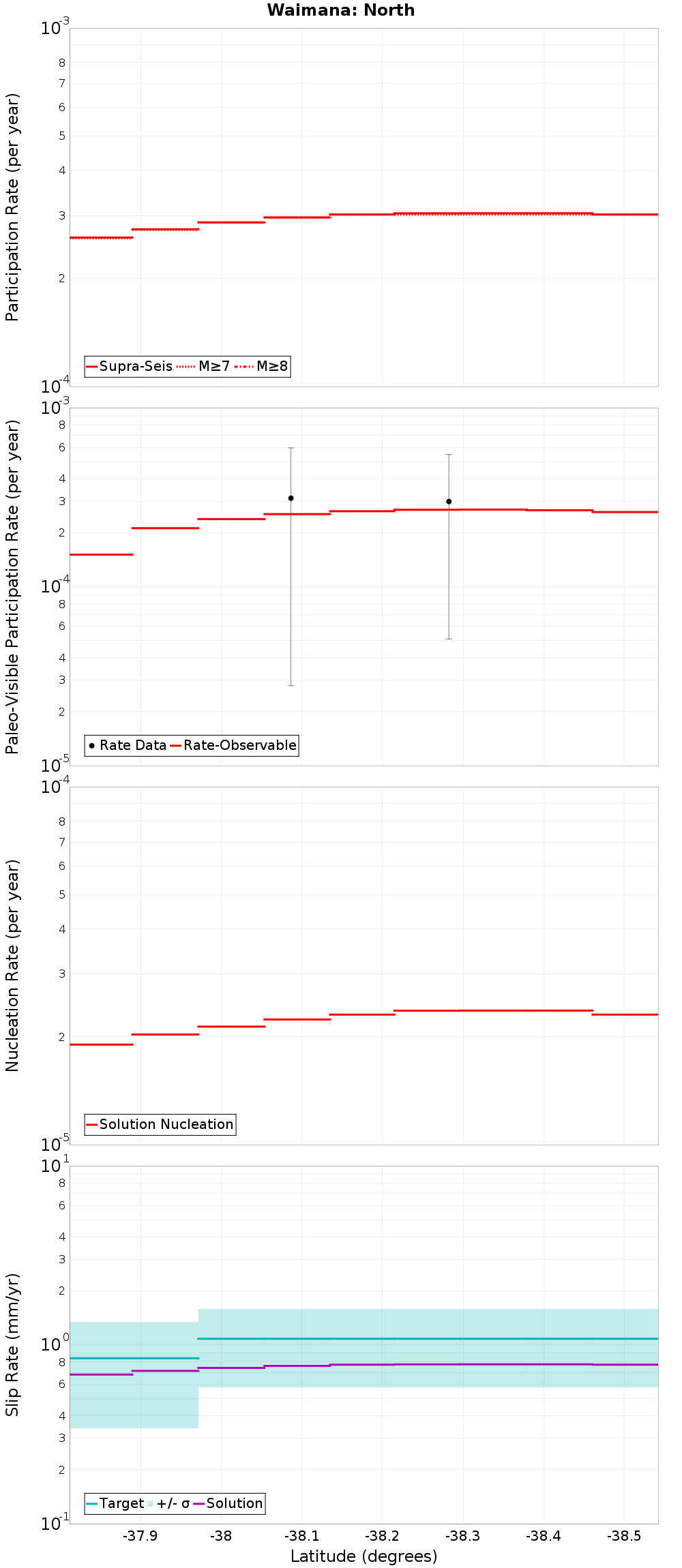

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waimana: South, 0 km awayWairata, 12.04 km away
Waimana - Waikaremoana, 0.39 km awayOpotiki 2, 12.2 km away
Waiotahi: North, 1.8 km awayRaukumara 9, 13.23 km away
Waiotahi: South, 2.4 km awayTirohanga, 14.35 km away
Whakatane: South, 5.74 km awayOhae 2, 15.17 km away
White Island 2, 6.76 km awayOpape 1, 15.8 km away
White Island 1, 7.11 km awayEdgecumbe Coastal, 15.94 km away
Whakatane: North, 7.34 km awayKotare - Moutuhora, 16.89 km away
Opotiki 3, 8.42 km awayWhakaari 4, 17.26 km away
Ohiwa 1, 8.65 km awayWaiohau: South, 18.89 km away
Rangitaiki 2, 9.4 km awayWaiohau: North, 18.89 km away
Ohae 1, 9.59 km awayBraemar, 19.75 km away
Rangitaiki 1, 10.53 km away

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Co-rupture Count6,779
Co-rupture Rate0.0

Waimana - Waikaremoana, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.39 km
Min Rate-Weighted Dist0.39 km
Co-rupture Count966
Co-rupture Rate7.522472E-5

Waiotahi: North, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.8 km
Co-rupture Count702
Co-rupture Rate1.6550605E-7

Waiotahi: South, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.4 km
Co-rupture Count1,543
Co-rupture Rate0.0

Whakatane: South, 5.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.74 km
Min Rate-Weighted Dist7.74 km
Co-rupture Count286
Co-rupture Rate3.0191906E-4

White Island 2, 6.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count259
Co-rupture Rate0.0

White Island 1, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.11 km
Min Rate-Weighted Dist10.93 km
Co-rupture Count742
Co-rupture Rate1.1289227E-6

Whakatane: North, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Opotiki 3, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count164
Co-rupture Rate0.0

Rangitaiki 2, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 9.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist9.59 km
Co-rupture Count83
Co-rupture Rate0.0

Rangitaiki 1, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairata, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.04 km
Min Rate-Weighted Dist12.04 km
Co-rupture Count568
Co-rupture Rate2.4971368E-6

Opotiki 2, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 9, 13.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Tirohanga, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 2, 15.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 15.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 15.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count232
Co-rupture Rate0.0

Kotare - Moutuhora, 16.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 17.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count118
Co-rupture Rate0.0

Waiohau: South, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate0.0

Waiohau: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count178
Co-rupture Rate0.0

Braemar, 19.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate0.0
