Wairau Details
| Property | Value |
|---|---|
| Rupture Count | 8,198 |
| Ruptures Above Sect Min Mag | 8,188 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [6.76, 8.41] |
| Length Range | [21, 1,009] km |
| Total Rate | 7.109803E-4 /yr |
| Multi-Fault Rate | 7.109803E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 58 |
Table Of Contents

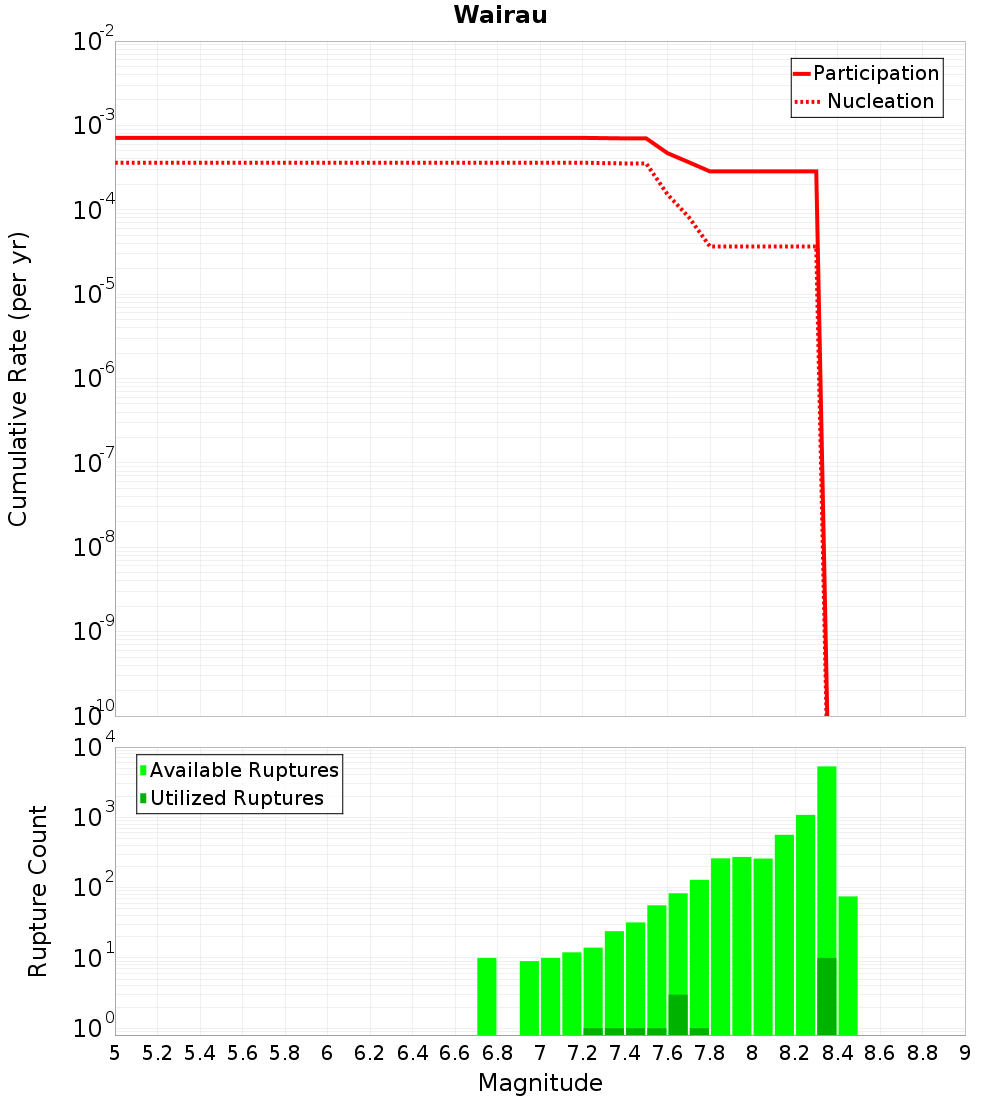

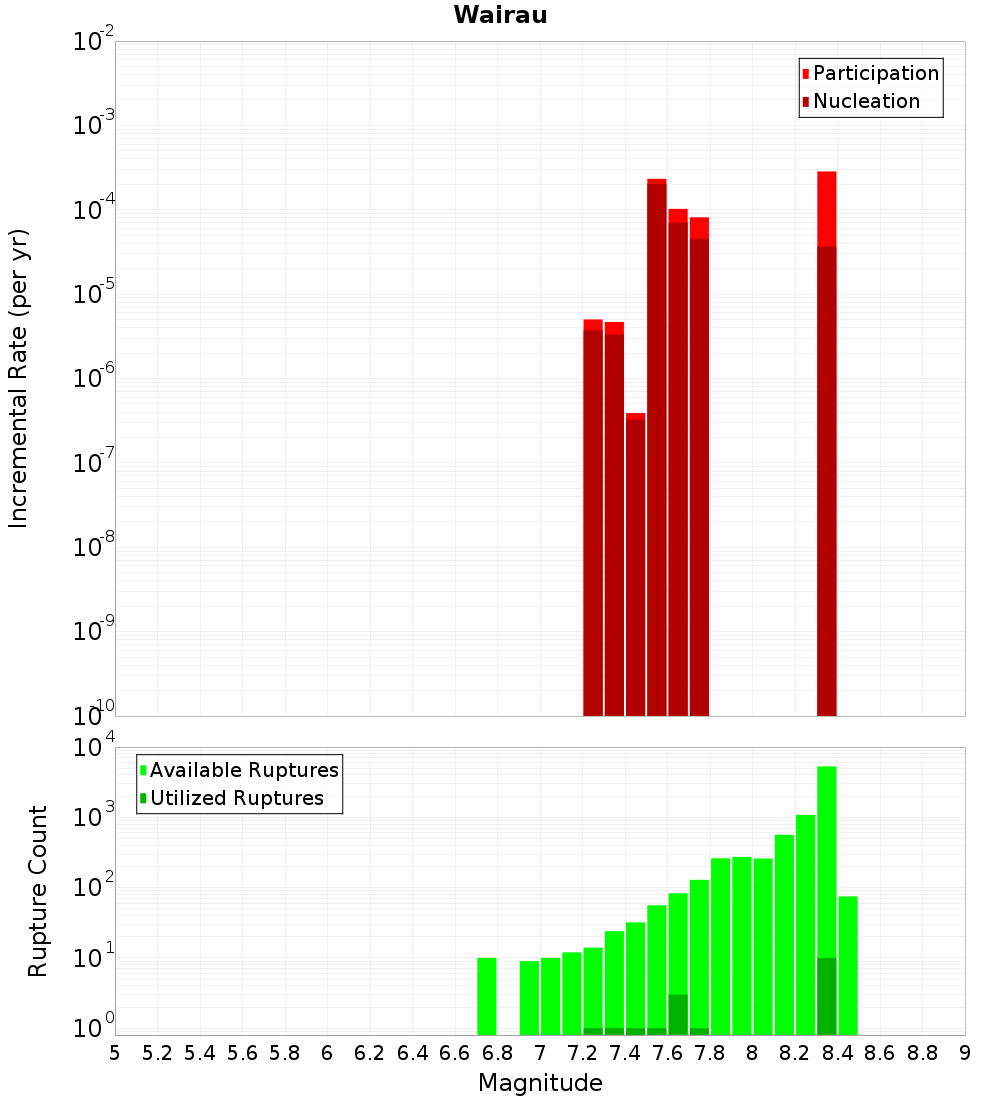

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

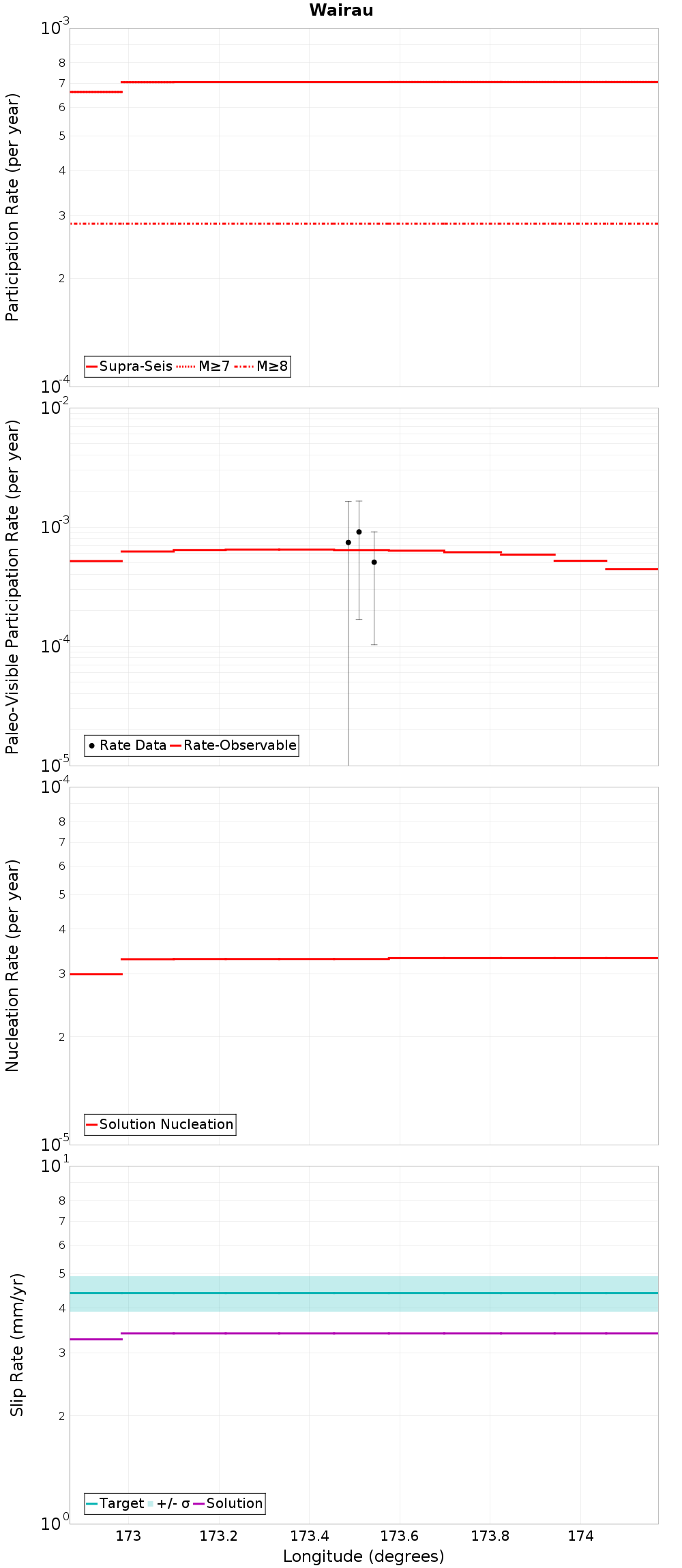

Along-Strike Values

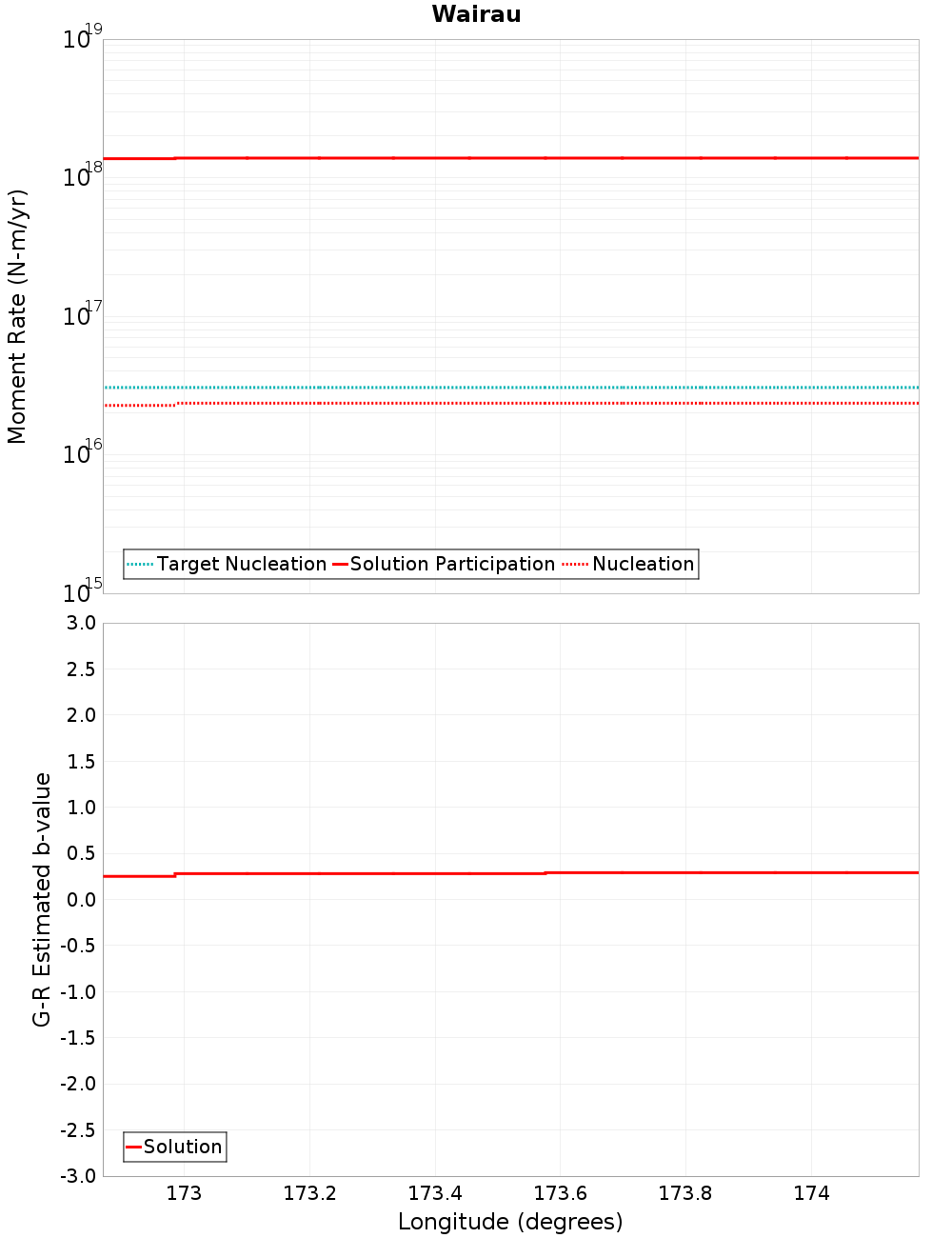

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Wairau 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 747 |
| Co-rupture Rate | 6.446847E-4 |
Alpine: Springs Junction to Tophouse, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 8,082 |
| Co-rupture Rate | 3.7391865E-4 |
Whangamoa, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.28 km |
| Min Rate-Weighted Dist | 0.28 km |
| Co-rupture Count | 7 |
| Co-rupture Rate | 4.264989E-5 |
Flaxmore - Waimea - Tahunanui, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.17 km |
| Min Rate-Weighted Dist | 0.17 km |
| Co-rupture Count | 41 |
| Co-rupture Rate | 5.6504523E-5 |
Tutaki, 7.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 8.935774E-5 |
Awatere: Northeast 1, 11.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.08 km |
| Co-rupture Count | 165 |
| Co-rupture Rate | 0.0 |
Awatere: Northeast 2, 11.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 115 |
| Co-rupture Rate | 0.0 |
Cloudy 2, 12.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 1, 12.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau 3, 13.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 1, 13.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 2, 13.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Ruby Bay - Moutere, 15.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 3, 15.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 3, 15.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 39 |
| Co-rupture Rate | 0.0 |
Ohariu South 1, 16.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 4, 17.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 38 |
| Co-rupture Rate | 0.0 |
