Wairau 3 Details

Property	Value
Rupture Count	295
Ruptures Above Sect Min Mag	294
Ruptures w/ Nonzero Rates	0
Magnitude Range	[6.54, 8.13]
Length Range	[11, 492] km
Total Rate	0.0 /yr
Multi-Fault Rate	0.0 /yr (NaN)
Directly-Connected Faults	2
All Co-Rupturing Faults	46

Table Of Contents

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

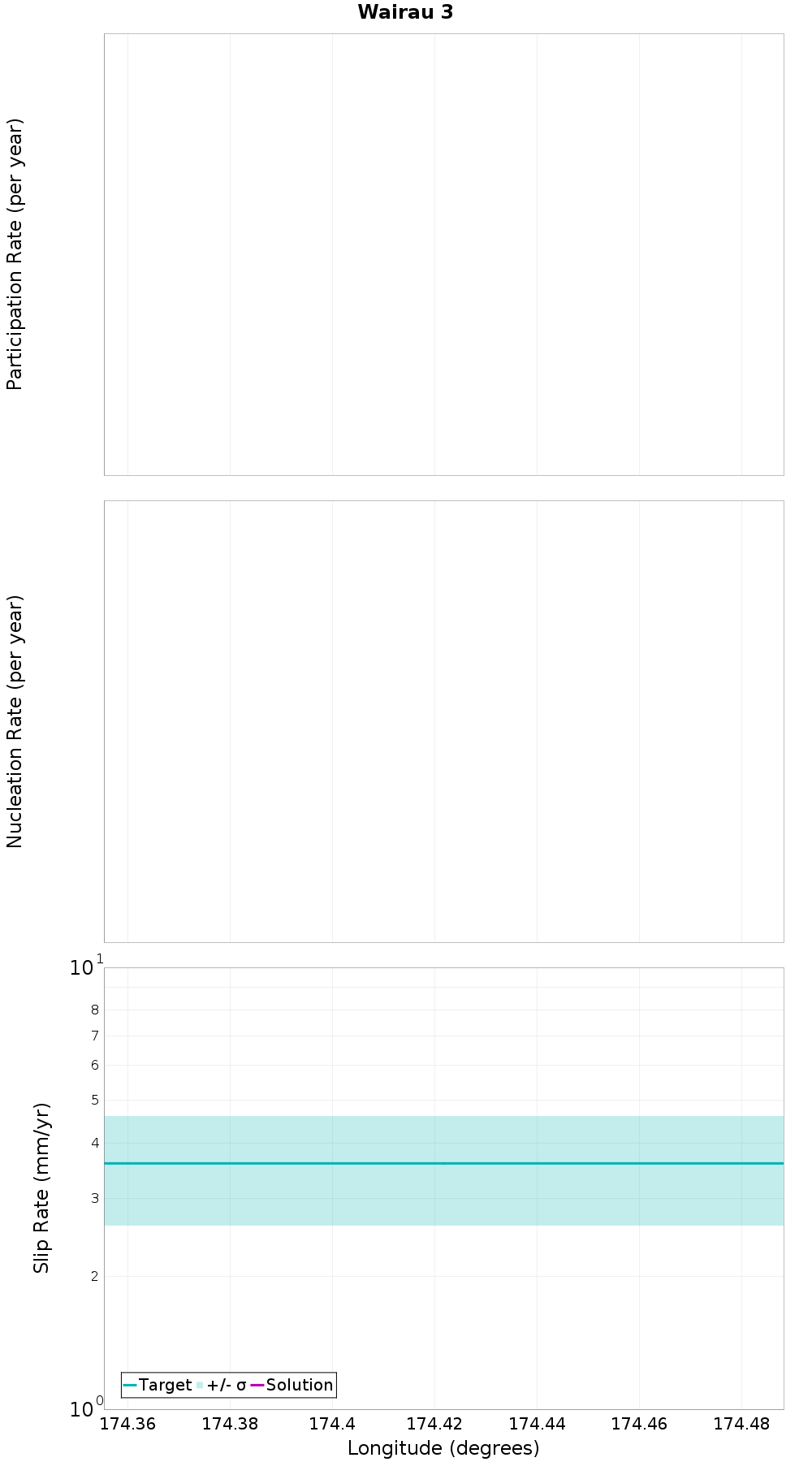

Along-Strike Values

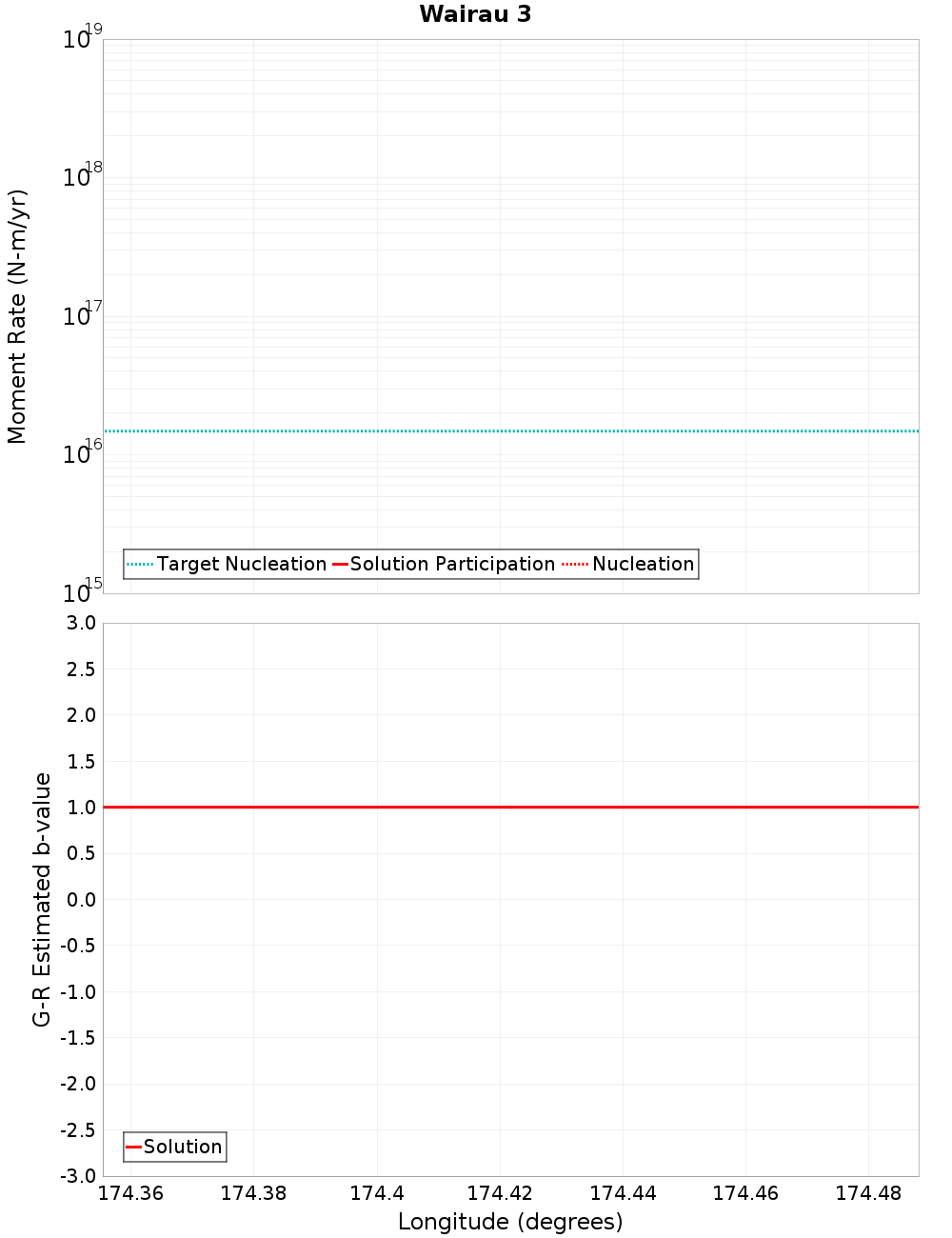

Moment-Rates and b-Values

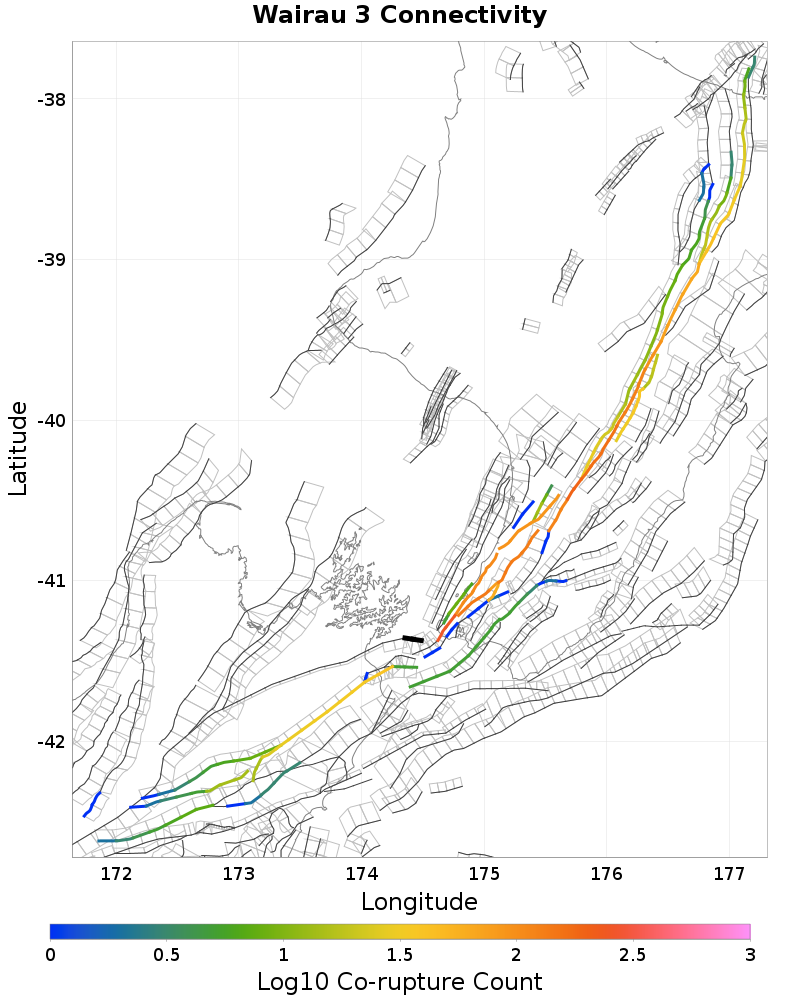

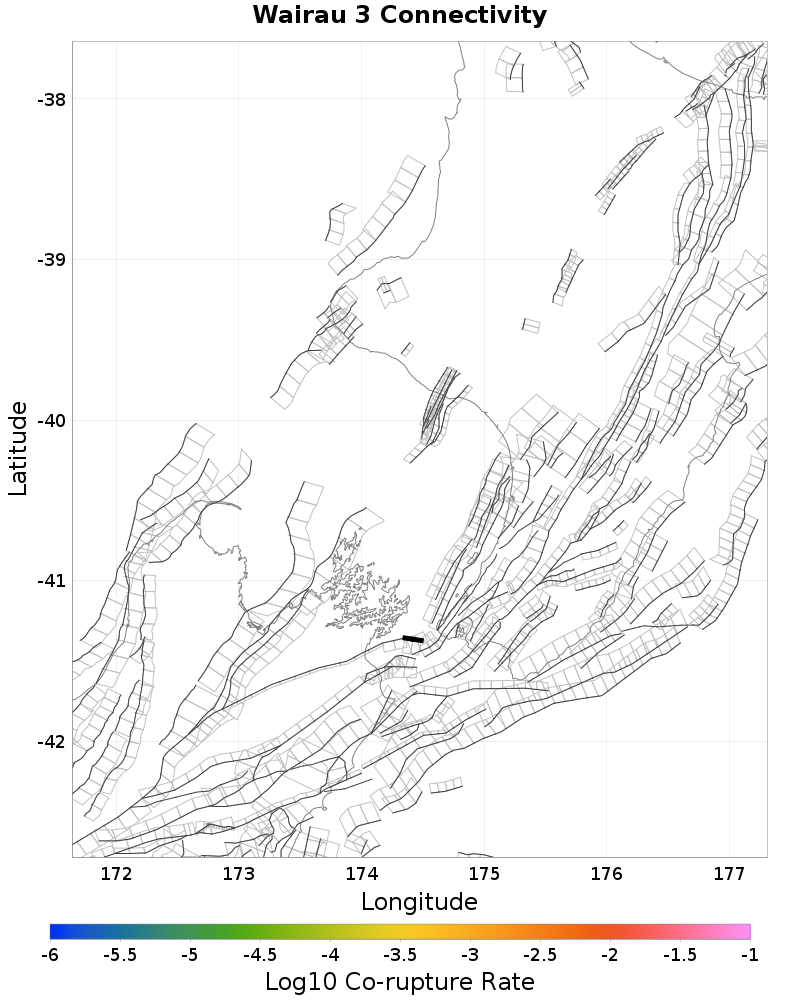

Connectivity

Nearby Sections

Fault Section	Fault Section
Wairau 2, 0 km away	Shepherds Gully - Mana, 12.88 km away
Ohariu South 1, 0.18 km away	Pukerua - Shepherds Gully: 1, 13.01 km away
Wellington Hutt Valley: 1, 1.07 km away	Wairau, 13.7 km away
Ohariu South 2, 4.71 km away	Okupe 1, 13.94 km away
Cloudy 1, 7.96 km away	Vernon 4, 15.55 km away
Cloudy 2, 9.09 km away	Vernon 3, 17.75 km away
Cloudy 3, 9.44 km away	Wellington Hutt Valley: 3, 17.76 km away
Awatere: Northeast 2, 10.6 km away	Wairarapa: 1, 18.17 km away
Ohariu, 11.37 km away	Vernon 2, 19.38 km away
Wairarapa: Needles, 11.41 km away	Pukerua - Shepherds Gully: 2, 19.66 km away
Wellington Hutt Valley: 2, 11.69 km away

Wairau 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu South 1, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 1, 1.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Ohariu South 2, 4.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 1, 7.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 2, 9.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 3, 9.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Northeast 2, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	10.6 km
Co-rupture Count	40
Co-rupture Rate	0.0

Ohariu, 11.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	11.37 km
Co-rupture Count	261
Co-rupture Rate	0.0

Wairarapa: Needles, 11.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Wellington Hutt Valley: 2, 11.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Shepherds Gully - Mana, 12.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 1, 13.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairau, 13.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okupe 1, 13.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Vernon 4, 15.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Vernon 3, 17.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 3, 17.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Wairarapa: 1, 18.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Vernon 2, 19.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 2, 19.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0
