Awatere: Northeast 1 Details
| Property | Value |
|---|---|
| Rupture Count | 7,870 |
| Ruptures Above Sect Min Mag | 7,866 |
| Ruptures w/ Nonzero Rates | 28 |
| Magnitude Range | [6.87, 8.41] |
| Length Range | [22, 744] km |
| Total Rate | 0.0011076684 /yr |
| Multi-Fault Rate | 0.0011032685 /yr (99.60%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 77 |
Table Of Contents

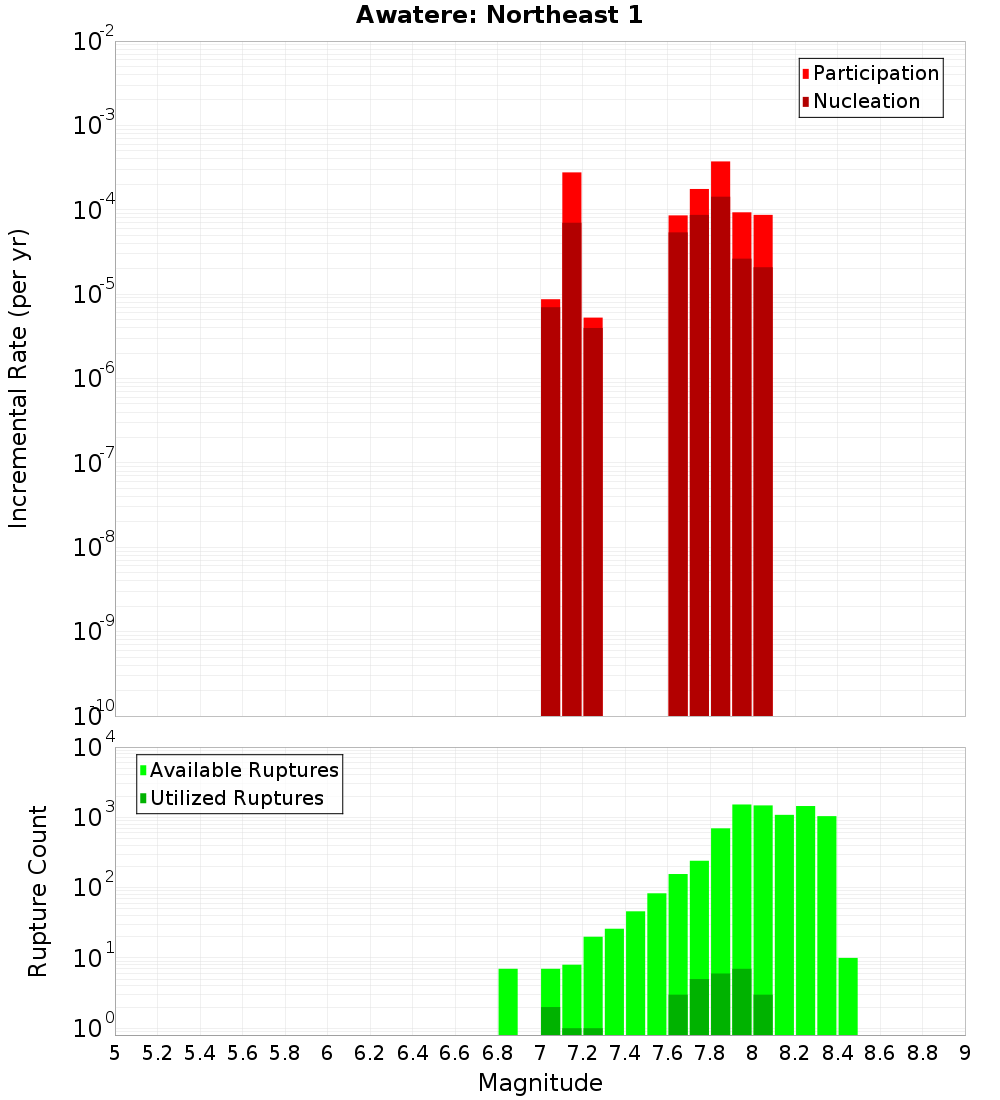

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

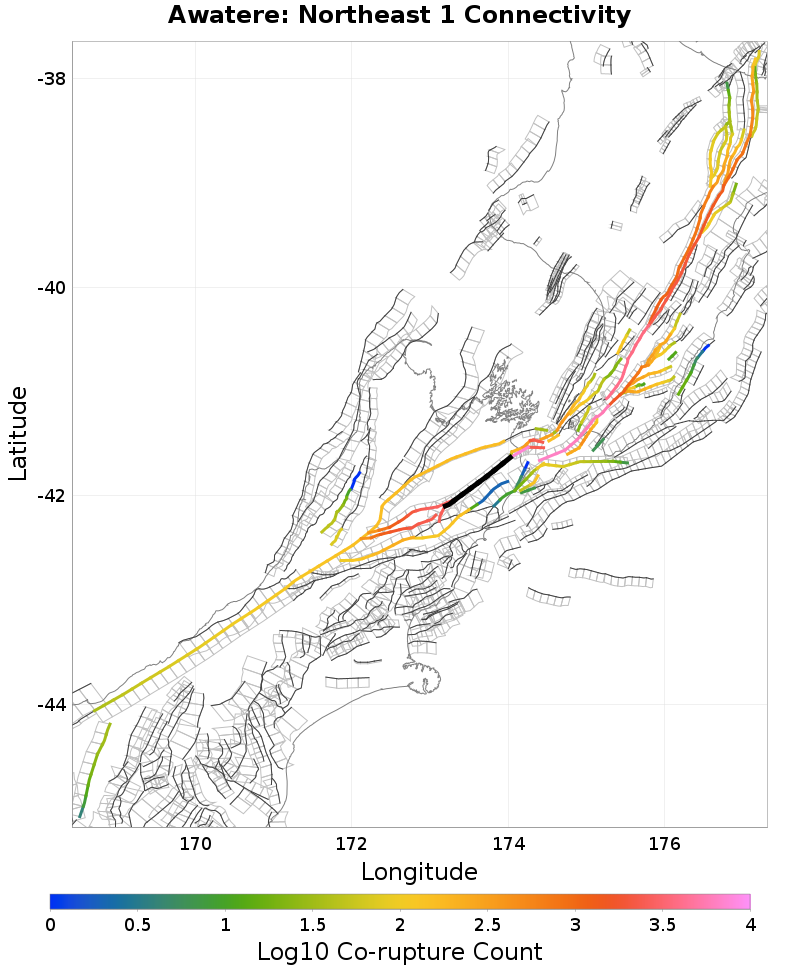

Connectivity
 |  |
|---|
Nearby Sections
Barefell, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 2,569 |
| Co-rupture Rate | 6.367749E-5 |
Vernon 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 41 |
| Co-rupture Rate | 1.0133079E-5 |
Awatere: Northeast 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 7,390 |
| Co-rupture Rate | 8.6173764E-4 |
Awatere: Southwest, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.1 km |
| Min Rate-Weighted Dist | 0.1 km |
| Co-rupture Count | 2,697 |
| Co-rupture Rate | 7.099049E-4 |
Vernon 2, 4.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.41 km |
| Min Rate-Weighted Dist | 4.41 km |
| Co-rupture Count | 192 |
| Co-rupture Rate | 5.063221E-4 |
Clarence: Northeast, 8.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.84 km |
| Co-rupture Count | 146 |
| Co-rupture Rate | 0.0 |
Jordan, 8.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Elliott, 9.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 134 |
| Co-rupture Rate | 0.0 |
Clarence: Central, 10.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 11.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.08 km |
| Co-rupture Count | 165 |
| Co-rupture Rate | 0.0 |
Fowlers, 14.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,379 |
| Co-rupture Rate | 6.367749E-5 |
Vernon 3, 16.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 43 |
| Co-rupture Rate | 3.095933E-4 |
Needles East 2, 17.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 141 |
| Co-rupture Rate | 9.293538E-6 |
Cloudy 1, 17.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 343 |
| Co-rupture Rate | 6.875152E-5 |
Fidget, 17.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
London Hill, 19.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
