Caswell High 10 Details

PropertyValue
Rupture Count7,513
Ruptures Above Sect Min Mag6,966
Ruptures w/ Nonzero Rates29
Magnitude Range[5.65, 8.08]
Length Range[5, 332] km
Total Rate3.5904063E-4 /yr
Multi-Fault Rate3.5904063E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults22

Table Of Contents

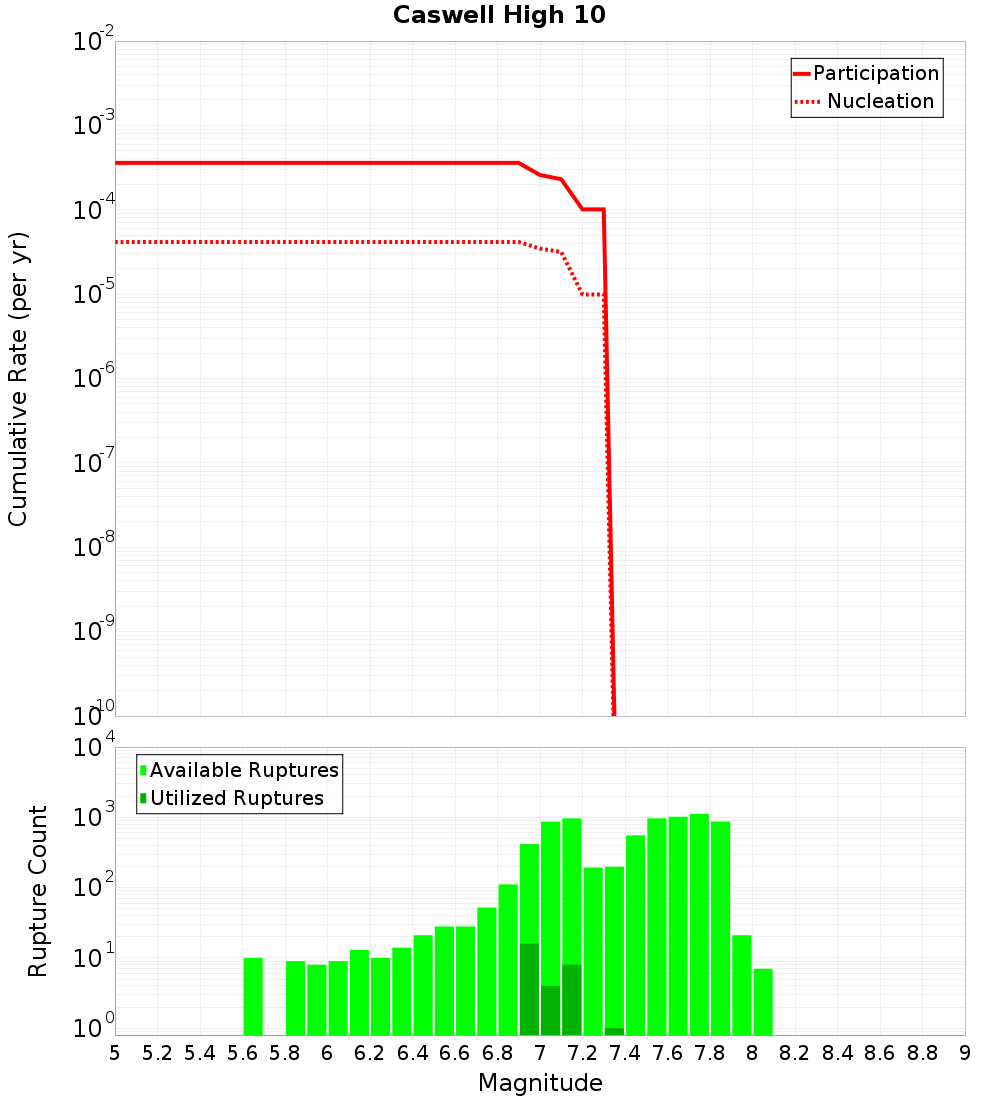

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

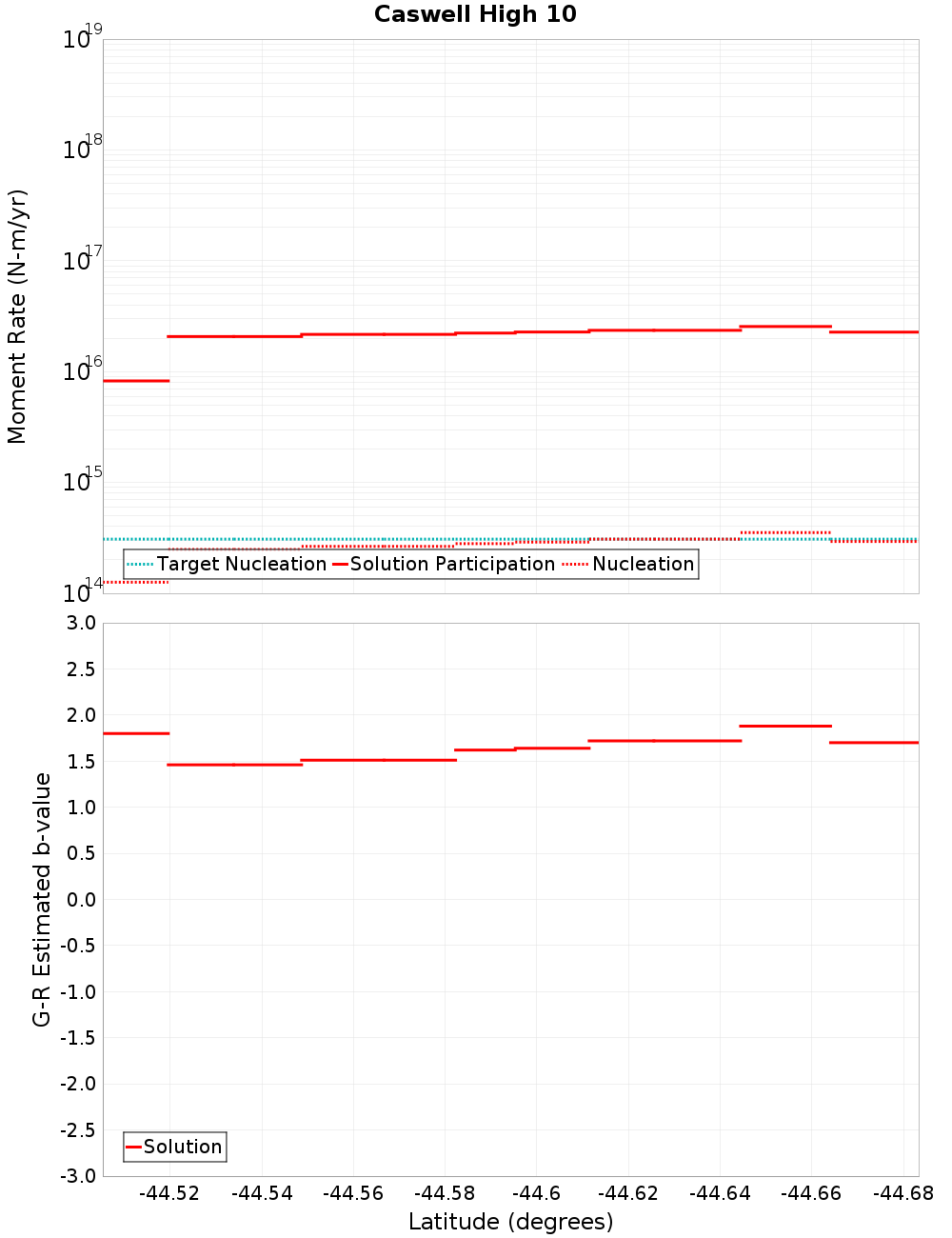

Moment-Rates and b-Values

(top)

Along-strike plot

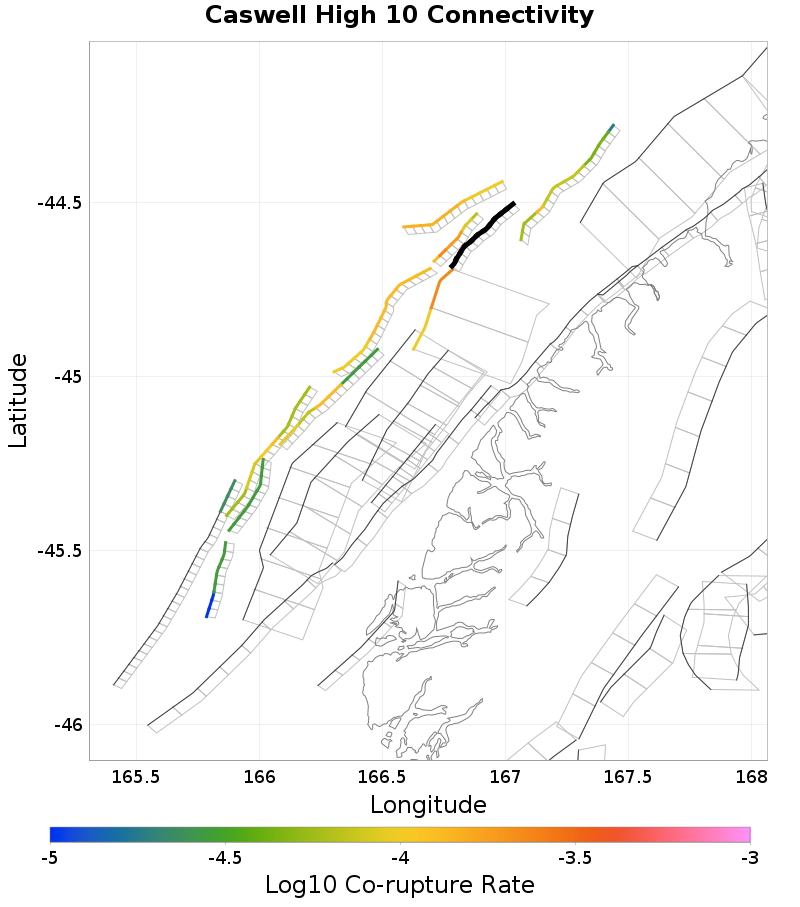

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Central Wedge 1 & 2 & 3, 1.11 km away
Caswell High 9, 2.99 km away
Milford Basin 5 to George R2, 6.14 km away
Caswell High 67, 6.39 km away
Caswell High 8, 6.85 km away

Central Wedge 1 & 2 & 3, 1.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.11 km
Min Rate-Weighted Dist1.11 km
Co-rupture Count5,131
Co-rupture Rate2.2988925E-4

Caswell High 9, 2.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count351
Co-rupture Rate2.2988925E-4

Milford Basin 5 to George R2, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.14 km
Min Rate-Weighted Dist6.74 km
Co-rupture Count1,137
Co-rupture Rate1.2899519E-4

Caswell High 67, 6.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.39 km
Min Rate-Weighted Dist7.45 km
Co-rupture Count3,566
Co-rupture Rate1.2915136E-4

Caswell High 8, 6.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.85 km
Min Rate-Weighted Dist7.31 km
Co-rupture Count658
Co-rupture Rate1.4581582E-4
