Garvie Details
| Property | Value |
|---|---|
| Rupture Count | 817 |
| Ruptures Above Sect Min Mag | 815 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [7.22, 8.24] |
| Length Range | [28, 352] km |
| Total Rate | 8.8384195E-6 /yr |
| Multi-Fault Rate | 8.8384195E-6 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 30 |
Table Of Contents

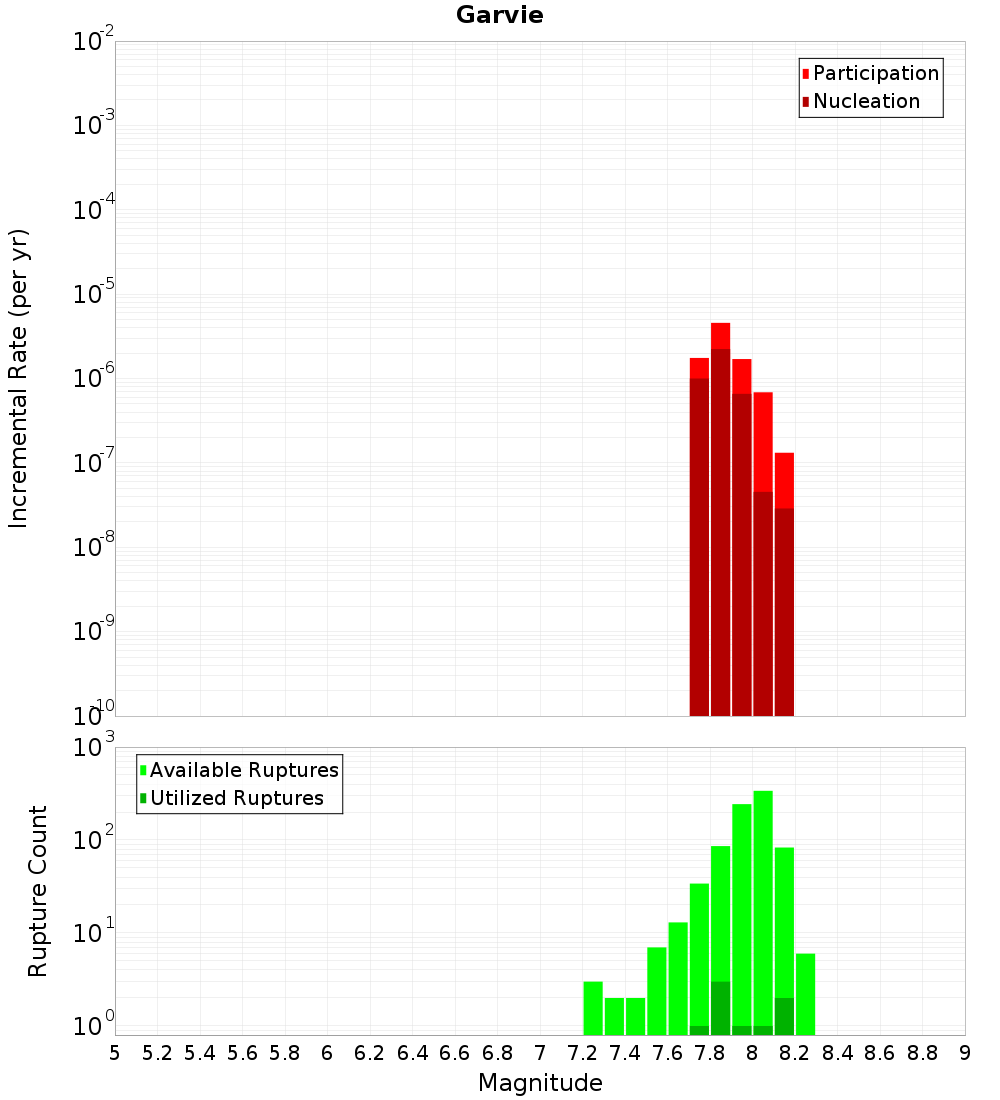

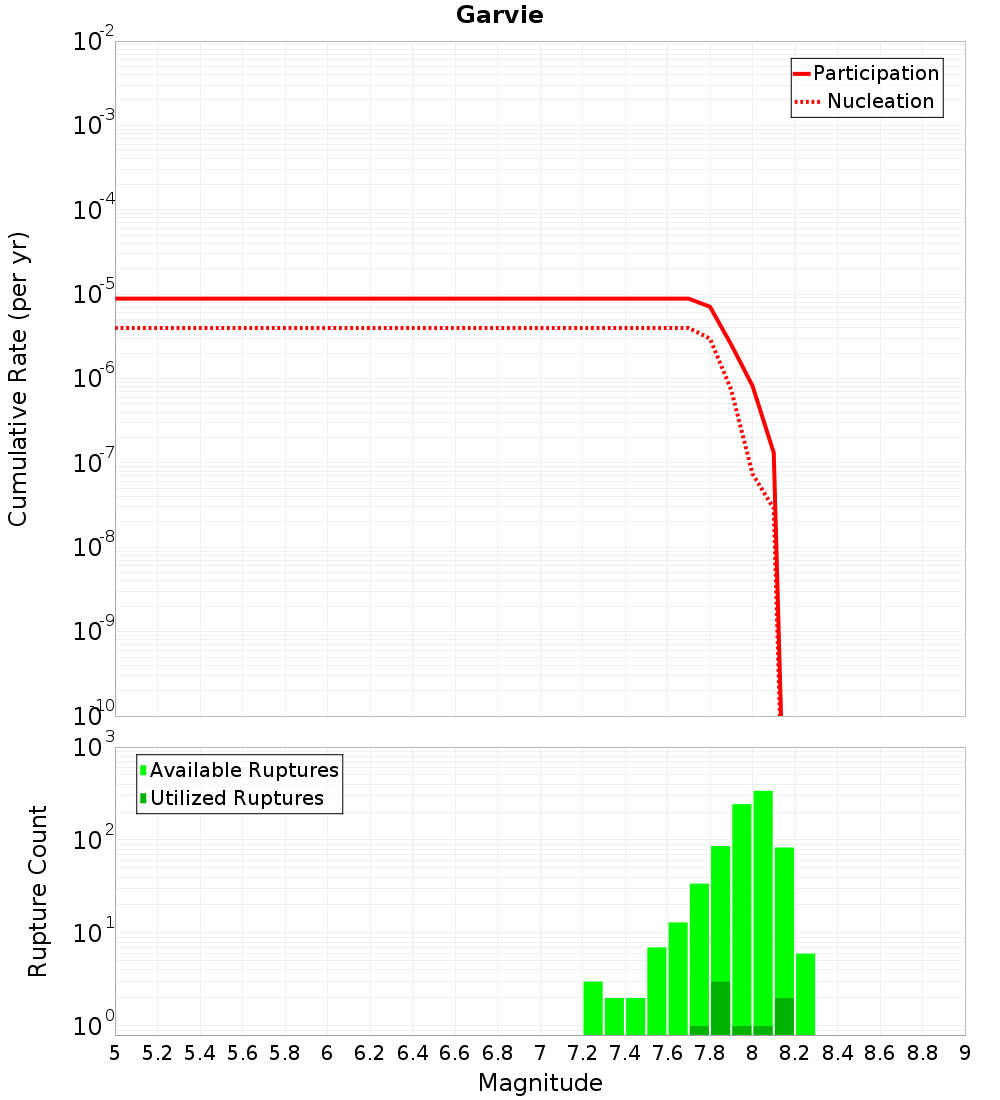

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

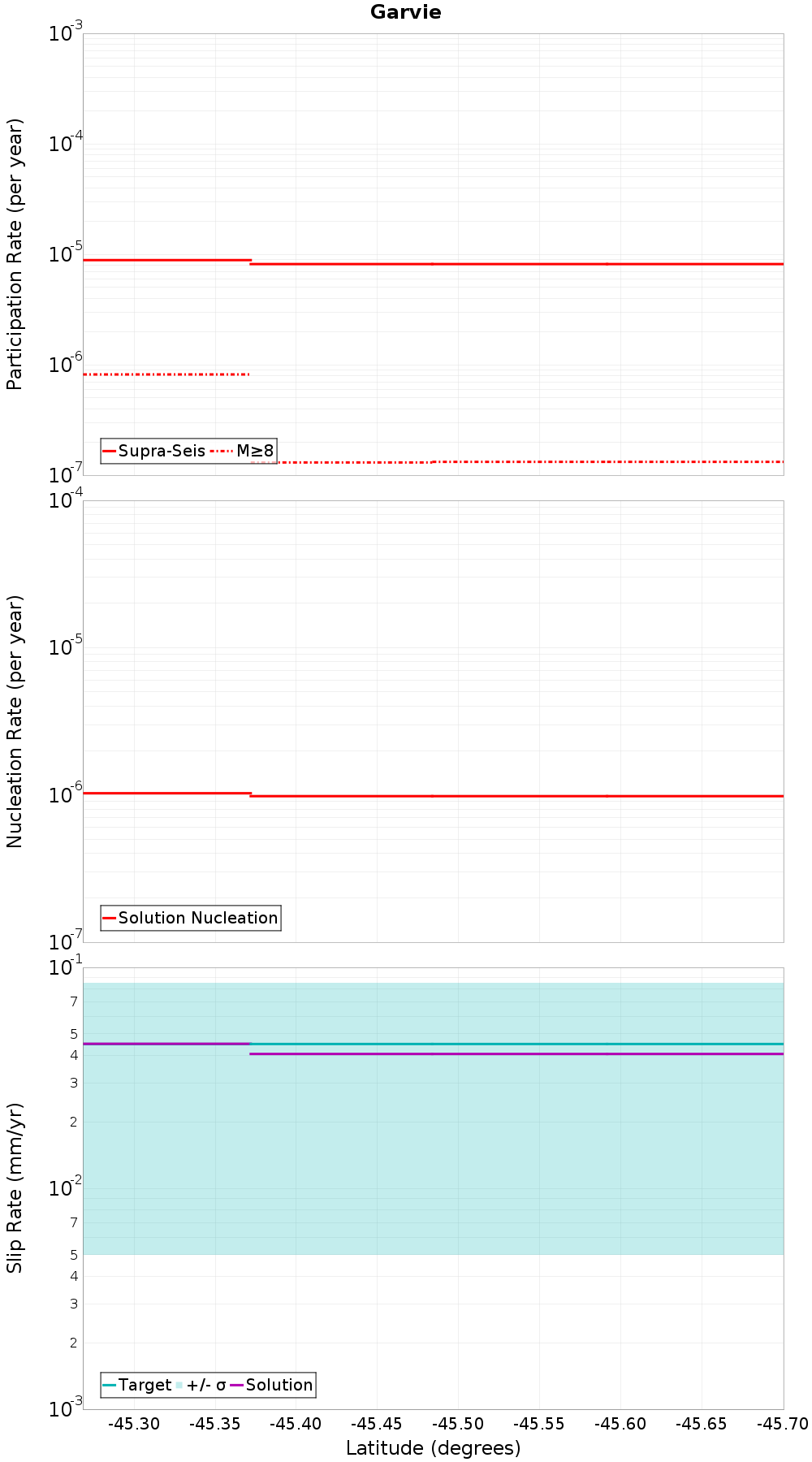

Along-Strike Values

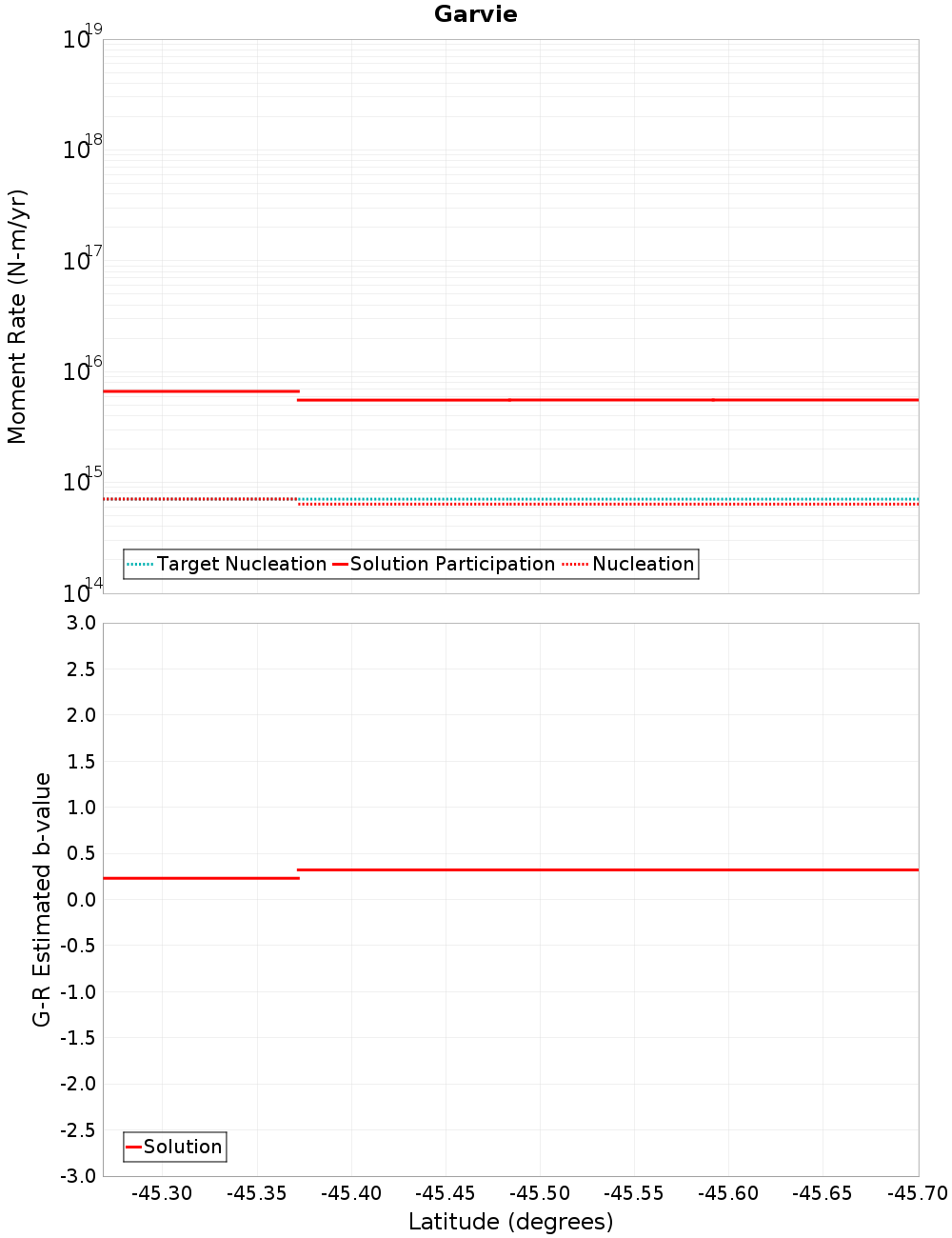

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Old Man, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.09 km |
| Min Rate-Weighted Dist | 1.45 km |
| Co-rupture Count | 152 |
| Co-rupture Rate | 1.4702235E-9 |
Teviot, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.39 km |
| Co-rupture Count | 214 |
| Co-rupture Rate | 1.3040496E-7 |
Waikaia, 2.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.34 km |
| Min Rate-Weighted Dist | 2.62 km |
| Co-rupture Count | 203 |
| Co-rupture Rate | 7.136706E-6 |
Roaring Lion, 2.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.73 km |
| Min Rate-Weighted Dist | 3.08 km |
| Co-rupture Count | 637 |
| Co-rupture Rate | 2.6825621E-6 |
Waikaka, 4.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.16 km |
| Min Rate-Weighted Dist | 4.16 km |
| Co-rupture Count | 95 |
| Co-rupture Rate | 3.4549146E-6 |
Nevis, 6.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wendon Valley, 6.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.3 km |
| Min Rate-Weighted Dist | 6.3 km |
| Co-rupture Count | 126 |
| Co-rupture Rate | 2.0660834E-6 |
Lake Onslow, 7.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pisa, 8.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 742 |
| Co-rupture Rate | 8.1838755E-7 |
Galloway, 9.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Mid Dome, 11.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dunstan, 12.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Roaring Meg, 14.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 21 |
| Co-rupture Rate | 0.0 |
NW Cardrona South, 18.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Hedgehope, 19.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Backbone, 19.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
