Green Island Details

PropertyValue
Rupture Count33
Ruptures Above Sect Min Mag33
Ruptures w/ Nonzero Rates8
Magnitude Range[6.94, 7.86]
Length Range[18, 154] km
Total Rate8.887879E-6 /yr
Multi-Fault Rate8.887879E-6 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults7

Table Of Contents

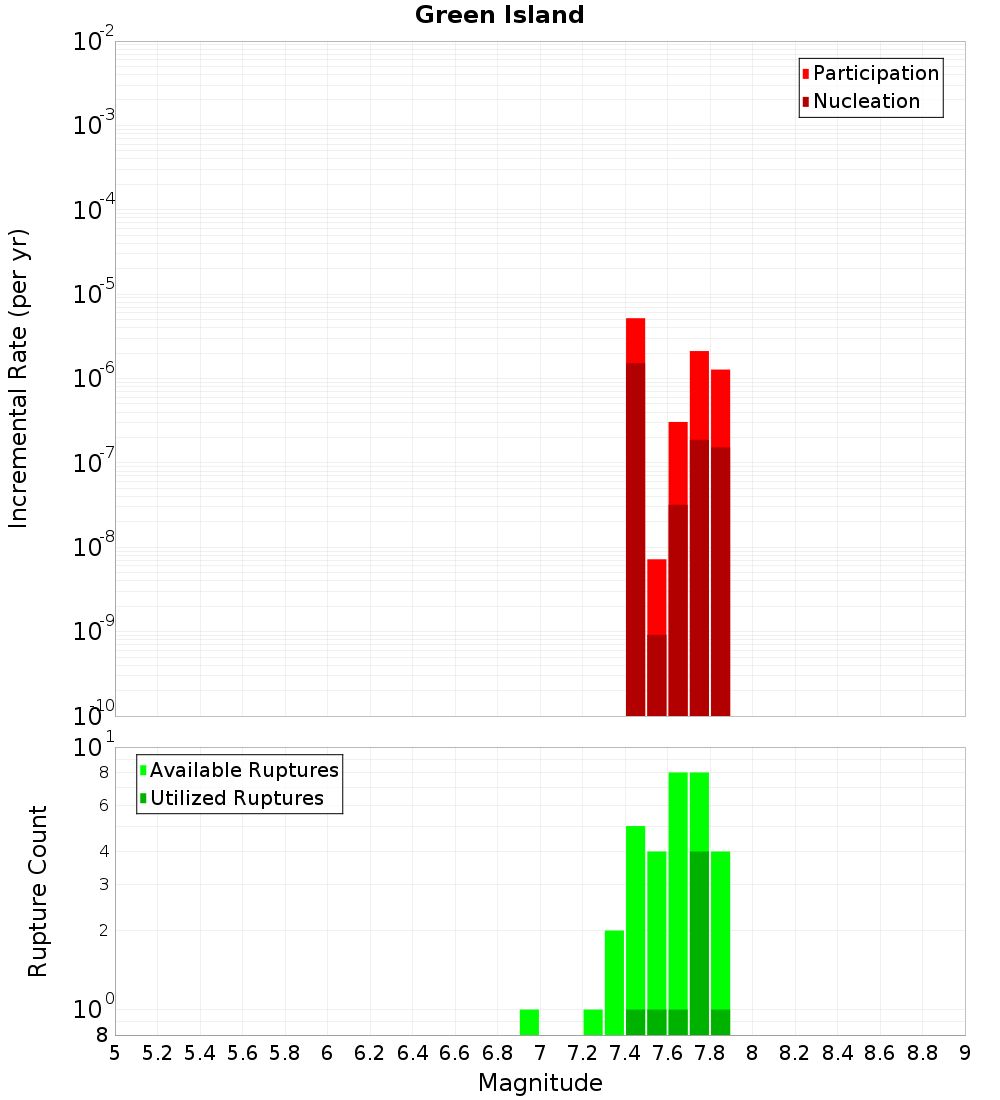

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

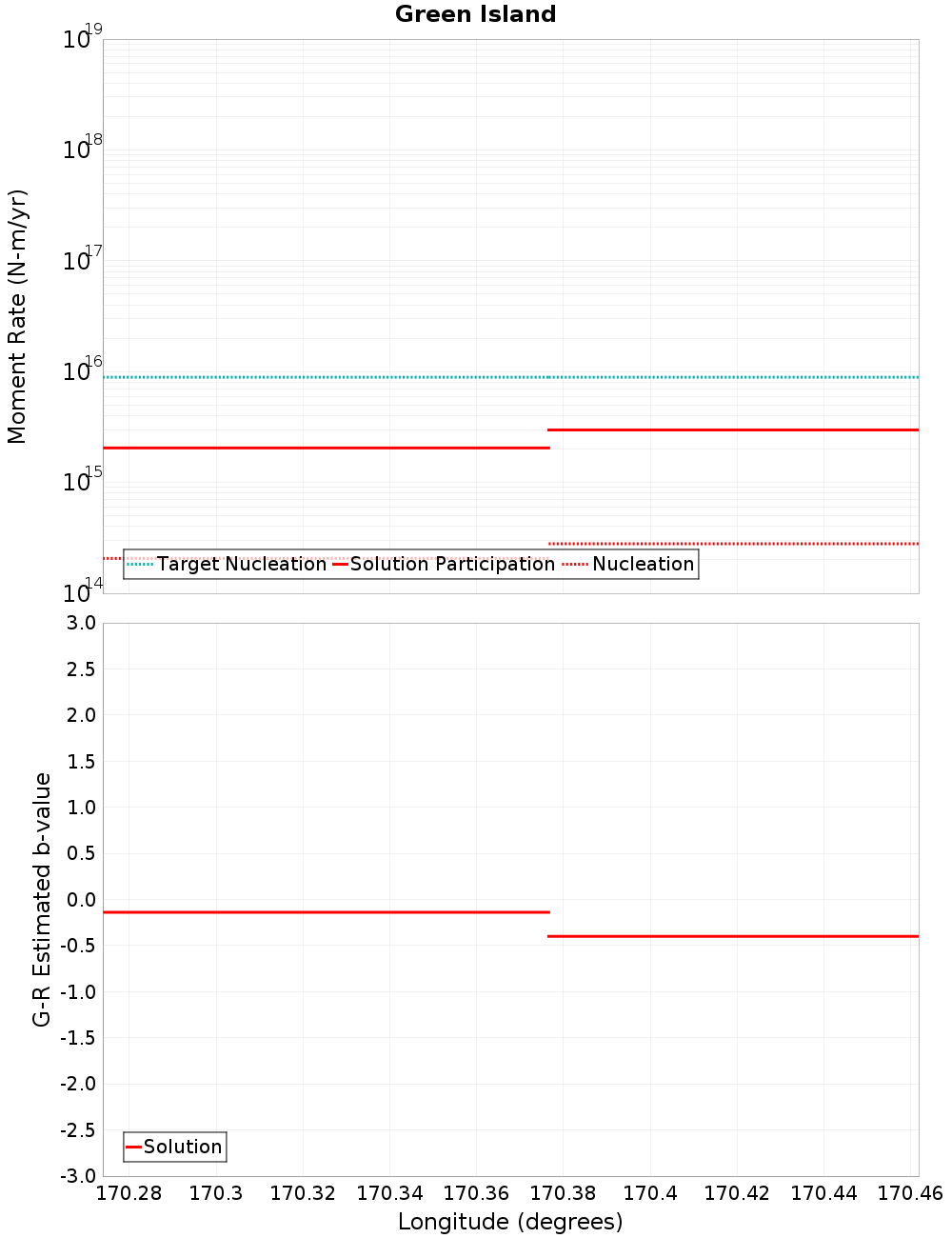

Moment-Rates and b-Values

(top)

Along-strike plot

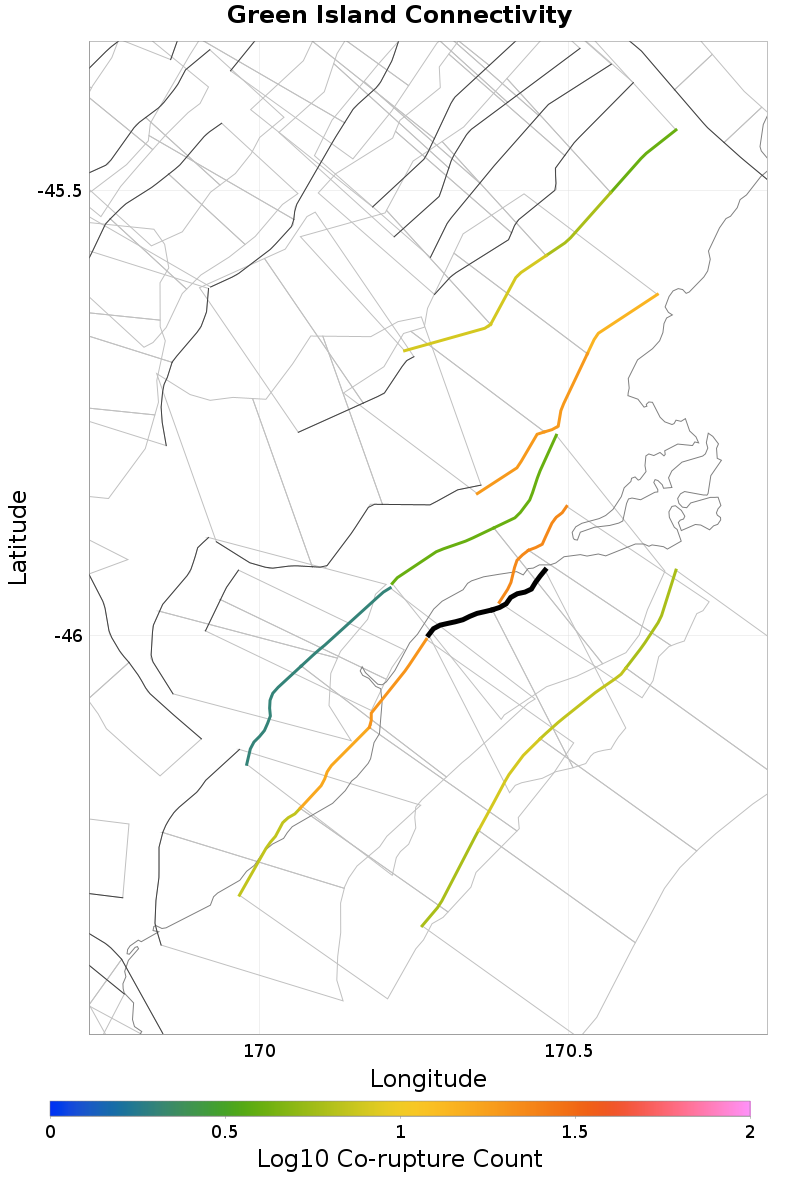

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Akatore, 0.18 km away
Kaikorai, 0.5 km away
Titri Central, 5.16 km away
Titri North, 5.35 km away
Takapu, 10.64 km away
Titri South, 11.15 km away
Sliver Stream - Merton, 12.64 km away
Maungatua - North Taieri, 13.31 km away
Waitahuna 2, 16.13 km away
Waitahuna 1, 18.28 km away

Akatore, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.18 km
Min Rate-Weighted Dist0.18 km
Co-rupture Count20
Co-rupture Rate6.862625E-6

Kaikorai, 0.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.5 km
Min Rate-Weighted Dist0.5 km
Co-rupture Count23
Co-rupture Rate8.887879E-6

Titri Central, 5.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.16 km
Co-rupture Count2
Co-rupture Rate0.0

Titri North, 5.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Takapu, 10.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist10.64 km
Min Rate-Weighted Dist10.64 km
Co-rupture Count8
Co-rupture Rate2.028336E-6

Titri South, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sliver Stream - Merton, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate3.3884908E-6

Maungatua - North Taieri, 13.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 18.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
