Hope: Conway Details

PropertyValue
Rupture Count100,584
Ruptures Above Sect Min Mag100,575
Ruptures w/ Nonzero Rates118
Magnitude Range[6.76, 8.54]
Length Range[18, 1,156] km
Total Rate0.0021179998 /yr
Multi-Fault Rate0.0021179998 /yr (100.00%)
Directly-Connected Faults13
All Co-Rupturing Faults142

Table Of Contents

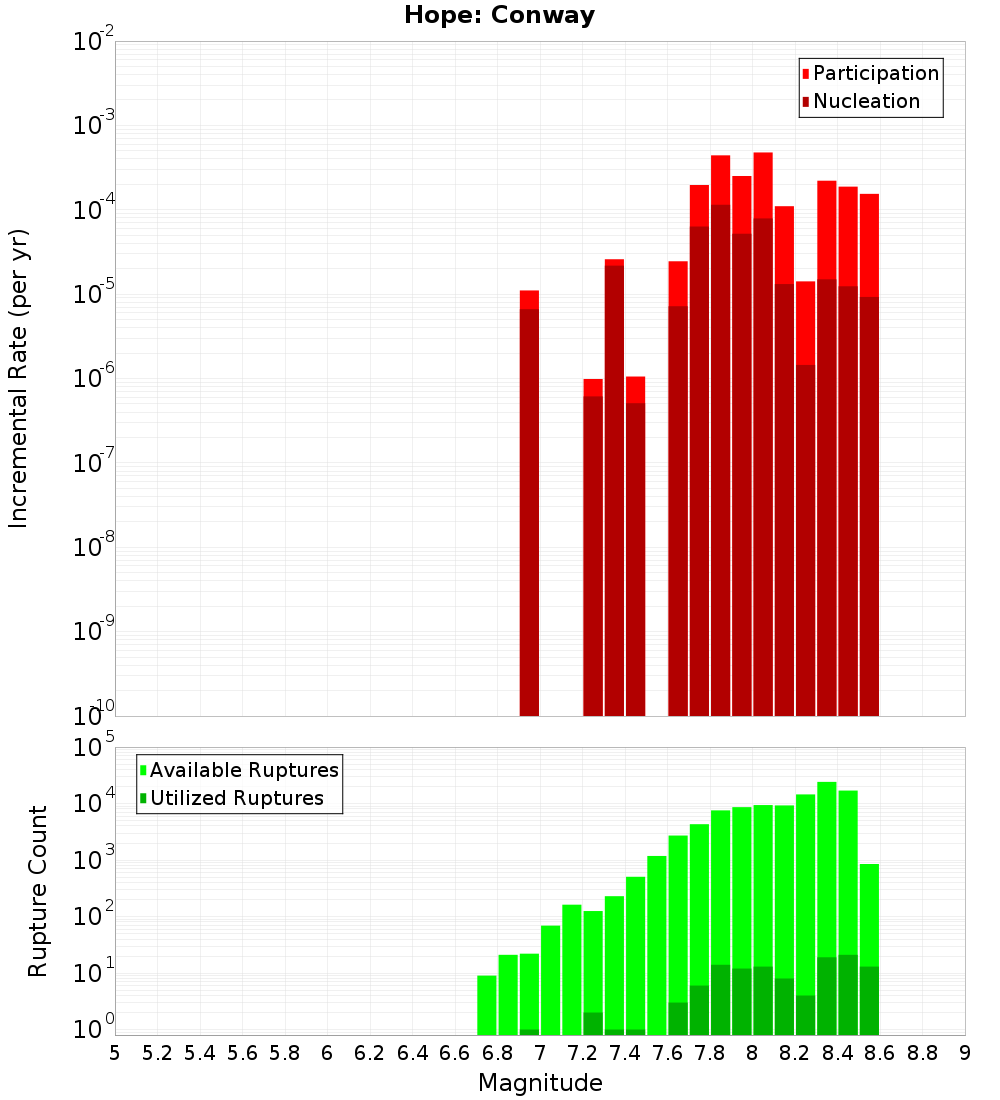

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

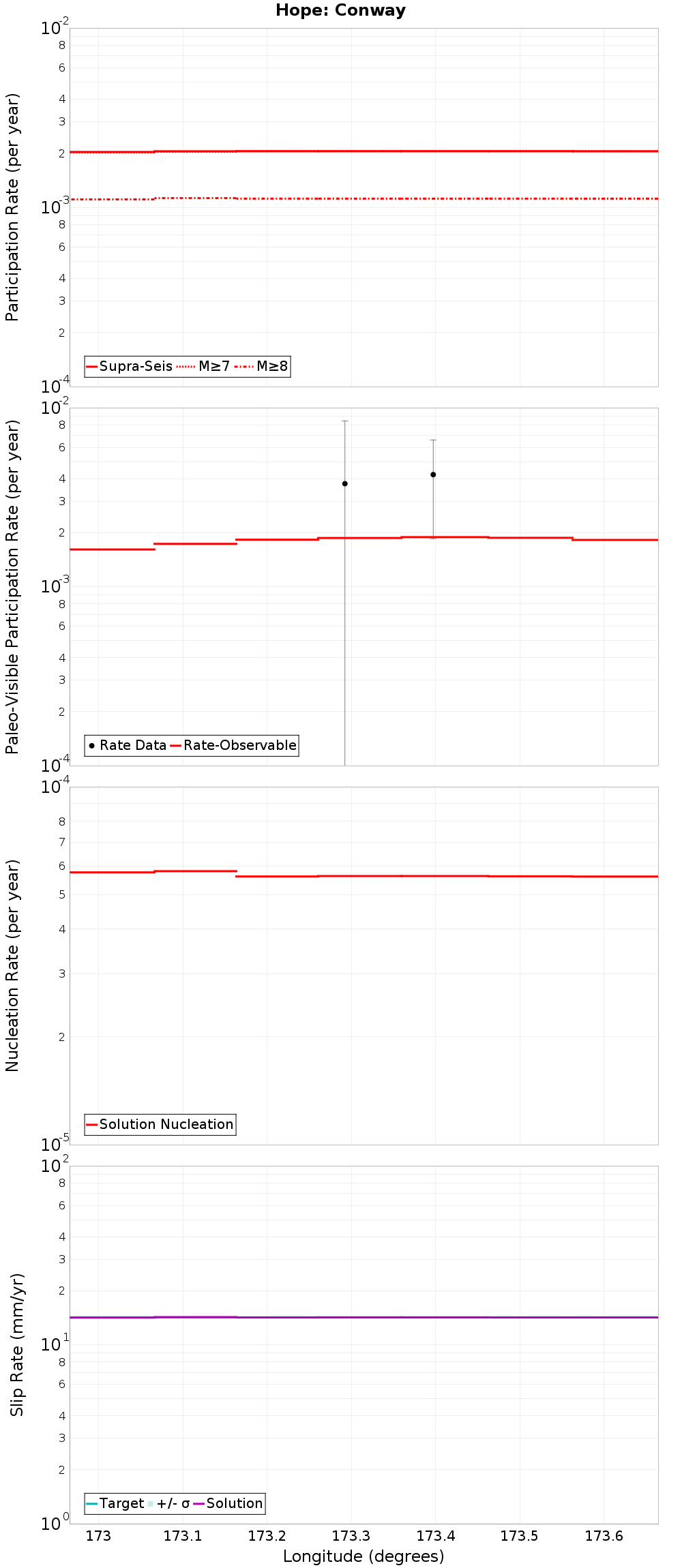

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

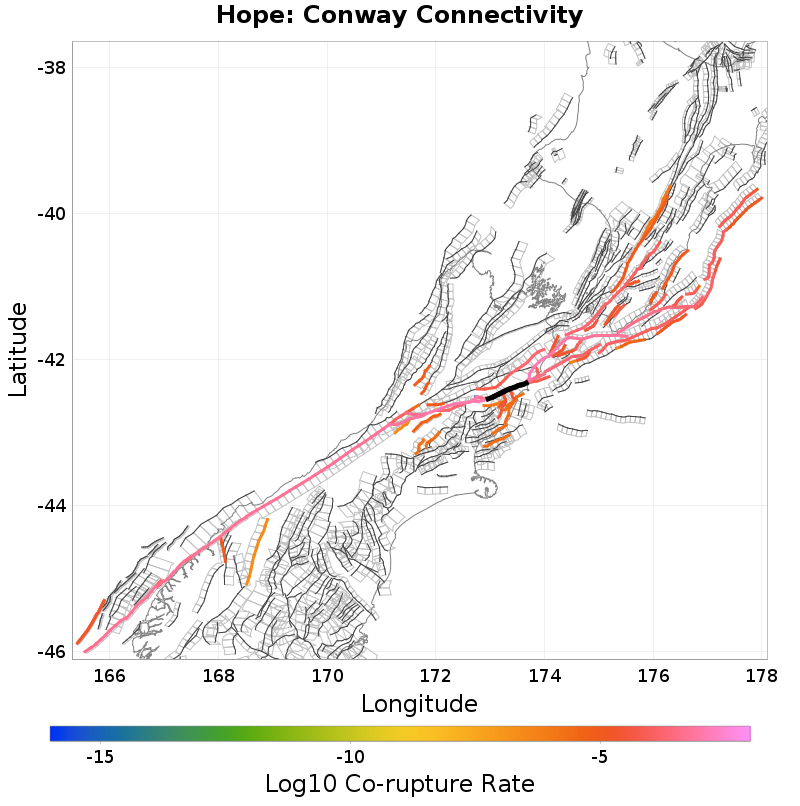

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Jordan, 0 km awayPapatea, 7.91 km away
Hanmer, 0 km awayThe Humps, 10.44 km away
Hope: Hanmer SE, 0 km awayElliott, 11.08 km away
Hope: Seaward, 0 km awayMt Culverden, 12.62 km away
Leader: North, 0.16 km awayHope: Hanmer SW, 13.51 km away
StoneJug, 0.28 km awayHope: Hanmer NW, 15.41 km away
Kaikoura - Mangamaunu, 3.18 km awayFidget, 17.08 km away
Leader: South, 3.52 km awayLeonard Mound, 18.07 km away
Hundalee, 4.6 km awayHawkswood, 18.44 km away
Leader: Central, 4.87 km awayConway Trough West, 19.66 km away
Kaiwara North, 5.81 km away

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count11,325
Co-rupture Rate0.0013206217

Hanmer, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count30,592
Co-rupture Rate4.488488E-4

Hope: Hanmer SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count70,331
Co-rupture Rate0.0011910871

Hope: Seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count53,185
Co-rupture Rate4.93045E-4

Leader: North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.16 km
Min Rate-Weighted Dist0.86 km
Co-rupture Count352
Co-rupture Rate3.8057697E-5

StoneJug, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.28 km
Min Rate-Weighted Dist0.28 km
Co-rupture Count353
Co-rupture Rate2.4382918E-5

Kaikoura - Mangamaunu, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.18 km
Min Rate-Weighted Dist3.18 km
Co-rupture Count6,714
Co-rupture Rate6.987218E-5

Leader: South, 3.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.52 km
Min Rate-Weighted Dist4.63 km
Co-rupture Count1,383
Co-rupture Rate1.8212419E-5

Hundalee, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.6 km
Min Rate-Weighted Dist4.6 km
Co-rupture Count1,639
Co-rupture Rate2.2368024E-6

Leader: Central, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.87 km
Min Rate-Weighted Dist4.87 km
Co-rupture Count1,731
Co-rupture Rate2.5721356E-5

Kaiwara North, 5.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.81 km
Min Rate-Weighted Dist5.81 km
Co-rupture Count551
Co-rupture Rate3.201542E-5

Papatea, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.91 km
Min Rate-Weighted Dist7.91 km
Co-rupture Count972
Co-rupture Rate1.0725795E-4

The Humps, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count63
Co-rupture Rate1.0555997E-6

Elliott, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist11.08 km
Co-rupture Count3,572
Co-rupture Rate7.662071E-5

Mt Culverden, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count151
Co-rupture Rate0.0

Hope: Hanmer SW, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count80,749
Co-rupture Rate9.575149E-4

Hope: Hanmer NW, 15.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count18,590
Co-rupture Rate9.658846E-4

Fidget, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count514
Co-rupture Rate0.0

Leonard Mound, 18.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count54
Co-rupture Rate0.0

Hawkswood, 18.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count731
Co-rupture Rate2.2368024E-6

Conway Trough West, 19.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0
