Kohaihai South Details
| Property | Value |
|---|---|
| Rupture Count | 38 |
| Ruptures Above Sect Min Mag | 38 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.81, 7.94] |
| Length Range | [17, 235] km |
| Total Rate | 9.3155795E-5 /yr |
| Multi-Fault Rate | 9.3155795E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

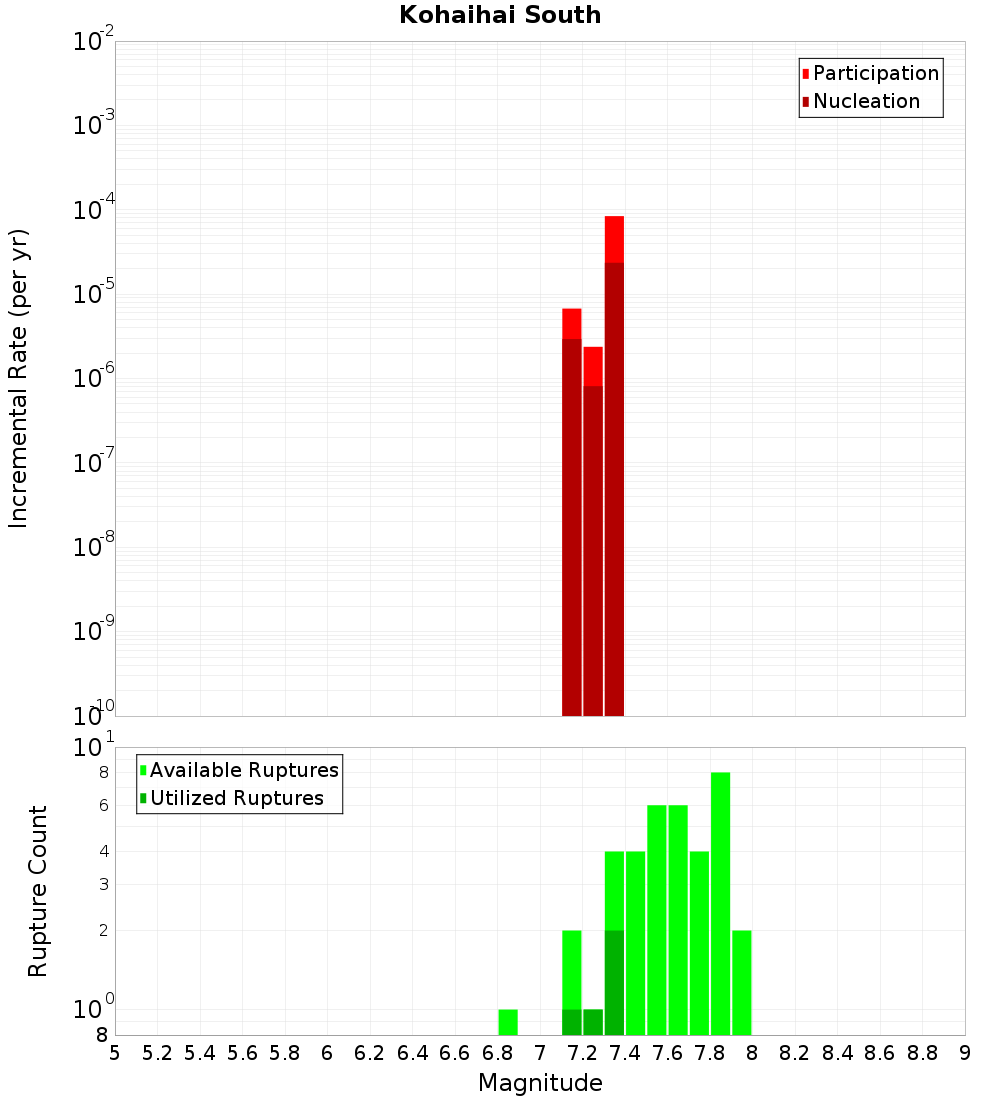

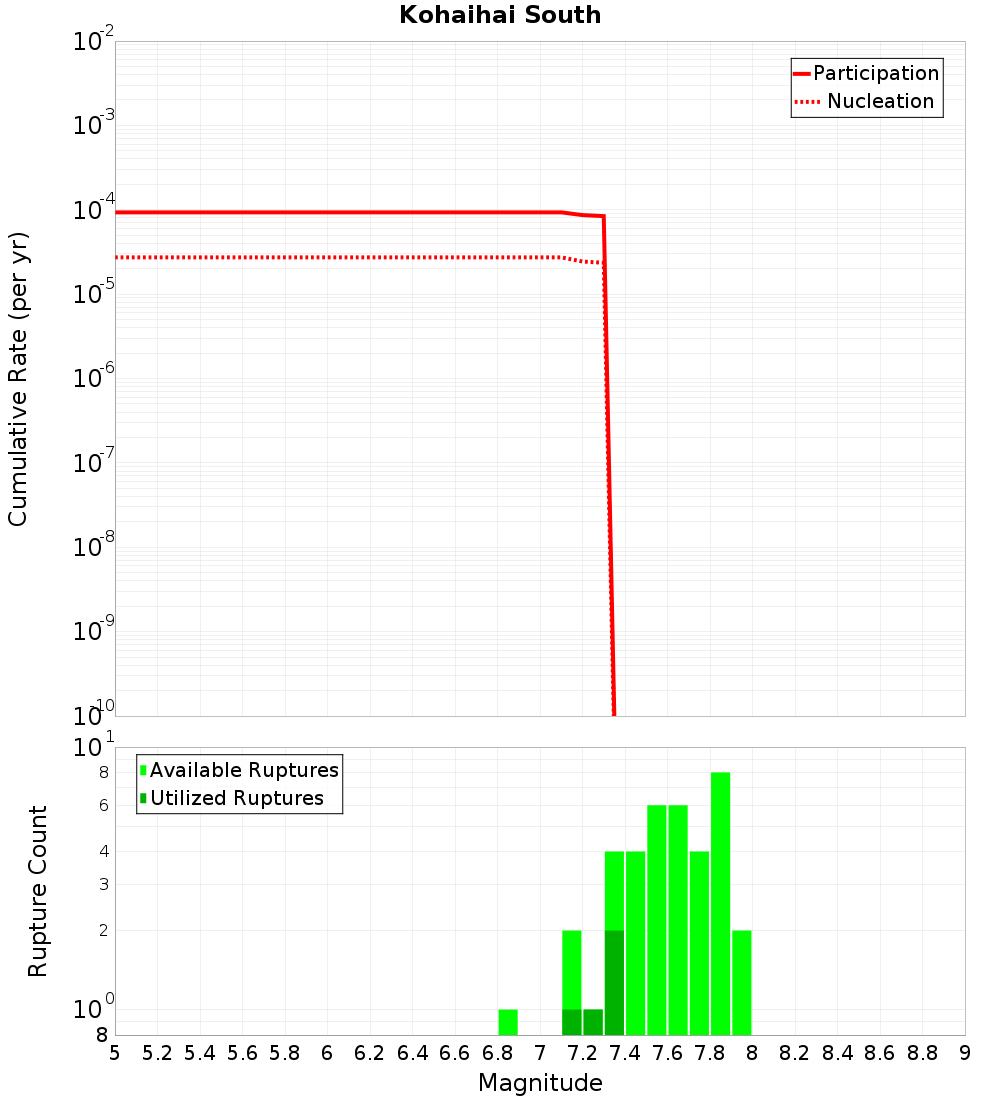

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

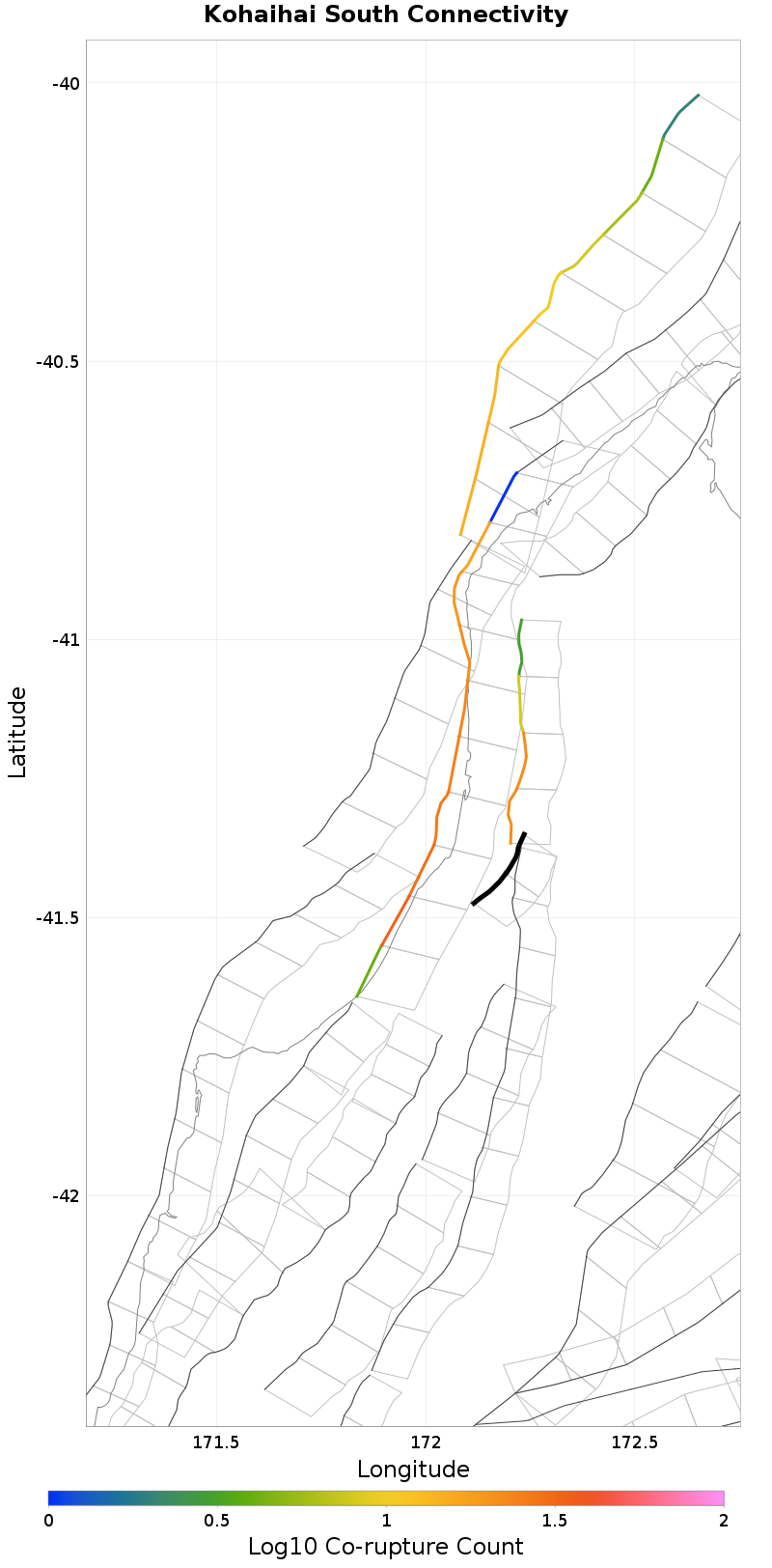

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.55 km away |
| Kohaihai, 1.73 km away |
| Kongahau, 7.55 km away |
| Lyell, 16.55 km away |
| Cape Foulwind 2, 17.22 km away |
White Creek, 0.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kohaihai, 1.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.73 km |
| Min Rate-Weighted Dist | 1.73 km |
| Co-rupture Count | 22 |
| Co-rupture Rate | 8.641419E-5 |
Kongahau, 7.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.55 km |
| Min Rate-Weighted Dist | 7.59 km |
| Co-rupture Count | 34 |
| Co-rupture Rate | 9.231716E-6 |
Lyell, 16.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Foulwind 2, 17.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
