Maimai Details
| Property | Value |
|---|---|
| Rupture Count | 147 |
| Ruptures Above Sect Min Mag | 147 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.99, 8.04] |
| Length Range | [25, 313] km |
| Total Rate | 1.6200969E-4 /yr |
| Multi-Fault Rate | 1.6200969E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

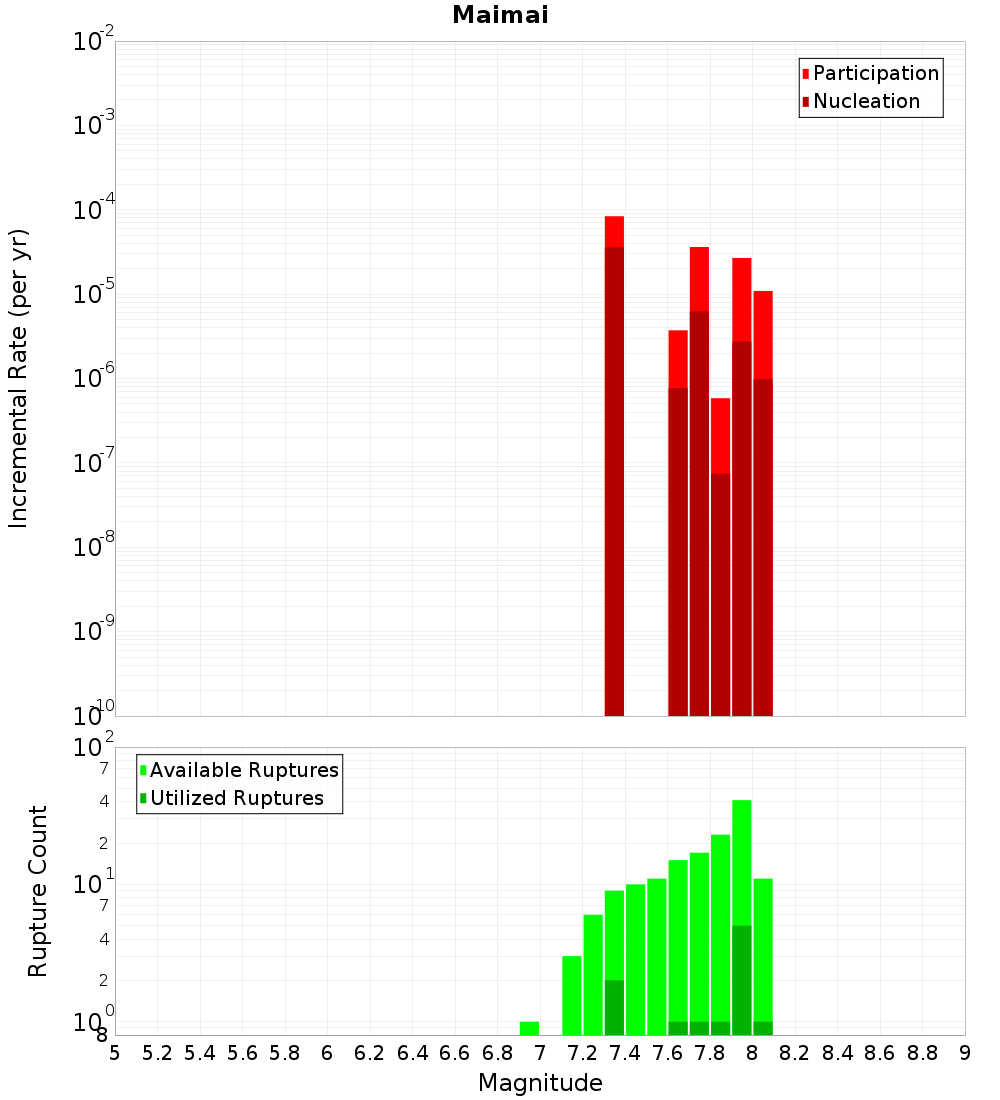

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maimai: North, 0 km away |
| Maimai: South, 0.09 km away |
| Paparoa West, 0.18 km away |
| Cape Foulwind 2, 0.28 km away |
| Cape Foulwind 1, 4.81 km away |
| Lyell South, 9.15 km away |
Maimai: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 78 |
| Co-rupture Rate | 1.220854E-4 |
Maimai: South, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.09 km |
| Min Rate-Weighted Dist | 0.09 km |
| Co-rupture Count | 19 |
| Co-rupture Rate | 7.4971335E-6 |
Paparoa West, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.18 km |
| Min Rate-Weighted Dist | 0.18 km |
| Co-rupture Count | 84 |
| Co-rupture Rate | 8.73171E-5 |
Cape Foulwind 2, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Foulwind 1, 4.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.81 km |
| Min Rate-Weighted Dist | 4.81 km |
| Co-rupture Count | 87 |
| Co-rupture Rate | 3.0832693E-5 |
Lyell South, 9.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.15 km |
| Min Rate-Weighted Dist | 10.75 km |
| Co-rupture Count | 29 |
| Co-rupture Rate | 3.9924285E-5 |
