Maimai: South Details
| Property | Value |
|---|---|
| Rupture Count | 248 |
| Ruptures Above Sect Min Mag | 242 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.80, 8.06] |
| Length Range | [20, 329] km |
| Total Rate | 6.0307182E-5 /yr |
| Multi-Fault Rate | 6.0307182E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

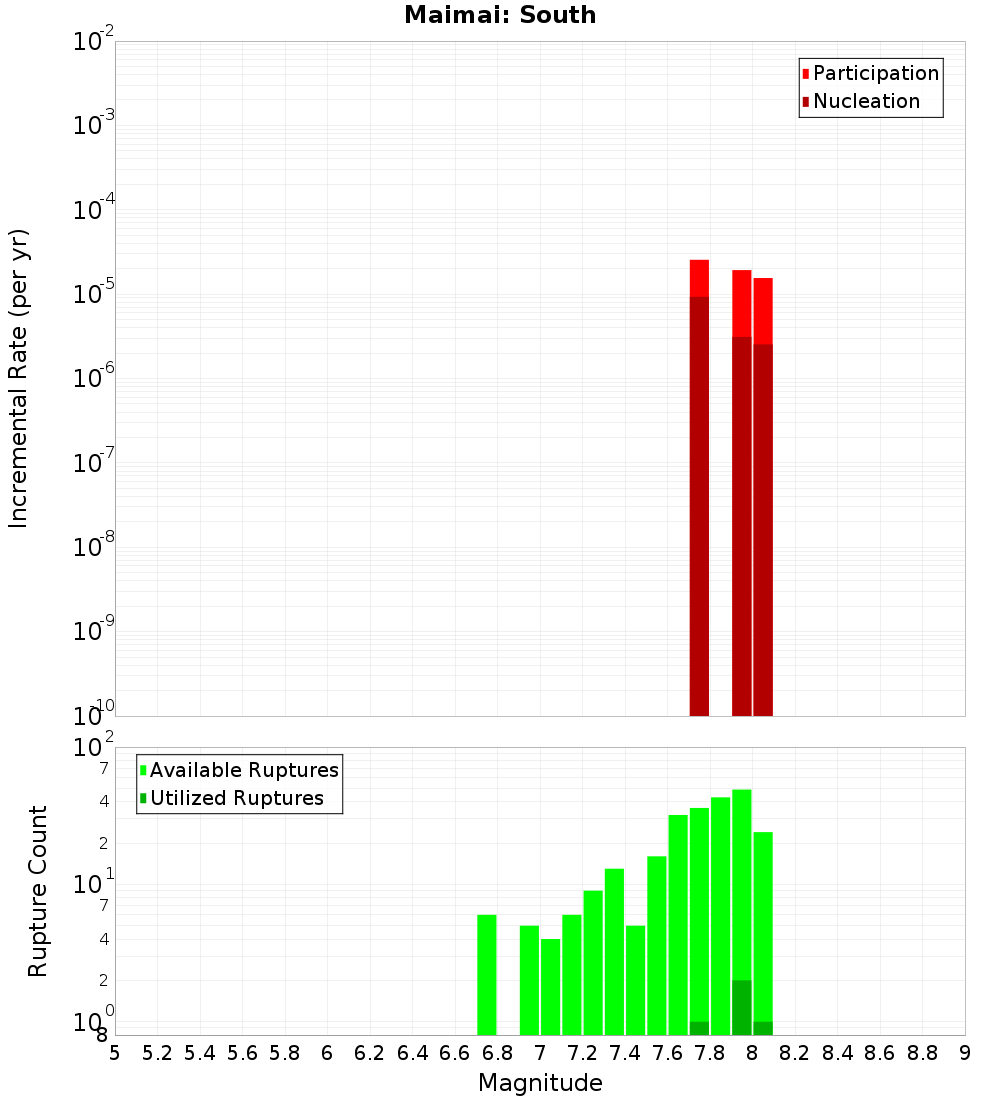

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

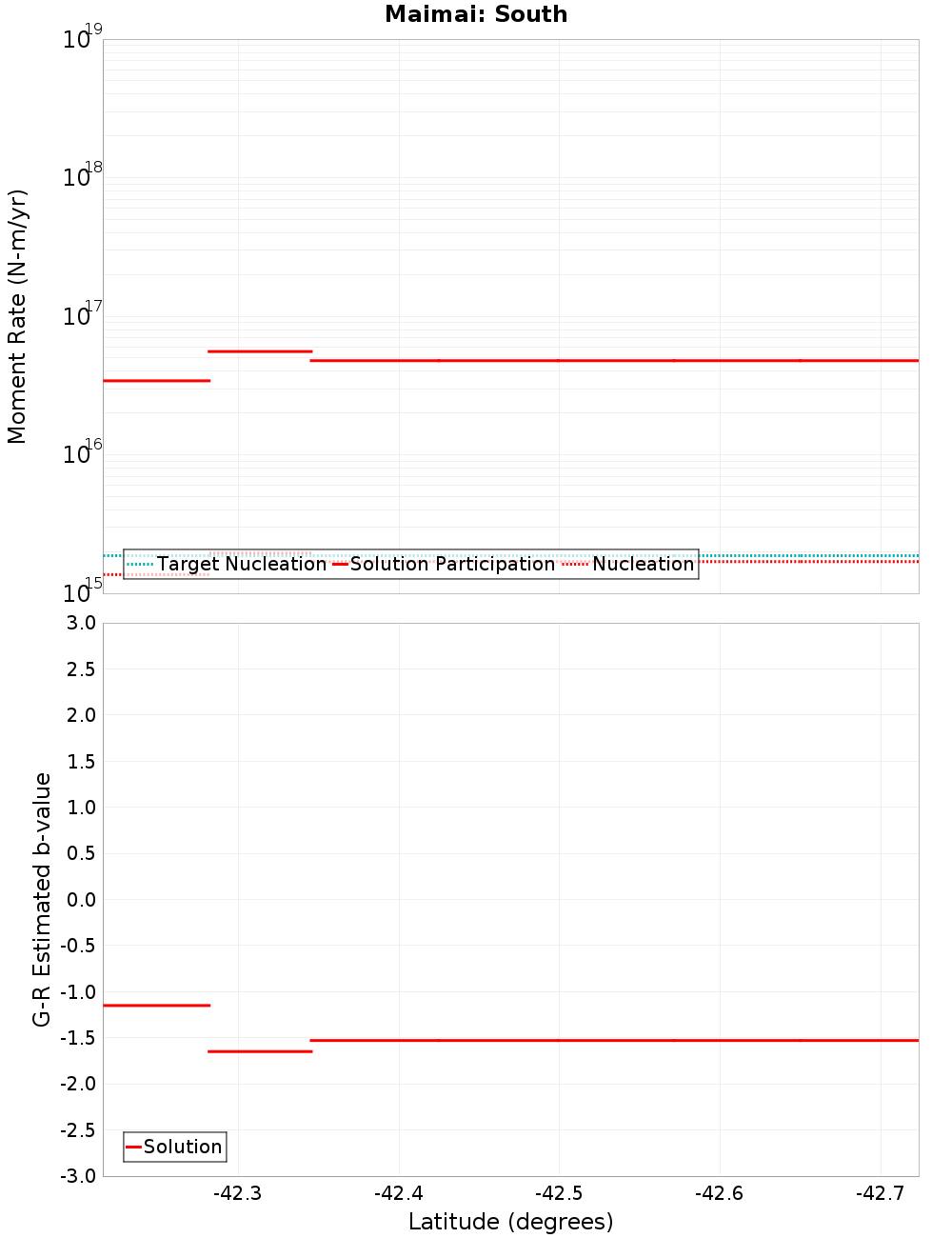

Moment-Rates and b-Values

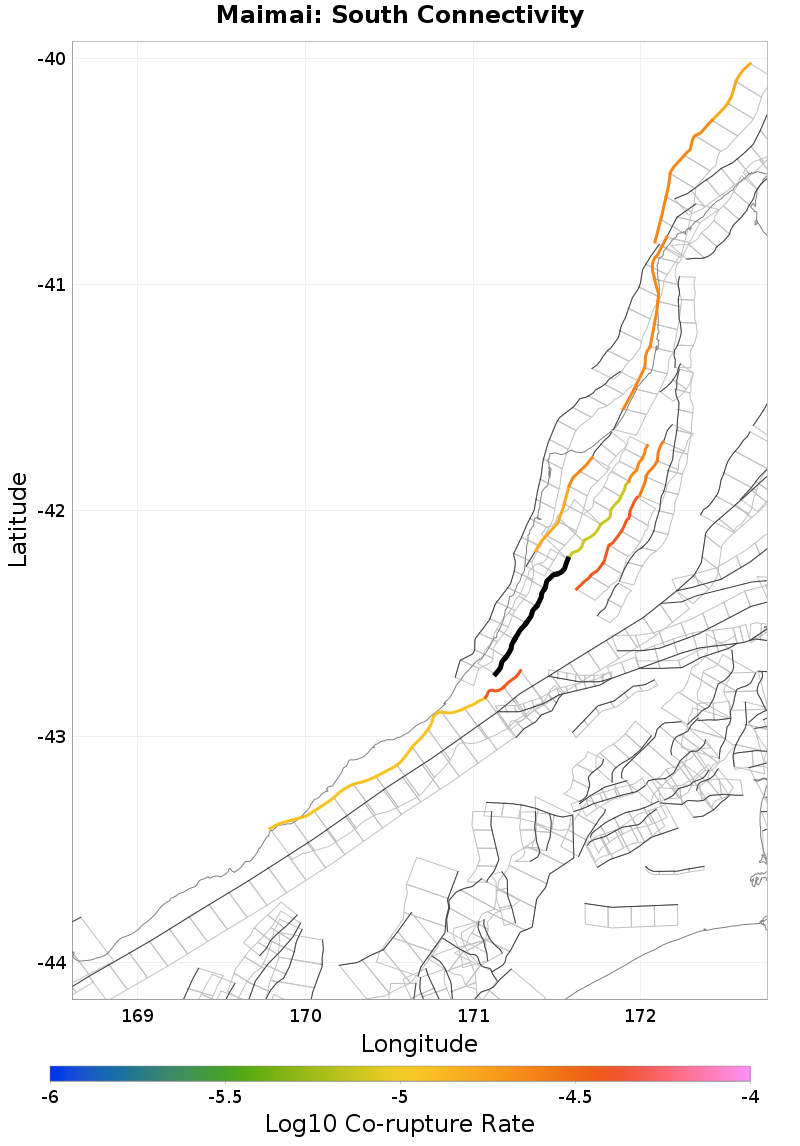

Connectivity
 |  |
|---|
Nearby Sections
Maimai, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.09 km |
| Min Rate-Weighted Dist | 0.09 km |
| Co-rupture Count | 19 |
| Co-rupture Rate | 7.4971335E-6 |
Paparoa West, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.26 km |
| Min Rate-Weighted Dist | 5.11 km |
| Co-rupture Count | 65 |
| Co-rupture Rate | 2.30125E-5 |
Cape Foulwind 1, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.53 km |
| Co-rupture Count | 56 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 2, 4.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hohonu: South, 7.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.36 km |
| Min Rate-Weighted Dist | 7.36 km |
| Co-rupture Count | 128 |
| Co-rupture Rate | 3.7294685E-5 |
Lyell South, 11.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.17 km |
| Min Rate-Weighted Dist | 11.17 km |
| Co-rupture Count | 69 |
| Co-rupture Rate | 3.7294685E-5 |
Alpine: Kaniere to Springs Junction, 15.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kelly, 17.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: Jacksons to Kaniere, 18.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
