Ohariu Details

Property	Value
Rupture Count	10,022
Ruptures Above Sect Min Mag	10,019
Ruptures w/ Nonzero Rates	20
Magnitude Range	[6.84, 8.28]
Length Range	[21, 540] km
Total Rate	8.787154E-4 /yr
Multi-Fault Rate	8.787154E-4 /yr (100.00%)
Directly-Connected Faults	17
All Co-Rupturing Faults	88

Table Of Contents

Magnitude-Frequency Distribution

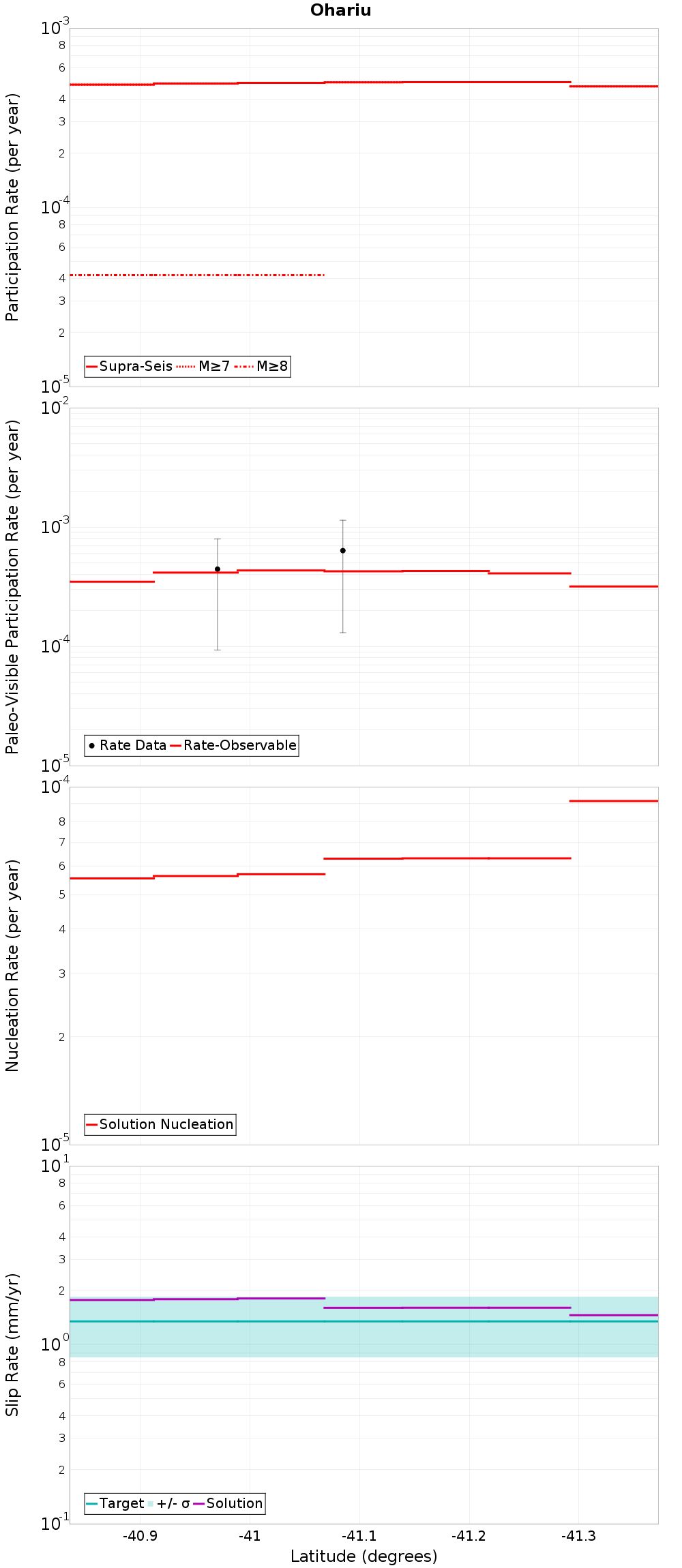

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

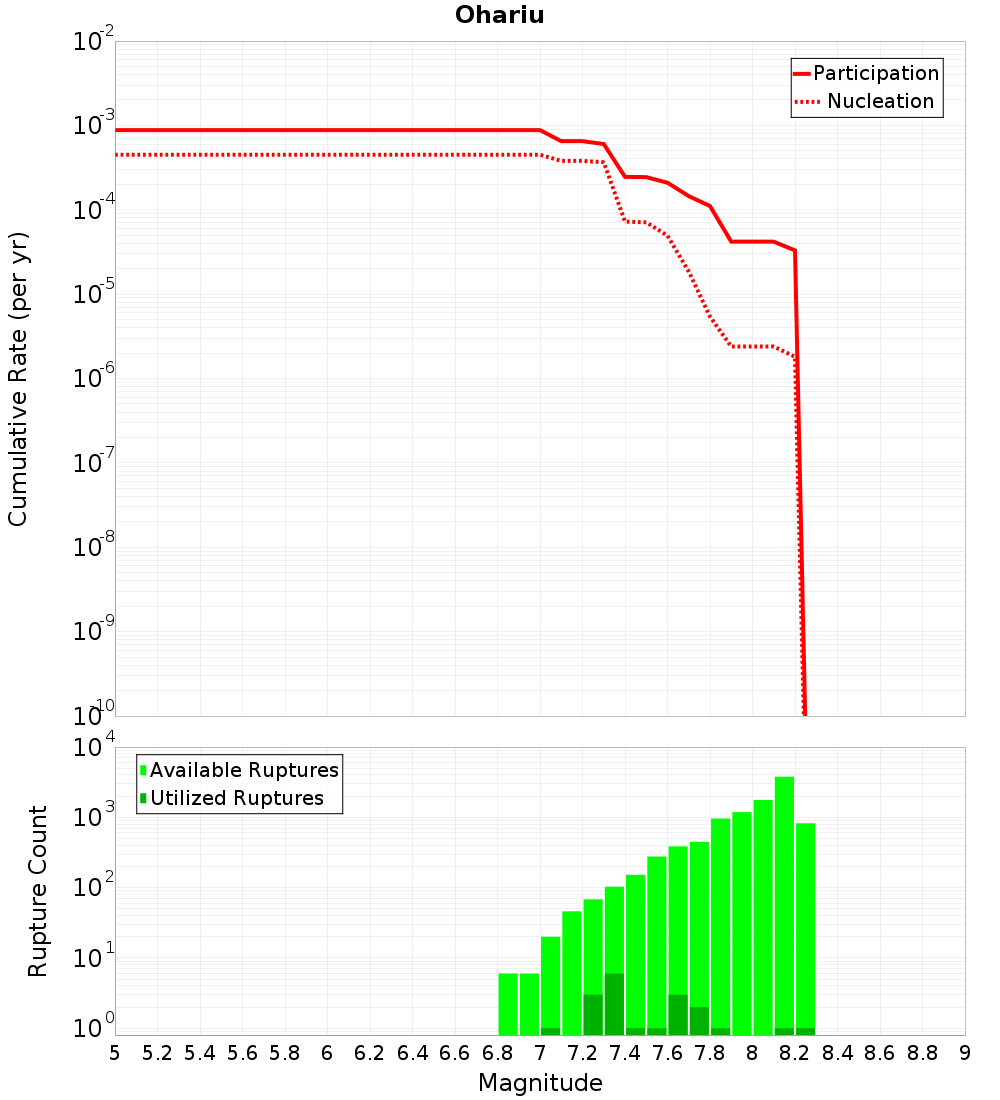

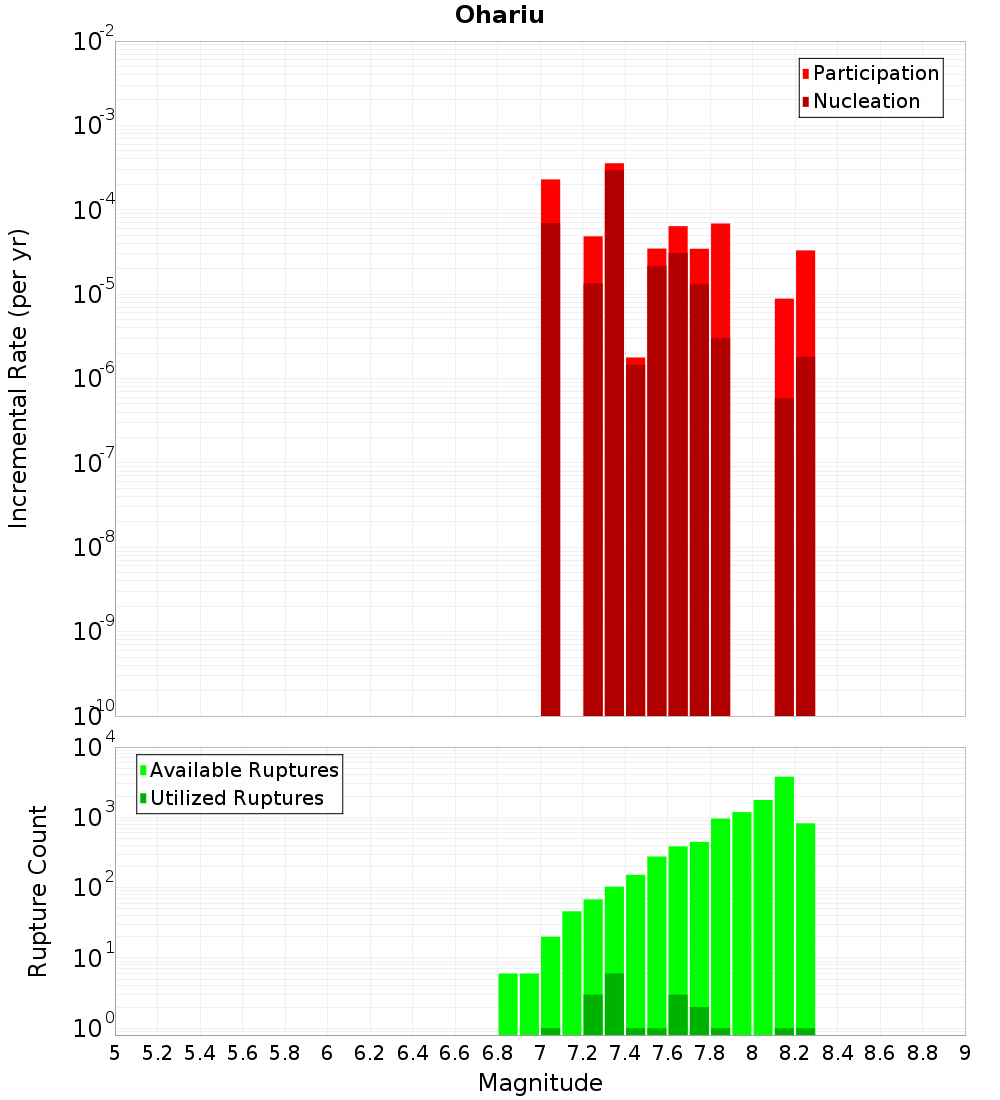

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

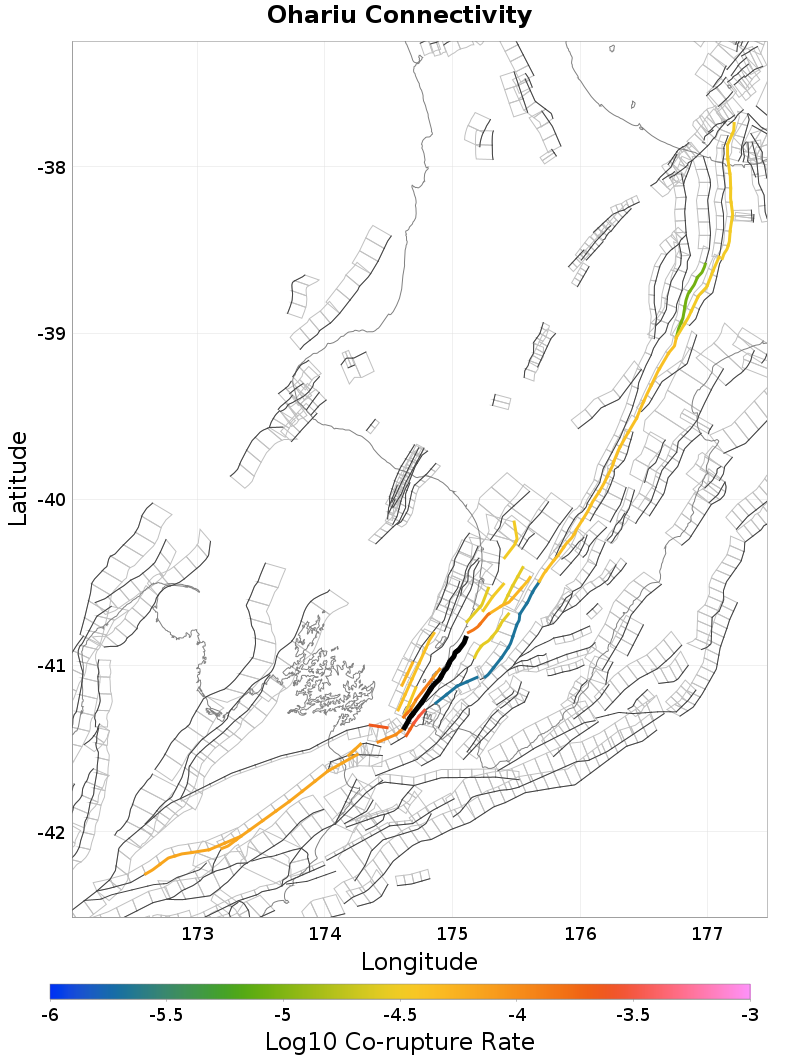

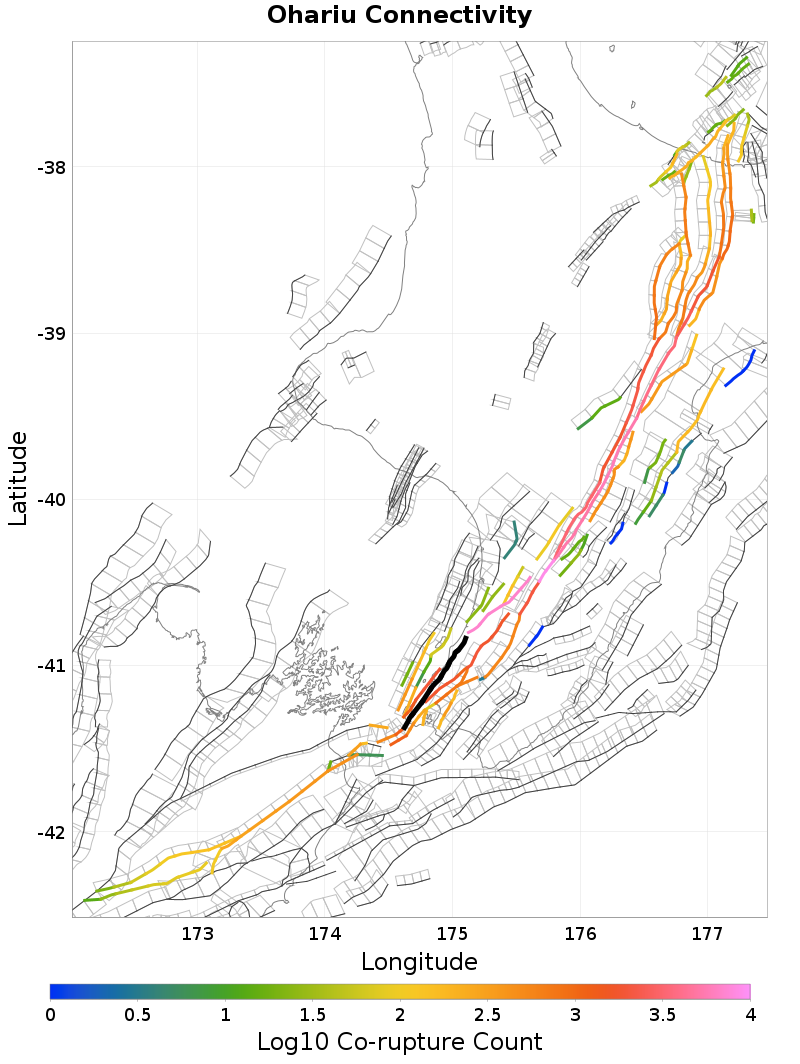

Connectivity

Nearby Sections

Fault Section	Fault Section	Fault Section
Ohariu South 2, 0 km away	Wellington Hutt Valley: 4, 4.6 km away	Wellington Hutt Valley: 5, 12.34 km away
Wellington Hutt Valley: 2, 0.17 km away	Otaki Forks: 1, 5.2 km away	Onepoto, 14.67 km away
Wellington Hutt Valley: 1, 1.7 km away	Aotea - Evans Bay, 6 km away	Wairarapa: 1, 14.99 km away
Moonshine, 2.04 km away	Akatarawa, 6.35 km away	Wairarapa: Needles, 15.68 km away
Whitemans Valley, 2.29 km away	Ohariu South 1, 6.95 km away	Wellington: Tararua 1, 15.88 km away
Pukerua - Shepherds Gully: 1, 2.91 km away	Otaheke South, 8.6 km away	Wellington: Tararua 3, 17.09 km away
Pukerua - Shepherds Gully: 2, 2.91 km away	Okupe 1, 9.22 km away	Fisherman 1, 17.14 km away
Pukerua - Shepherds Gully: 3, 3.18 km away	Poroutawhao, 11.17 km away	Wellington: Tararua 2, 18.15 km away
Shepherds Gully - Mana, 3.79 km away	Wairau 3, 11.37 km away	Fisherman 3, 18.64 km away
Wellington Hutt Valley: 3, 3.96 km away	Otaki Forks: 2, 11.39 km away	Mascarin, 19.56 km away
Northern Ohariu, 4.32 km away	Otaheke North, 11.65 km away	Fisherman 2, 19.84 km away

Ohariu South 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	1,312
Co-rupture Rate	1.01180565E-4

Wellington Hutt Valley: 2, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.59 km
Min Rate-Weighted Dist	4.59 km
Co-rupture Count	484
Co-rupture Rate	2.0025265E-4

Wellington Hutt Valley: 1, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	1.7 km
Co-rupture Count	1,193
Co-rupture Rate	0.0

Moonshine, 2.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.04 km
Co-rupture Count	1,760
Co-rupture Rate	0.0

Whitemans Valley, 2.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.29 km
Co-rupture Count	356
Co-rupture Rate	0.0

Pukerua - Shepherds Gully: 1, 2.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.91 km
Min Rate-Weighted Dist	2.92 km
Co-rupture Count	1,293
Co-rupture Rate	1.540604E-4

Pukerua - Shepherds Gully: 2, 2.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.91 km
Min Rate-Weighted Dist	3.43 km
Co-rupture Count	1,446
Co-rupture Rate	8.5251195E-5

Pukerua - Shepherds Gully: 3, 3.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.18 km
Min Rate-Weighted Dist	3.2 km
Co-rupture Count	1,919
Co-rupture Rate	1.3265065E-4

Shepherds Gully - Mana, 3.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.79 km
Min Rate-Weighted Dist	3.79 km
Co-rupture Count	227
Co-rupture Rate	3.4675275E-5

Wellington Hutt Valley: 3, 3.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.96 km
Min Rate-Weighted Dist	3.96 km
Co-rupture Count	261
Co-rupture Rate	3.024661E-4

Northern Ohariu, 4.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.32 km
Min Rate-Weighted Dist	4.32 km
Co-rupture Count	7,023
Co-rupture Rate	1.4593171E-4

Wellington Hutt Valley: 4, 4.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.6 km
Min Rate-Weighted Dist	8.01 km
Co-rupture Count	858
Co-rupture Rate	2.0785076E-6

Otaki Forks: 1, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.2 km
Min Rate-Weighted Dist	5.2 km
Co-rupture Count	1,943
Co-rupture Rate	2.6882617E-5

Aotea - Evans Bay, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6 km
Co-rupture Count	204
Co-rupture Rate	0.0

Akatarawa, 6.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	false
Co-rupture Count	705
Co-rupture Rate	0.0

Ohariu South 1, 6.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6.95 km
Min Rate-Weighted Dist	6.95 km
Co-rupture Count	534
Co-rupture Rate	1.0244238E-4

Otaheke South, 8.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	9.37 km
Co-rupture Count	63
Co-rupture Rate	0.0

Okupe 1, 9.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	false
Co-rupture Count	388
Co-rupture Rate	4.2832788E-5

Poroutawhao, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	2.6859043E-5

Wairau 3, 11.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	11.37 km
Min Rate-Weighted Dist	11.37 km
Co-rupture Count	254
Co-rupture Rate	2.2894726E-4

Otaki Forks: 2, 11.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	false
Co-rupture Count	1,727
Co-rupture Rate	2.6882617E-5

Otaheke North, 11.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 5, 12.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	false
Co-rupture Count	622
Co-rupture Rate	2.0785076E-6

Onepoto, 14.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 1, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: Needles, 15.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 1, 15.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Wellington: Tararua 3, 17.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	false
Co-rupture Count	577
Co-rupture Rate	2.0785076E-6

Fisherman 1, 17.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	5.1314262E-5

Wellington: Tararua 2, 18.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	true
Directly Connected?	false
Co-rupture Count	558
Co-rupture Rate	2.0785076E-6

Fisherman 3, 18.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mascarin, 19.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fisherman 2, 19.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
