Okaia 5 Details
| Property | Value |
|---|---|
| Rupture Count | 706 |
| Ruptures Above Sect Min Mag | 608 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.18, 7.31] |
| Length Range | [9, 122] km |
| Total Rate | 2.728753E-5 /yr |
| Multi-Fault Rate | 2.728753E-5 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

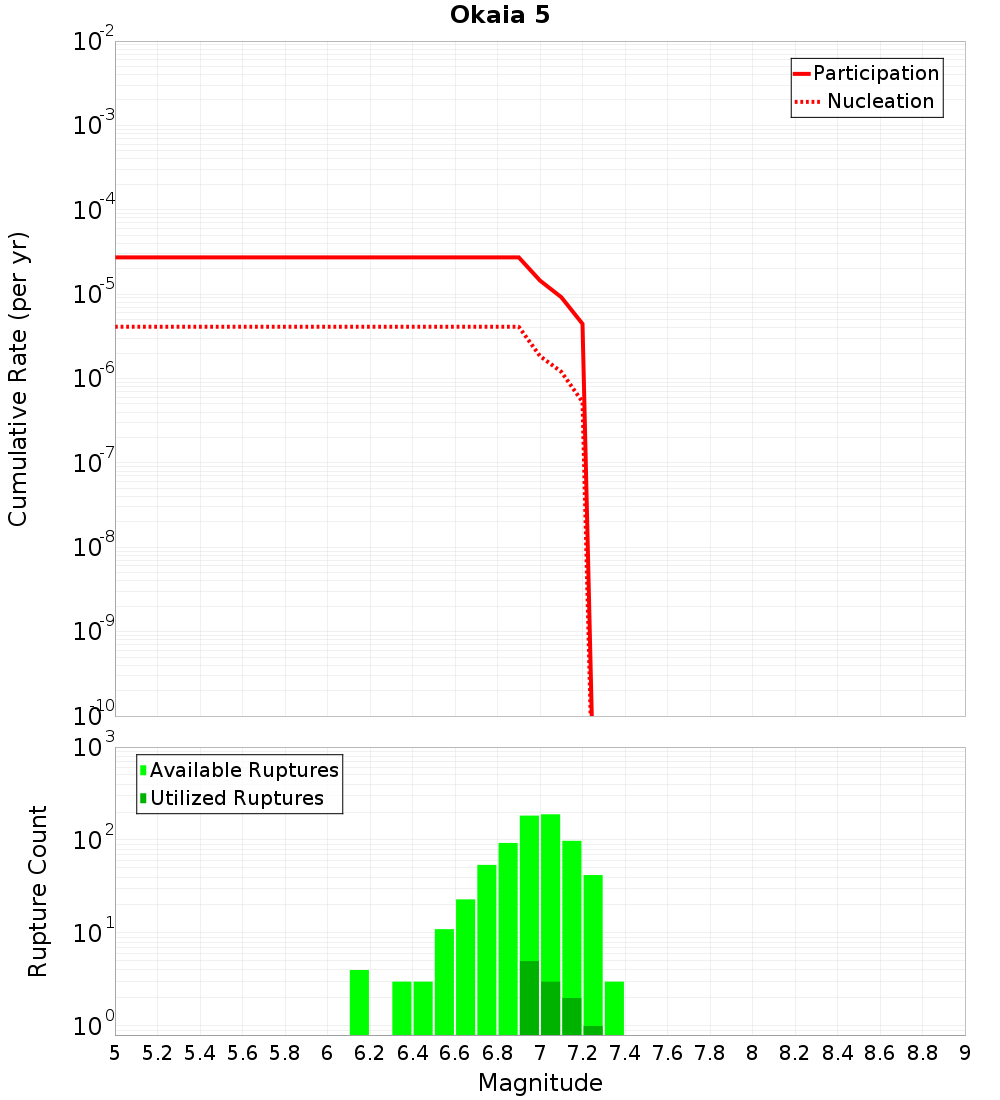

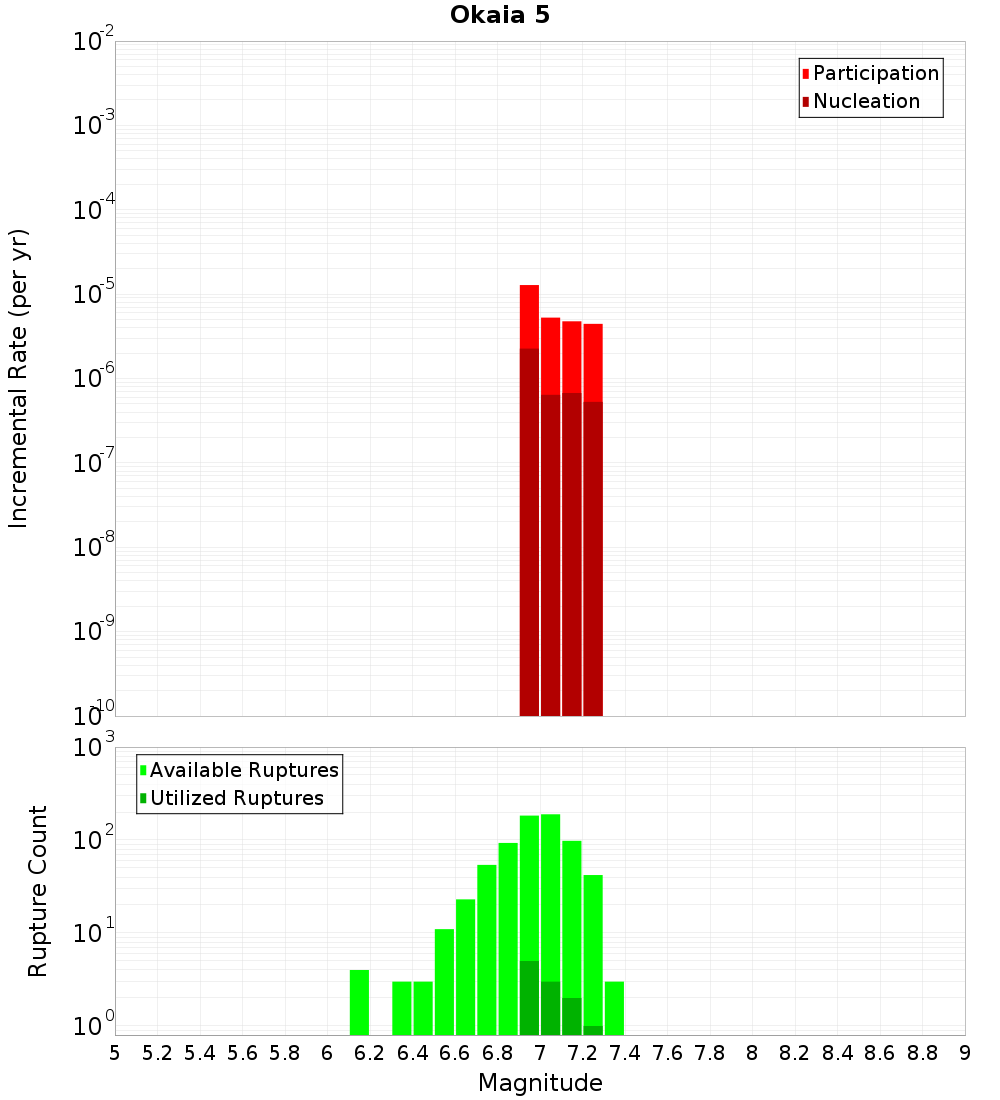

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

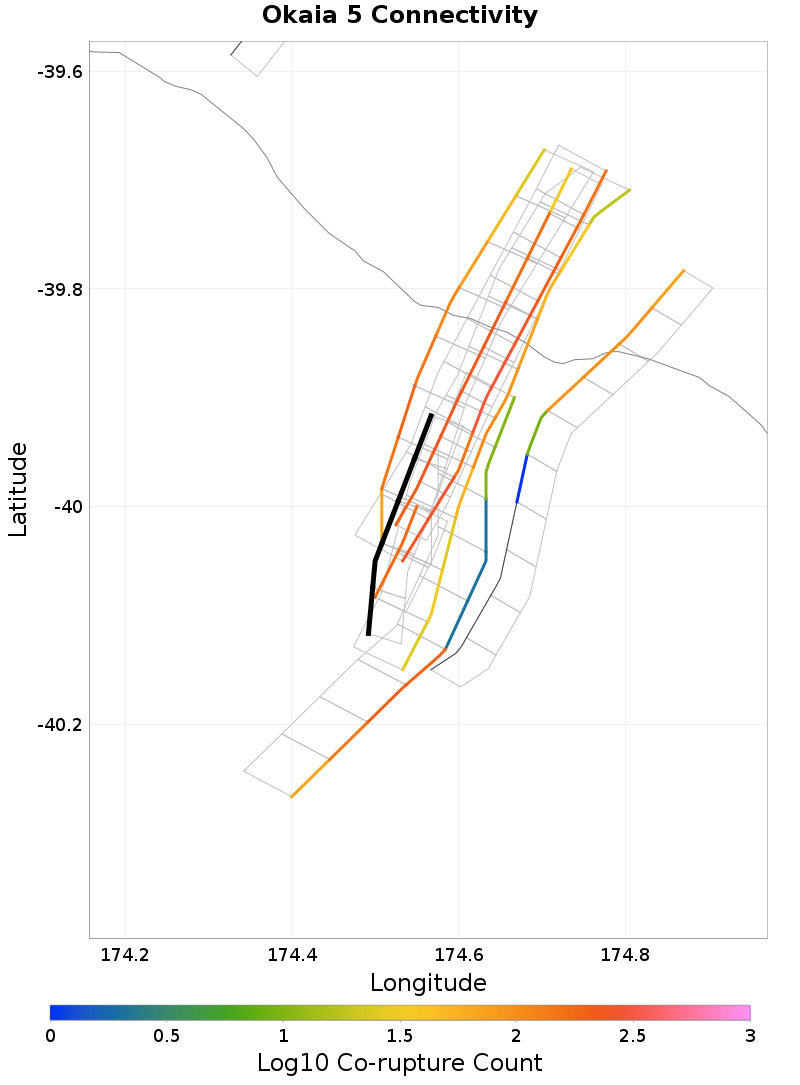

Connectivity
 |  |
|---|
Nearby Sections
Waitotara 8 & 9, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.22 km |
| Co-rupture Count | 213 |
| Co-rupture Rate | 6.4103237E-6 |
Waverley - Okaia 1, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.1 km |
| Min Rate-Weighted Dist | 0.1 km |
| Co-rupture Count | 198 |
| Co-rupture Rate | 1.4700659E-5 |
Waitotara 10 & 11, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.45 km |
| Min Rate-Weighted Dist | 0.47 km |
| Co-rupture Count | 137 |
| Co-rupture Rate | 7.823194E-6 |
Ridge Road - Okaia 2, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.41 km |
| Min Rate-Weighted Dist | 0.44 km |
| Co-rupture Count | 443 |
| Co-rupture Rate | 2.72403E-5 |
Okaia 3, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.32 km |
| Co-rupture Count | 171 |
| Co-rupture Rate | 0.0 |
Moumahaki - Okaia 4, 0.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.64 km |
| Min Rate-Weighted Dist | 0.64 km |
| Co-rupture Count | 312 |
| Co-rupture Rate | 9.207951E-6 |
Nukumuru - Waitotara 1-6, 6.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.91 km |
| Co-rupture Count | 115 |
| Co-rupture Rate | 0.0 |
