Palliser - Kaiwhata Details

PropertyValue
Rupture Count15,931
Ruptures Above Sect Min Mag15,924
Ruptures w/ Nonzero Rates18
Magnitude Range[6.74, 8.50]
Length Range[18, 1,017] km
Total Rate6.283803E-4 /yr
Multi-Fault Rate6.283803E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults81

Table Of Contents

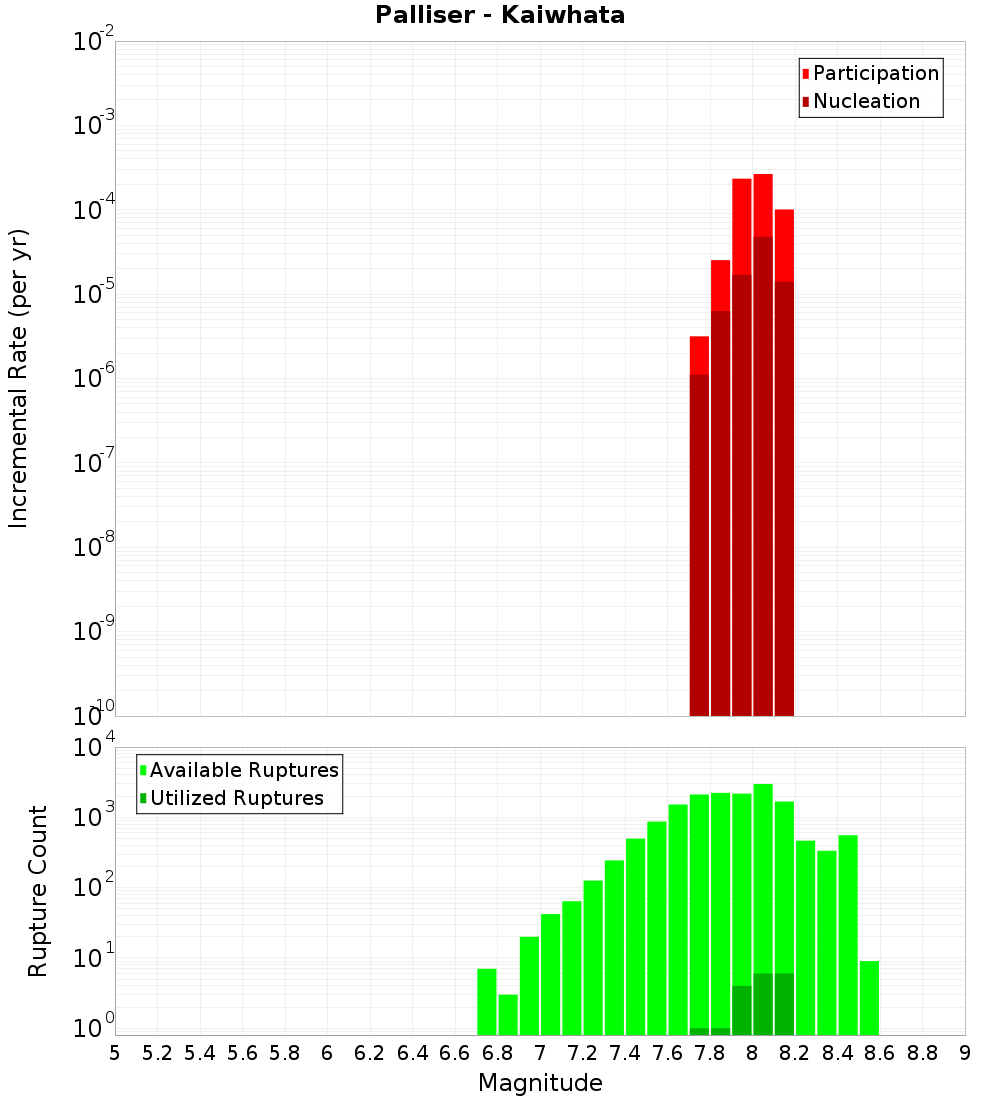

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

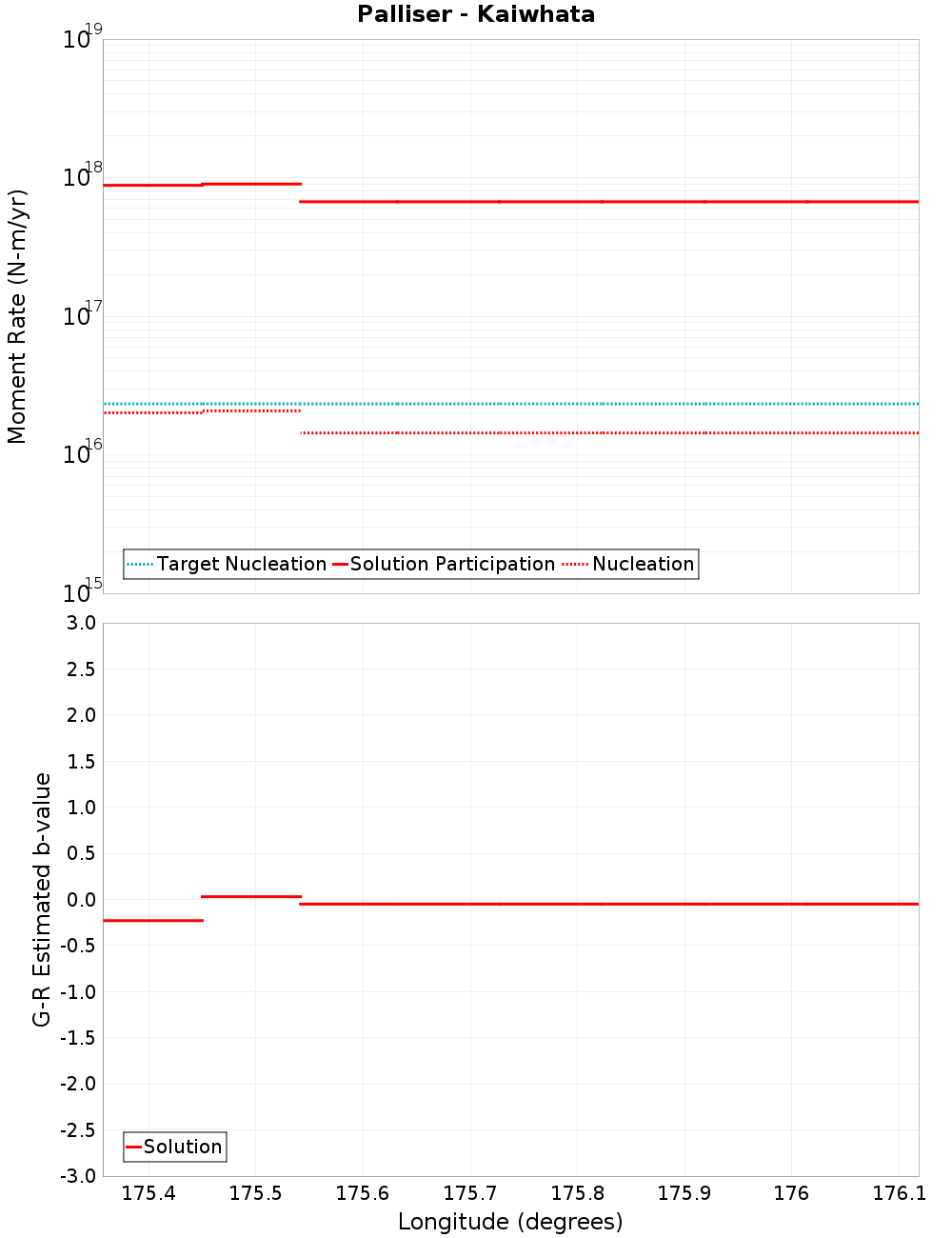

Moment-Rates and b-Values

(top)

Along-strike plot

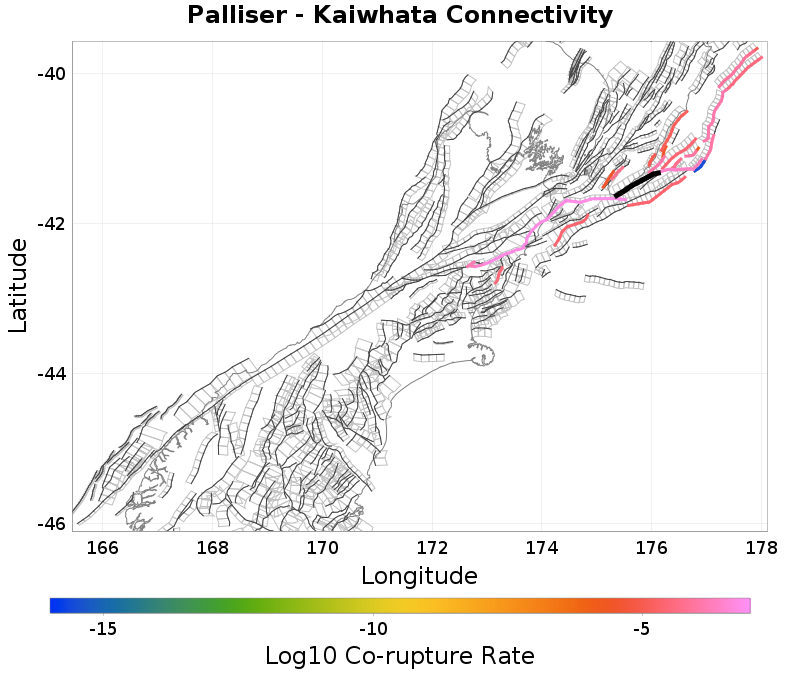

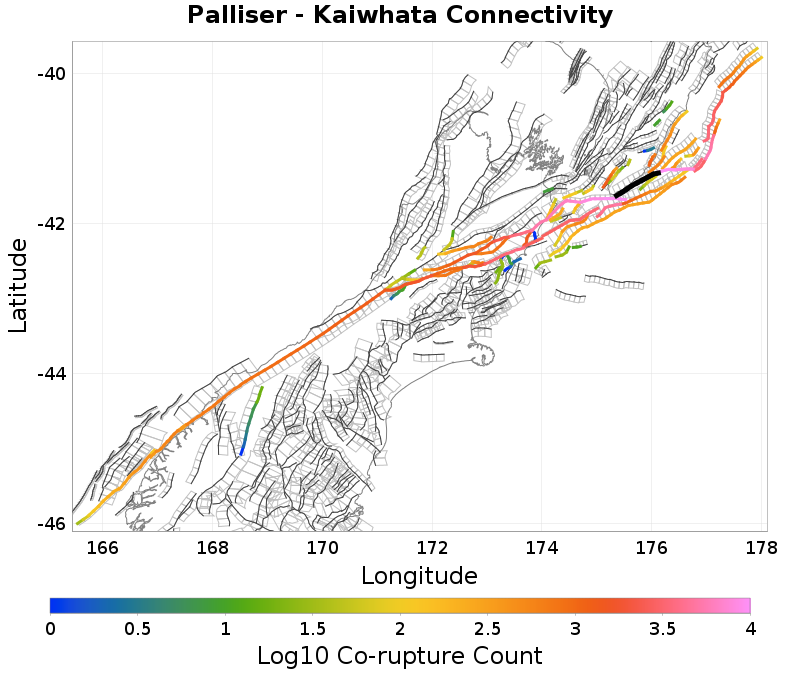

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Honeycomb, 1.24 km away
Uruti Basin, 1.36 km away
Riversdale, 3.26 km away
Otaraia, 3.3 km away
BooBoo, 4.22 km away
Uruti Point, 4.46 km away
Whareama Bank, 6.96 km away
Opouawe - Uruti, 8.63 km away
Dry River - Huangarua: 1, 12.51 km away
Pahaua, 13.66 km away
Riversdale North, 15.29 km away
Dry River - Huangarua: 3, 19.02 km away
Dry River - Huangarua: 2, 19.35 km away

Honeycomb, 1.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.93 km
Co-rupture Count63
Co-rupture Rate0.0

Uruti Basin, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.36 km
Min Rate-Weighted Dist1.36 km
Co-rupture Count9,797
Co-rupture Rate2.9844372E-4

Riversdale, 3.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.26 km
Min Rate-Weighted Dist3.26 km
Co-rupture Count606
Co-rupture Rate1.09615736E-4

Otaraia, 3.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.3 km
Min Rate-Weighted Dist3.3 km
Co-rupture Count1,322
Co-rupture Rate3.1609973E-6

BooBoo, 4.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.22 km
Min Rate-Weighted Dist4.22 km
Co-rupture Count9,590
Co-rupture Rate5.999447E-4

Uruti Point, 4.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.46 km
Min Rate-Weighted Dist4.46 km
Co-rupture Count1,148
Co-rupture Rate1.0390375E-5

Whareama Bank, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count280
Co-rupture Rate2.5274621E-5

Opouawe - Uruti, 8.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.63 km
Co-rupture Count5,260
Co-rupture Rate0.0

Dry River - Huangarua: 1, 12.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.52 km
Min Rate-Weighted Dist14.17 km
Co-rupture Count66
Co-rupture Rate5.213869E-5

Pahaua, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count627
Co-rupture Rate2.373329E-5

Riversdale North, 15.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate3.1609973E-6

Dry River - Huangarua: 3, 19.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate0.0

Dry River - Huangarua: 2, 19.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
