Te Whaiti North Details

PropertyValue
Rupture Count1,351
Ruptures Above Sect Min Mag1,349
Ruptures w/ Nonzero Rates7
Magnitude Range[6.35, 8.36]
Length Range[8, 646] km
Total Rate5.5554658E-5 /yr
Multi-Fault Rate5.5554658E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults84

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

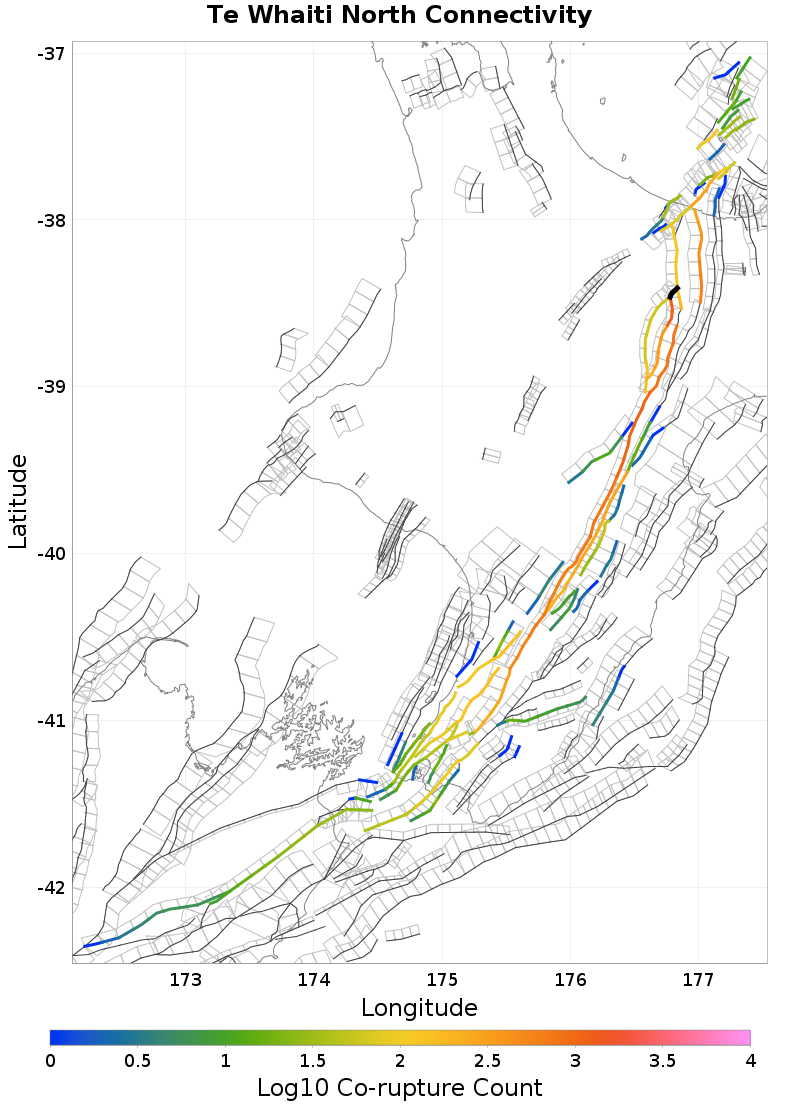

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Whaiti South, 0 km away
Wheao: North, 0 km away
Waiohau: North, 0.22 km away
Waiohau: South, 10.36 km away
Wheao: South, 11.11 km away
Whakatane: North, 13.54 km away
Whakatane: South, 18 km away

Te Whaiti South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count1,142
Co-rupture Rate3.8462204E-5

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count59
Co-rupture Rate1.7092454E-5

Waiohau: North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.22 km
Min Rate-Weighted Dist5.05 km
Co-rupture Count193
Co-rupture Rate1.7092454E-5

Waiohau: South, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count779
Co-rupture Rate1.4073332E-5

Wheao: South, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate1.7092454E-5

Whakatane: North, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?true
Directly Connected?true
Min Co-Rupture Dist13.54 km
Min Rate-Weighted Dist13.54 km
Co-rupture Count630
Co-rupture Rate1.2528526E-5

Whakatane: South, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
