Tutaki Details
| Property | Value |
|---|---|
| Rupture Count | 661 |
| Ruptures Above Sect Min Mag | 659 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [7.04, 8.47] |
| Length Range | [24, 886] km |
| Total Rate | 6.867561E-5 /yr |
| Multi-Fault Rate | 6.867561E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 20 |
Table Of Contents

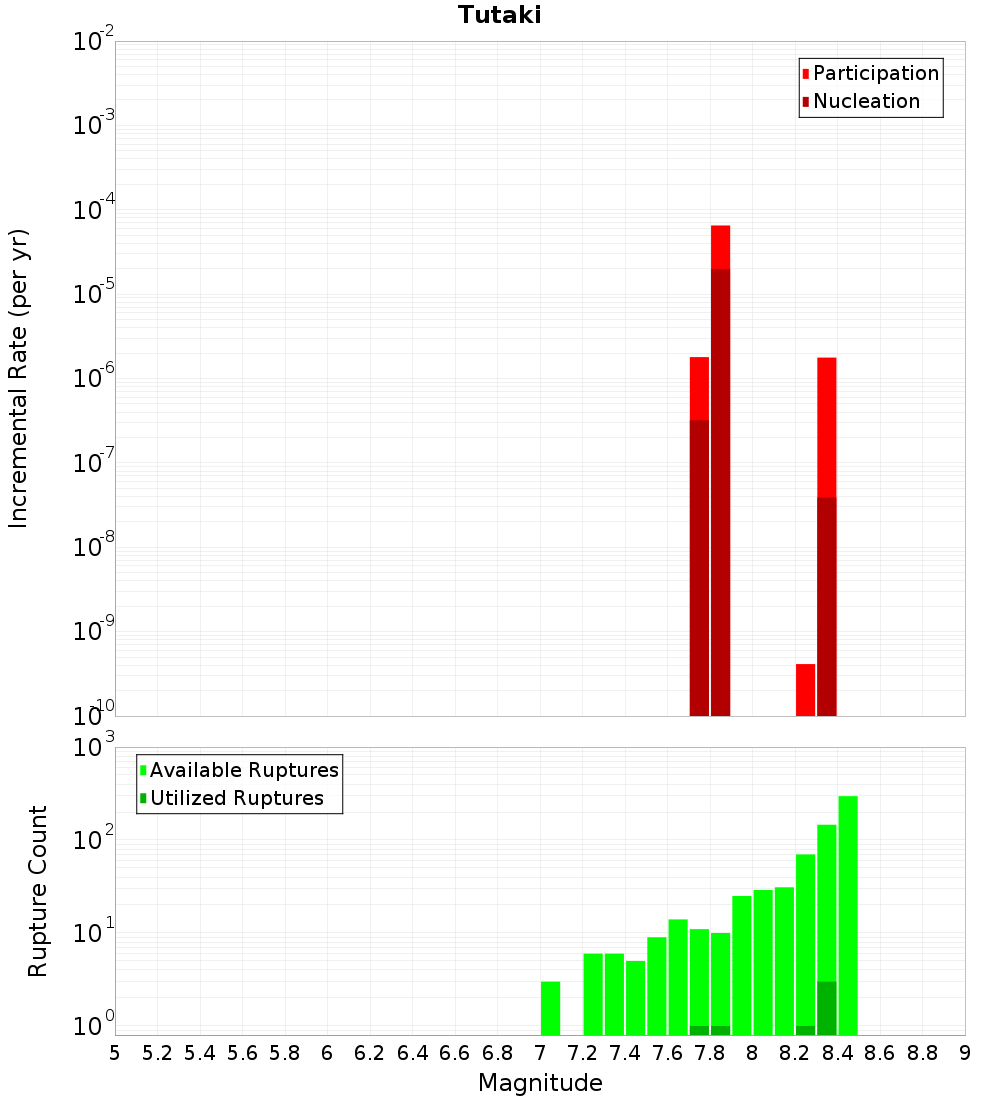

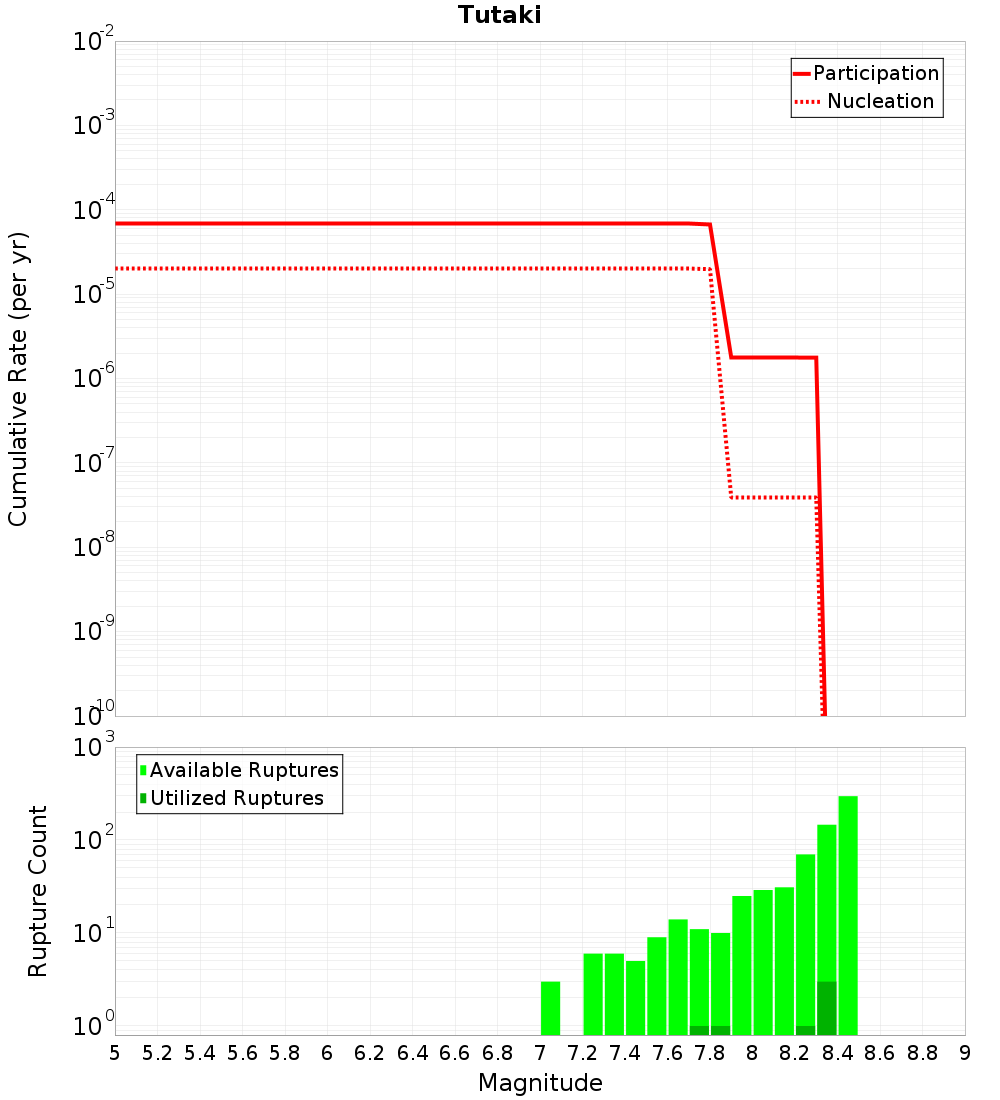

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

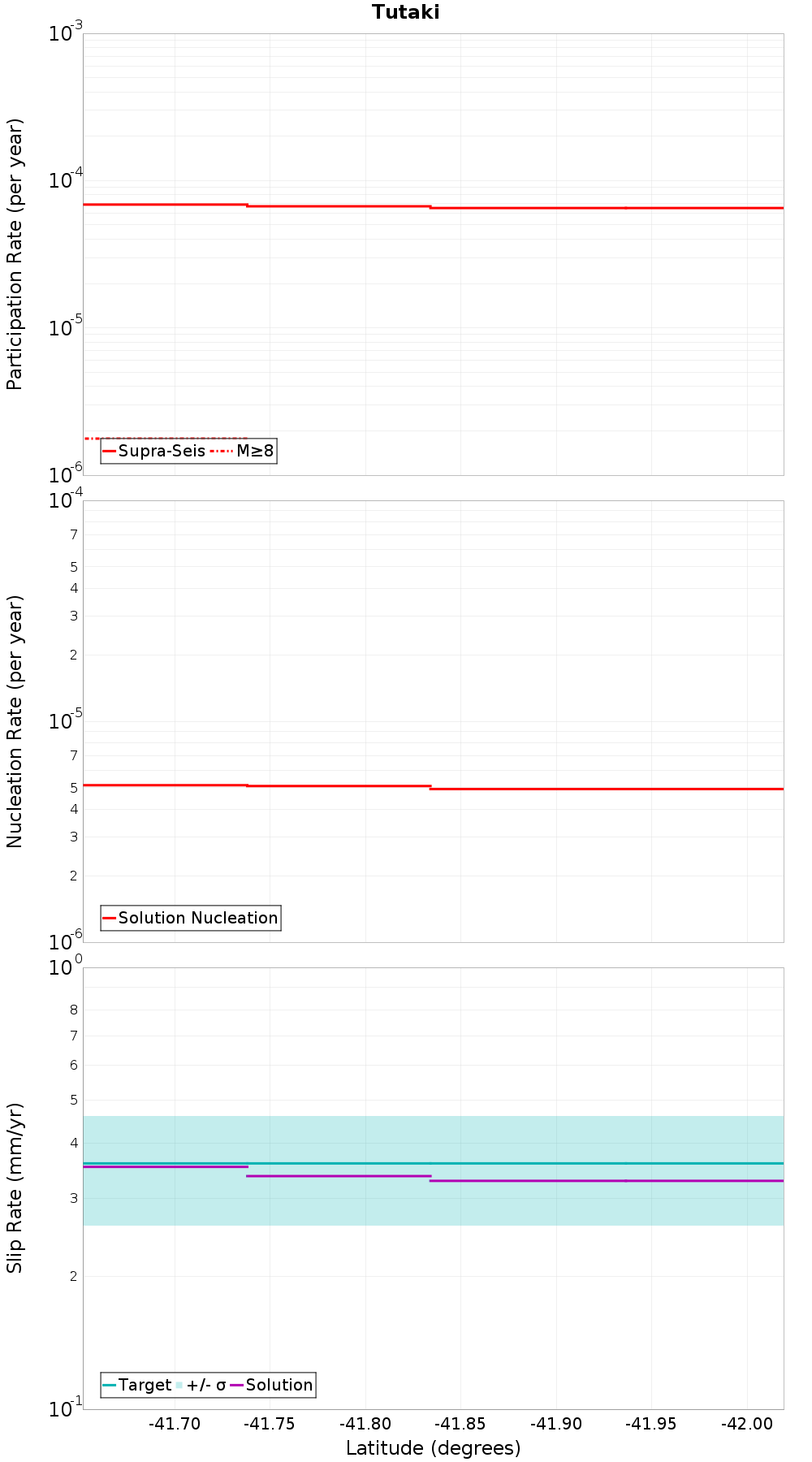

Along-Strike Values

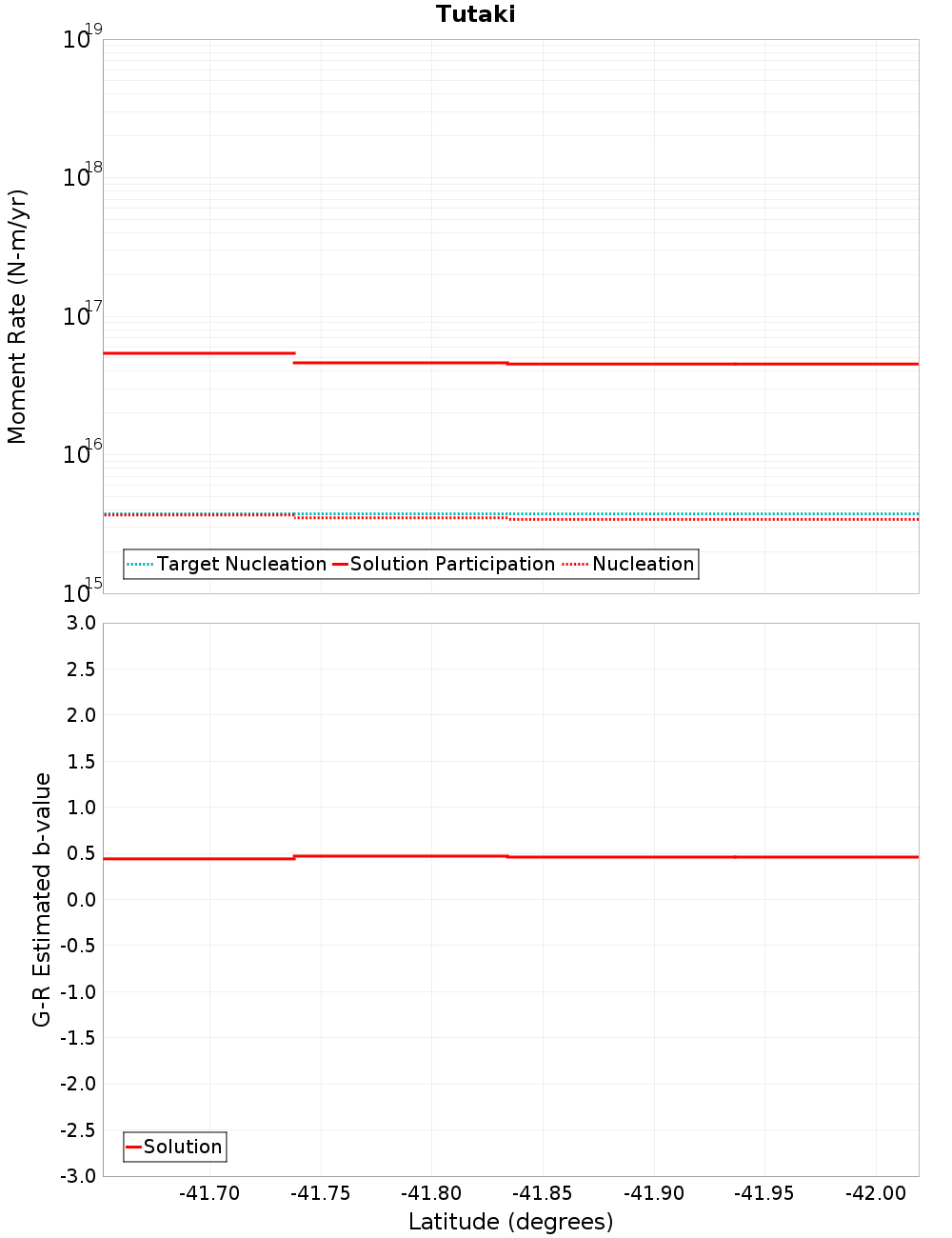

Moment-Rates and b-Values

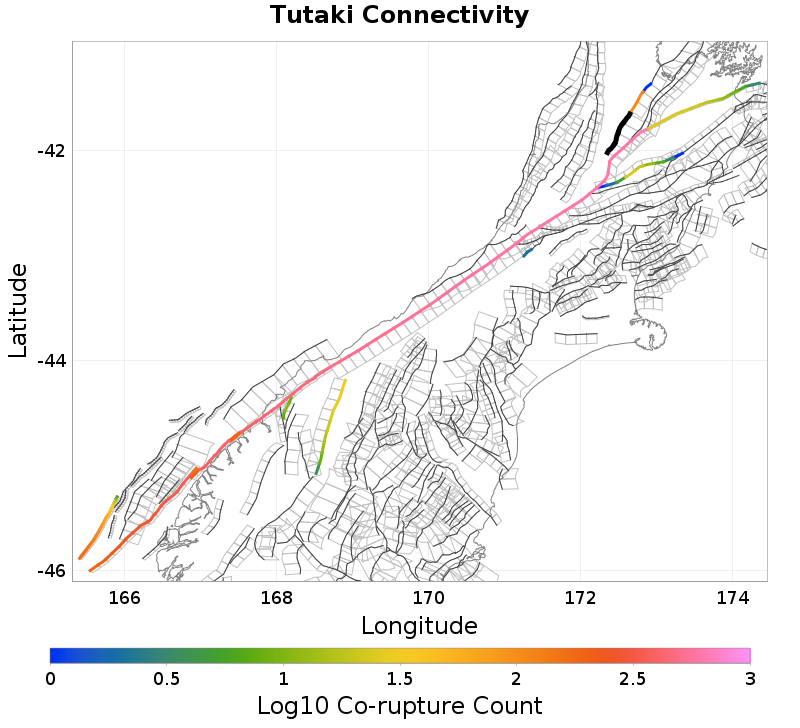

Connectivity
 |  |
|---|
Nearby Sections
Alpine: Springs Junction to Tophouse, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.48 km |
| Min Rate-Weighted Dist | 11.23 km |
| Co-rupture Count | 642 |
| Co-rupture Rate | 6.867561E-5 |
Flaxmore - Waimea - Tahunanui, 2.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ruby Bay - Moutere, 3.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.43 km |
| Min Rate-Weighted Dist | 3.43 km |
| Co-rupture Count | 105 |
| Co-rupture Rate | 1.7707785E-6 |
Wairau, 7.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 6.690483E-5 |
Awatere: Southwest, 10.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.72 km |
| Co-rupture Count | 24 |
| Co-rupture Rate | 0.0 |
Whangamoa, 15.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Creek, 19.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
