Uruti Basin Details
| Property | Value |
|---|---|
| Rupture Count | 17,586 |
| Ruptures Above Sect Min Mag | 17,476 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [6.04, 8.28] |
| Length Range | [8, 691] km |
| Total Rate | 4.6558146E-4 /yr |
| Multi-Fault Rate | 4.6558146E-4 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 55 |
Table Of Contents

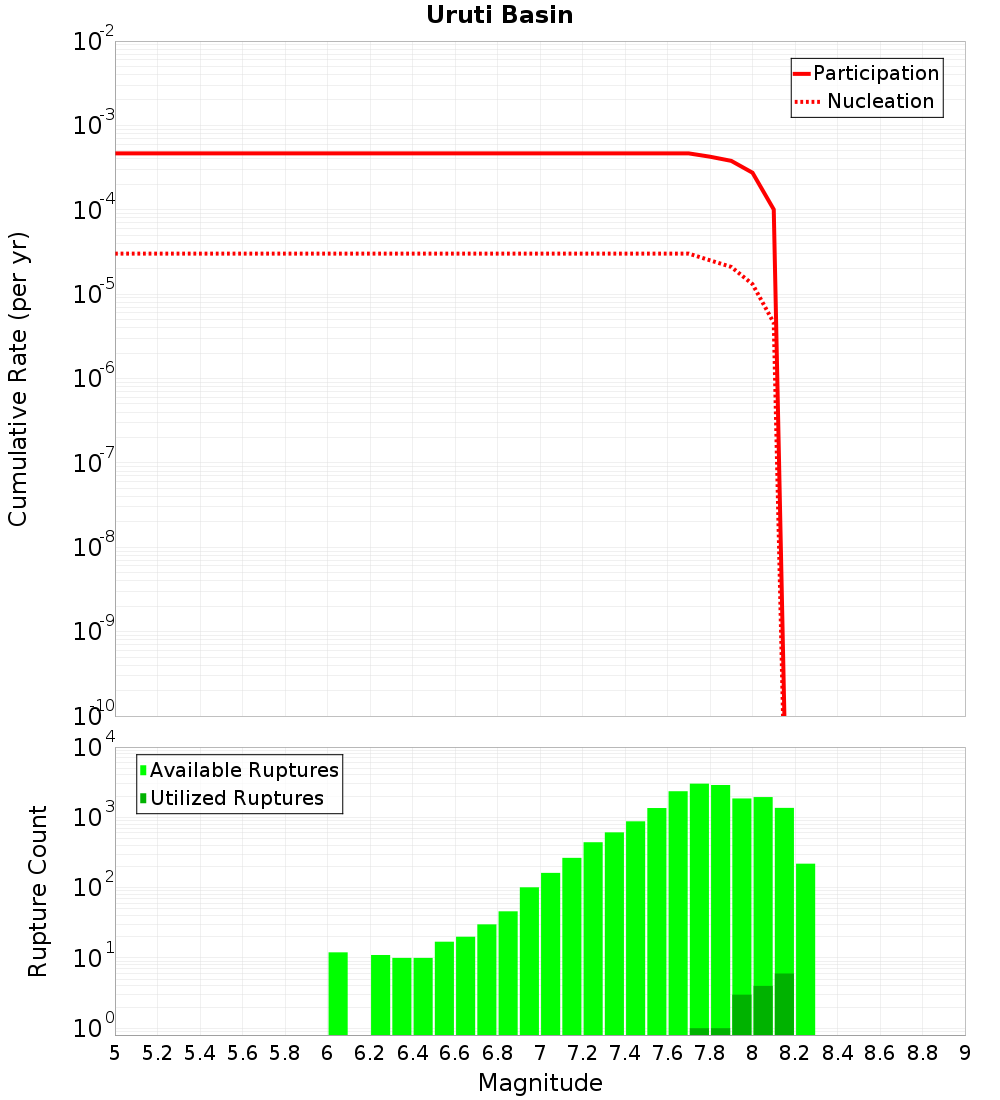

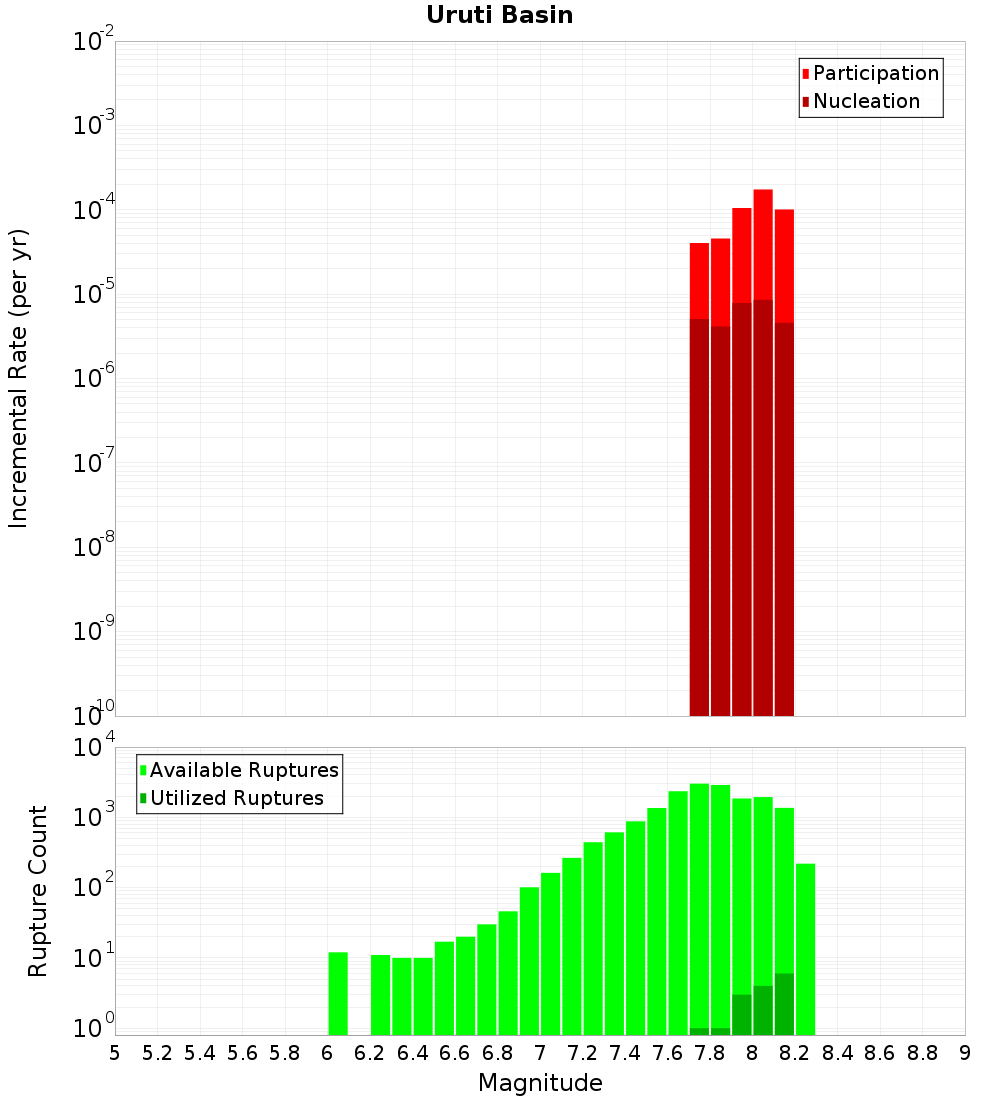

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

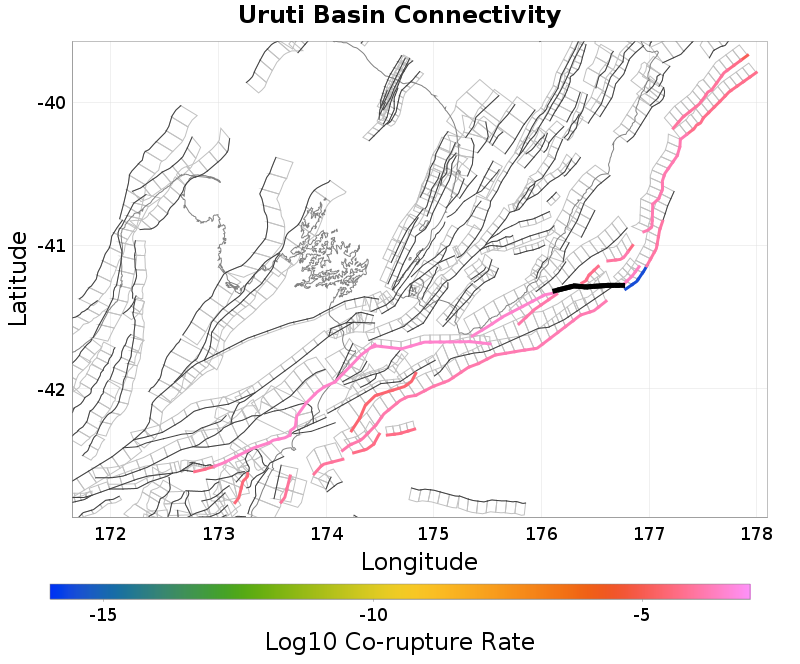

Connectivity
 |  |
|---|
Nearby Sections
Uruti Ridge 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 7,839 |
| Co-rupture Rate | 2.3248995E-4 |
Uruti East - PorWest 1, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.19 km |
| Min Rate-Weighted Dist | 0.19 km |
| Co-rupture Count | 10,119 |
| Co-rupture Rate | 1.0075682E-4 |
Opouawe - Uruti, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.2 km |
| Co-rupture Count | 5,973 |
| Co-rupture Rate | 0.0 |
Uruti Basin 2, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.4 km |
| Min Rate-Weighted Dist | 0.4 km |
| Co-rupture Count | 477 |
| Co-rupture Rate | 5.1141913E-5 |
Honeycomb, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.51 km |
| Min Rate-Weighted Dist | 0.51 km |
| Co-rupture Count | 2,240 |
| Co-rupture Rate | 1.2151336E-4 |
Palliser - Kaiwhata, 1.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.36 km |
| Min Rate-Weighted Dist | 1.36 km |
| Co-rupture Count | 9,797 |
| Co-rupture Rate | 2.9844372E-4 |
Pahaua, 1.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.79 km |
| Min Rate-Weighted Dist | 1.79 km |
| Co-rupture Count | 2,093 |
| Co-rupture Rate | 1.505241E-4 |
Whareama Bank, 3.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Riversdale, 8.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.5 km |
| Co-rupture Count | 28 |
| Co-rupture Rate | 0.0 |
Uruti Point, 17.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 458 |
| Co-rupture Rate | 0.0 |
Uruti North, 18.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,064 |
| Co-rupture Rate | 1.3173313E-4 |
