Hawke Bay 4 Details
| Property | Value |
|---|---|
| Rupture Count | 34 |
| Ruptures Above Sect Min Mag | 34 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.90, 8.01] |
| Length Range | [13, 180] km |
| Total Rate | 8.563103E-6 /yr |
| Multi-Fault Rate | 8.563103E-6 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

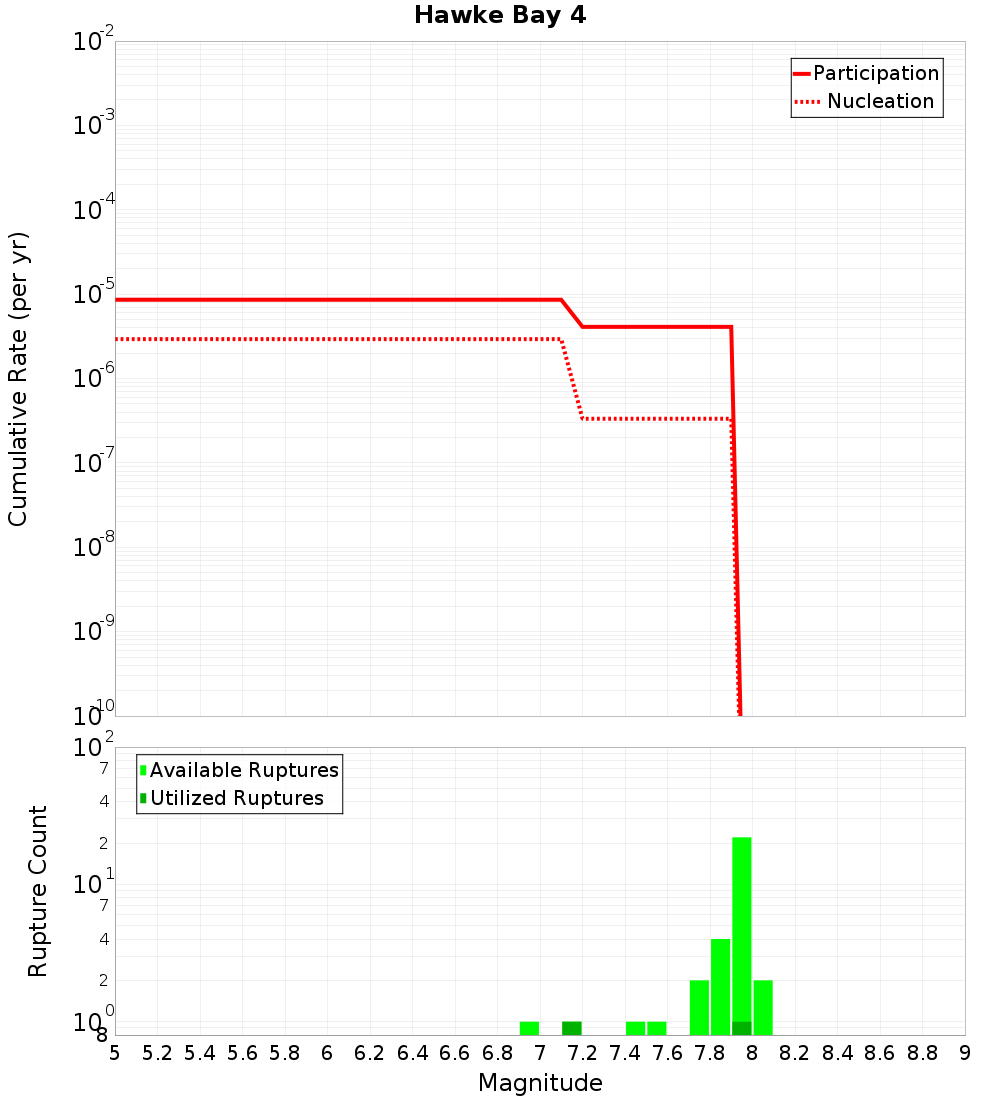

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

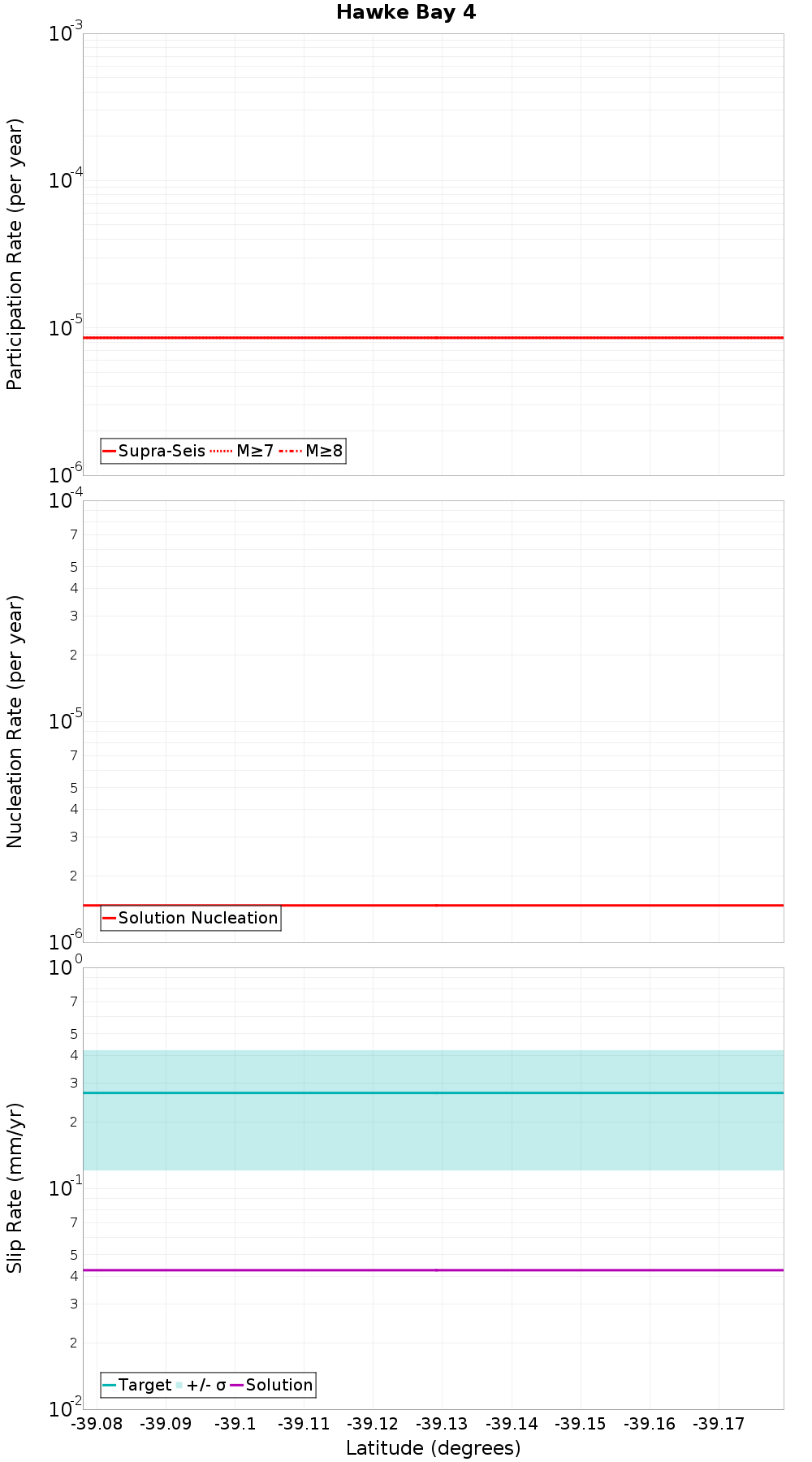

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 5 & 11, 4.23 km away |
| Hawke Bay 1, 4.44 km away |
| Kidnappers Ridge, 19.31 km away |
Hawke Bay 5 & 11, 4.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.23 km |
| Min Rate-Weighted Dist | 4.23 km |
| Co-rupture Count | 15 |
| Co-rupture Rate | 4.4695453E-6 |
Hawke Bay 1, 4.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.44 km |
| Min Rate-Weighted Dist | 4.44 km |
| Co-rupture Count | 32 |
| Co-rupture Rate | 4.093557E-6 |
Kidnappers Ridge, 19.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
