Mohaka: South Details

PropertyValue
Rupture Count48,357
Ruptures Above Sect Min Mag48,350
Ruptures w/ Nonzero Rates41
Magnitude Range[7.00, 8.52]
Length Range[22, 758] km
Total Rate3.263025E-4 /yr
Multi-Fault Rate3.1829256E-4 /yr (97.55%)
Directly-Connected Faults12
All Co-Rupturing Faults119

Table Of Contents

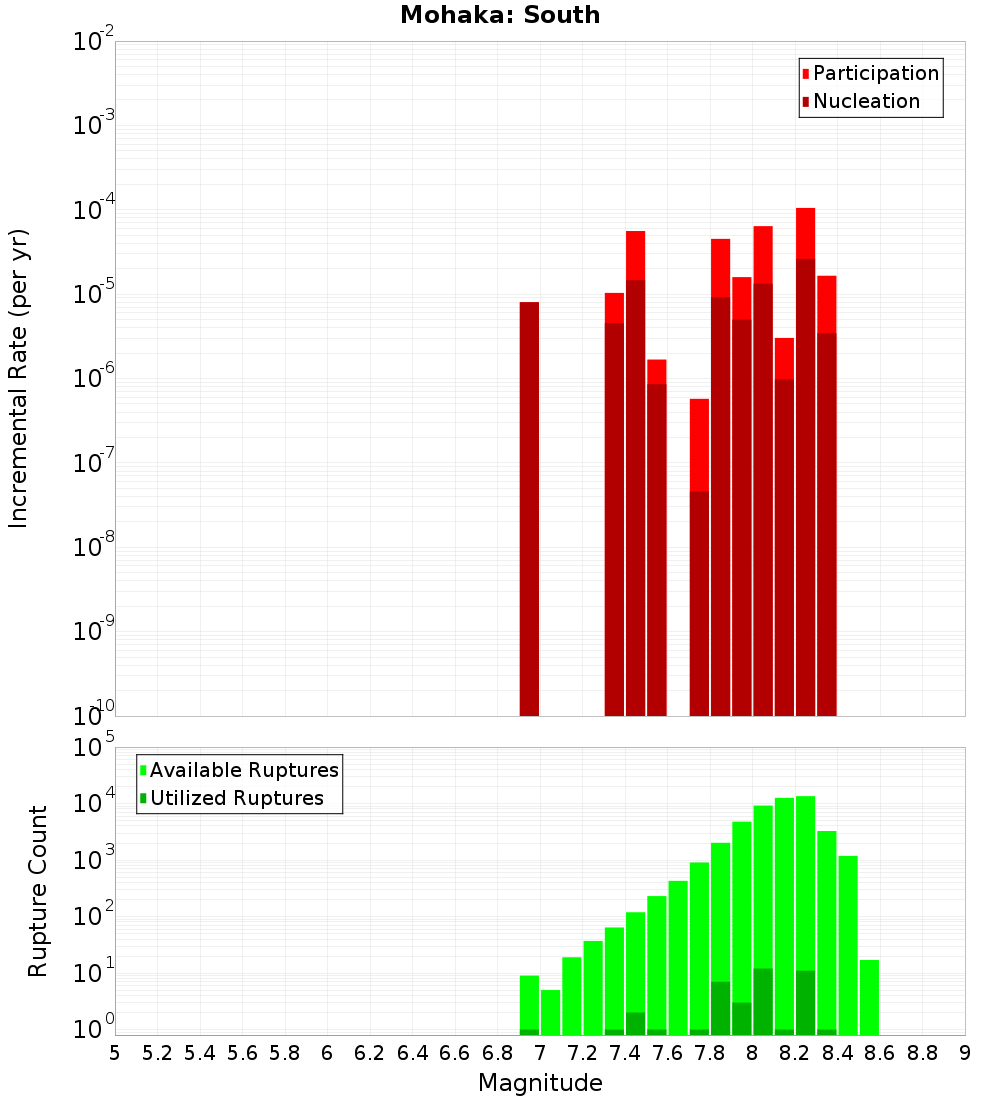

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

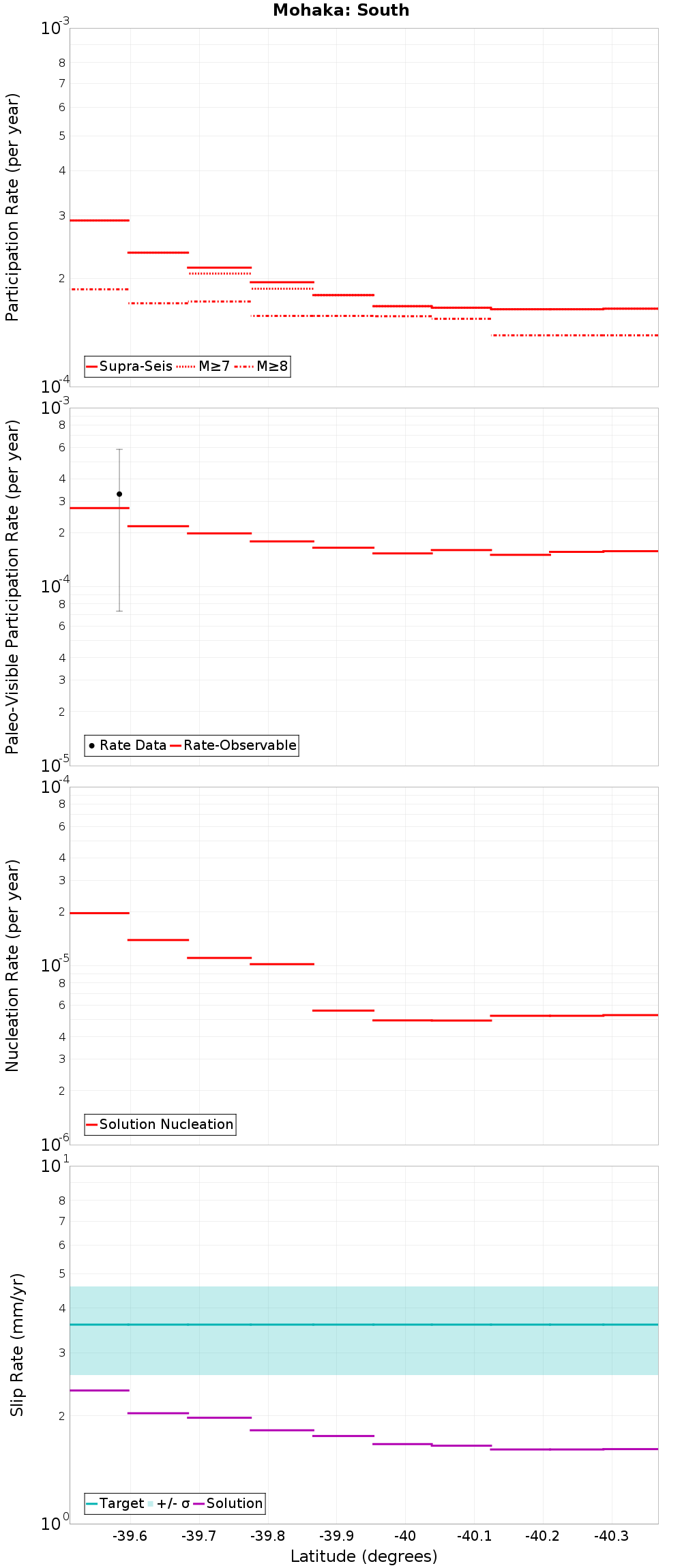

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

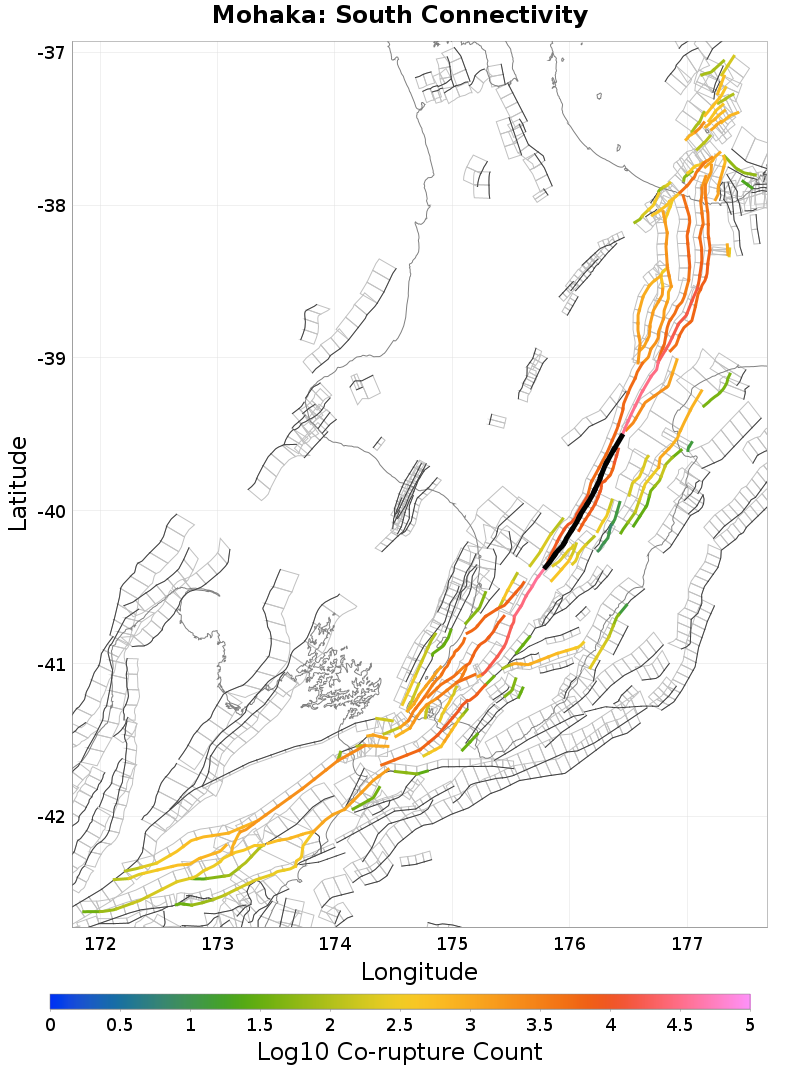

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington: Pahiatua, 0 km awayRuataniwha, 6.03 km away
Mohaka: North, 0 km awayMaunga, 9.08 km away
Ruahine: South, 0 km awayPohangina, 9.44 km away
Rangefront, 0.14 km awayAwanui, 9.59 km away
Woodville, 0.18 km awayTokomaru, 15.04 km away
Wakarara, 0.31 km awayTe Heka, 15.3 km away
Ruahine: Central, 2.71 km awayKaweka, 17.19 km away
Pahiatua, 4.19 km awayWaewaepa, 17.31 km away
Ruahine: North, 4.35 km awayNorthern Ohariu, 18.27 km away
Patoka - Rangiora, 5.52 km awayOruawharo - Mangatoro, 18.47 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count36,308
Co-rupture Rate1.5828083E-4

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count32,369
Co-rupture Rate1.7057994E-4

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.71 km
Min Rate-Weighted Dist2.71 km
Co-rupture Count9,820
Co-rupture Rate3.8452018E-7

Rangefront, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.14 km
Min Rate-Weighted Dist1.28 km
Co-rupture Count10,639
Co-rupture Rate4.96907E-5

Woodville, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.18 km
Co-rupture Count219
Co-rupture Rate0.0

Wakarara, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.31 km
Min Rate-Weighted Dist0.31 km
Co-rupture Count11,542
Co-rupture Rate2.5673144E-5

Ruahine: Central, 2.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.71 km
Co-rupture Count5,586
Co-rupture Rate1.3321576E-6

Pahiatua, 4.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.19 km
Min Rate-Weighted Dist4.32 km
Co-rupture Count470
Co-rupture Rate7.5360845E-6

Ruahine: North, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.35 km
Min Rate-Weighted Dist4.35 km
Co-rupture Count6,042
Co-rupture Rate1.5276279E-4

Patoka - Rangiora, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.52 km
Co-rupture Count2,893
Co-rupture Rate0.0

Ruataniwha, 6.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.03 km
Min Rate-Weighted Dist6.03 km
Co-rupture Count293
Co-rupture Rate1.3771228E-5

Maunga, 9.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist9.08 km
Co-rupture Count237
Co-rupture Rate0.0

Pohangina, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?false
Co-rupture Count201
Co-rupture Rate0.0

Awanui, 9.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?false
Co-rupture Count1,375
Co-rupture Rate0.0

Tokomaru, 15.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?false
Co-rupture Count450
Co-rupture Rate2.359431E-6

Te Heka, 15.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?false
Co-rupture Count260
Co-rupture Rate4.3374707E-6

Kaweka, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waewaepa, 17.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 18.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?false
Co-rupture Count6,749
Co-rupture Rate1.6911135E-5

Oruawharo - Mangatoro, 18.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate0.0
