Paparoa West Details
| Property | Value |
|---|---|
| Rupture Count | 373 |
| Ruptures Above Sect Min Mag | 368 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.87, 8.16] |
| Length Range | [18, 329] km |
| Total Rate | 3.0844534E-5 /yr |
| Multi-Fault Rate | 3.0844534E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

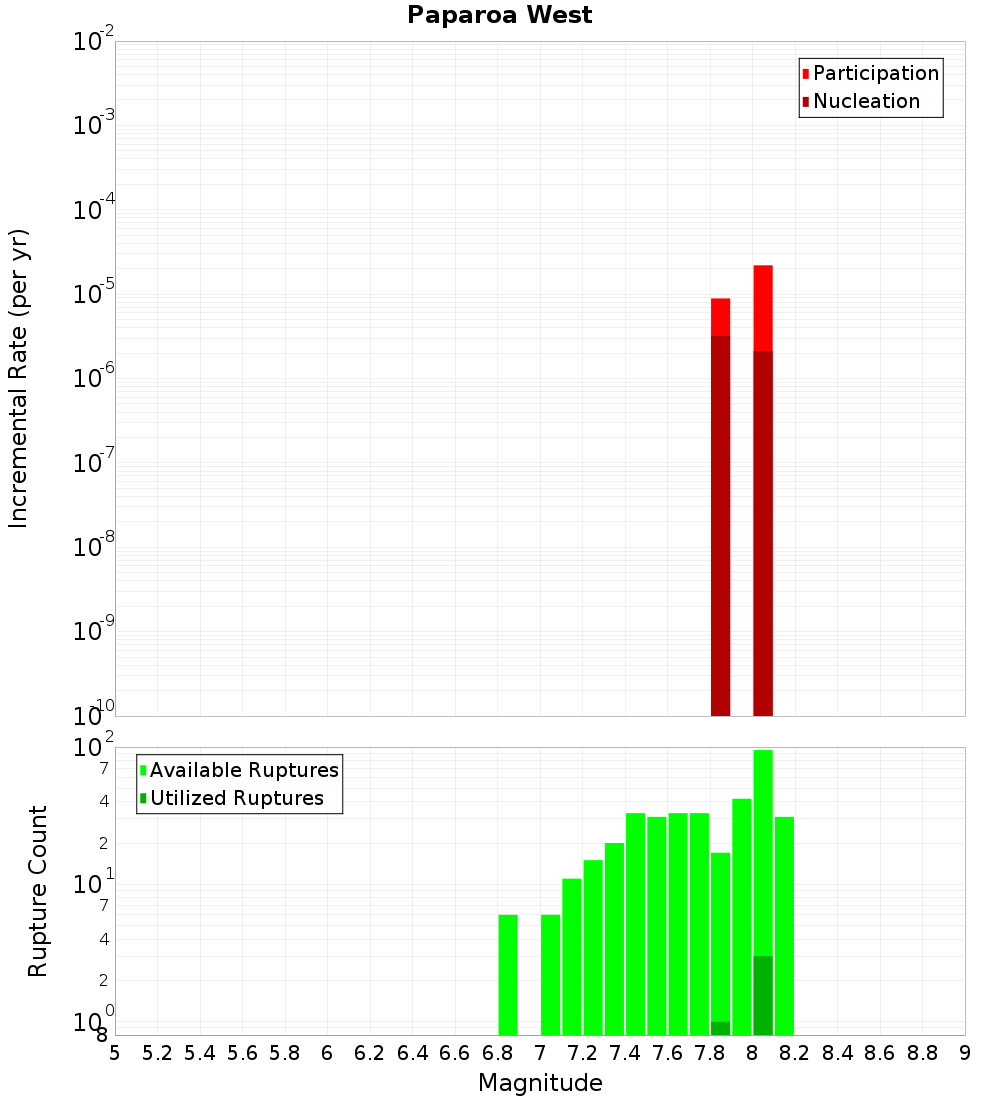

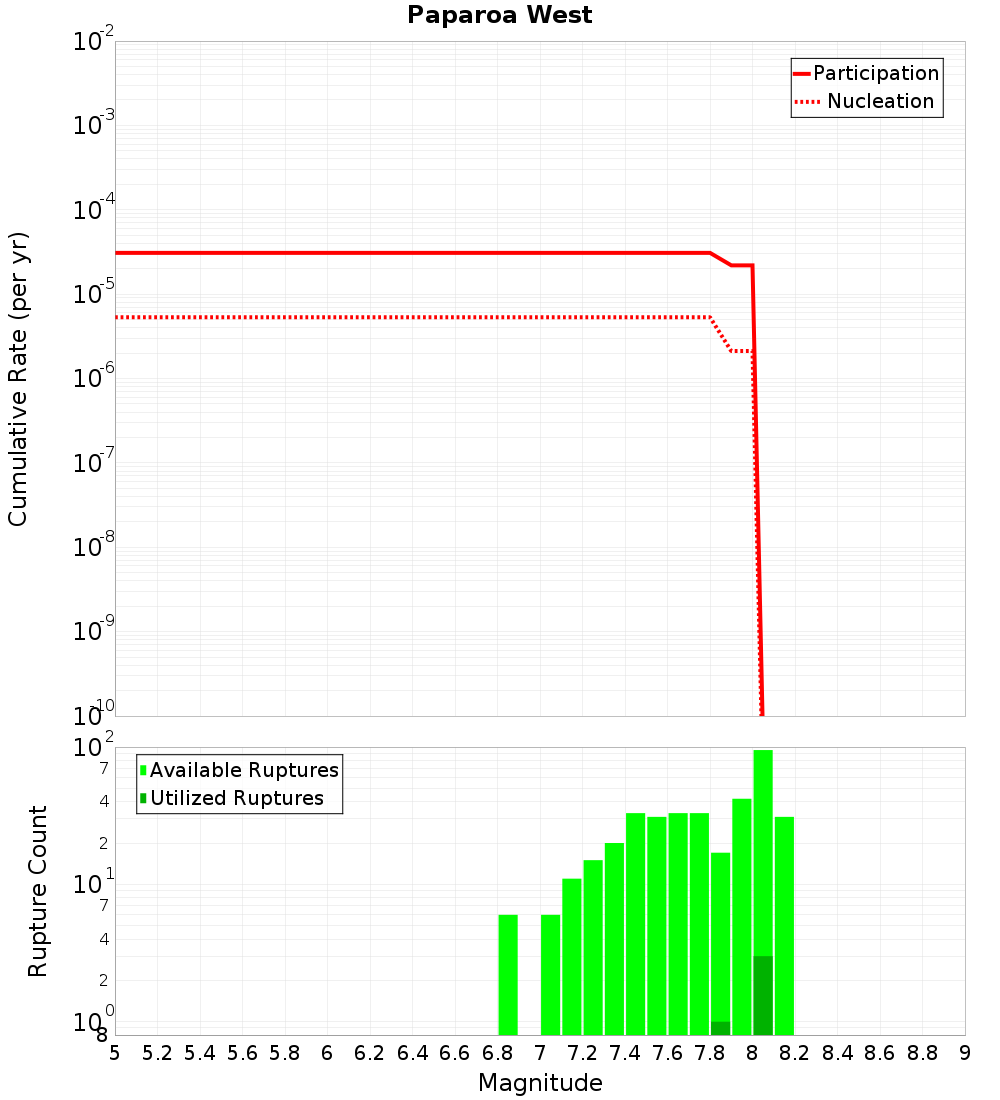

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

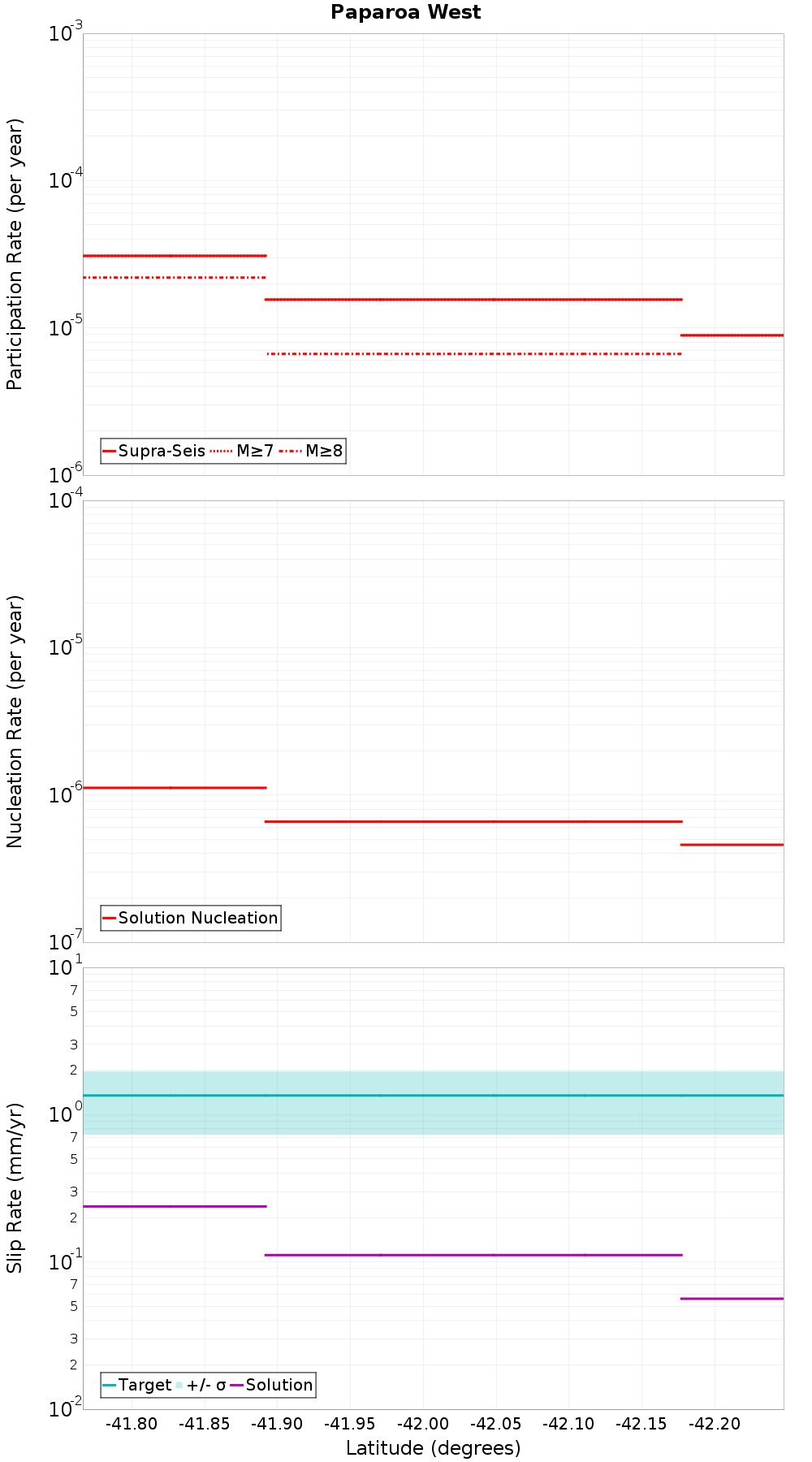

Along-Strike Values
Moment-Rates and b-Values

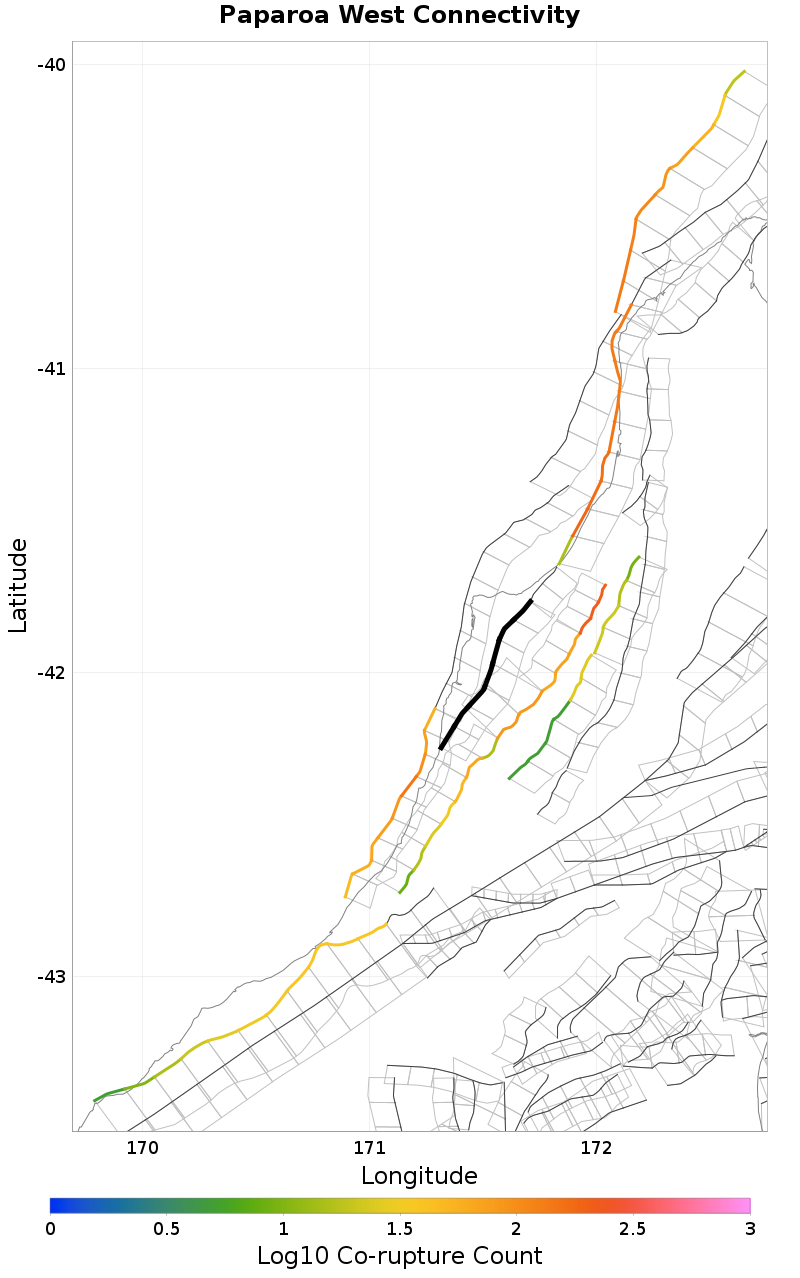

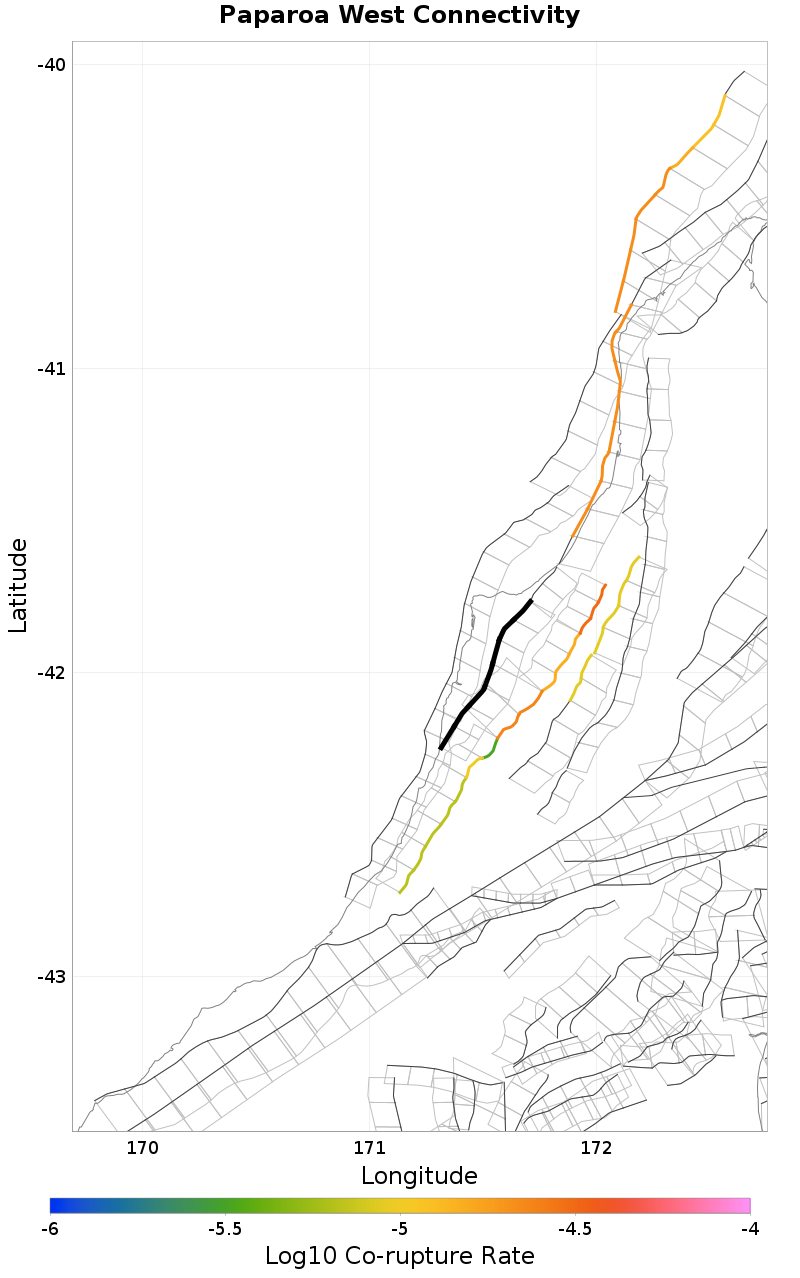

Connectivity
 |  |
|---|
Nearby Sections
Paparoa West: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.18 km |
| Min Rate-Weighted Dist | 0.18 km |
| Co-rupture Count | 84 |
| Co-rupture Rate | 2.4192163E-5 |
Maimai: South, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.26 km |
| Min Rate-Weighted Dist | 5.11 km |
| Co-rupture Count | 65 |
| Co-rupture Rate | 9.918399E-6 |
Maimai: North, 0.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.86 km |
| Min Rate-Weighted Dist | 1.73 km |
| Co-rupture Count | 73 |
| Co-rupture Rate | 1.5298594E-5 |
Inangahua, 1.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.67 km |
| Min Rate-Weighted Dist | 1.67 km |
| Co-rupture Count | 214 |
| Co-rupture Rate | 3.0844534E-5 |
Cape Foulwind 1, 4.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.6 km |
| Co-rupture Count | 146 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 2, 8.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kongahau, 17.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 185 |
| Co-rupture Rate | 2.1950967E-5 |
