Settlement Details
| Property | Value |
|---|---|
| Rupture Count | 26 |
| Ruptures Above Sect Min Mag | 26 |
| Ruptures w/ Nonzero Rates | 0 |
| Magnitude Range | [7.16, 8.27] |
| Length Range | [21, 292] km |
| Total Rate | 0.0 /yr |
| Multi-Fault Rate | 0.0 /yr (NaN) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 21 |
Table Of Contents

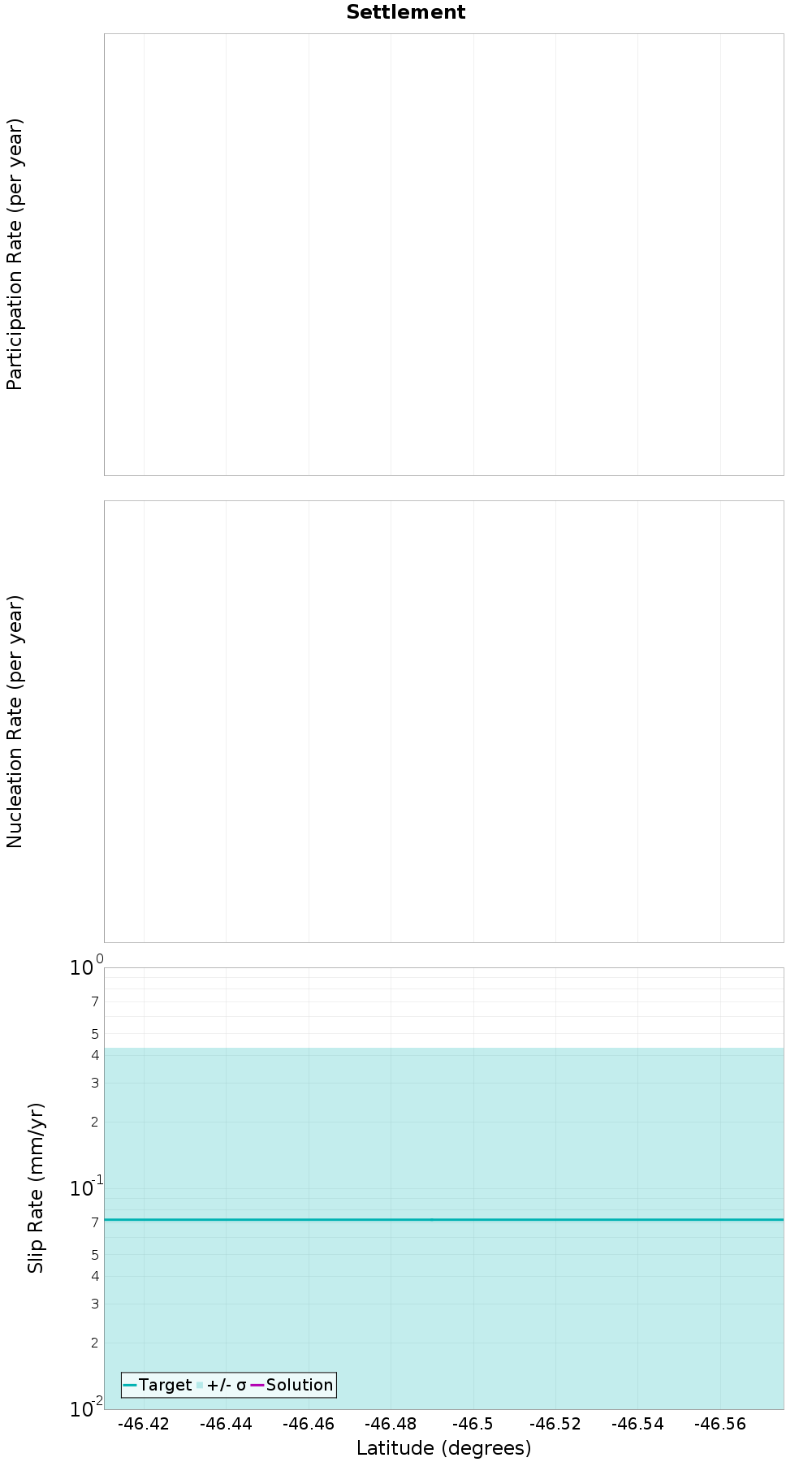

Along-Strike Values
Moment-Rates and b-Values

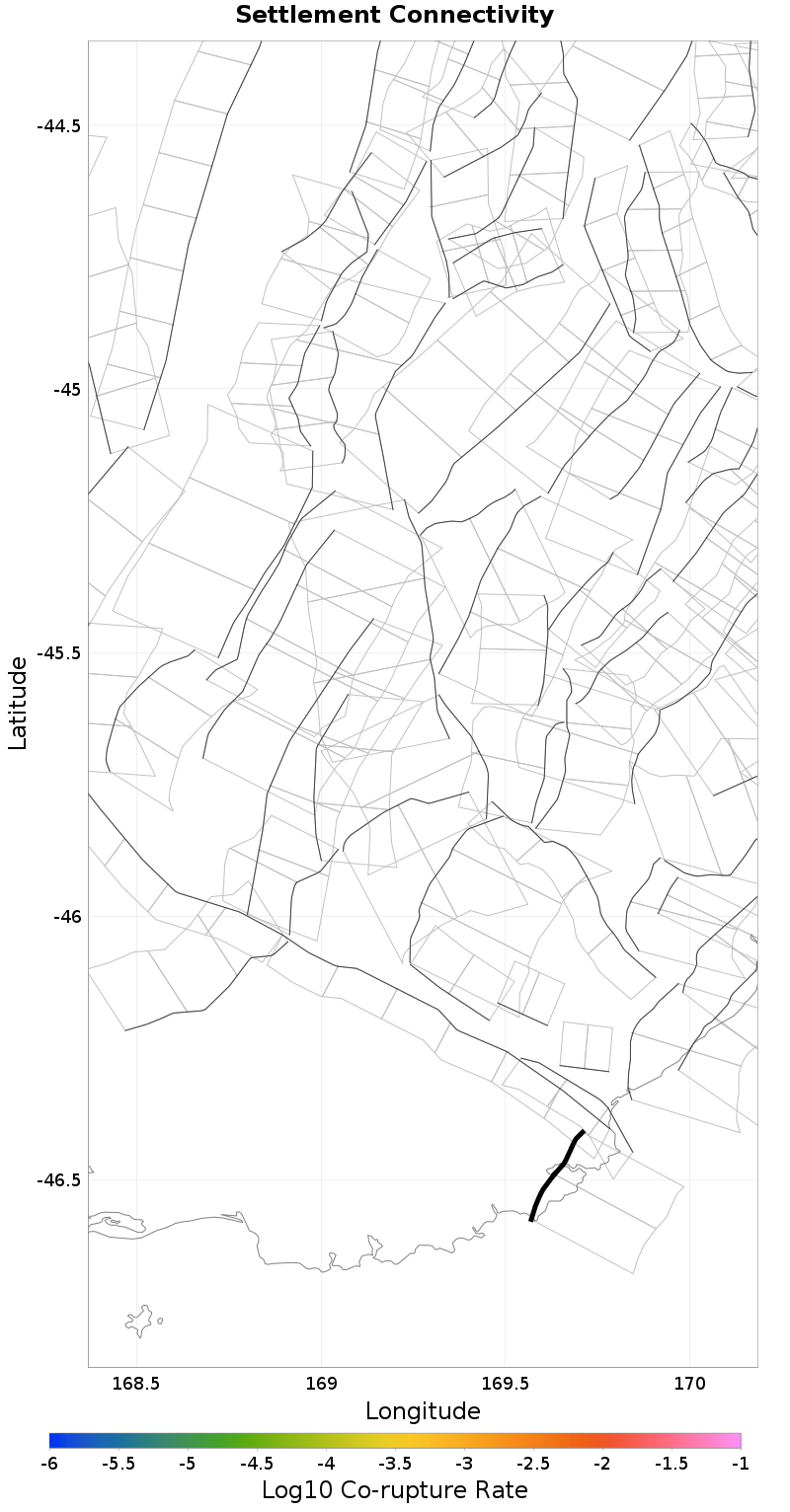

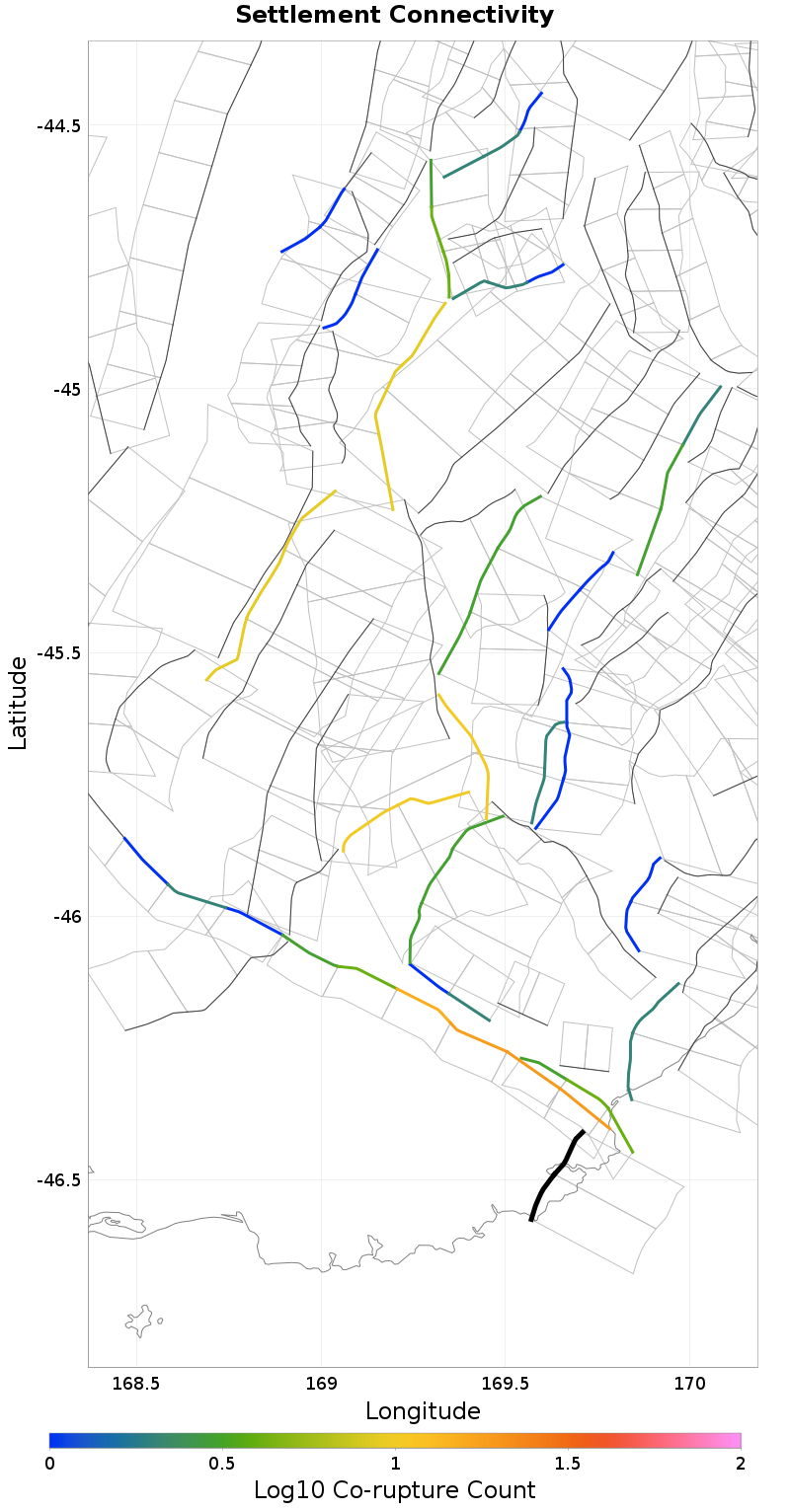

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Little Hillfoot, 0.3 km away |
| Hillfoot, 2.05 km away |
| Titri South, 11.67 km away |
| Otanomomo, 13.4 km away |
Little Hillfoot, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.3 km |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Hillfoot, 2.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.05 km |
| Co-rupture Count | 19 |
| Co-rupture Rate | 0.0 |
Titri South, 11.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.67 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Otanomomo, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
