Waimea Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 28 |
| Ruptures Above Sect Min Mag | 25 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [7.26, 7.81] |
| Length Range | [29, 111] km |
| Total Rate | 1.1173333E-5 /yr |
| Multi-Fault Rate | 7.3393303E-6 /yr (65.69%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

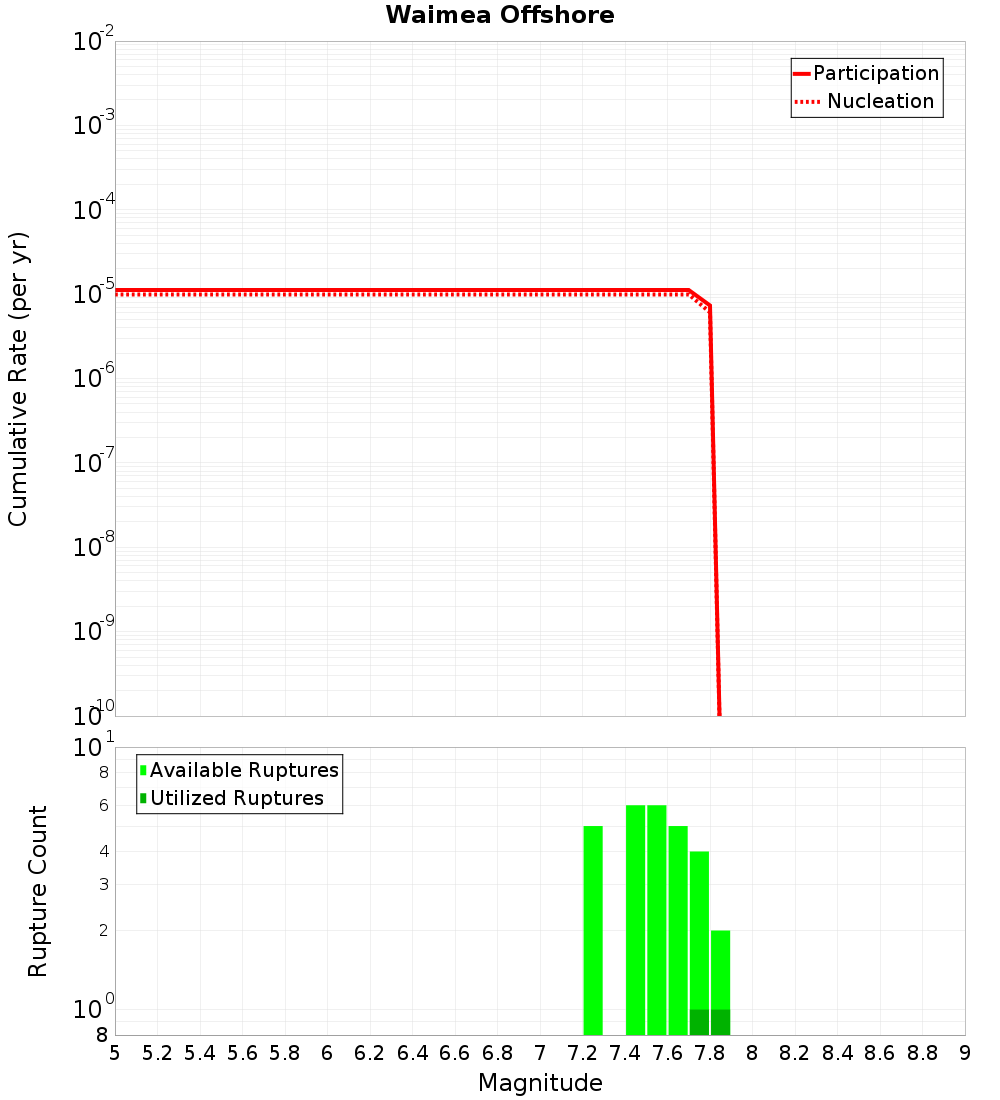

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

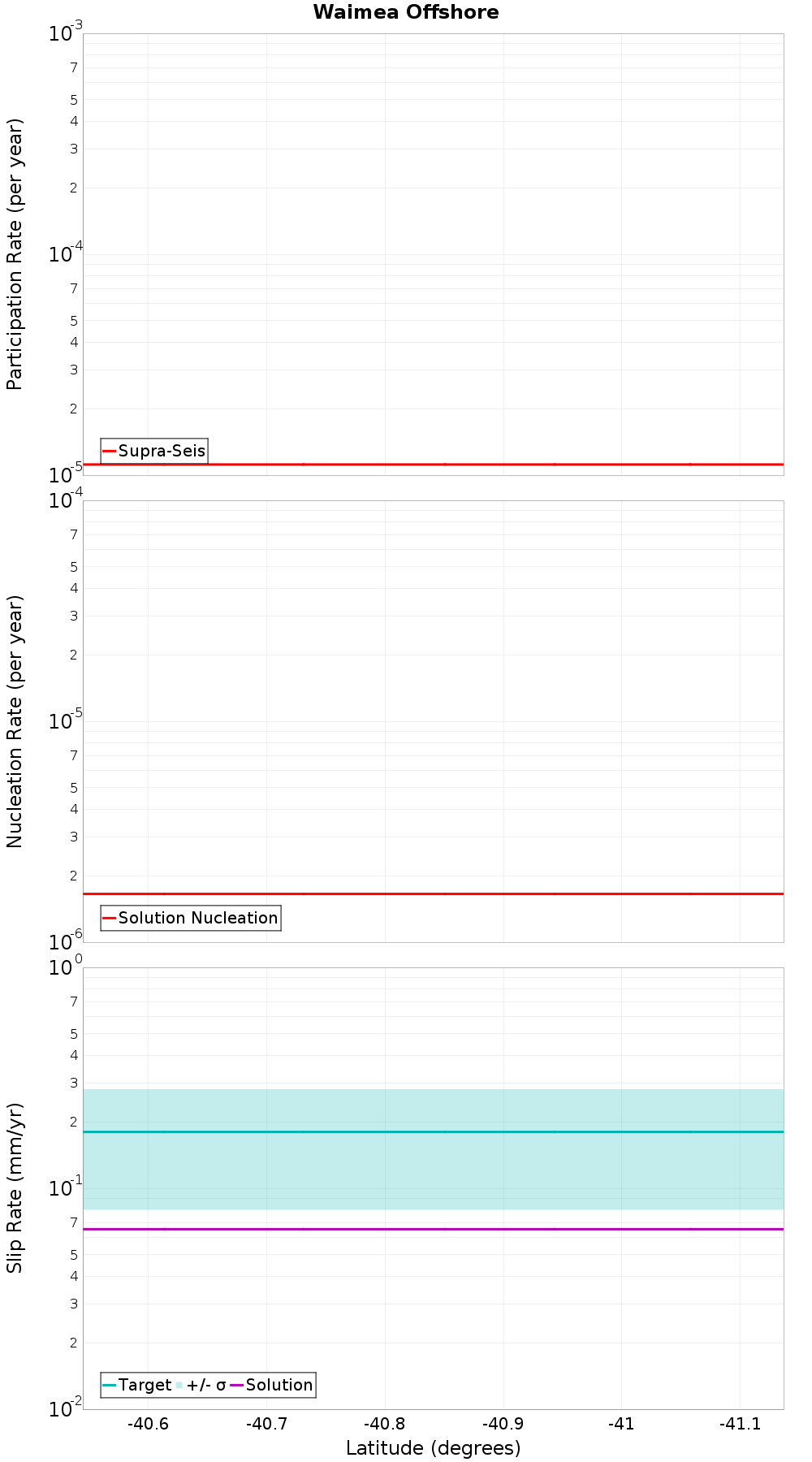

Along-Strike Values
Moment-Rates and b-Values

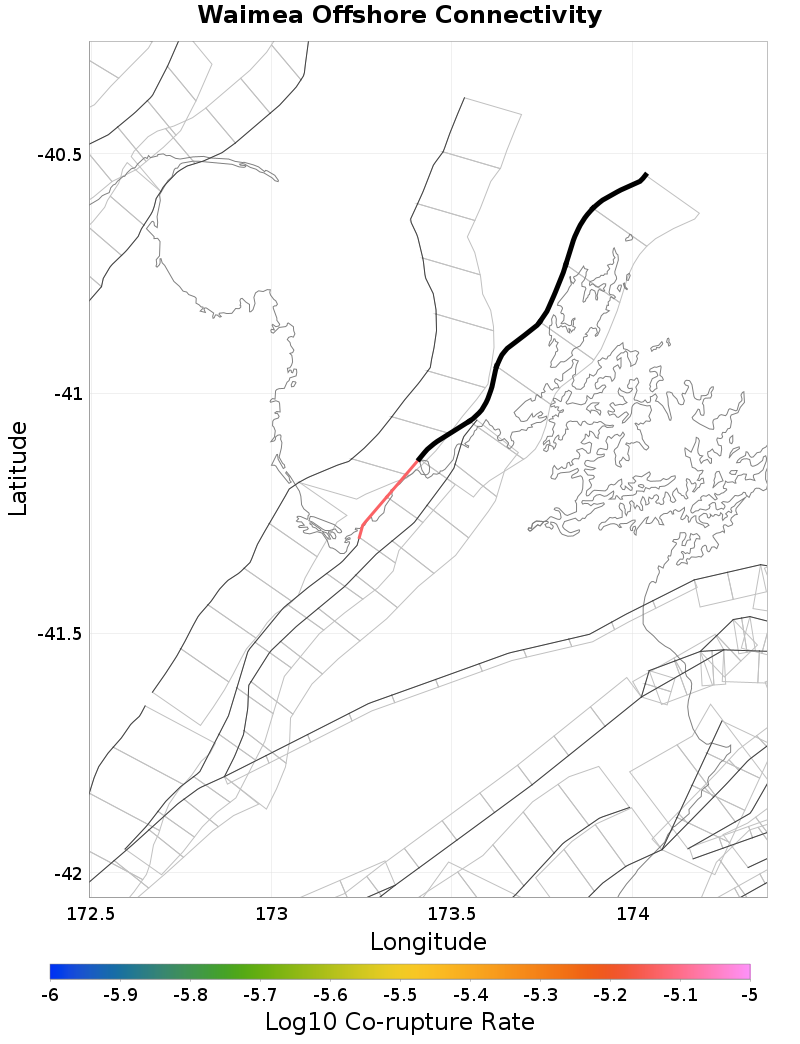

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Flaxmore - Waimea - Tahunanui, 0 km away |
| Whangamoa, 0.85 km away |
| Surville, 9.76 km away |
Flaxmore - Waimea - Tahunanui, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 13 |
| Co-rupture Rate | 7.3393303E-6 |
Whangamoa, 0.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Surville, 9.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
