Wellington: Pahiatua Details
| Property | Value |
|---|---|
| Rupture Count | 54,014 |
| Ruptures Above Sect Min Mag | 54,011 |
| Ruptures w/ Nonzero Rates | 47 |
| Magnitude Range | [6.86, 8.52] |
| Length Range | [17, 758] km |
| Total Rate | 0.0010373202 /yr |
| Multi-Fault Rate | 7.183087E-4 /yr (69.25%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 120 |
Table Of Contents

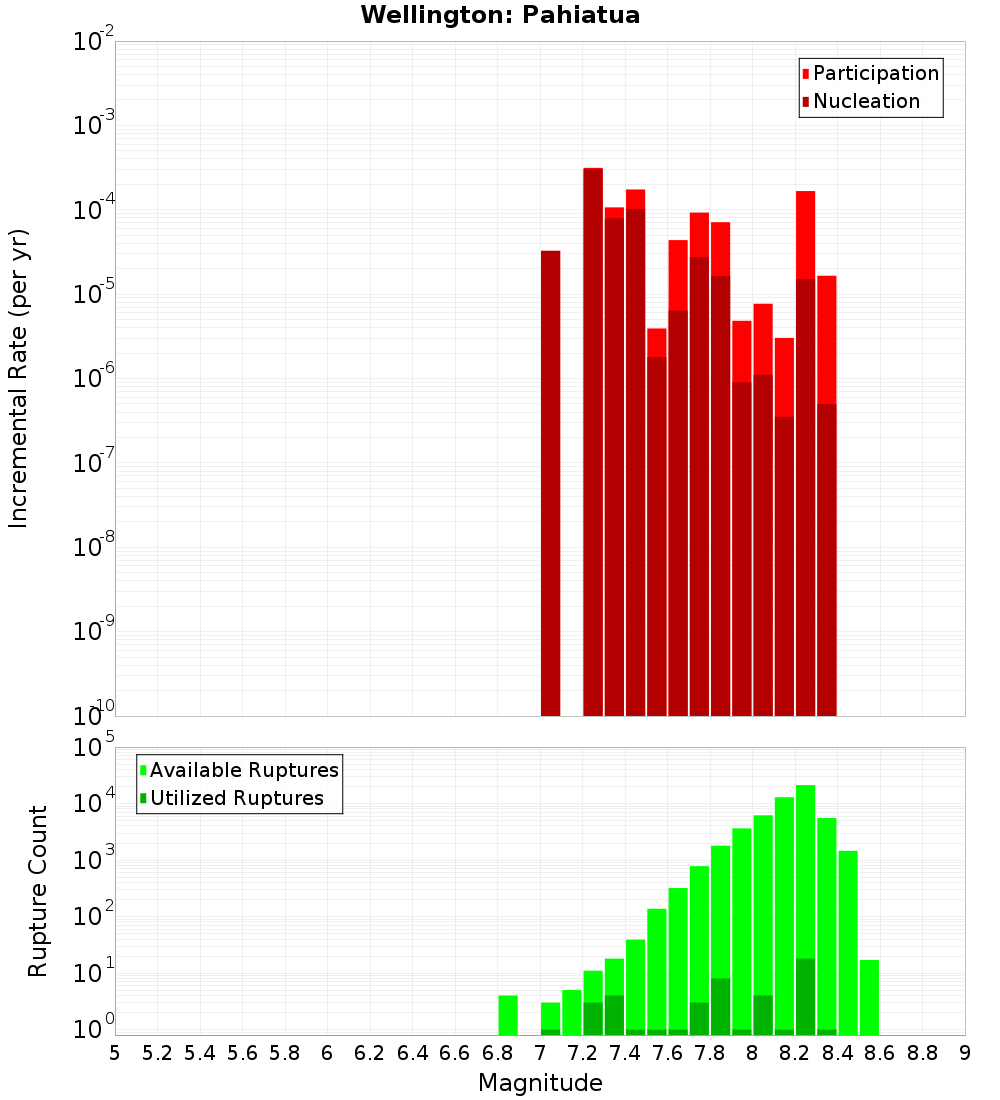

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

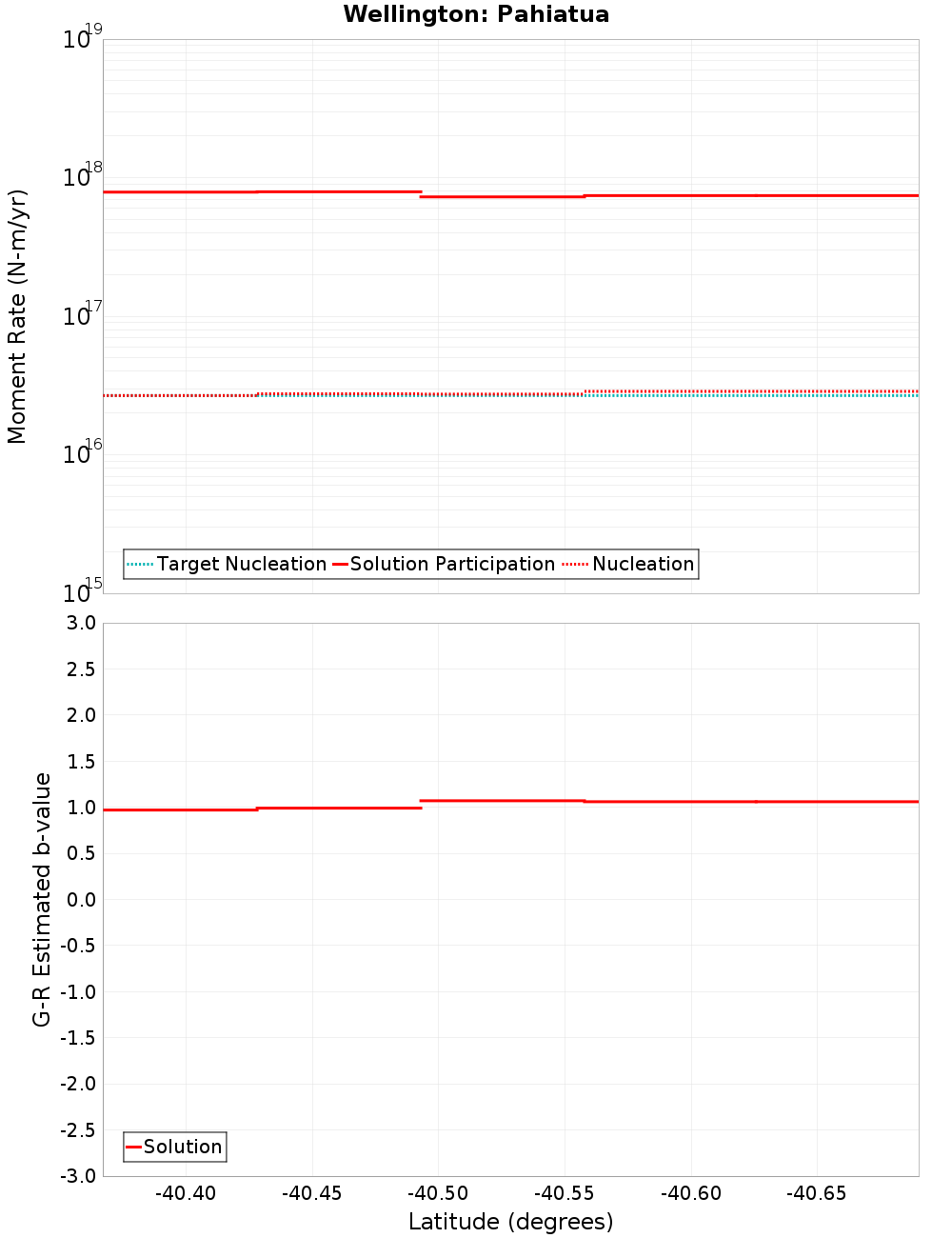

Along-Strike Values
Moment-Rates and b-Values

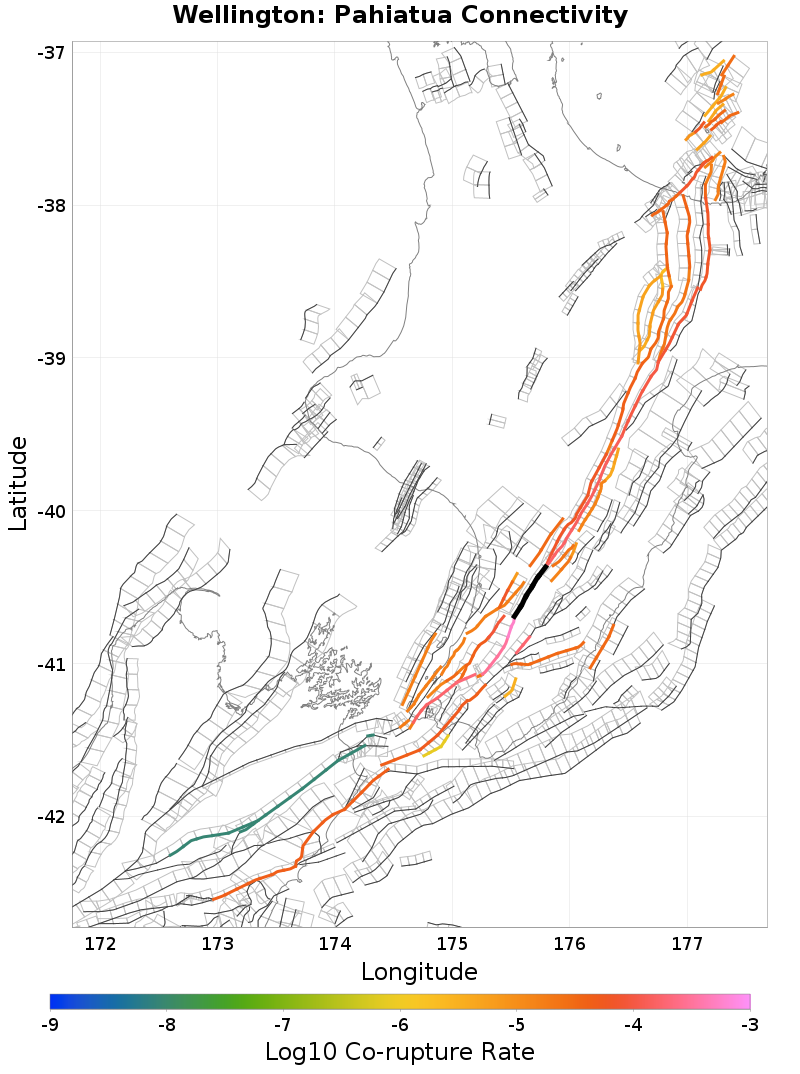

Connectivity
 |  |
|---|
Nearby Sections
Mohaka: South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 38,587 |
| Co-rupture Rate | 1.711149E-4 |
Ruahine: South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 25,041 |
| Co-rupture Rate | 8.620105E-5 |
Wellington: Tararua 3, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.03 km |
| Min Rate-Weighted Dist | 0.03 km |
| Co-rupture Count | 28,856 |
| Co-rupture Rate | 5.4748147E-4 |
Tokomaru, 1.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.83 km |
| Min Rate-Weighted Dist | 2.23 km |
| Co-rupture Count | 638 |
| Co-rupture Rate | 6.946064E-5 |
Northern Ohariu, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.03 km |
| Min Rate-Weighted Dist | 3.19 km |
| Co-rupture Count | 9,841 |
| Co-rupture Rate | 1.6911135E-5 |
Otaki Forks: 2, 4.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.95 km |
| Min Rate-Weighted Dist | 4.95 km |
| Co-rupture Count | 10,585 |
| Co-rupture Rate | 8.445542E-5 |
Woodville, 5.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.06 km |
| Min Rate-Weighted Dist | 5.06 km |
| Co-rupture Count | 50 |
| Co-rupture Rate | 2.2258639E-5 |
Pahiatua, 5.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 151 |
| Co-rupture Rate | 2.1012354E-5 |
Pohangina, 9.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.35 km |
| Min Rate-Weighted Dist | 9.35 km |
| Co-rupture Count | 710 |
| Co-rupture Rate | 3.0280045E-5 |
Wairarapa: 3, 14.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 506 |
| Co-rupture Rate | 1.74018E-4 |
Dreyers Rock, 15.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maunga, 17.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alfredton South, 18.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Makuri - Waewaepa, 19.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alfredton North, 19.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pa Valley, 19.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Levin Anticline, 19.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
