Whangamata West Details

PropertyValue
Rupture Count4,238
Ruptures Above Sect Min Mag4,153
Ruptures w/ Nonzero Rates9
Magnitude Range[6.15, 7.72]
Length Range[8, 181] km
Total Rate3.8165314E-4 /yr
Multi-Fault Rate3.8165314E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults20

Table Of Contents

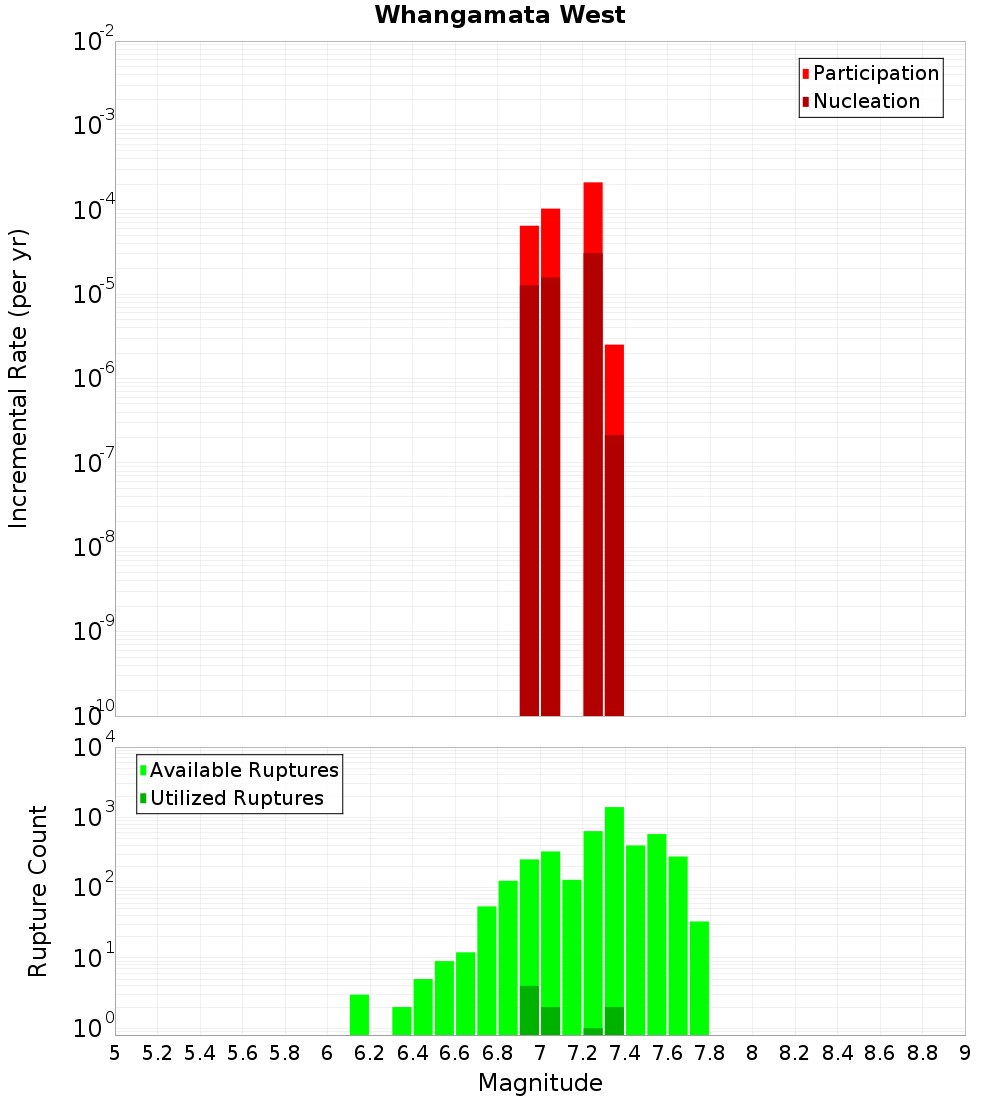

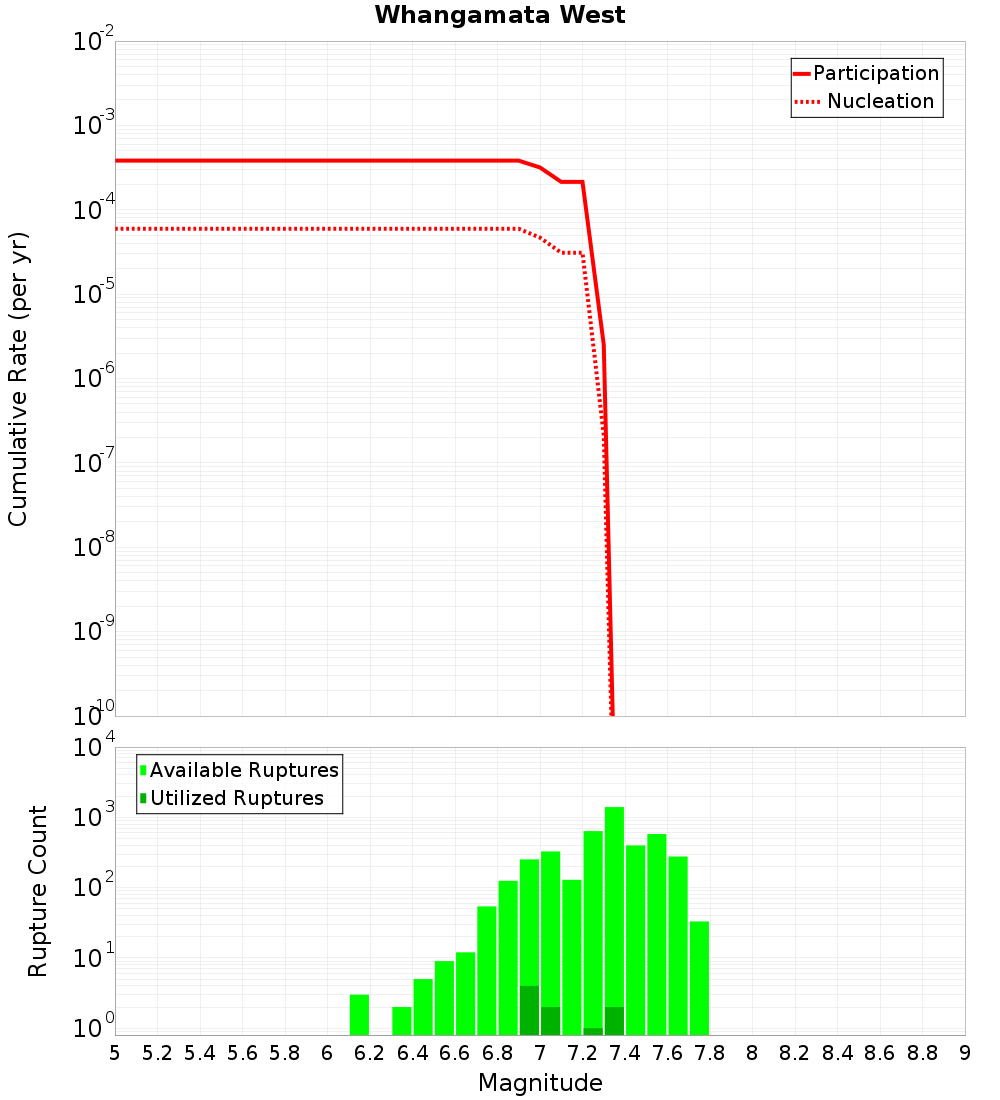

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

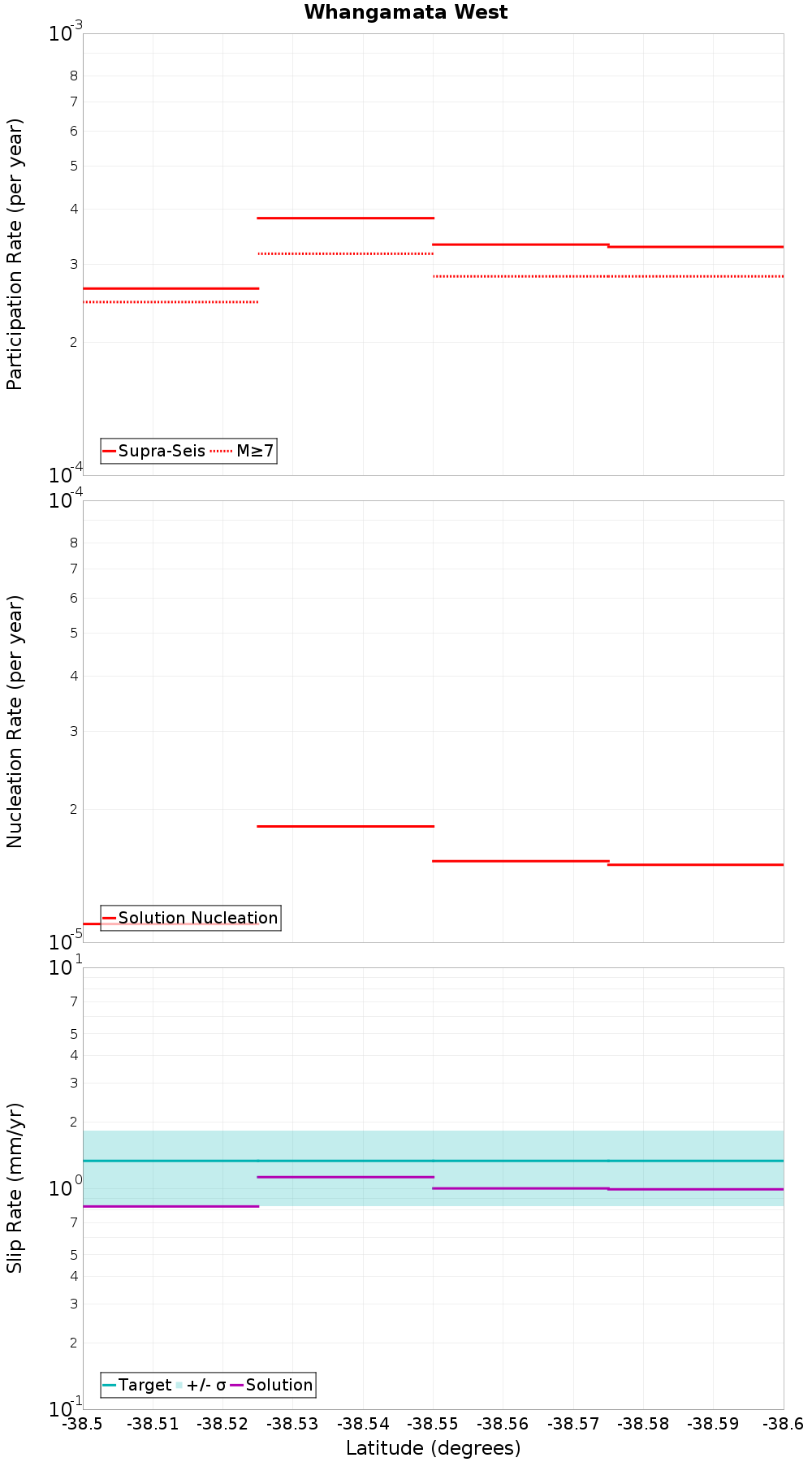

Along-Strike Values

(top)

Along-strike plot

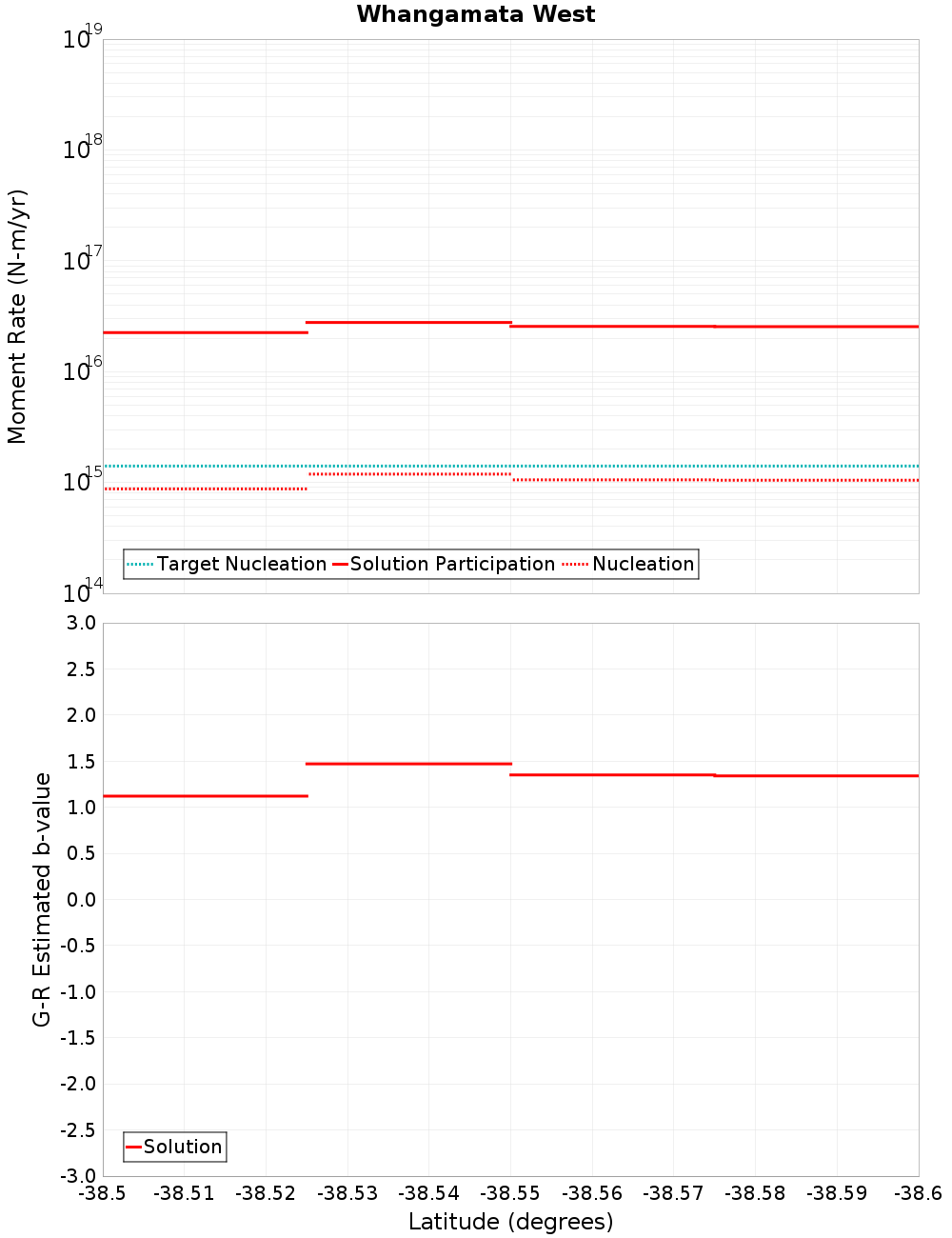

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Puketerata, 0.11 km away
Orakeikorako, 0.34 km away
Kaiapo, 0.92 km away
Puketerata North, 9.6 km away
Maleme, 13.07 km away
Paeroa, 13.84 km away

Puketerata, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.11 km
Min Rate-Weighted Dist0.11 km
Co-rupture Count2,377
Co-rupture Rate2.1128848E-4

Orakeikorako, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.46 km
Min Rate-Weighted Dist0.55 km
Co-rupture Count2,083
Co-rupture Rate1.7036466E-4

Kaiapo, 0.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.92 km
Min Rate-Weighted Dist2.1 km
Co-rupture Count1,328
Co-rupture Rate1.6382412E-4

Puketerata North, 9.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?false
Co-rupture Count1,720
Co-rupture Rate2.1128848E-4

Maleme, 13.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?false
Co-rupture Count2,643
Co-rupture Rate2.1128848E-4

Paeroa, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ1
Connected?true
Directly Connected?false
Co-rupture Count2,675
Co-rupture Rate1.7036466E-4
