EarthquakeFlat - Tumunui Details
| Property | Value |
|---|---|
| Rupture Count | 7,707 |
| Ruptures Above Sect Min Mag | 7,670 |
| Ruptures w/ Nonzero Rates | 38 |
| Magnitude Range | [6.17, 7.76] |
| Length Range | [8, 181] km |
| Total Rate | 7.72154E-4 /yr |
| Multi-Fault Rate | 7.72154E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 25 |
Table Of Contents

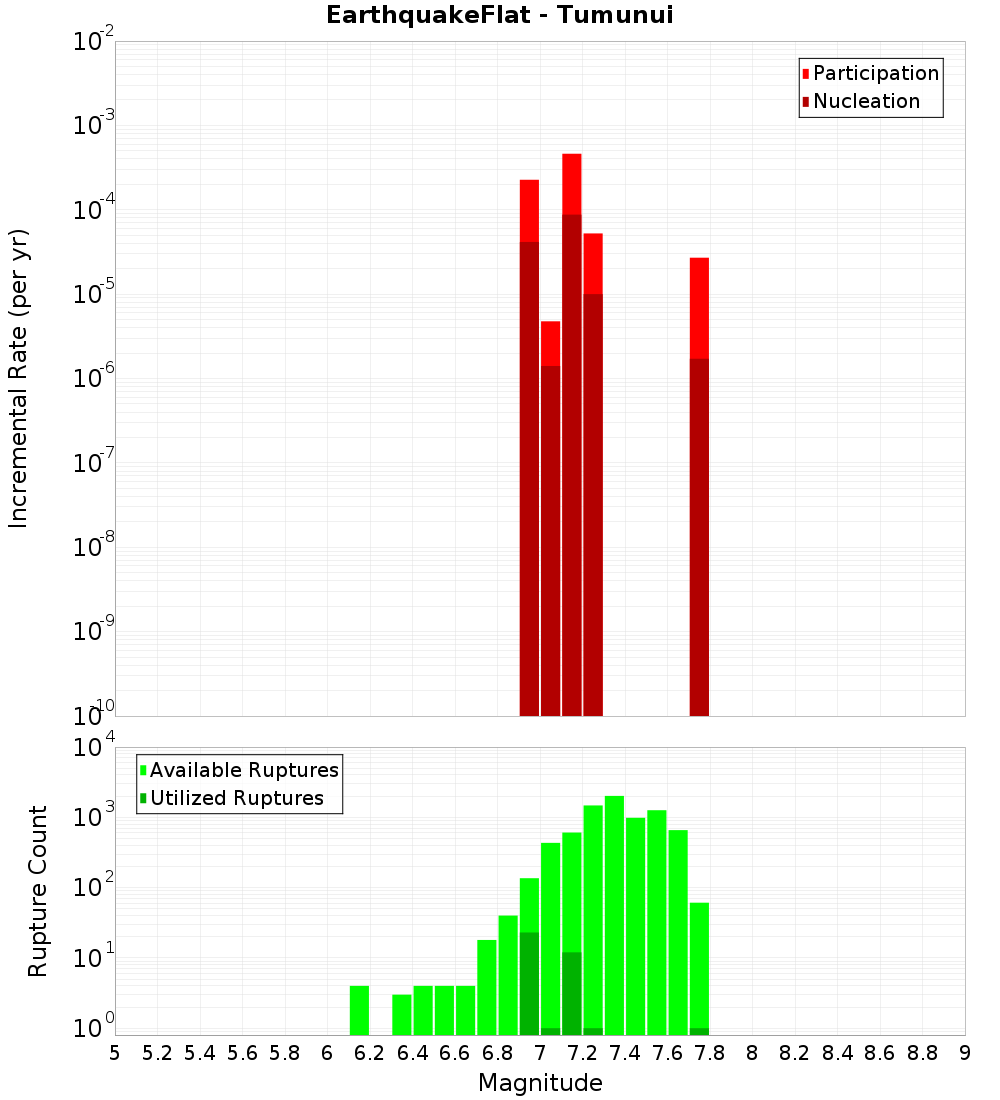

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

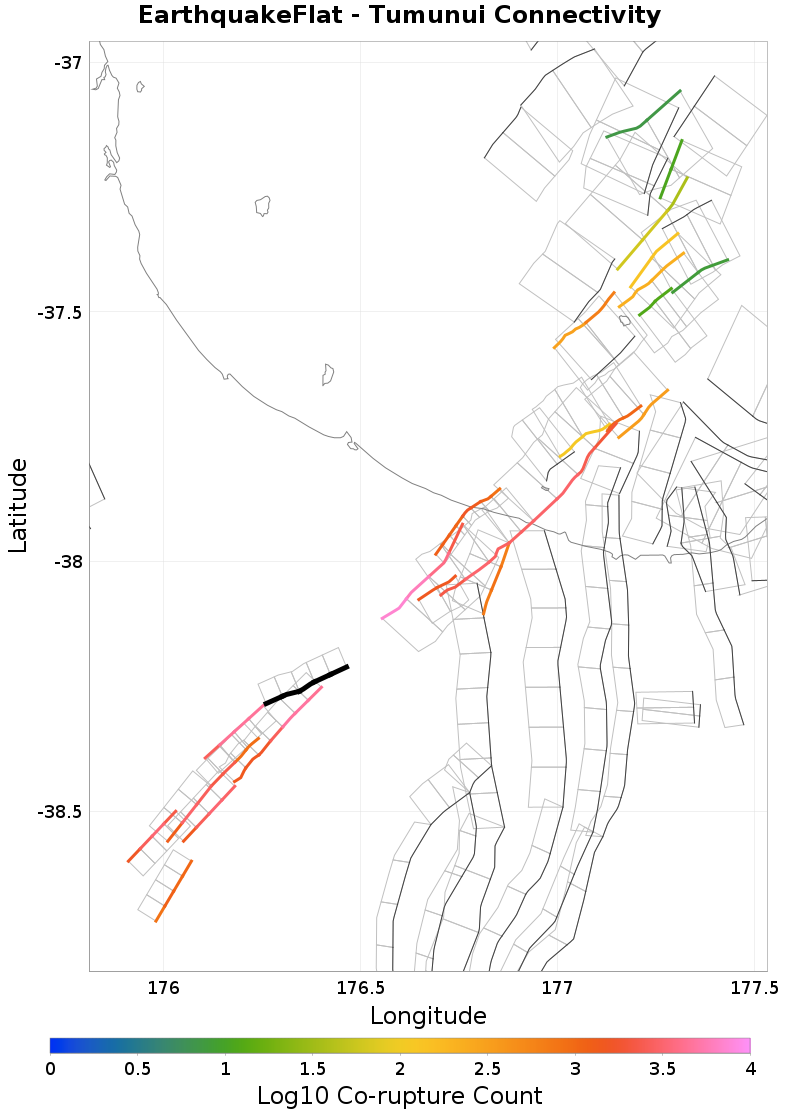

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maleme, 0.79 km away |
| Paeroa, 1.55 km away |
| Puketerata North, 7.65 km away |
| Braemar, 12.8 km away |
| Orakeikorako, 19.26 km away |
Maleme, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.79 km |
| Min Rate-Weighted Dist | 0.79 km |
| Co-rupture Count | 4,505 |
| Co-rupture Rate | 6.831233E-4 |
Paeroa, 1.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.55 km |
| Min Rate-Weighted Dist | 1.55 km |
| Co-rupture Count | 4,784 |
| Co-rupture Rate | 1.7946794E-4 |
Puketerata North, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,406 |
| Co-rupture Rate | 8.405889E-5 |
Braemar, 12.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 12.8 km |
| Min Rate-Weighted Dist | 12.8 km |
| Co-rupture Count | 7,592 |
| Co-rupture Rate | 6.6038326E-4 |
Orakeikorako, 19.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,215 |
| Co-rupture Rate | 1.5631912E-4 |
