Flat Stream - Glenpark Details

PropertyValue
Rupture Count139
Ruptures Above Sect Min Mag137
Ruptures w/ Nonzero Rates5
Magnitude Range[7.10, 8.12]
Length Range[23, 213] km
Total Rate6.3432076E-6 /yr
Multi-Fault Rate6.3432076E-6 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults22

Table Of Contents

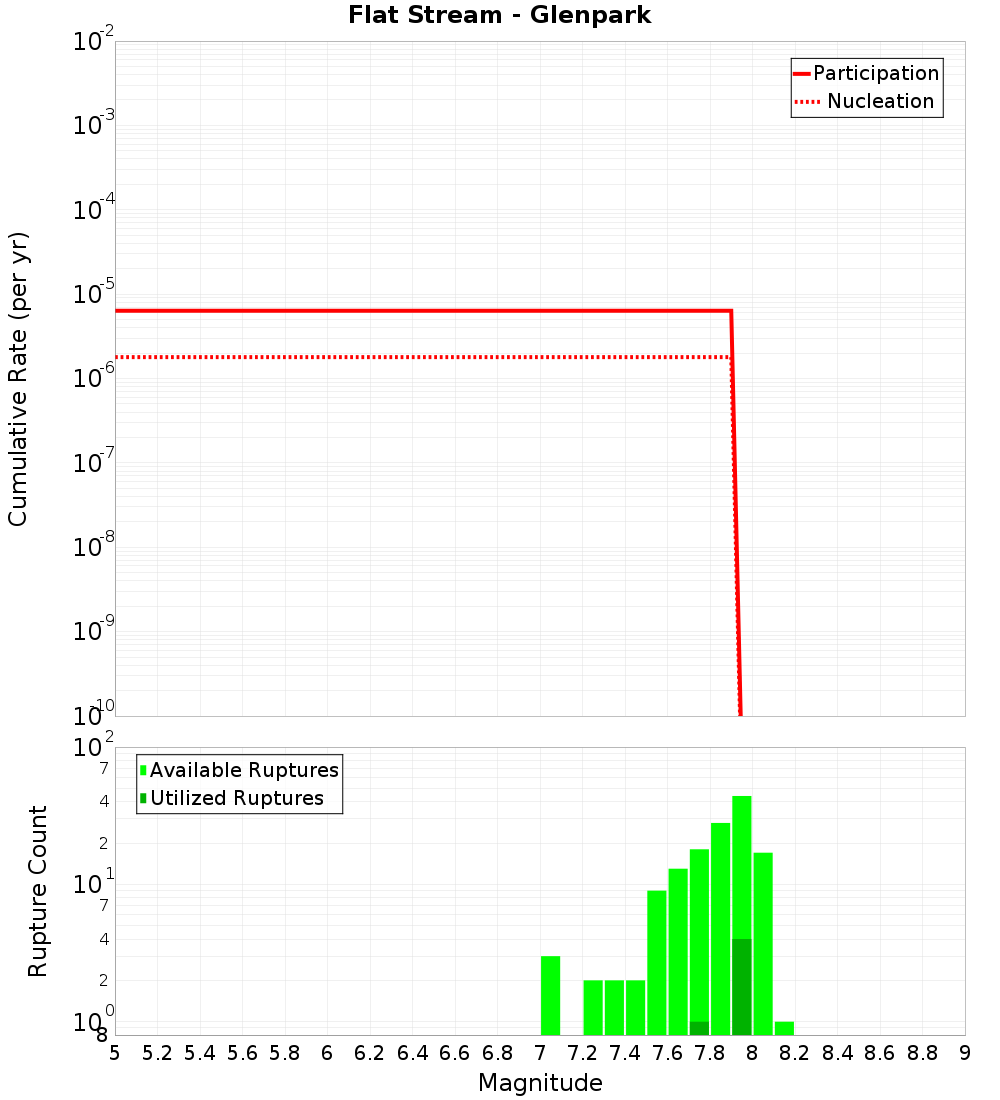

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

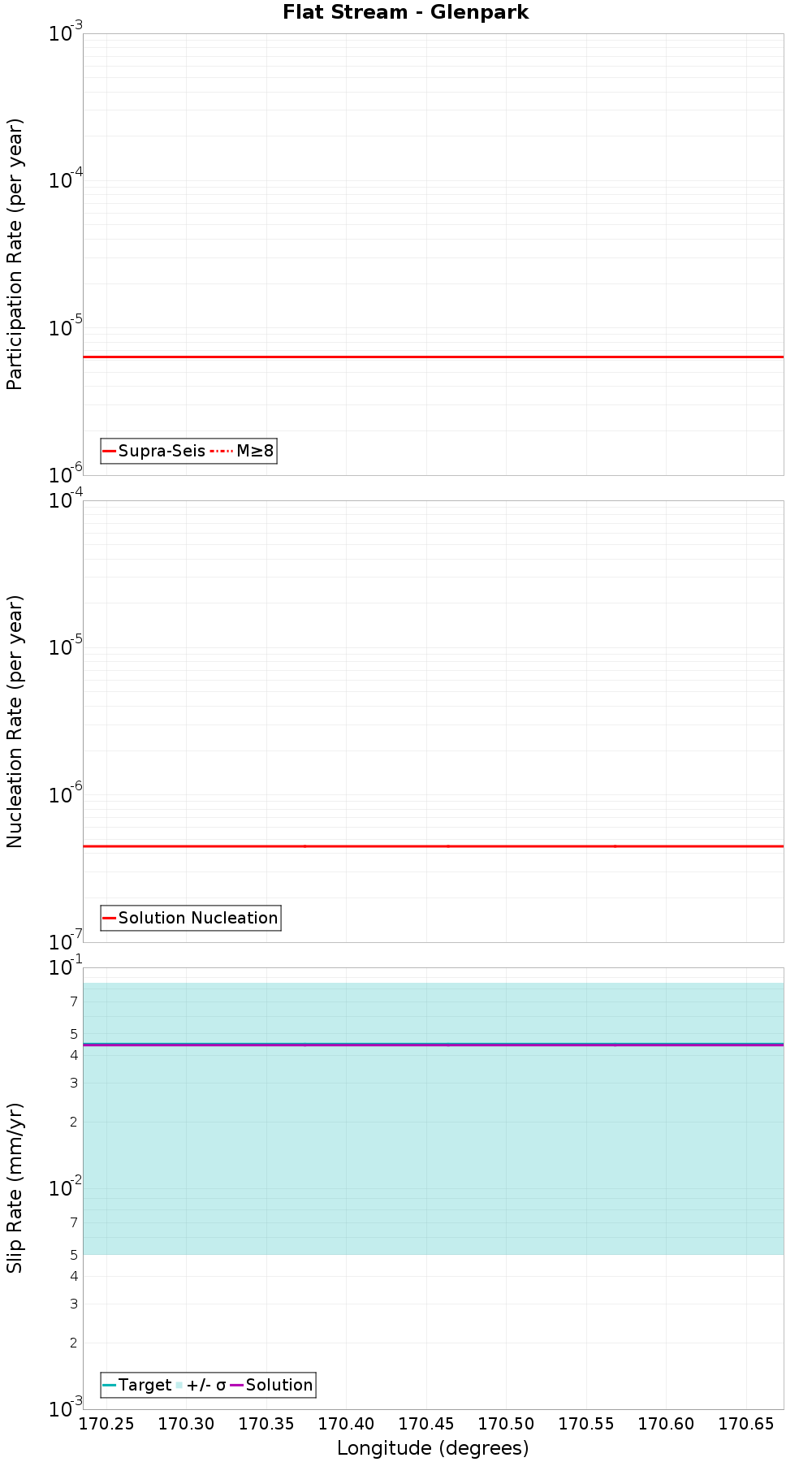

Along-Strike Values

(top)

Along-strike plot

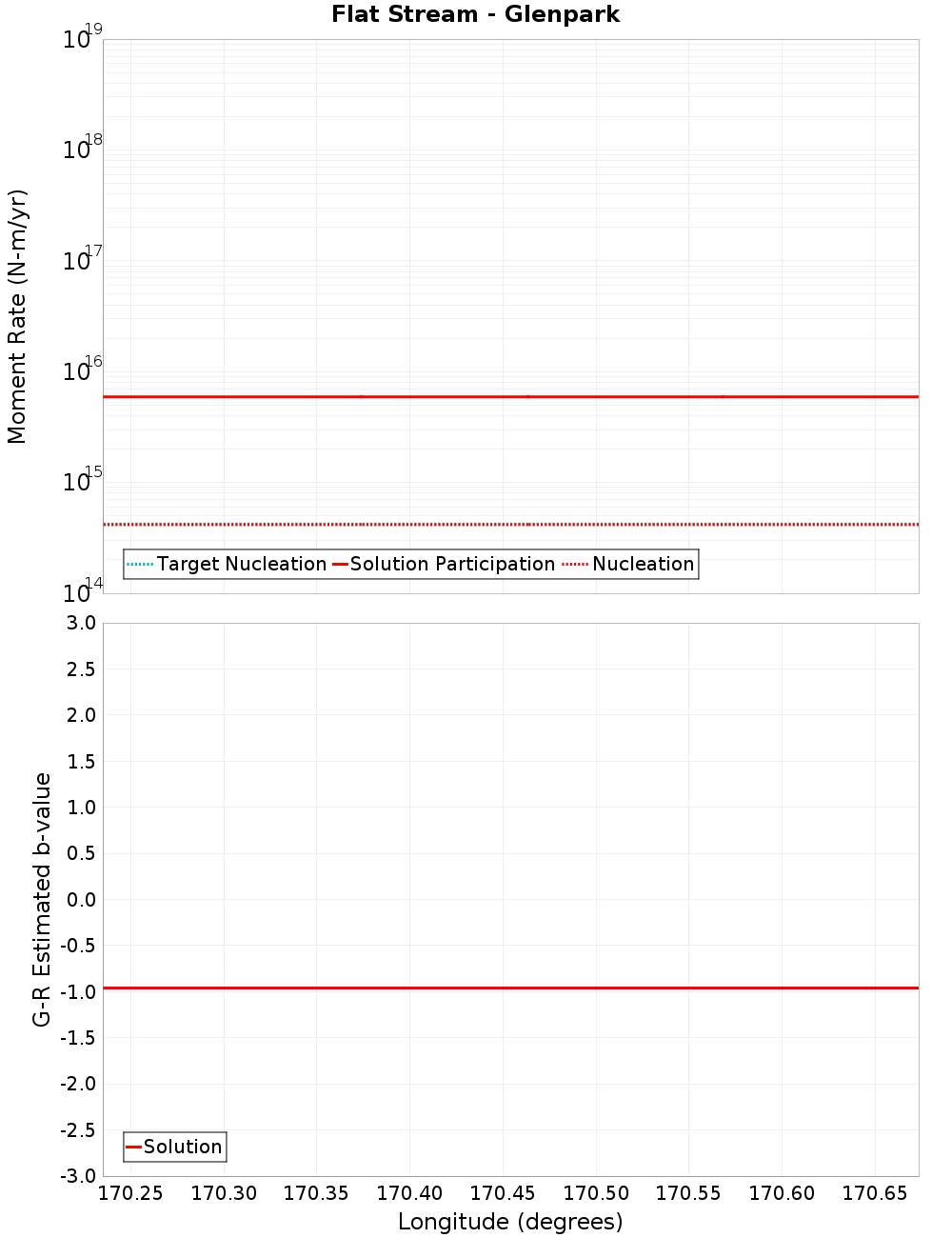

Moment-Rates and b-Values

(top)

Along-strike plot

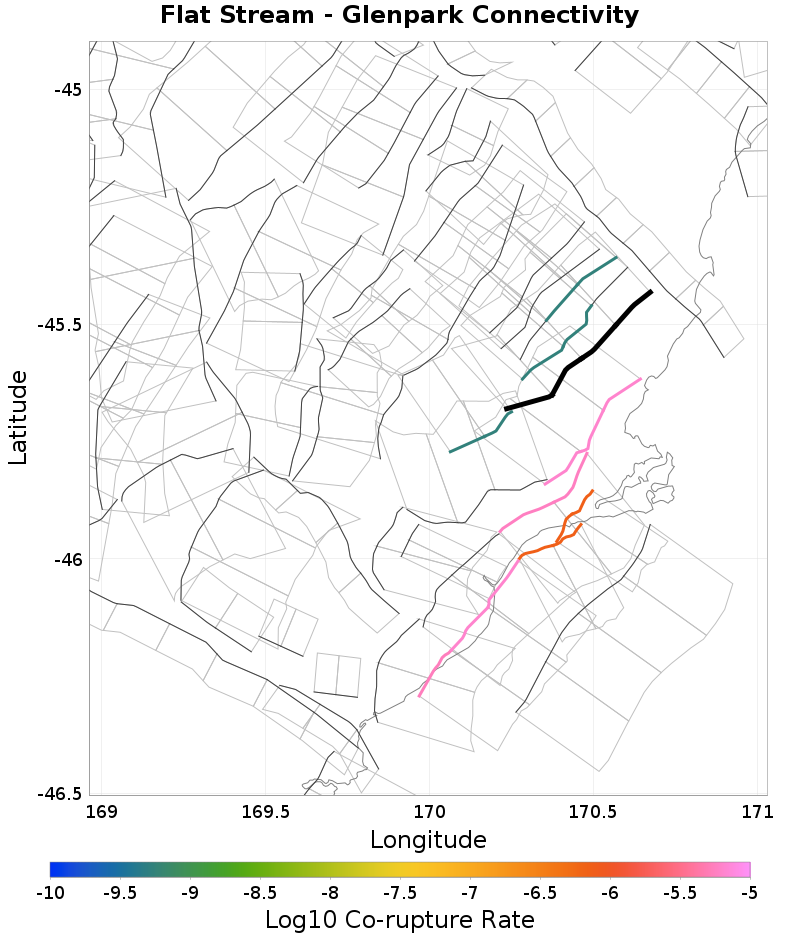

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Nichols Rock, 0.36 km away
Dunback Hill, 2.82 km away
Waihemo, 3.18 km away
Logan Burn, 5.37 km away
Waipiata, 6.13 km away
Murphys Creek, 7.15 km away
Sliver Stream - Merton, 8.3 km away
Billys Ridge, 9.9 km away
Pylap, 11.7 km away
Maungatua - North Taieri, 11.77 km away
Horse Flat, 13.06 km away
Ranfurly, 13.41 km away
Hyde North, 14.79 km away
Titri North, 16.1 km away
Beaumont River, 17.5 km away

Nichols Rock, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.36 km
Min Rate-Weighted Dist0.36 km
Co-rupture Count107
Co-rupture Rate5.4049115E-10

Dunback Hill, 2.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.82 km
Co-rupture Count38
Co-rupture Rate5.4049115E-10

Waihemo, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 5.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Waipiata, 6.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Murphys Creek, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.15 km
Min Rate-Weighted Dist8 km
Co-rupture Count37
Co-rupture Rate5.4049115E-10

Sliver Stream - Merton, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.3 km
Min Rate-Weighted Dist8.3 km
Co-rupture Count19
Co-rupture Rate6.3426673E-6

Billys Ridge, 9.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Pylap, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 11.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Horse Flat, 13.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Ranfurly, 13.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Hyde North, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri North, 16.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate5.614263E-6

Beaumont River, 17.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ3
Connected?true
Directly Connected?false
Co-rupture Count79
Co-rupture Rate0.0
