Alpine: Caswell Details

PropertyValue
Rupture Count113,052
Ruptures Above Sect Min Mag113,049
Ruptures w/ Nonzero Rates300
Magnitude Range[6.60, 8.44]
Length Range[15, 1,156] km
Total Rate0.004411994 /yr
Multi-Fault Rate0.004411994 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults92

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

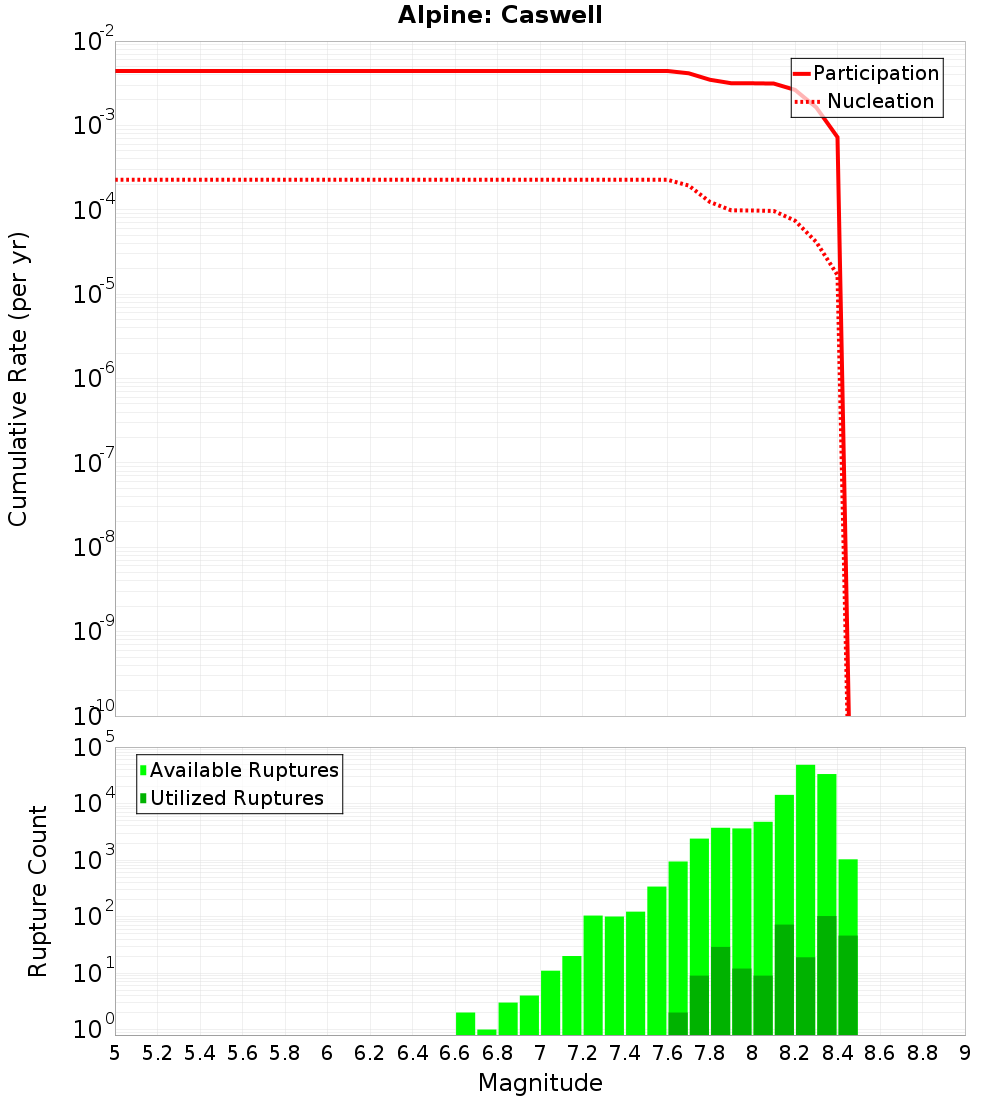

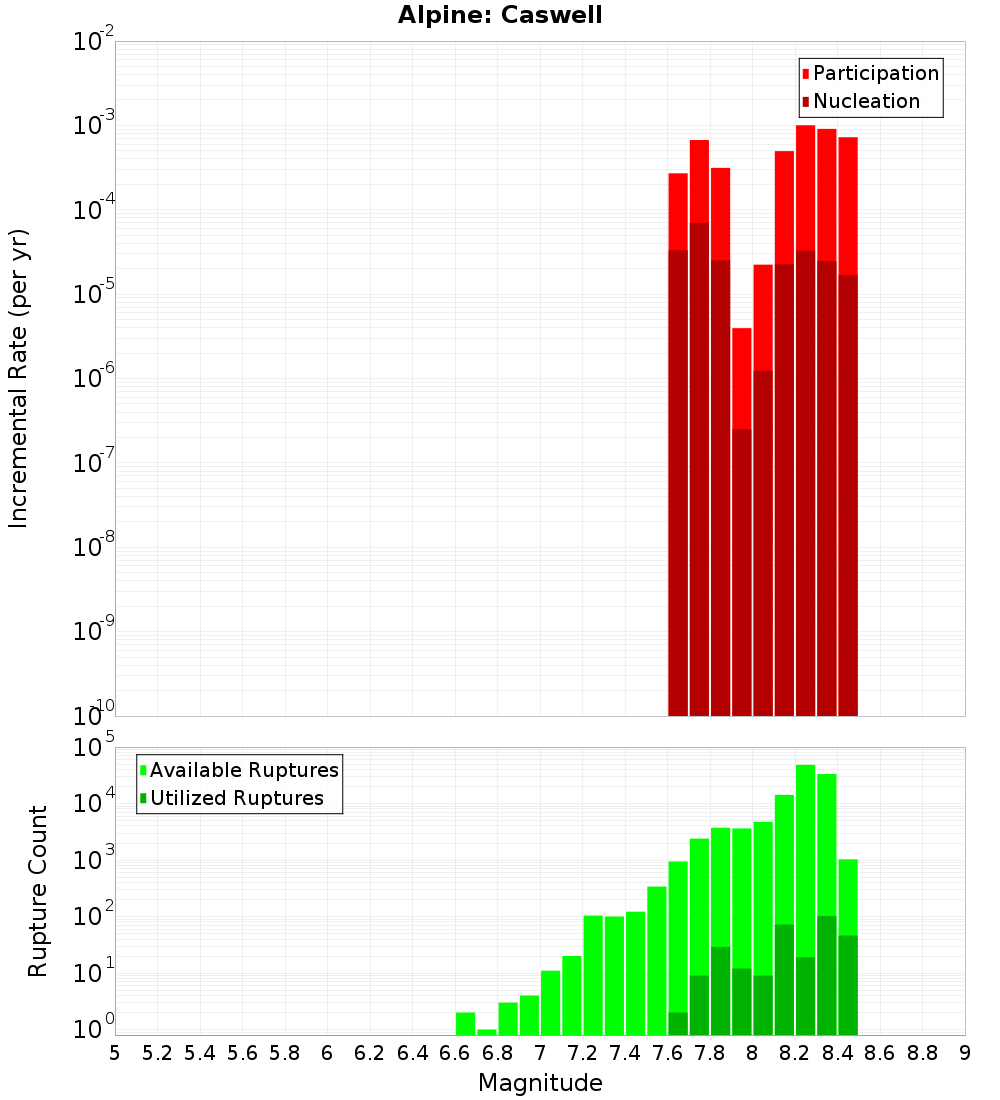

Incremental PlotCumulative Plot

Along-Strike Values

(top)

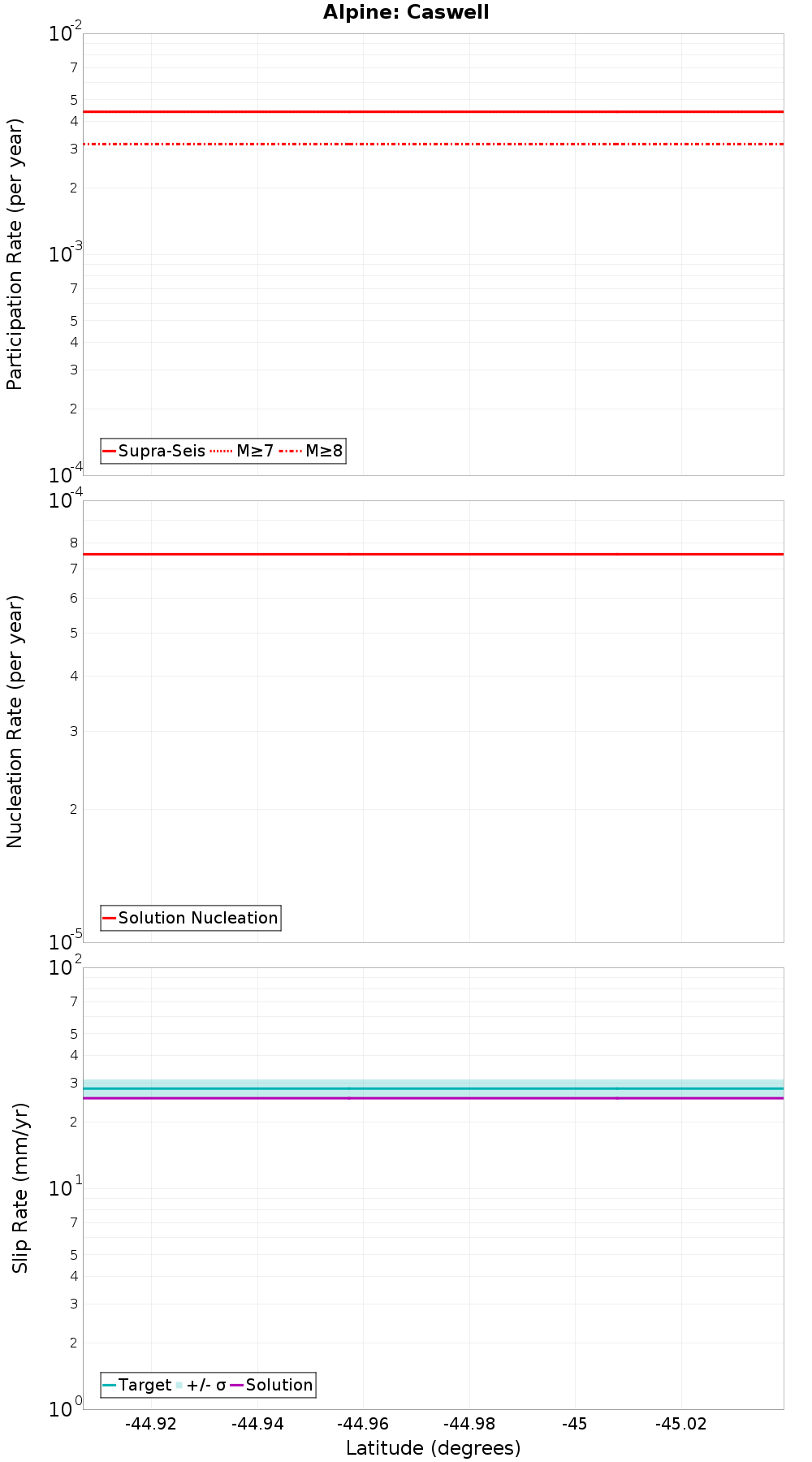

Along-strike plot

Moment-Rates and b-Values

(top)

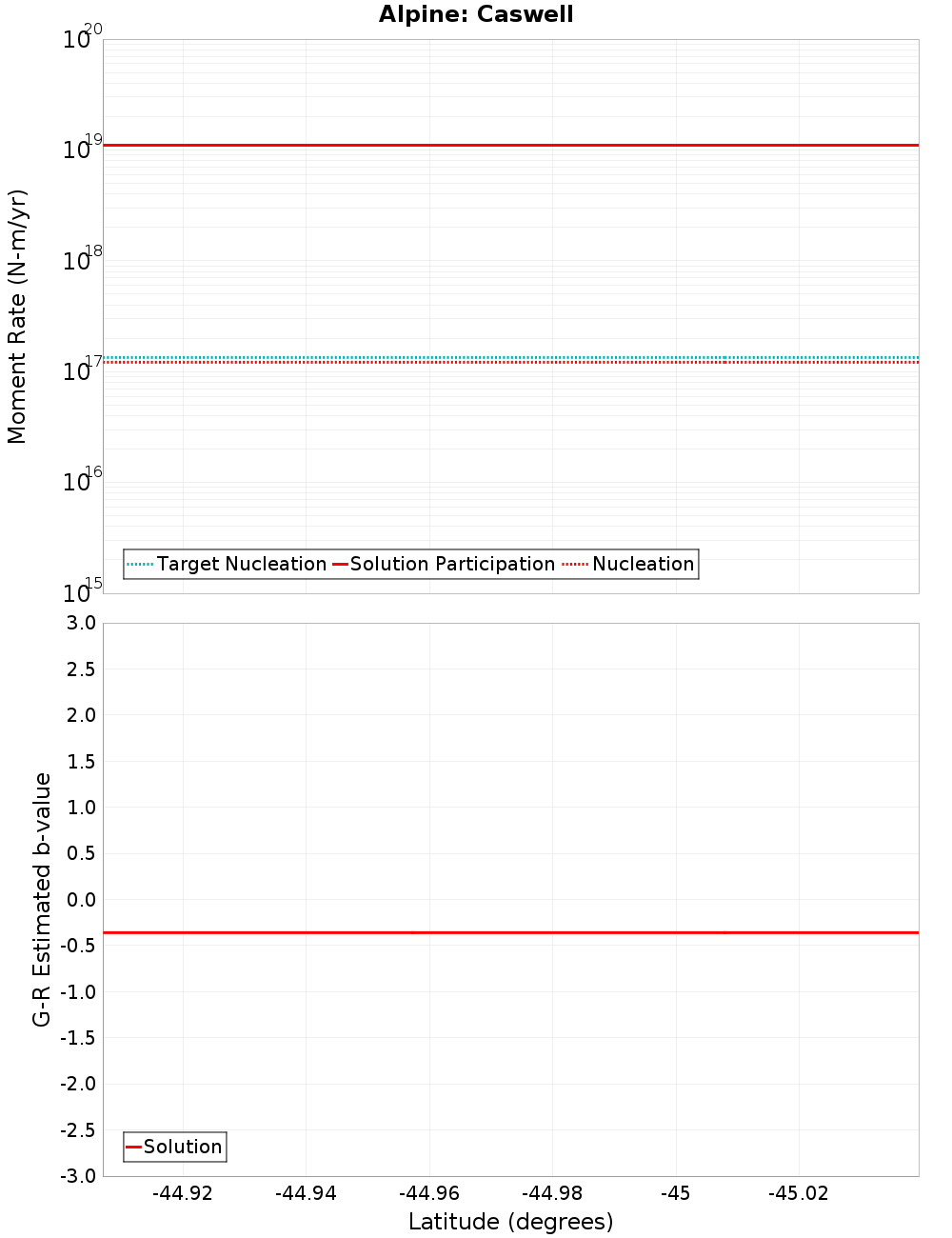

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Caswell - South George, 0 km away
Alpine: Nancy, 0 km away
Alpine: Resolution - Charles, 3.34 km away
Central Wedge 1 & 2 & 3, 3.43 km away
South Wedge 2, 8.13 km away
Central Wedge 4 - South Wedge 411, 9.7 km away
Alpine: Resolution - Dagg, 11.24 km away

Alpine: Caswell - South George, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count112,601
Co-rupture Rate0.00414171

Alpine: Nancy, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count65,183
Co-rupture Rate0.0022146231

Alpine: Resolution - Charles, 3.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.34 km
Min Rate-Weighted Dist3.34 km
Co-rupture Count43,589
Co-rupture Rate0.0021973709

Central Wedge 1 & 2 & 3, 3.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.43 km
Co-rupture Count739
Co-rupture Rate0.0

South Wedge 2, 8.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count2,212
Co-rupture Rate1.4523997E-4

Central Wedge 4 - South Wedge 411, 9.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count2,368
Co-rupture Rate9.1375674E-5

Alpine: Resolution - Dagg, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count104,999
Co-rupture Rate0.004411994
