Alpine: Nancy Details

PropertyValue
Rupture Count65,458
Ruptures Above Sect Min Mag65,456
Ruptures w/ Nonzero Rates166
Magnitude Range[6.53, 8.44]
Length Range[12, 1,156] km
Total Rate0.0022146231 /yr
Multi-Fault Rate0.0022146231 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults92

Table Of Contents

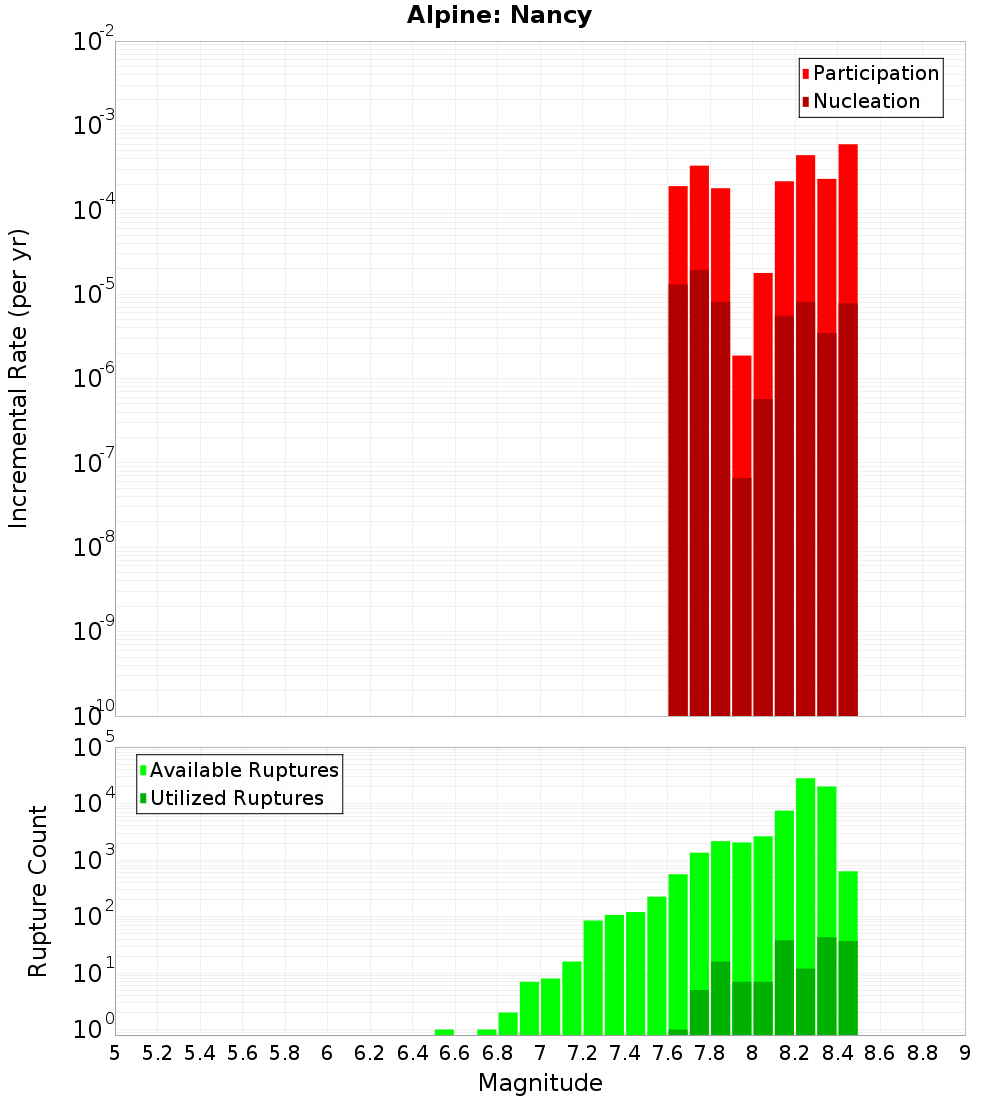

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

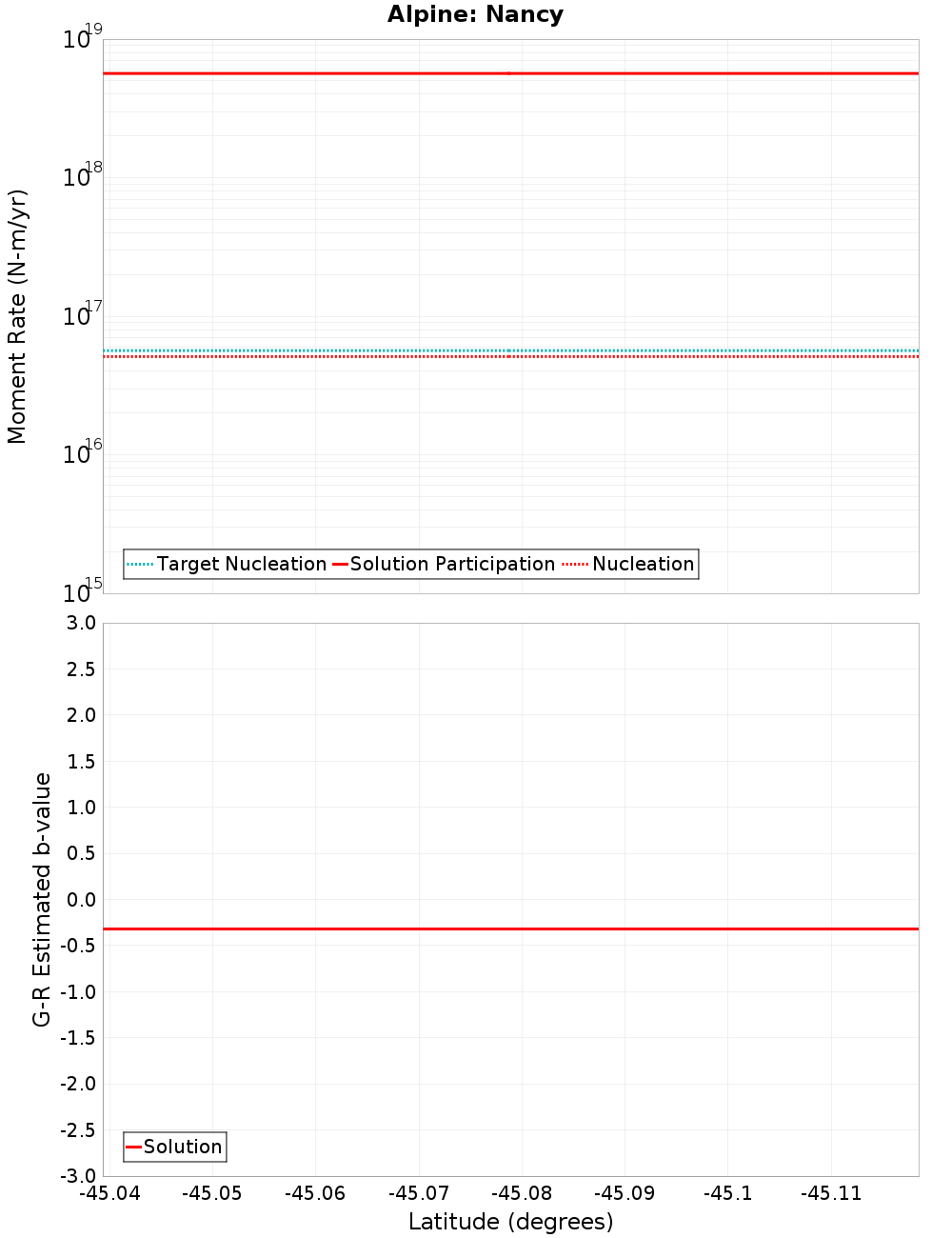

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Caswell, 0 km away
Alpine: Resolution - Dagg, 2.58 km away
Alpine: Resolution - Charles, 2.58 km away
Central Wedge 1 & 2 & 3, 3.81 km away
South Wedge 2, 7.19 km away
Central Wedge 4 - South Wedge 411, 8.78 km away
South Wedge 1, 10.3 km away
South Wedge 3-6-10, 18.23 km away

Alpine: Caswell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count65,183
Co-rupture Rate0.0022146231

Alpine: Resolution - Dagg, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.58 km
Min Rate-Weighted Dist2.58 km
Co-rupture Count63,053
Co-rupture Rate0.0022146231

Alpine: Resolution - Charles, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.58 km
Co-rupture Count376
Co-rupture Rate0.0

Central Wedge 1 & 2 & 3, 3.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.81 km
Co-rupture Count180
Co-rupture Rate0.0

South Wedge 2, 7.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count675
Co-rupture Rate0.0

Central Wedge 4 - South Wedge 411, 8.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count1,245
Co-rupture Rate3.7834005E-5

South Wedge 1, 10.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count1,968
Co-rupture Rate0.0

South Wedge 3-6-10, 18.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count2,560
Co-rupture Rate7.4624013E-6
