Alpine: Resolution - Five Fingers Details

PropertyValue
Rupture Count63,896
Ruptures Above Sect Min Mag63,881
Ruptures w/ Nonzero Rates249
Magnitude Range[6.72, 8.44]
Length Range[20, 1,156] km
Total Rate0.0043329834 /yr
Multi-Fault Rate0.0043329834 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults91

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

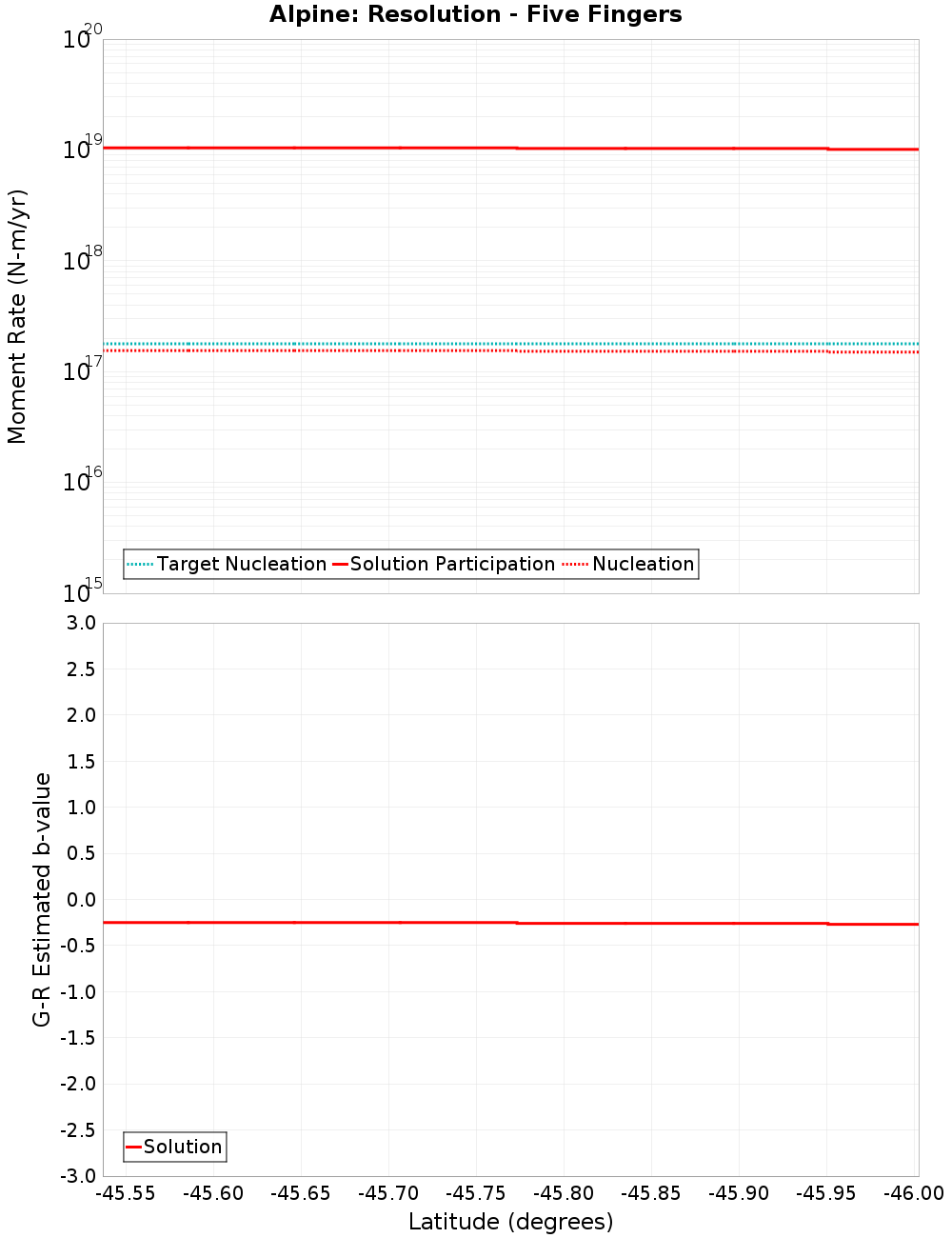

Moment-Rates and b-Values

(top)

Along-strike plot

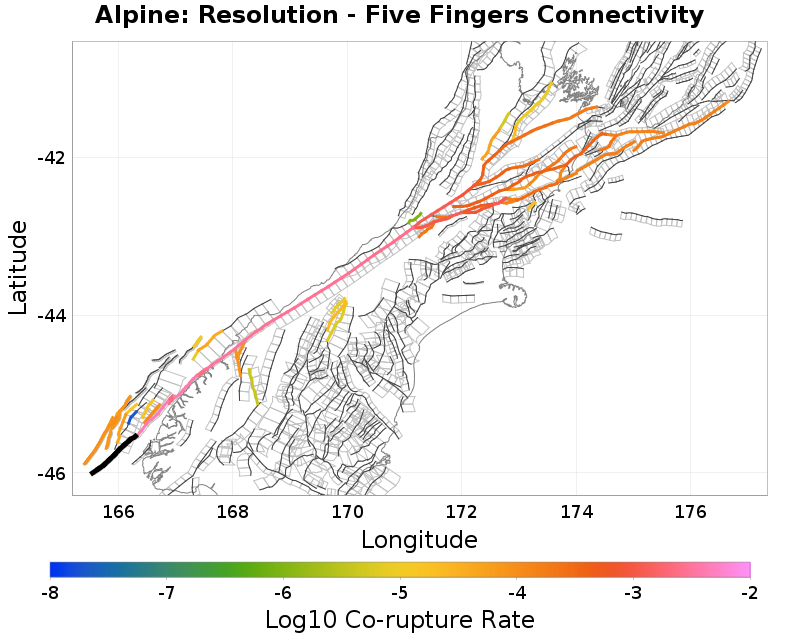

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
South Wedge 5, 0.13 km away
South Wedge 3-6-10, 0.3 km away
Alpine: Resolution - Dagg, 0.91 km away
Caswell 211, 12.73 km away
Caswell High 1, 14.93 km away

South Wedge 5, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.31 km
Min Rate-Weighted Dist0.31 km
Co-rupture Count352
Co-rupture Rate6.2713916E-5

South Wedge 3-6-10, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.3 km
Co-rupture Count67
Co-rupture Rate1.9094974E-8

Alpine: Resolution - Dagg, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.91 km
Min Rate-Weighted Dist0.91 km
Co-rupture Count63,405
Co-rupture Rate0.0042860955

Caswell 211, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.73 km
Min Rate-Weighted Dist12.73 km
Co-rupture Count9,115
Co-rupture Rate7.2207666E-5

Caswell High 1, 14.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist14.93 km
Min Rate-Weighted Dist14.93 km
Co-rupture Count32,183
Co-rupture Rate1.3533639E-4
