Awatere: Northeast 2 Details
| Property | Value |
|---|---|
| Rupture Count | 8,180 |
| Ruptures Above Sect Min Mag | 8,180 |
| Ruptures w/ Nonzero Rates | 51 |
| Magnitude Range | [6.81, 8.31] |
| Length Range | [22, 744] km |
| Total Rate | 9.454112E-4 /yr |
| Multi-Fault Rate | 9.454112E-4 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 76 |
Table Of Contents

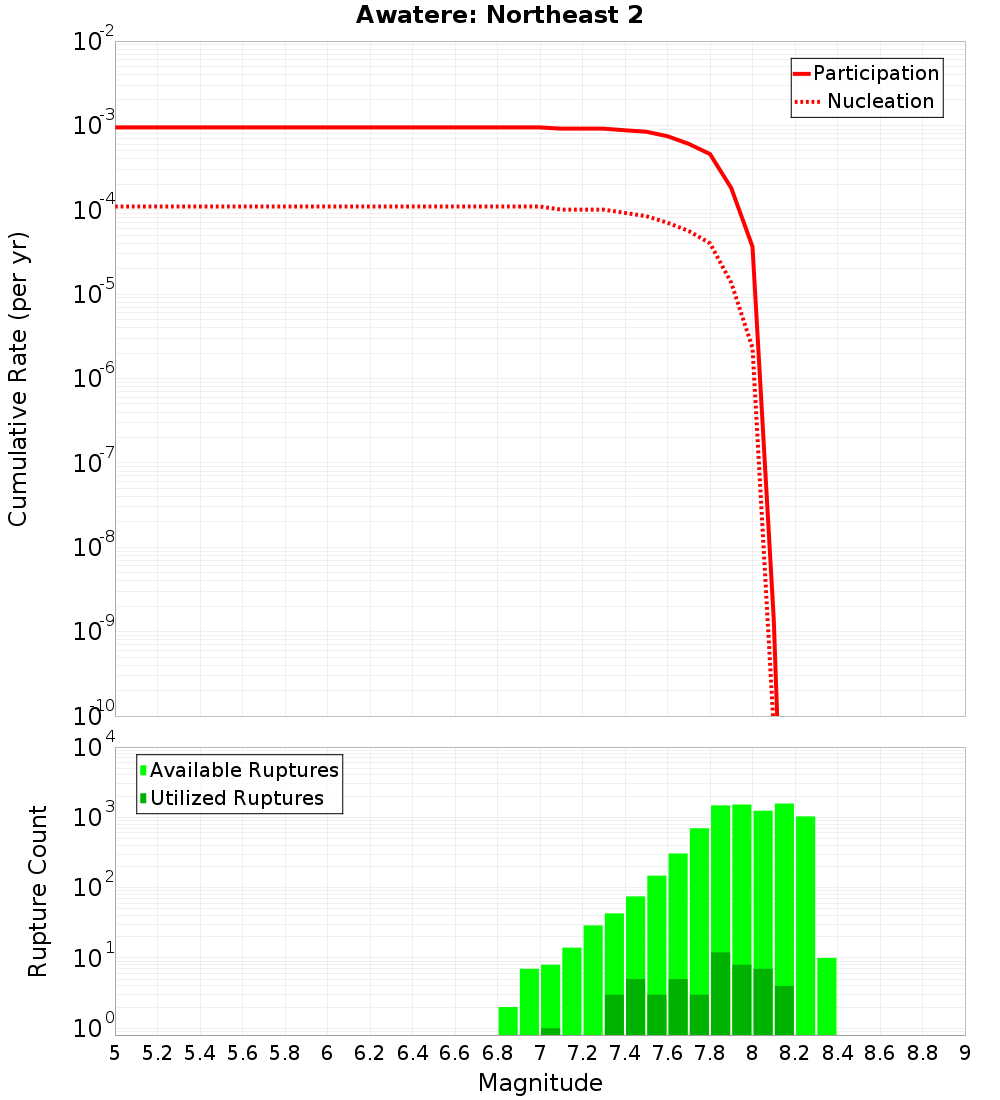

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

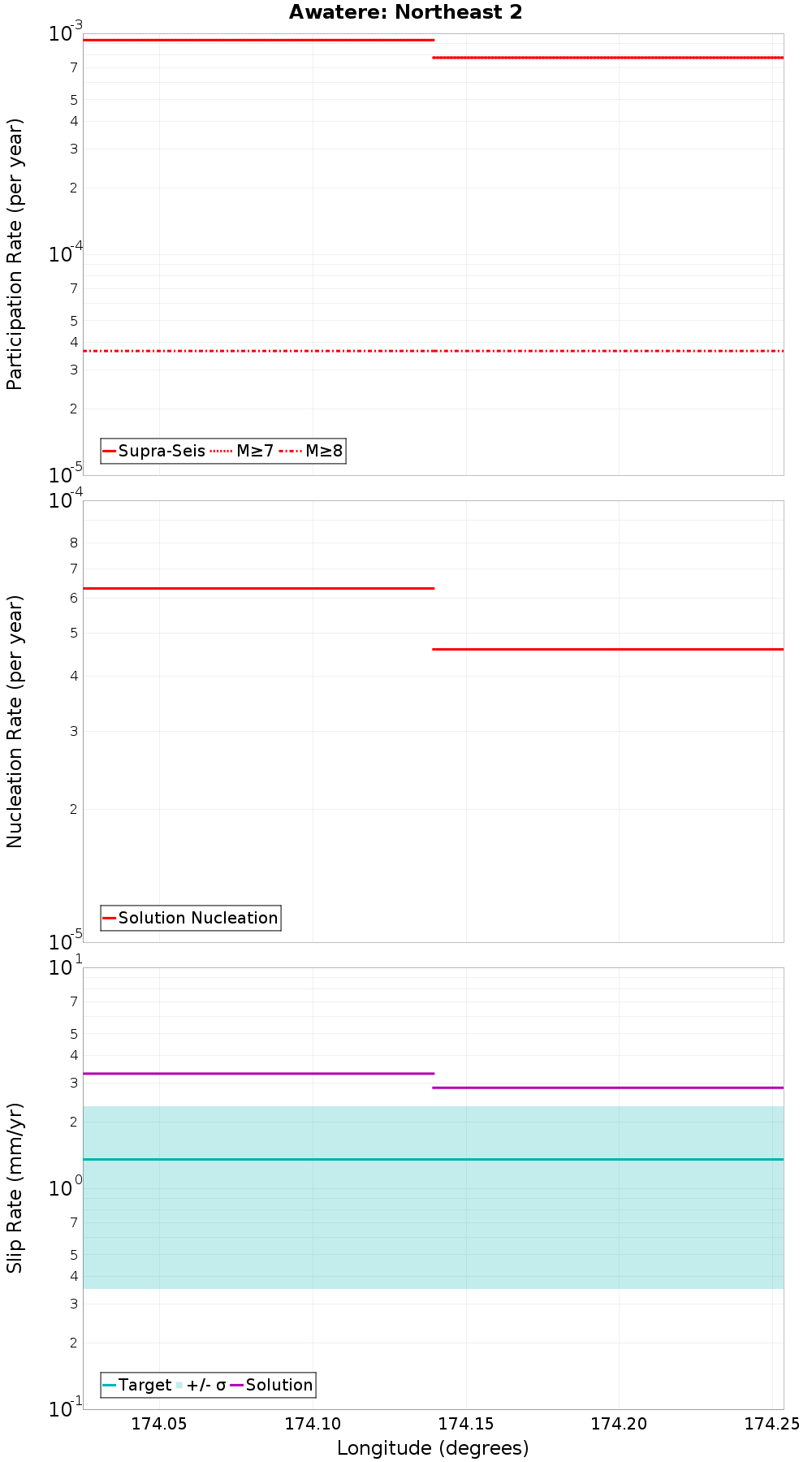

Along-Strike Values

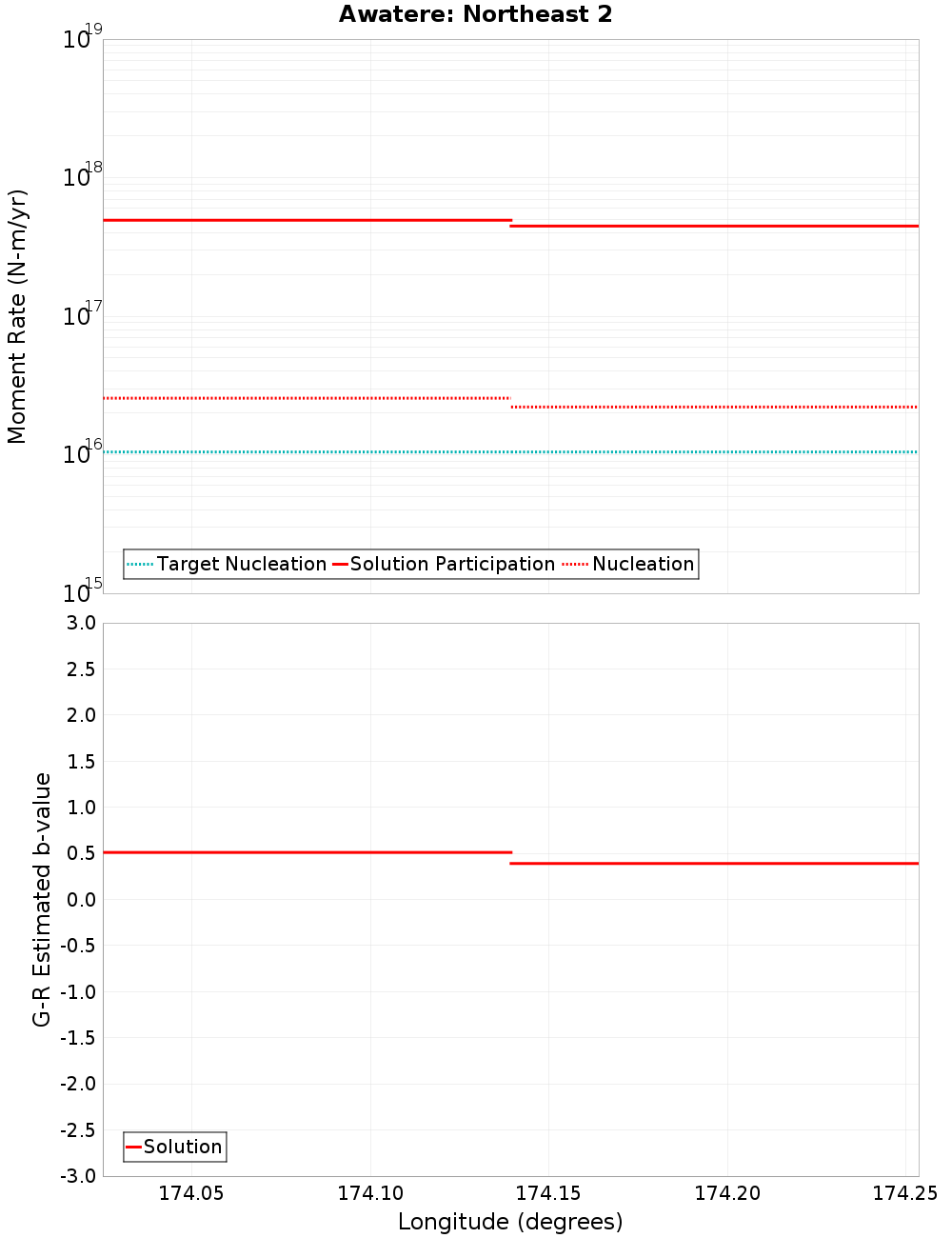

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Awatere: Northeast 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 7,390 |
| Co-rupture Rate | 8.1615325E-4 |
Vernon 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 175 |
| Co-rupture Rate | 1.3423999E-4 |
Vernon 4, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 2,815 |
| Co-rupture Rate | 2.655751E-4 |
Vernon 3, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 4.23 km |
| Co-rupture Count | 288 |
| Co-rupture Rate | 2.0010065E-4 |
Cloudy 1, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.25 km |
| Min Rate-Weighted Dist | 0.25 km |
| Co-rupture Count | 376 |
| Co-rupture Rate | 1.0245049E-4 |
Vernon 2, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 3.181002E-5 |
Cloudy 2, 3.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.99 km |
| Min Rate-Weighted Dist | 3.99 km |
| Co-rupture Count | 2,296 |
| Co-rupture Rate | 3.2928566E-4 |
Cloudy 3, 5.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.87 km |
| Min Rate-Weighted Dist | 5.87 km |
| Co-rupture Count | 2,529 |
| Co-rupture Rate | 4.301734E-5 |
Wairau 2, 7.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau 3, 10.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.6 km |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
Wairau, 11.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 115 |
| Co-rupture Rate | 0.0 |
Needles East 2, 13.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
London Hill, 14.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Wairarapa: Needles, 15.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7,214 |
| Co-rupture Rate | 5.787301E-4 |
Ohariu South 1, 16.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 334 |
| Co-rupture Rate | 1.0245049E-4 |
