Blue Mountain Details
| Property | Value |
|---|---|
| Rupture Count | 1,081 |
| Ruptures Above Sect Min Mag | 1,080 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [7.08, 8.19] |
| Length Range | [26, 379] km |
| Total Rate | 5.3385837E-5 /yr |
| Multi-Fault Rate | 5.3385837E-5 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 43 |
Table Of Contents

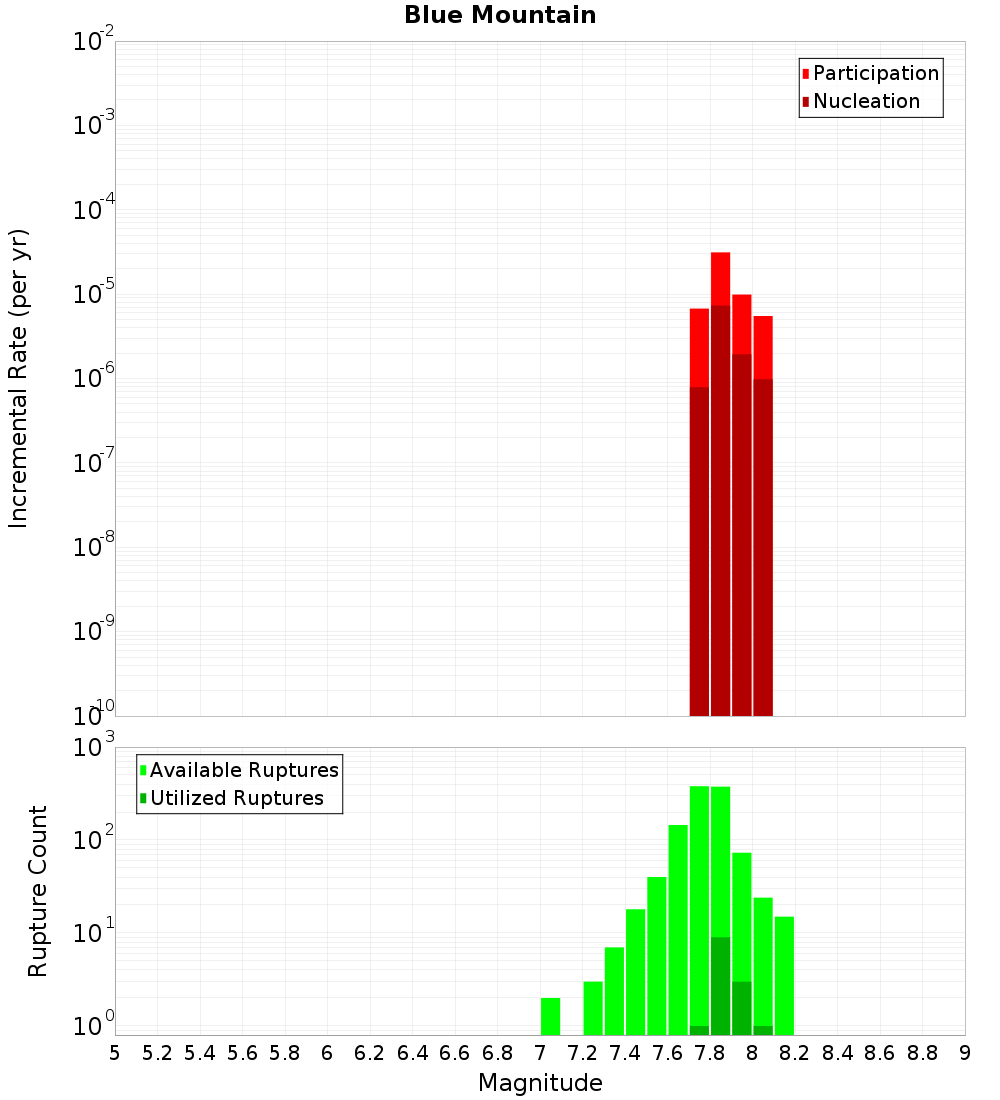

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

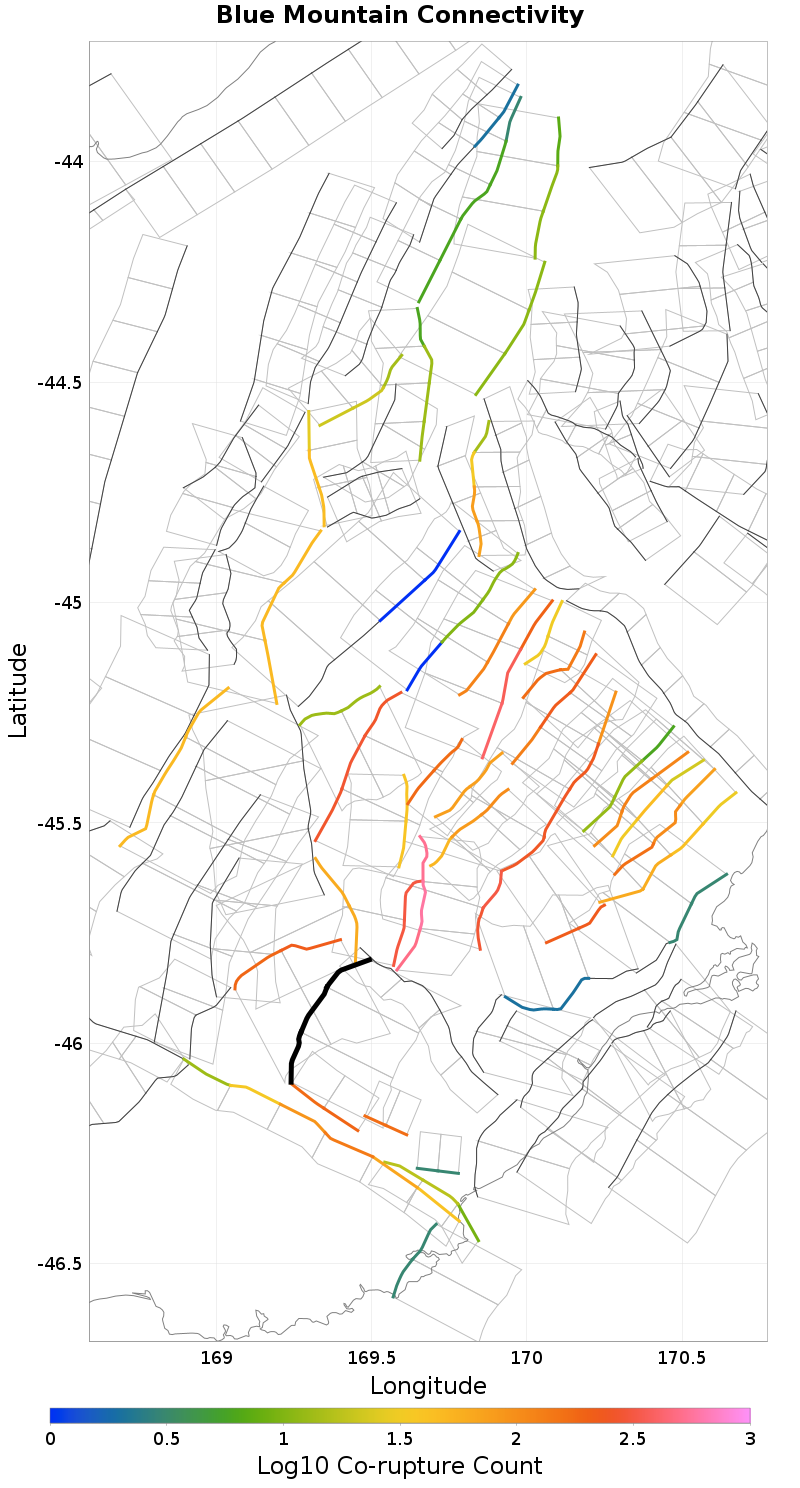

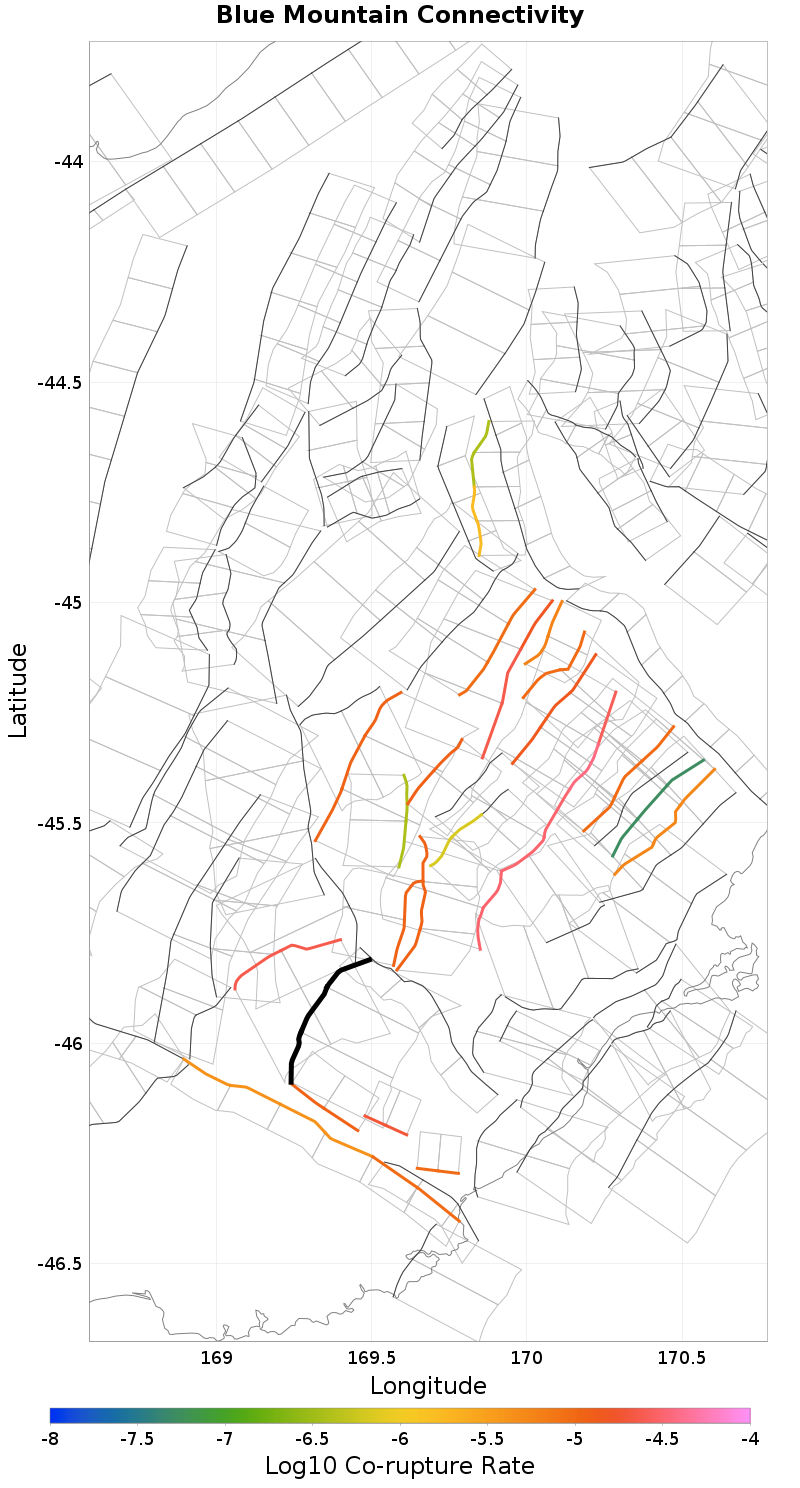

Connectivity
 |  |
|---|
Nearby Sections
Beacon Hill, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.09 km |
| Min Rate-Weighted Dist | 0.09 km |
| Co-rupture Count | 188 |
| Co-rupture Rate | 1.1208741E-5 |
Tuapeka, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Clifton, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.25 km |
| Min Rate-Weighted Dist | 0.25 km |
| Co-rupture Count | 167 |
| Co-rupture Rate | 1.948572E-5 |
Teviot, 0.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 61 |
| Co-rupture Rate | 0.0 |
Backbone, 1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1 km |
| Min Rate-Weighted Dist | 1 km |
| Co-rupture Count | 311 |
| Co-rupture Rate | 1.1250598E-5 |
Beaumont River, 3.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.49 km |
| Min Rate-Weighted Dist | 3.49 km |
| Co-rupture Count | 578 |
| Co-rupture Rate | 1.1518133E-5 |
Spylaw, 3.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.92 km |
| Min Rate-Weighted Dist | 3.92 km |
| Co-rupture Count | 218 |
| Co-rupture Rate | 2.3481296E-5 |
Hillfoot, 6.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.17 km |
| Min Rate-Weighted Dist | 6.17 km |
| Co-rupture Count | 154 |
| Co-rupture Rate | 1.38337755E-5 |
Otanomomo, 9.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 9.4828065E-6 |
Hyde South - The Twins, 12.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 12.86 km |
| Min Rate-Weighted Dist | 12.86 km |
| Co-rupture Count | 318 |
| Co-rupture Rate | 3.0714964E-5 |
Little Hillfoot, 14.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
Maungatua - North Taieri, 18.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Old Man, 19.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
