Boby Stream Details

PropertyValue
Rupture Count56
Ruptures Above Sect Min Mag55
Ruptures w/ Nonzero Rates1
Magnitude Range[6.71, 7.82]
Length Range[18, 214] km
Total Rate8.686254E-5 /yr
Multi-Fault Rate8.686254E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults12

Table Of Contents

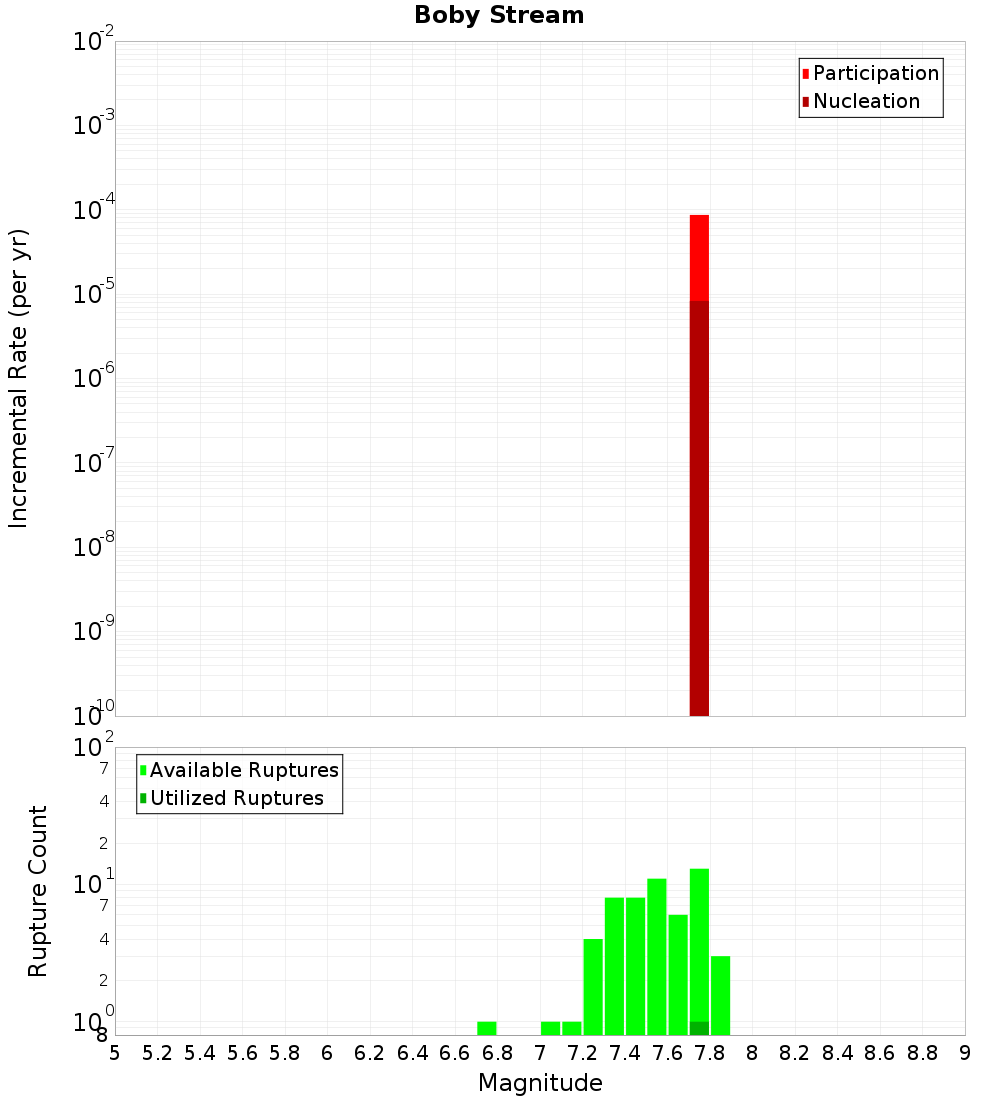

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

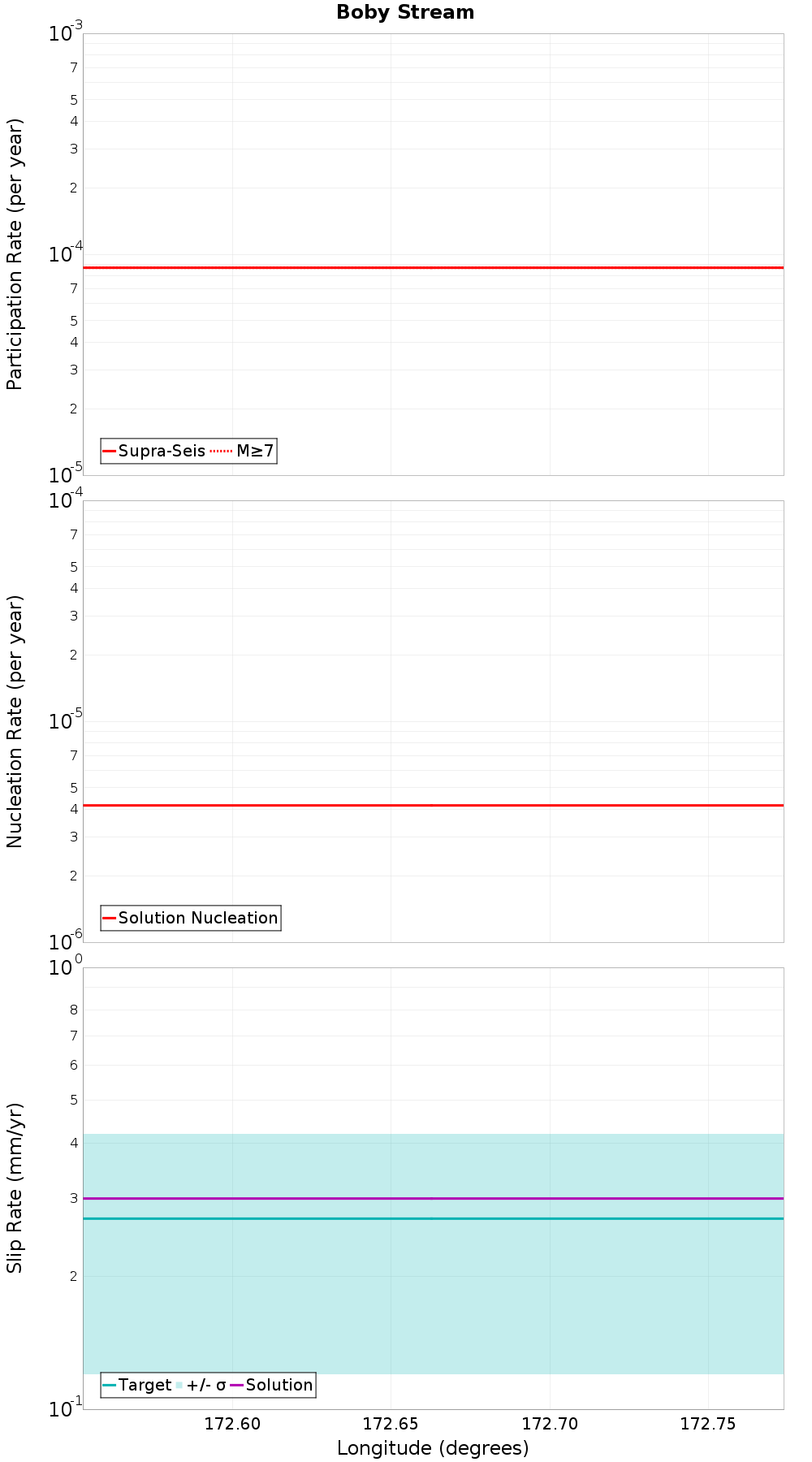

Along-Strike Values

(top)

Along-strike plot

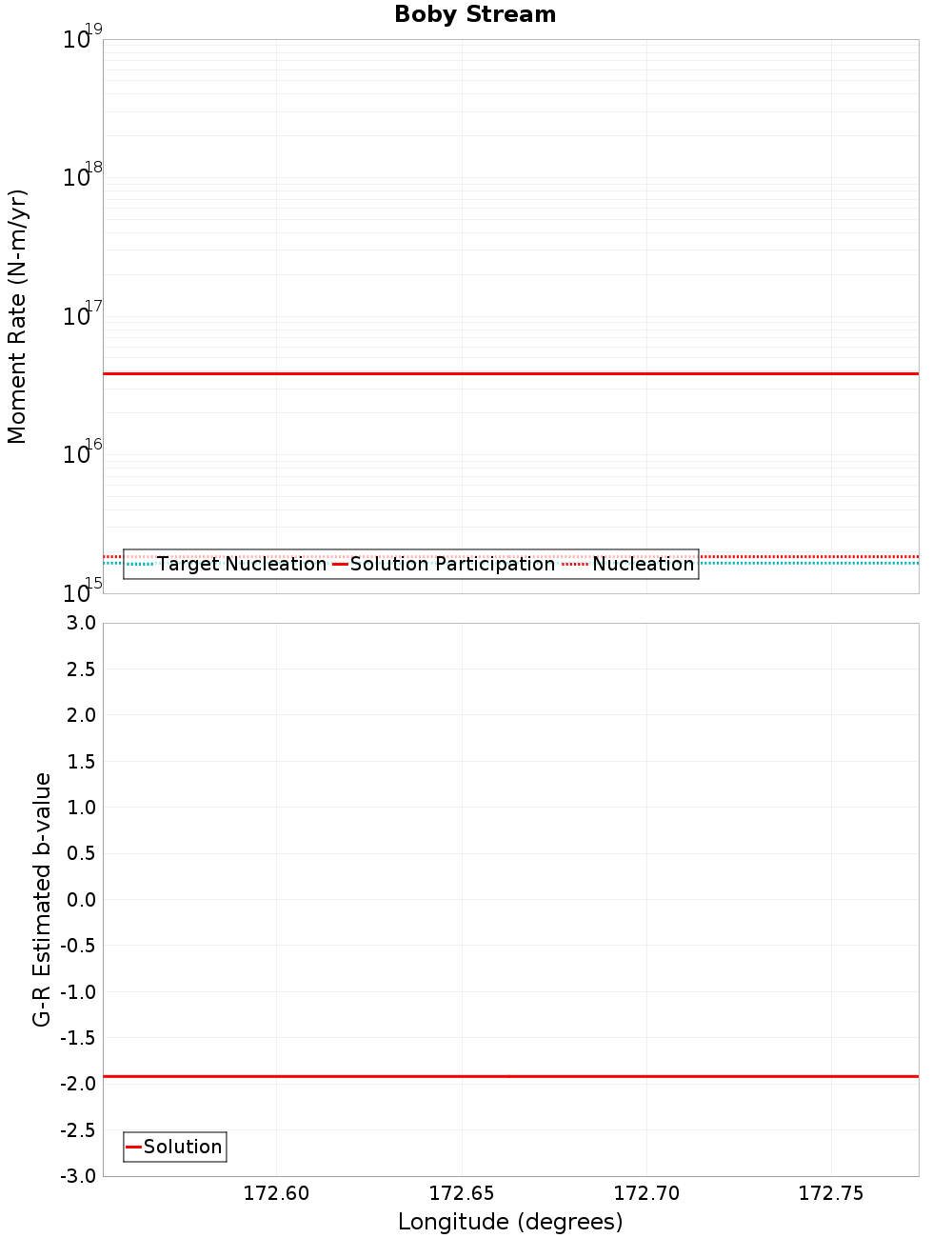

Moment-Rates and b-Values

(top)

Along-strike plot

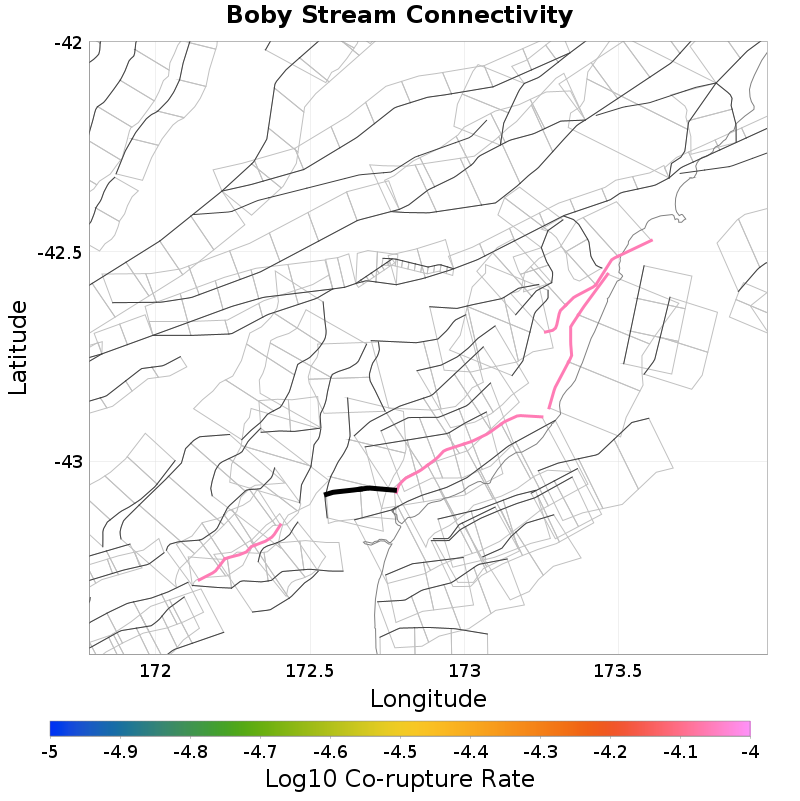

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Doctors, 0.16 km awayMt Lawry, 8.54 km away
OmihiLwrHuru, 0.79 km awaySpringbank, 10.41 km away
Kaiwara South, 2.03 km awayMotunau, 13.49 km away
AmberBlyth, 4.06 km awayKnowles Top, 14.14 km away
Starvation - Ashley, 5.05 km awayEsk South, 14.77 km away
Lowry, 6.76 km awayNorth Canterbury Shelf 2, 15.76 km away
Mt Arden, 6.78 km awayLeithfield - NCVI - NCVII, 15.82 km away
Alexander, 7.02 km awayVirginia, 17.33 km away
Pancake, 7.21 km awayHurunui Peak, 17.4 km away
Lees Valley, 8.23 km awayWaikuku, 18.89 km away

Doctors, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

OmihiLwrHuru, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.79 km
Min Rate-Weighted Dist0.79 km
Co-rupture Count29
Co-rupture Rate8.686254E-5

Kaiwara South, 2.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 4.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.06 km
Co-rupture Count23
Co-rupture Rate0.0

Starvation - Ashley, 5.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lowry, 6.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Arden, 6.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 7.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 7.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 8.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Lawry, 8.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 10.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motunau, 13.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 14.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist14.14 km
Min Rate-Weighted Dist14.14 km
Co-rupture Count26
Co-rupture Rate8.686254E-5

Esk South, 14.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 2, 15.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leithfield - NCVI - NCVII, 15.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 17.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 17.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikuku, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
