Caswell 211 Details
| Property | Value |
|---|---|
| Rupture Count | 12,571 |
| Ruptures Above Sect Min Mag | 11,865 |
| Ruptures w/ Nonzero Rates | 39 |
| Magnitude Range | [5.58, 8.39] |
| Length Range | [5, 933] km |
| Total Rate | 2.362213E-4 /yr |
| Multi-Fault Rate | 2.362213E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 50 |
Table Of Contents

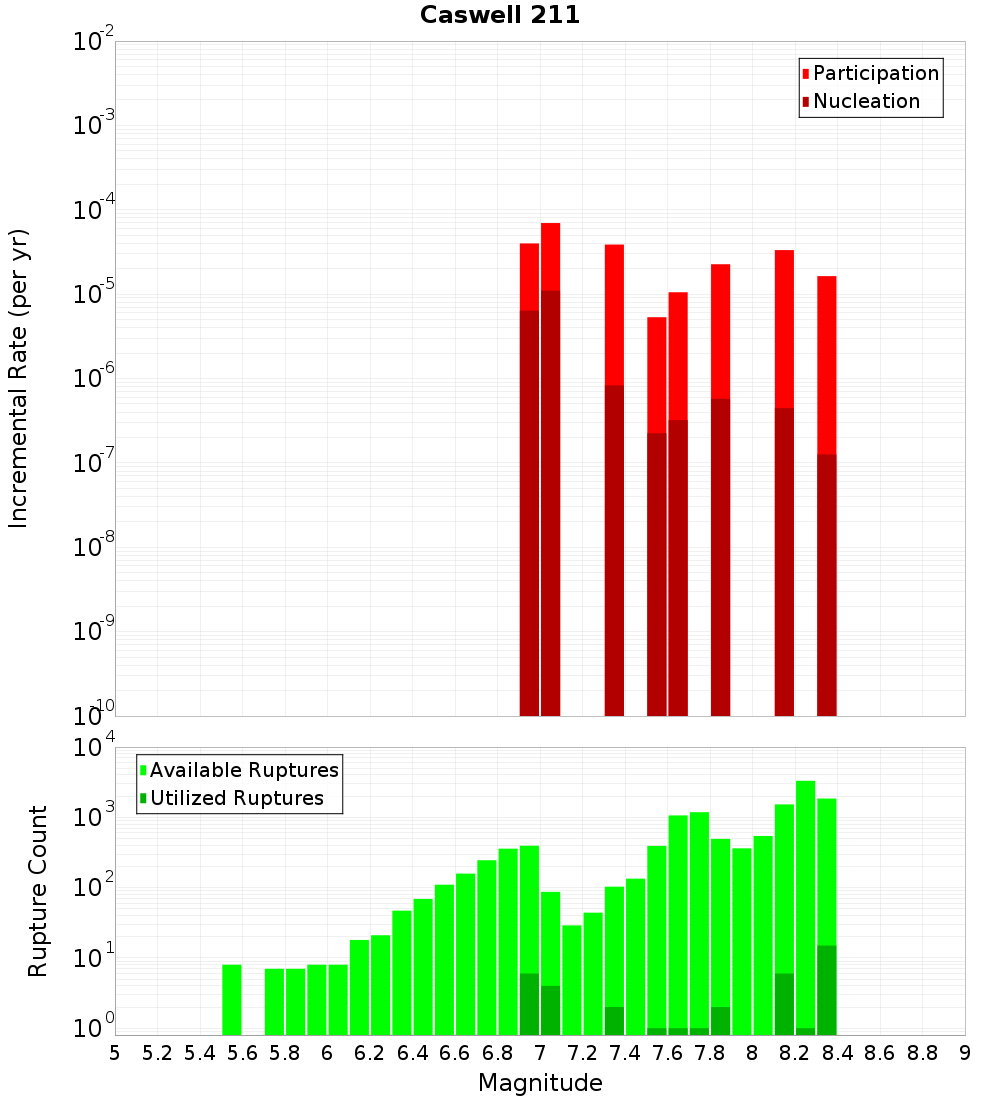

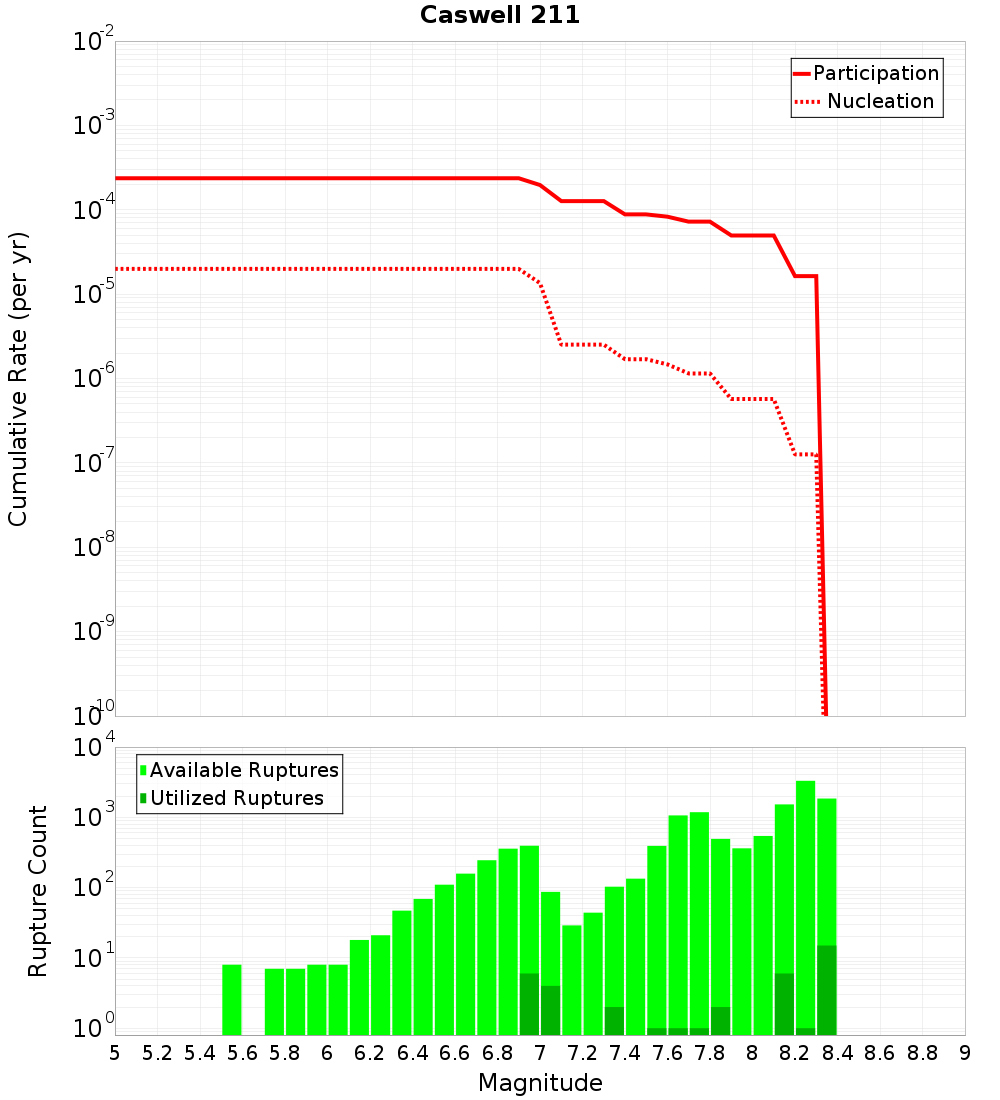

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

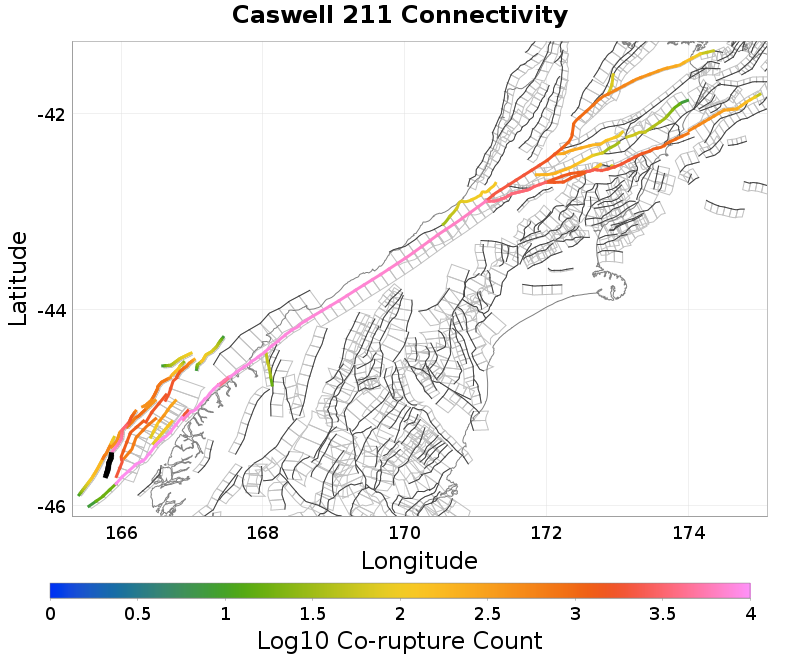

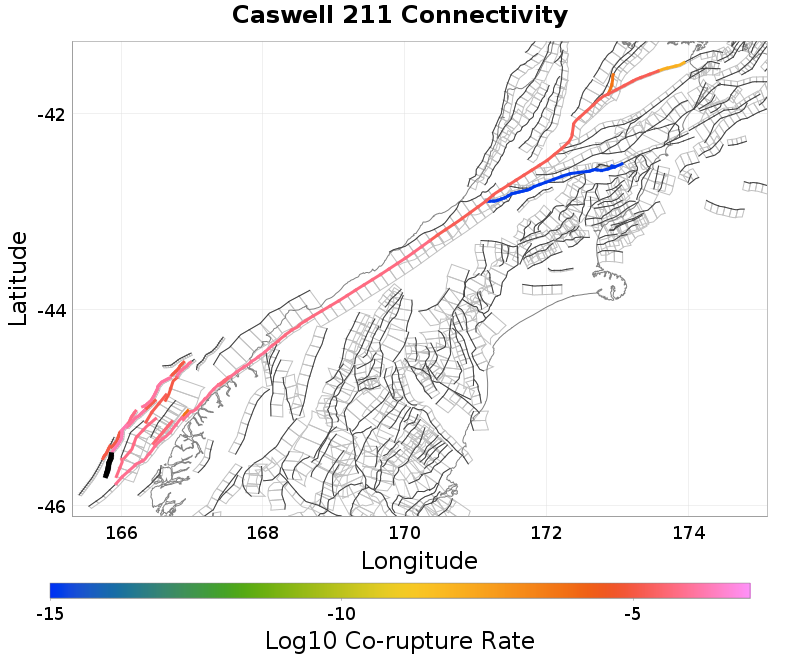

Connectivity
 |  |
|---|
Nearby Sections
Caswell High 3, 3.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.51 km |
| Min Rate-Weighted Dist | 3.51 km |
| Co-rupture Count | 6,734 |
| Co-rupture Rate | 1.7621764E-4 |
Caswell High 1, 4.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.89 km |
| Min Rate-Weighted Dist | 4.89 km |
| Co-rupture Count | 764 |
| Co-rupture Rate | 1.07973265E-5 |
Caswell High 4, 7.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,545 |
| Co-rupture Rate | 1.6030643E-4 |
South Wedge 5, 9.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.47 km |
| Min Rate-Weighted Dist | 9.81 km |
| Co-rupture Count | 1,993 |
| Co-rupture Rate | 5.4532946E-5 |
South Wedge 3-6-10, 12.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 767 |
| Co-rupture Rate | 5.4532946E-5 |
Alpine: Resolution - Five Fingers, 12.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 12.73 km |
| Min Rate-Weighted Dist | 12.73 km |
| Co-rupture Count | 9,115 |
| Co-rupture Rate | 7.2207666E-5 |
