Clarence: Southwest Details

PropertyValue
Rupture Count26,941
Ruptures Above Sect Min Mag26,937
Ruptures w/ Nonzero Rates40
Magnitude Range[6.84, 8.42]
Length Range[23, 977] km
Total Rate5.469511E-4 /yr
Multi-Fault Rate5.469511E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults146

Table Of Contents

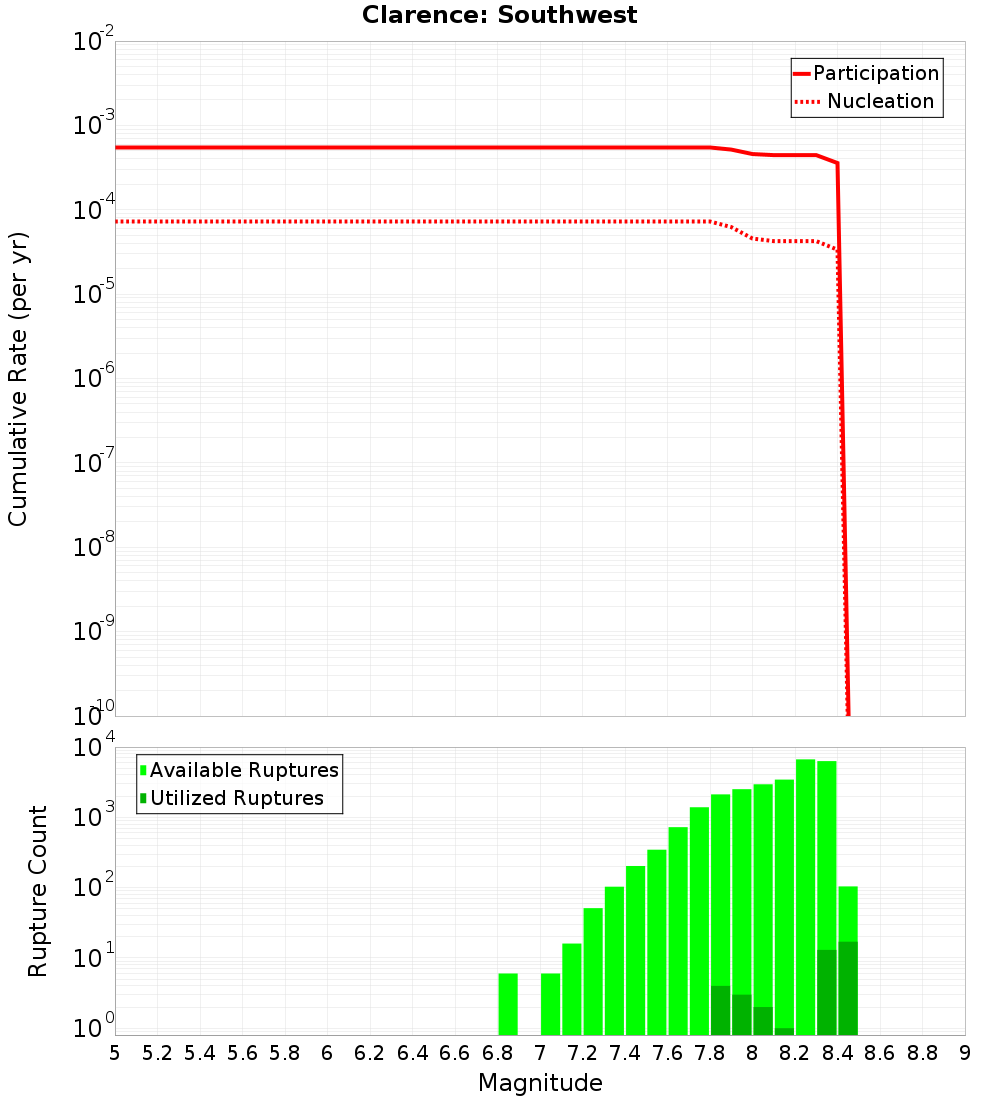

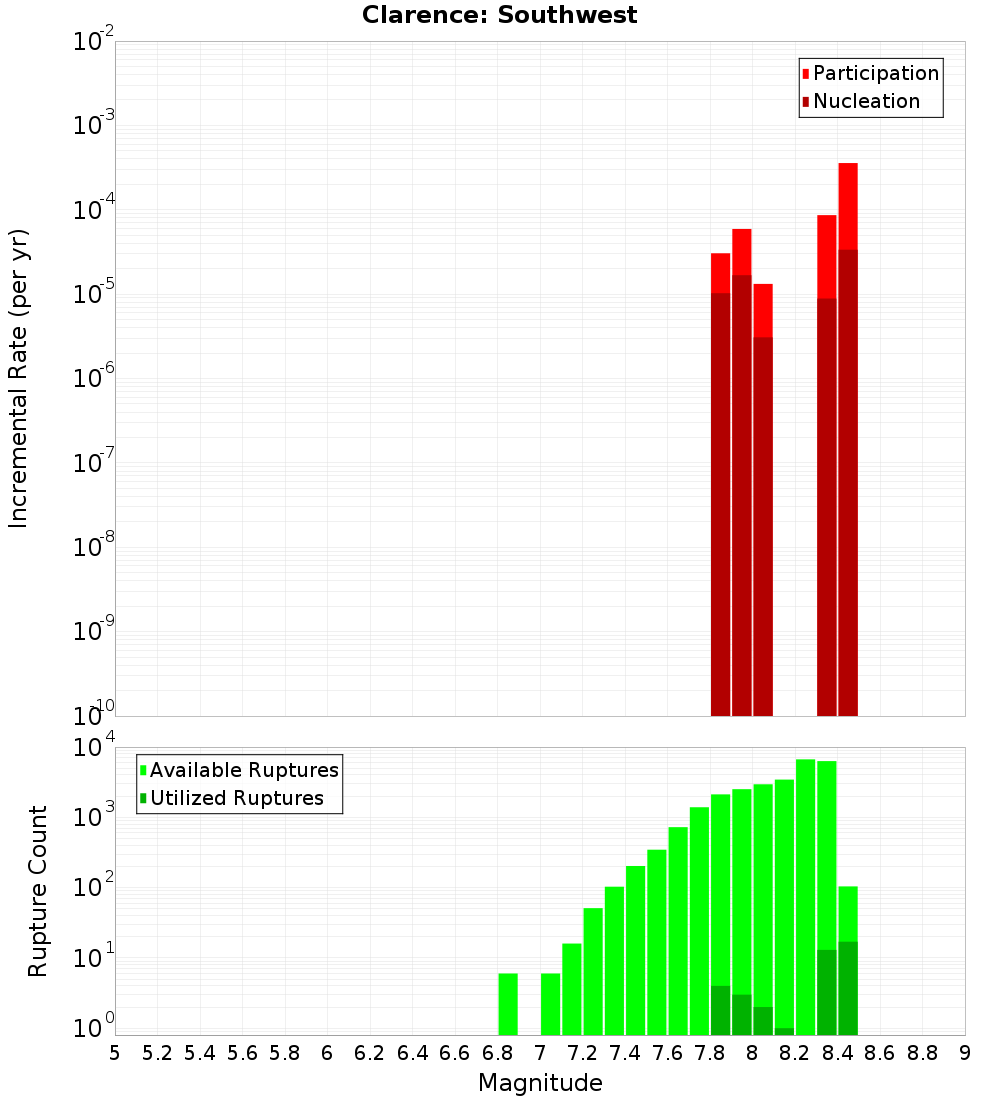

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

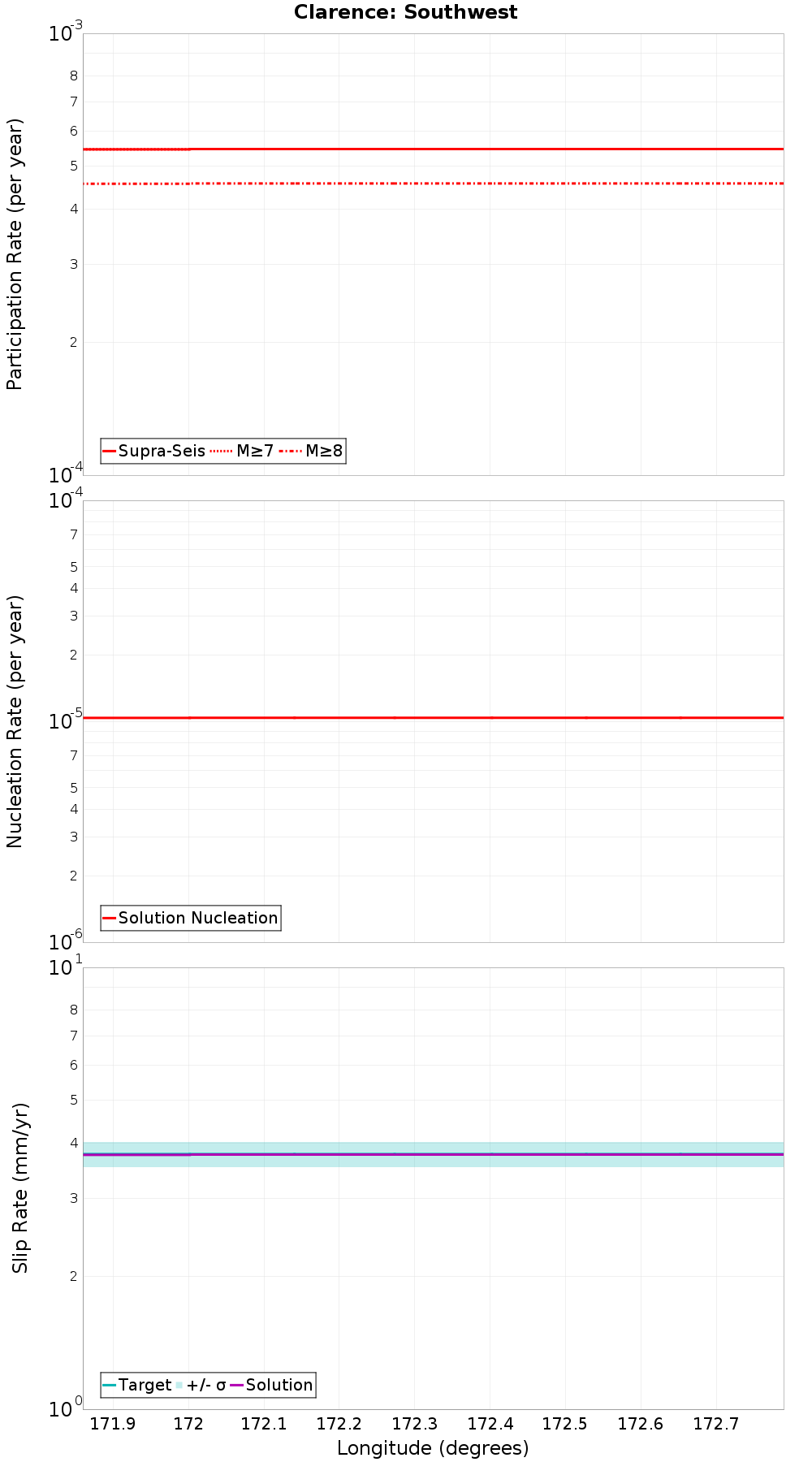

Along-Strike Values

(top)

Along-strike plot

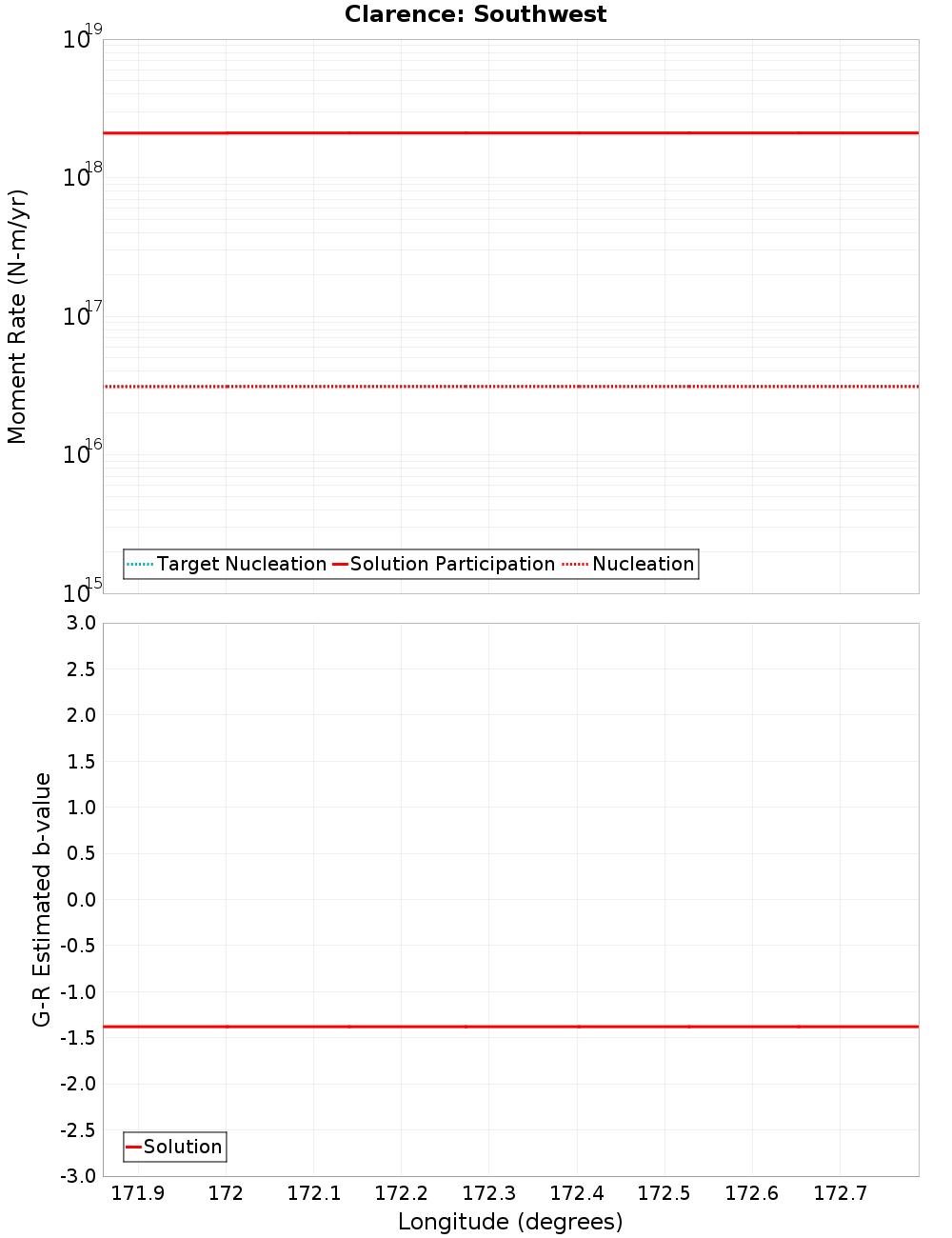

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Clarence: Central, 0 km awayHanmer, 11.45 km away
Alpine: Kaniere to Springs Junction, 0.1 km awayHope: Kakapo-2-Hamner, 12.23 km away
Elliott, 0.33 km awayHope: Hanmer NW, 12.23 km away
Fowlers, 2.25 km awayHope: Taramakau, 12.83 km away
Hope: Hope River, 5.56 km awayKelly, 13.21 km away
Alpine: Springs Junction to Tophouse, 6.38 km awayHope: Hanmer SW, 13.89 km away
White Creek - buried, 6.57 km awayPoulter, 15.04 km away
Hope: Hurunui, 8.29 km awayAwatere: Southwest, 15.97 km away
Kakapo, 8.64 km awayHope: Hanmer SE, 17.93 km away
Esk North, 8.86 km awayLyell South, 19.5 km away

Clarence: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count16,723
Co-rupture Rate4.4389864E-4

Alpine: Kaniere to Springs Junction, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.1 km
Min Rate-Weighted Dist0.1 km
Co-rupture Count12,058
Co-rupture Rate4.4322282E-4

Elliott, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.33 km
Min Rate-Weighted Dist0.33 km
Co-rupture Count5,532
Co-rupture Rate1.3634011E-5

Fowlers, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.25 km
Min Rate-Weighted Dist2.25 km
Co-rupture Count1,915
Co-rupture Rate8.941842E-5

Hope: Hope River, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.56 km
Min Rate-Weighted Dist5.94 km
Co-rupture Count8,506
Co-rupture Rate7.919133E-7

Alpine: Springs Junction to Tophouse, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.69 km
Co-rupture Count142
Co-rupture Rate0.0

White Creek - buried, 6.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.57 km
Min Rate-Weighted Dist6.57 km
Co-rupture Count834
Co-rupture Rate1.0264138E-4

Hope: Hurunui, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count9,617
Co-rupture Rate7.919133E-7

Kakapo, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.64 km
Co-rupture Count1,420
Co-rupture Rate0.0

Esk North, 8.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 11.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate0.0

Hope: Kakapo-2-Hamner, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count195
Co-rupture Rate0.0

Hope: Hanmer NW, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Hope: Taramakau, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count673
Co-rupture Rate0.0

Kelly, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count8,987
Co-rupture Rate7.919133E-7

Hope: Hanmer SW, 13.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count211
Co-rupture Rate0.0

Poulter, 15.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate0.0

Awatere: Southwest, 15.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Hope: Hanmer SE, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count174
Co-rupture Rate0.0

Lyell South, 19.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count437
Co-rupture Rate4.986101E-5
