Flaxmore - Waimea - Tahunanui Details
| Property | Value |
|---|---|
| Rupture Count | 2,246 |
| Ruptures Above Sect Min Mag | 2,239 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.85, 8.37] |
| Length Range | [23, 883] km |
| Total Rate | 2.1392715E-4 /yr |
| Multi-Fault Rate | 5.2154966E-5 /yr (24.38%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 41 |
Table Of Contents

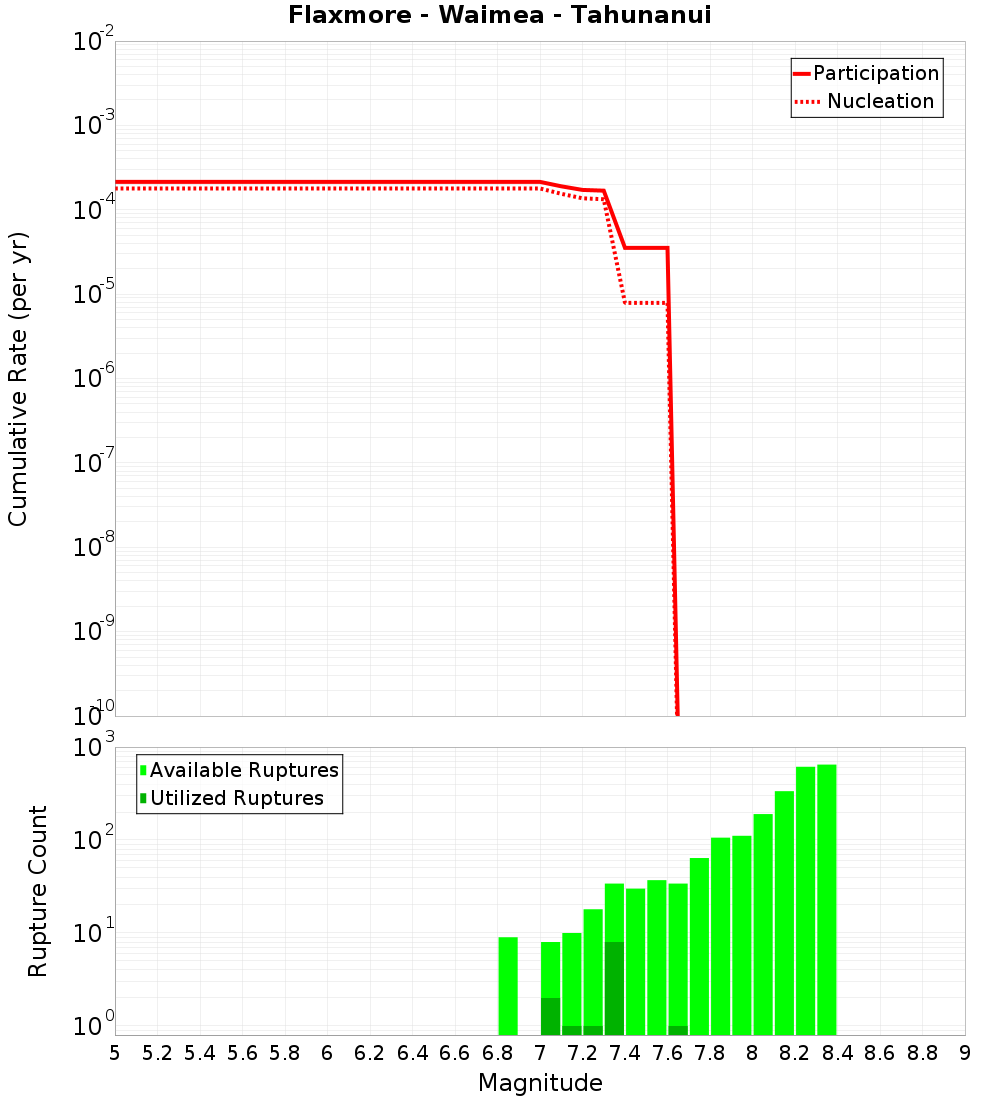

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

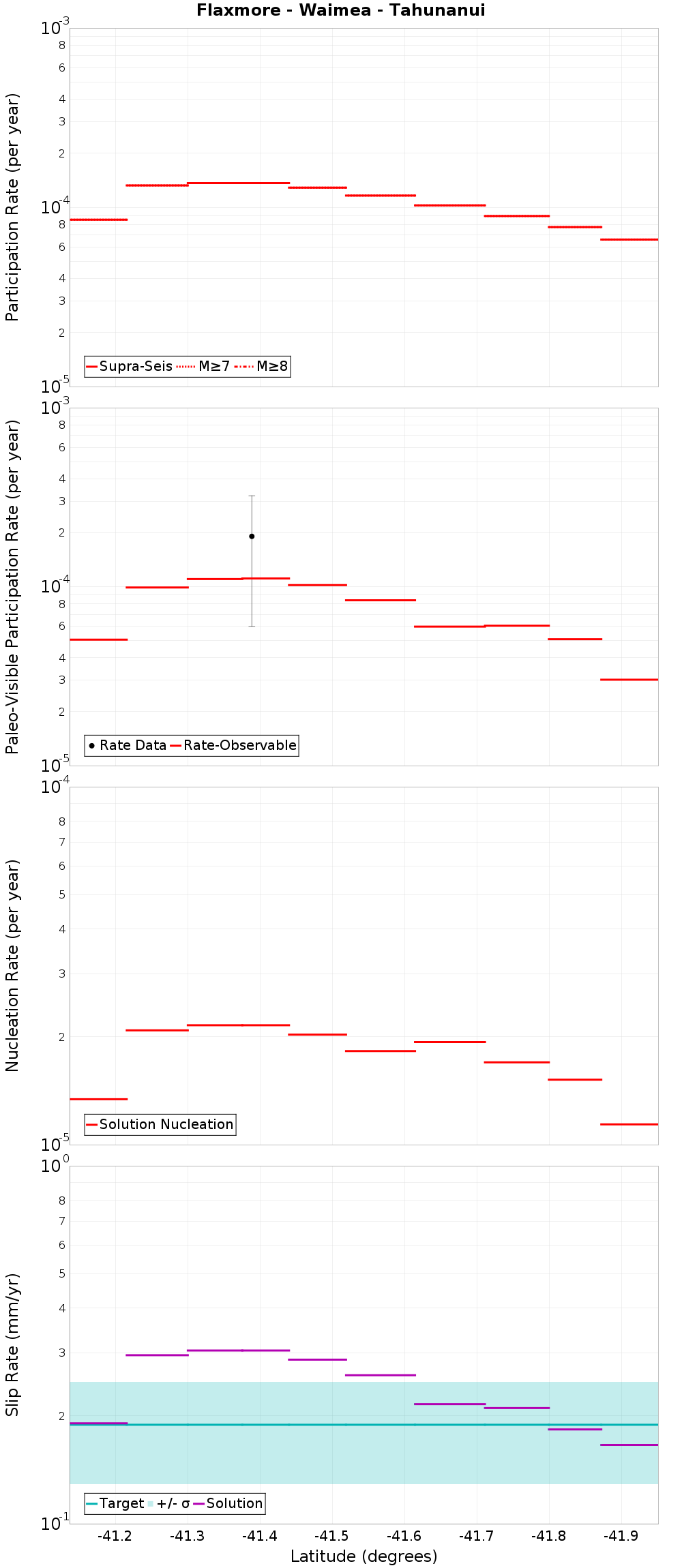

Along-Strike Values

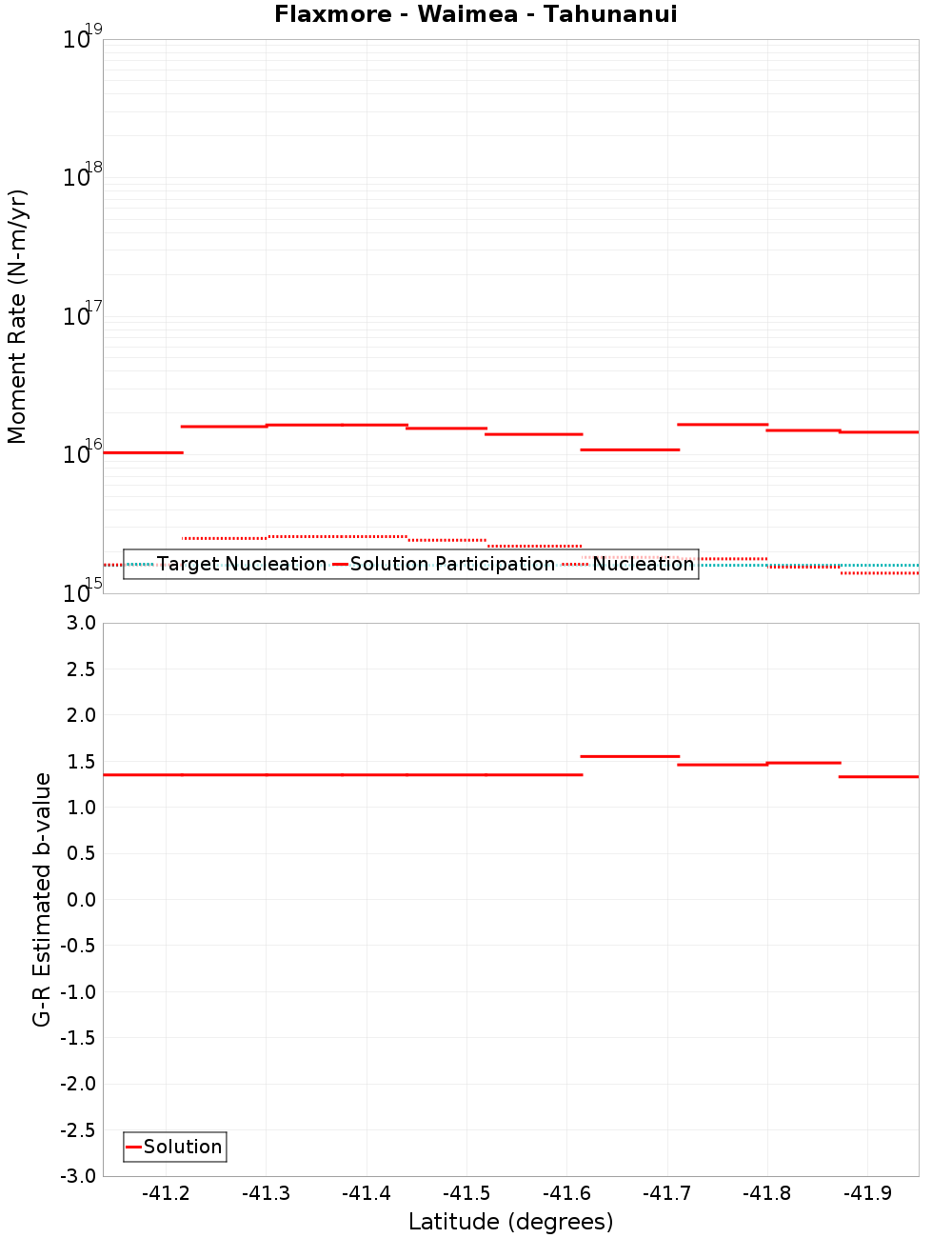

Moment-Rates and b-Values

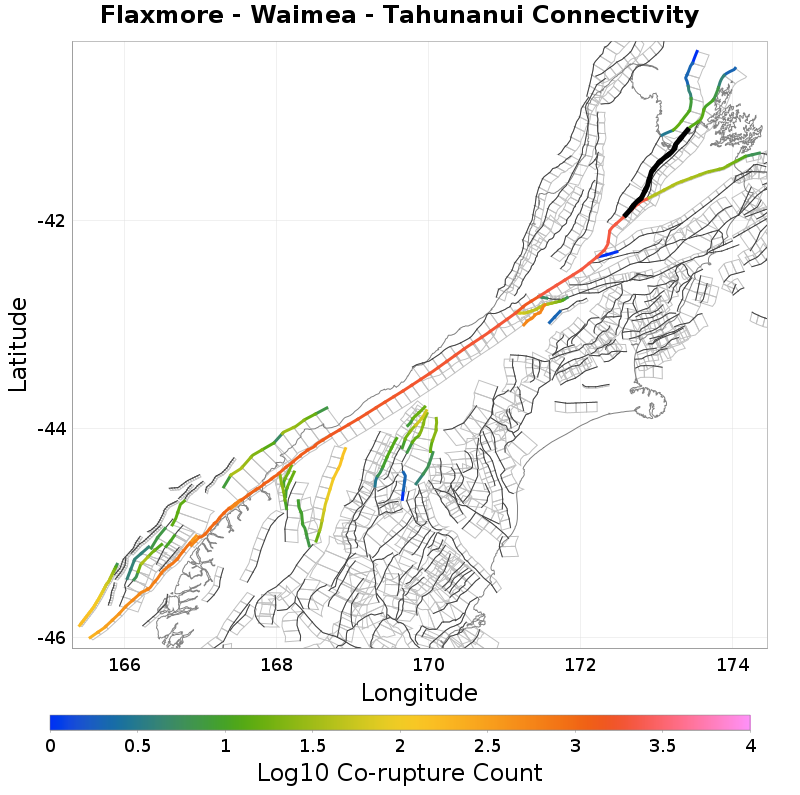

Connectivity
 |  |
|---|
Nearby Sections
Waimea Offshore, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 11.56 km |
| Co-rupture Count | 13 |
| Co-rupture Rate | 7.85417E-6 |
Wairau, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.17 km |
| Min Rate-Weighted Dist | 0.17 km |
| Co-rupture Count | 41 |
| Co-rupture Rate | 3.5297016E-5 |
Alpine: Springs Junction to Tophouse, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.39 km |
| Co-rupture Count | 2,132 |
| Co-rupture Rate | 0.0 |
Whangamoa, 2.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tutaki, 2.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Surville, 8.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.82 km |
| Min Rate-Weighted Dist | 10.72 km |
| Co-rupture Count | 15 |
| Co-rupture Rate | 9.003779E-6 |
Ruby Bay - Moutere, 9.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awatere: Southwest, 12.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
