Gimmerburn Details

PropertyValue
Rupture Count729
Ruptures Above Sect Min Mag728
Ruptures w/ Nonzero Rates16
Magnitude Range[7.04, 7.99]
Length Range[29, 255] km
Total Rate9.33238E-5 /yr
Multi-Fault Rate9.33238E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults31

Table Of Contents

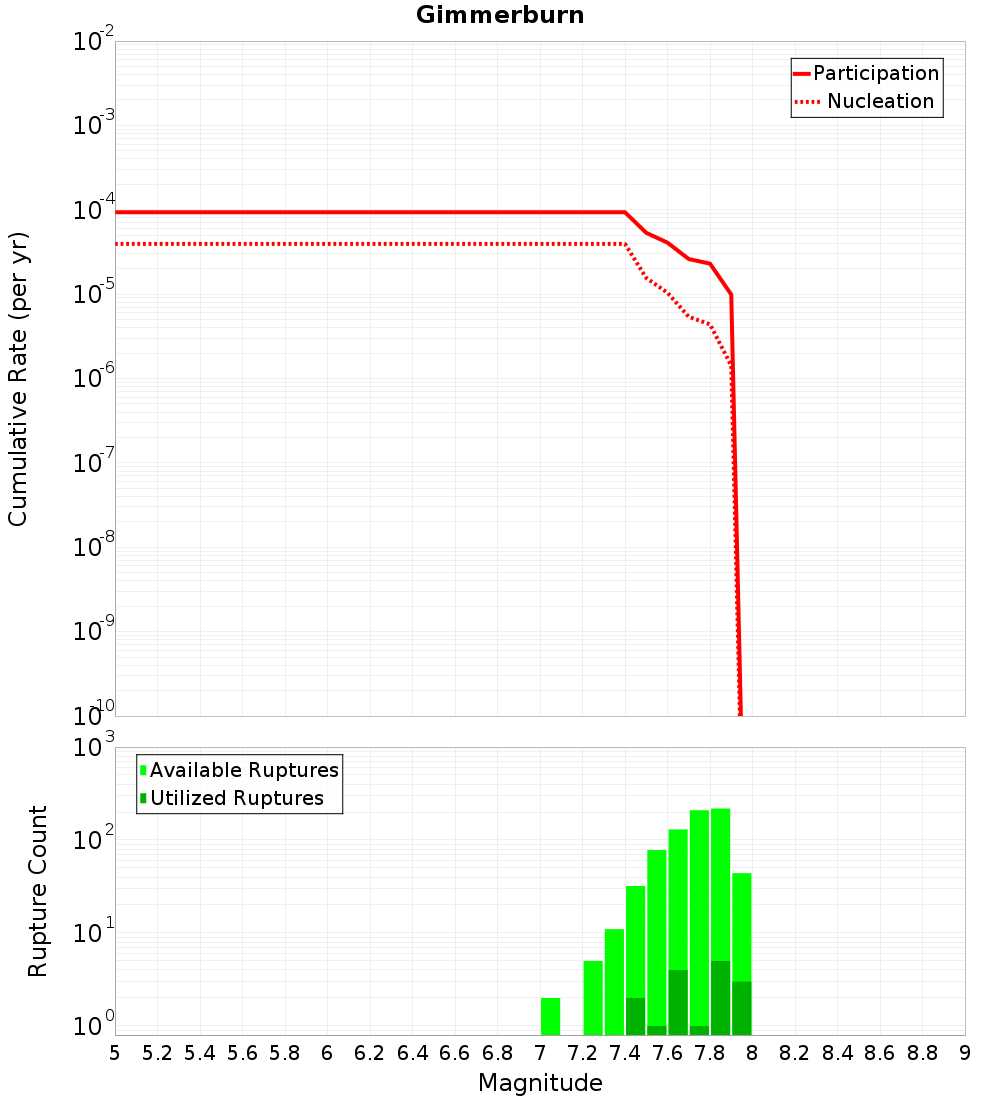

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

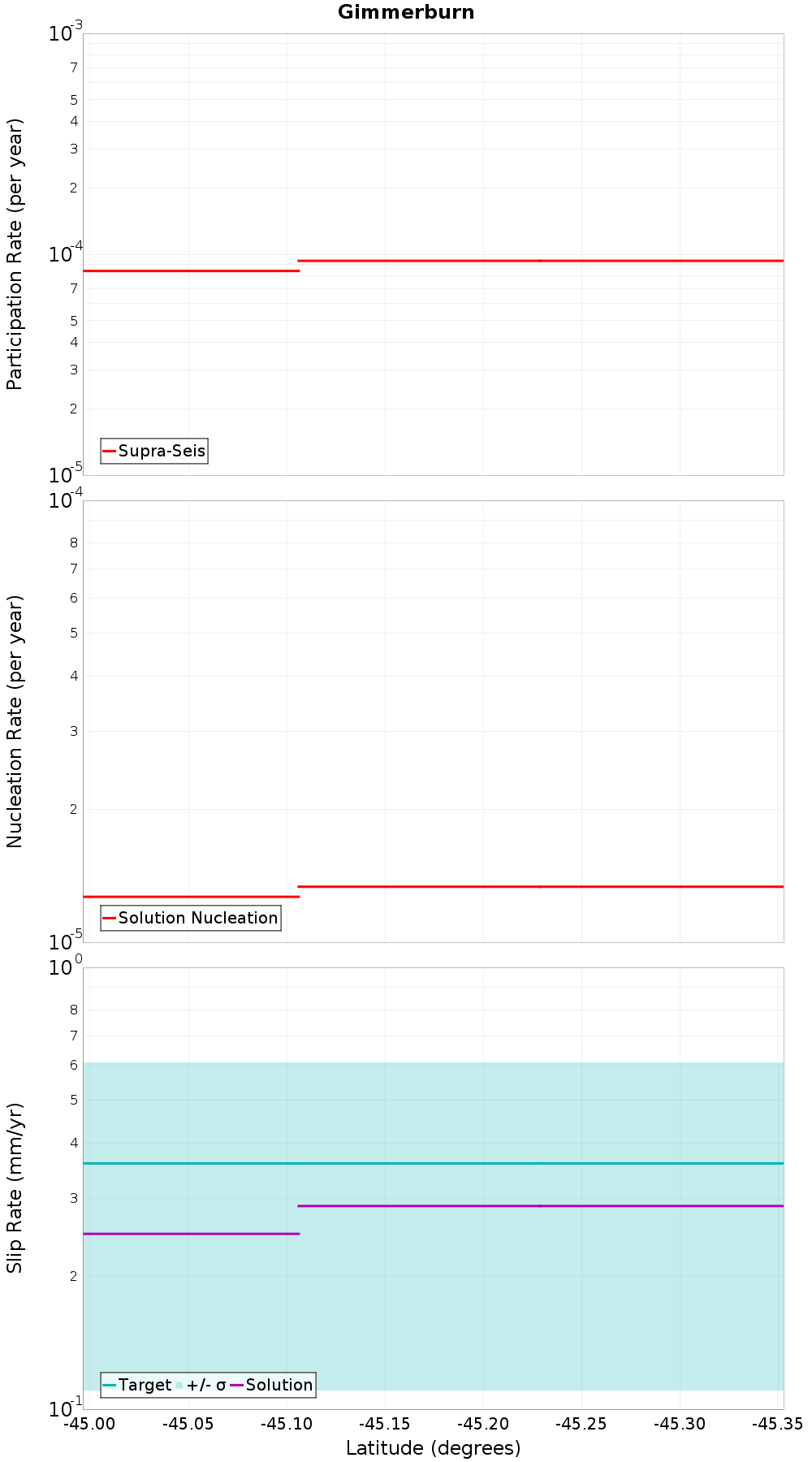

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

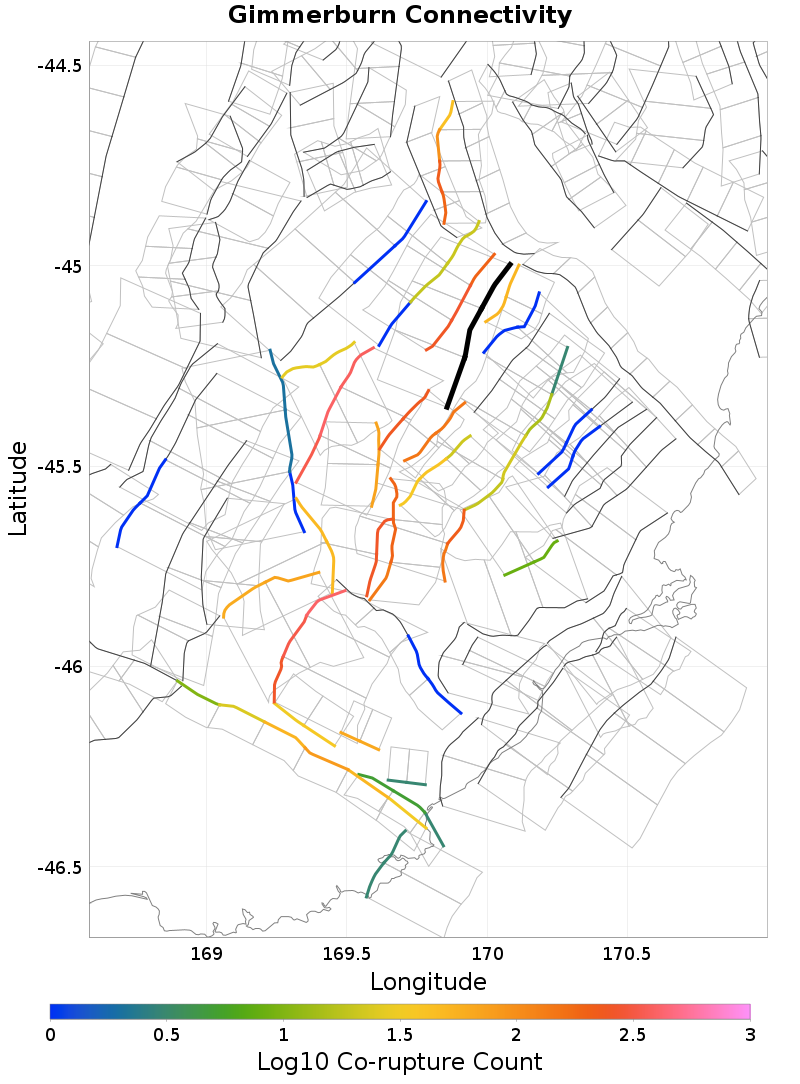

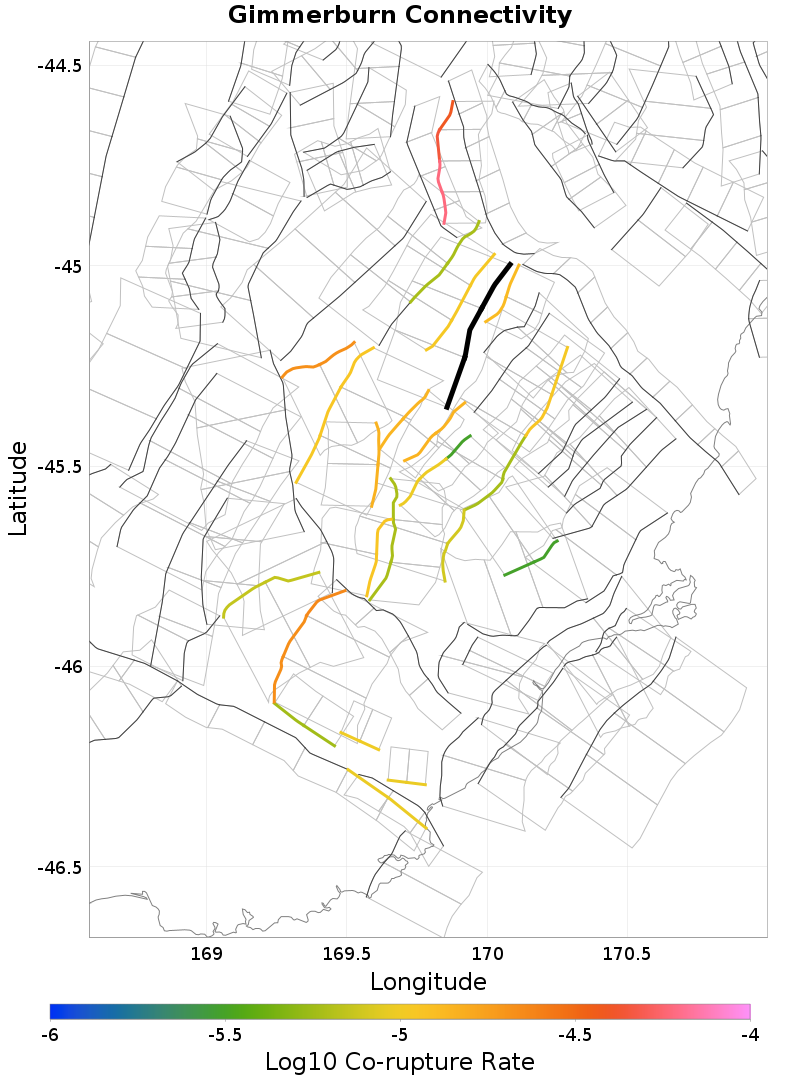

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Little Valley, 0.18 km awayRanfurly, 4.98 km away
Long Valley, 0.27 km awayOmarama Saddle, 6.75 km away
Pylap, 2.27 km awayWaipiata, 7.59 km away
Cross Eden, 2.3 km awayRaggedy - Blackstone, 10.2 km away
Waihemo, 3.59 km awayLogan Burn, 10.21 km away
Hawkdun, 3.64 km awayLake Onslow, 15.86 km away
Garibaldi, 3.79 km awayHyde North, 16.07 km away
Galloway, 4.12 km awayGoodger, 20 km away
Blue Lake, 4.57 km away

Little Valley, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.18 km
Min Rate-Weighted Dist0.18 km
Co-rupture Count415
Co-rupture Rate1.1250598E-5

Long Valley, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.27 km
Min Rate-Weighted Dist0.27 km
Co-rupture Count237
Co-rupture Rate1.3883127E-5

Pylap, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.27 km
Min Rate-Weighted Dist2.27 km
Co-rupture Count146
Co-rupture Rate1.4227196E-5

Cross Eden, 2.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.3 km
Min Rate-Weighted Dist2.3 km
Co-rupture Count51
Co-rupture Rate1.287874E-5

Waihemo, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.07 km
Min Rate-Weighted Dist4.07 km
Co-rupture Count271
Co-rupture Rate1.0674505E-5

Galloway, 4.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.12 km
Min Rate-Weighted Dist4.12 km
Co-rupture Count27
Co-rupture Rate2.0878833E-5

Blue Lake, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 4.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Omarama Saddle, 6.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.75 km
Min Rate-Weighted Dist6.75 km
Co-rupture Count218
Co-rupture Rate5.994303E-5

Waipiata, 7.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raggedy - Blackstone, 10.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate5.928433E-6

Logan Burn, 10.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate9.684806E-6

Lake Onslow, 15.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count70
Co-rupture Rate1.4389287E-5

Hyde North, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate1.1230751E-5

Goodger, 20 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
