Kaikoura - Mangamaunu Details

PropertyValue
Rupture Count6,799
Ruptures Above Sect Min Mag6,790
Ruptures w/ Nonzero Rates12
Magnitude Range[6.40, 8.33]
Length Range[13, 826] km
Total Rate1.7757529E-4 /yr
Multi-Fault Rate1.7757529E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults74

Table Of Contents

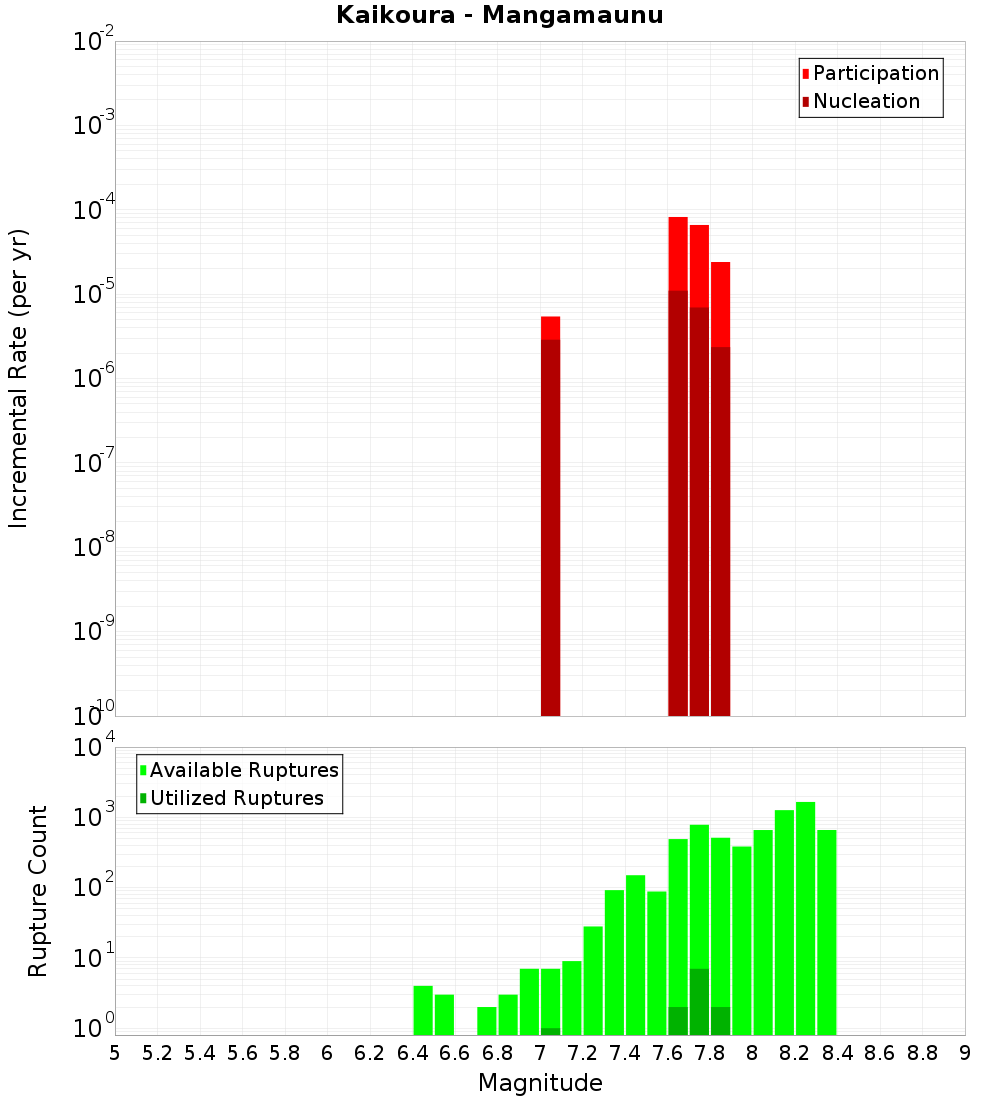

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Seaward, 1.03 km away
Jordan, 2.75 km away
Hope: Conway, 3.18 km away
Papatea, 5.06 km away
Upper Slope, 6.47 km away
Kekerengu Bank, 8.56 km away
Hope: Te Rapa, 8.9 km away
Marlborough Slope 2, 13.33 km away
Marlborough Slope 4, 15.06 km away
Hundalee, 17.62 km away

Hope: Seaward, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate5.4327875E-6

Jordan, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.75 km
Co-rupture Count3
Co-rupture Rate0.0

Hope: Conway, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.18 km
Min Rate-Weighted Dist3.18 km
Co-rupture Count6,714
Co-rupture Rate1.7287792E-4

Papatea, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Upper Slope, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu Bank, 8.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate4.697375E-6

Hope: Te Rapa, 8.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Marlborough Slope 2, 13.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist13.33 km
Min Rate-Weighted Dist13.87 km
Co-rupture Count72
Co-rupture Rate4.697375E-6

Marlborough Slope 4, 15.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hundalee, 17.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate0.0
