Maimai Details
| Property | Value |
|---|---|
| Rupture Count | 147 |
| Ruptures Above Sect Min Mag | 147 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.89, 7.94] |
| Length Range | [25, 313] km |
| Total Rate | 4.193599E-4 /yr |
| Multi-Fault Rate | 4.193599E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

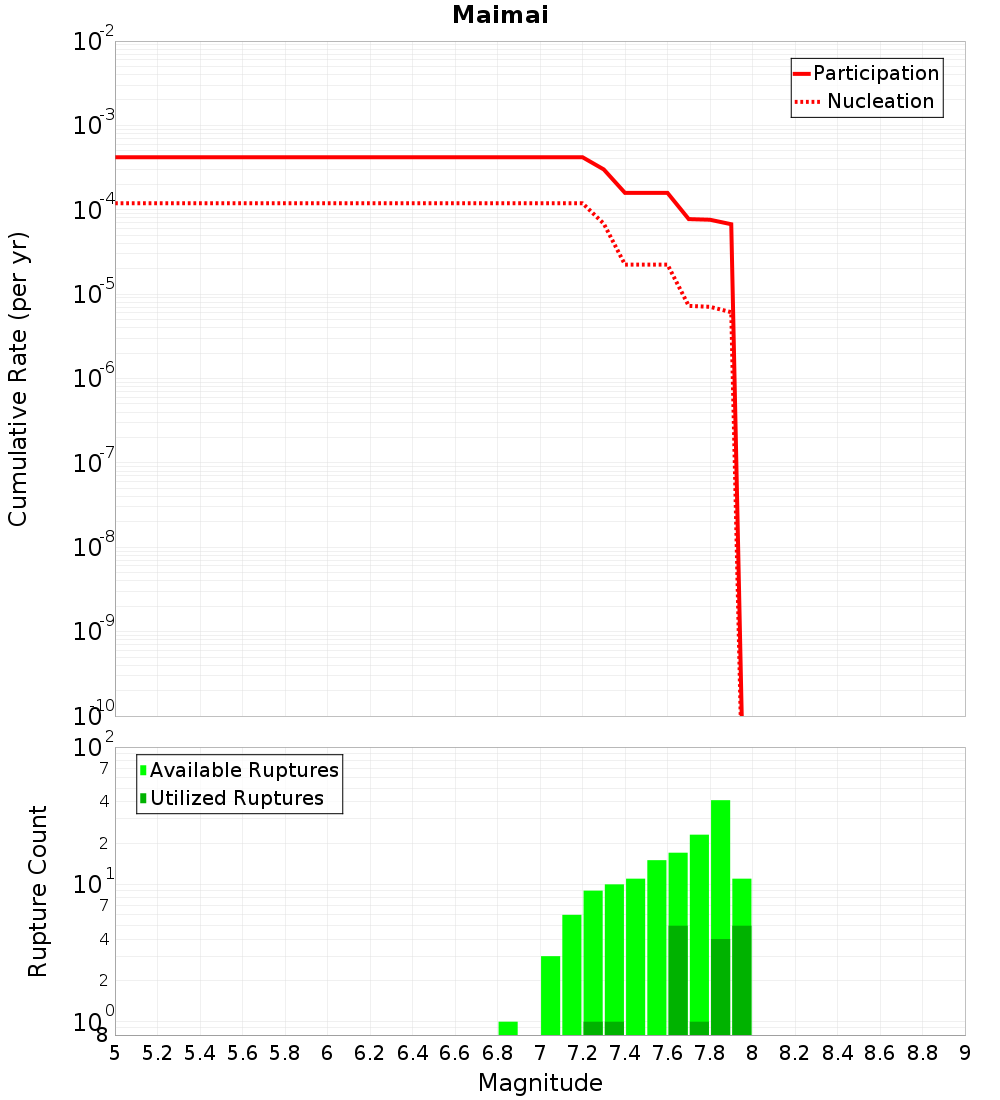

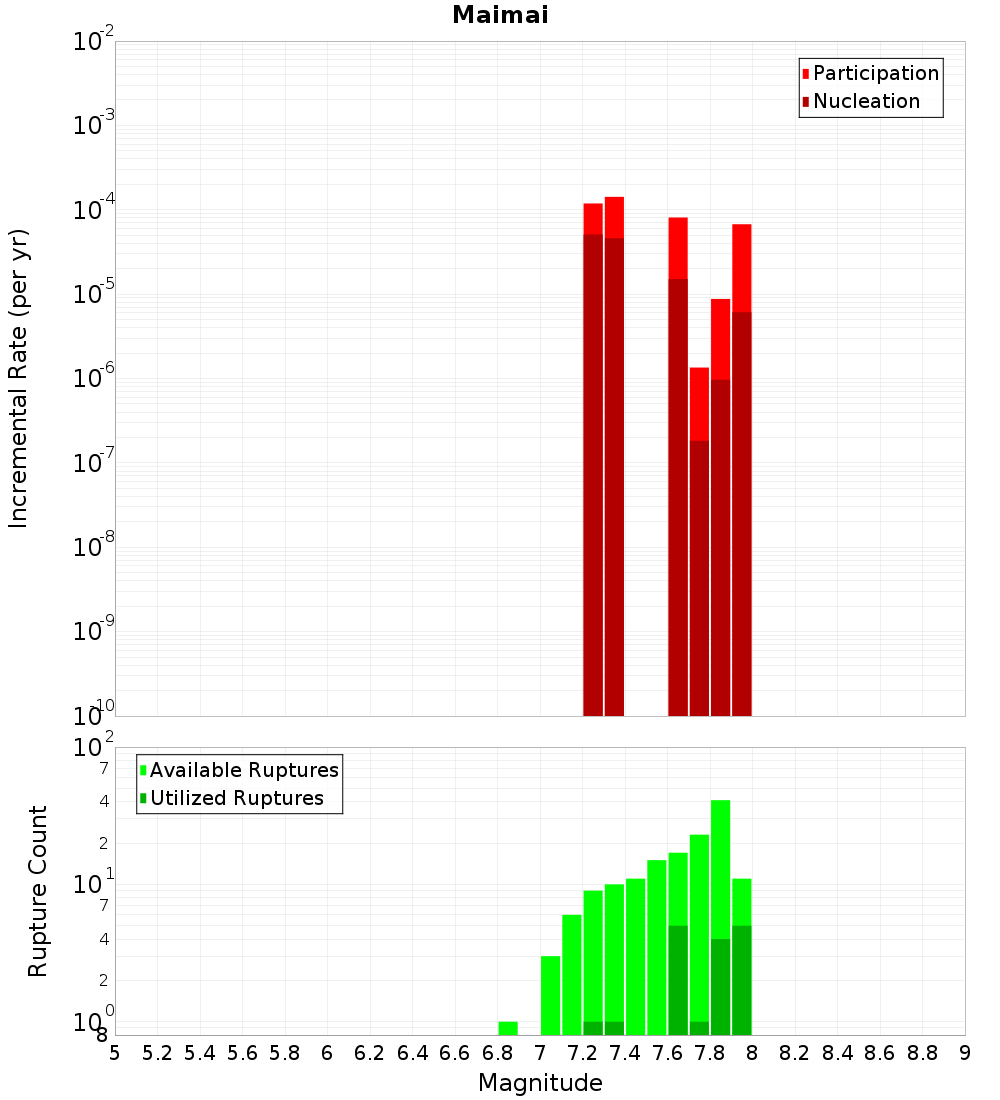

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

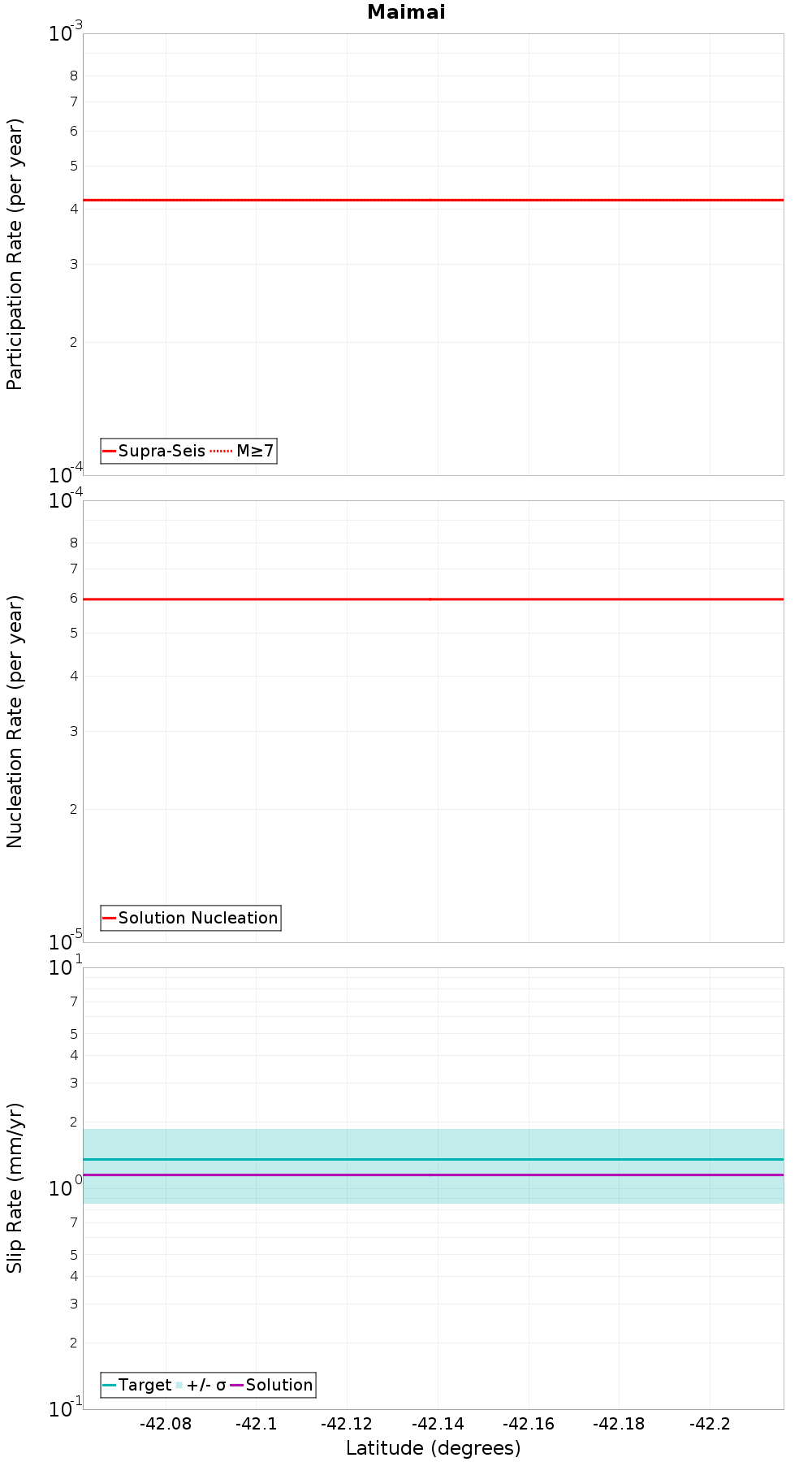

Along-Strike Values
Moment-Rates and b-Values

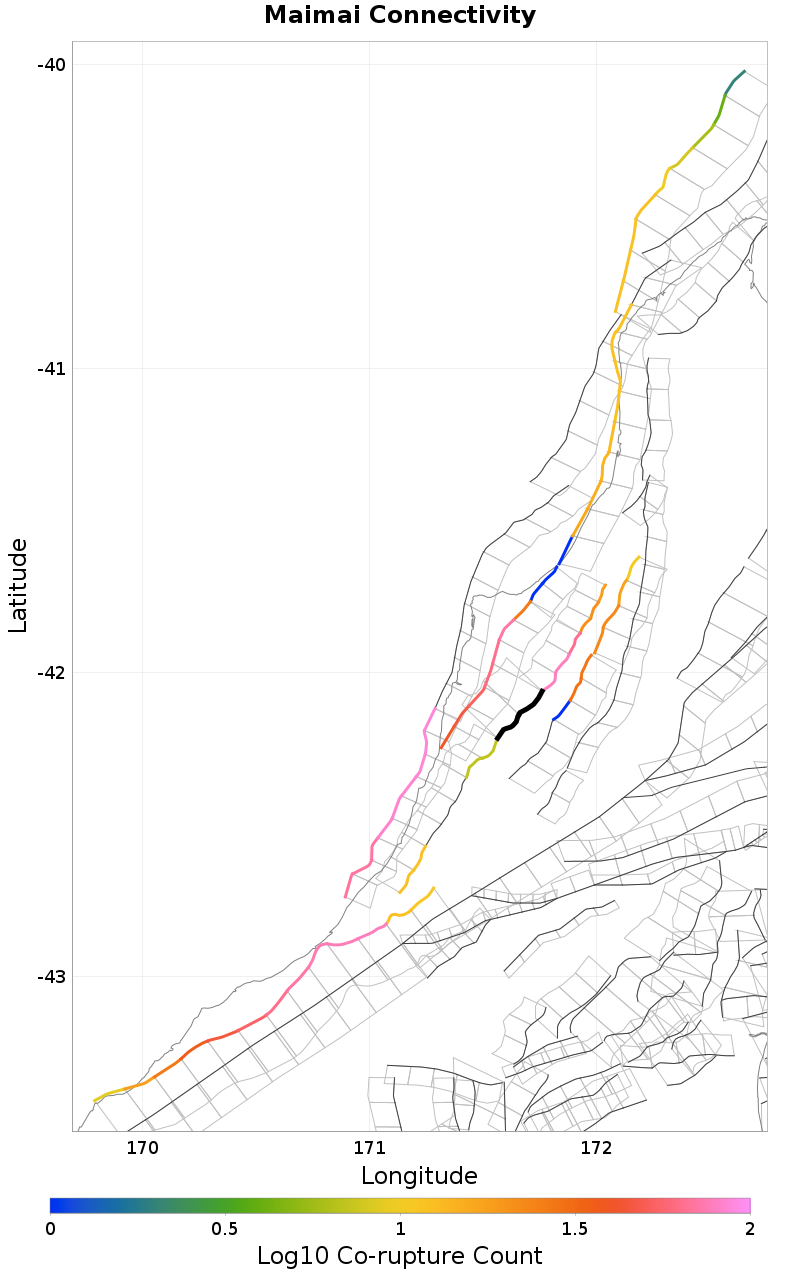

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maimai: North, 0 km away |
| Maimai: South, 0.09 km away |
| Paparoa West, 0.18 km away |
| Cape Foulwind 2, 0.28 km away |
| Cape Foulwind 1, 4.81 km away |
| Lyell South, 9.15 km away |
Maimai: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 78 |
| Co-rupture Rate | 2.3237772E-4 |
Maimai: South, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.09 km |
| Min Rate-Weighted Dist | 0.09 km |
| Co-rupture Count | 19 |
| Co-rupture Rate | 1.4344729E-5 |
Paparoa West, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.18 km |
| Min Rate-Weighted Dist | 0.18 km |
| Co-rupture Count | 84 |
| Co-rupture Rate | 3.0031498E-4 |
Cape Foulwind 2, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Foulwind 1, 4.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.81 km |
| Min Rate-Weighted Dist | 4.81 km |
| Co-rupture Count | 87 |
| Co-rupture Rate | 6.3421525E-5 |
Lyell South, 9.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.15 km |
| Min Rate-Weighted Dist | 10.75 km |
| Co-rupture Count | 29 |
| Co-rupture Rate | 8.0662496E-5 |
