Rangitaiki 2 Details

PropertyValue
Rupture Count7,341
Ruptures Above Sect Min Mag7,338
Ruptures w/ Nonzero Rates13
Magnitude Range[6.51, 8.16]
Length Range[13, 550] km
Total Rate5.4530345E-4 /yr
Multi-Fault Rate5.4530345E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults70

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

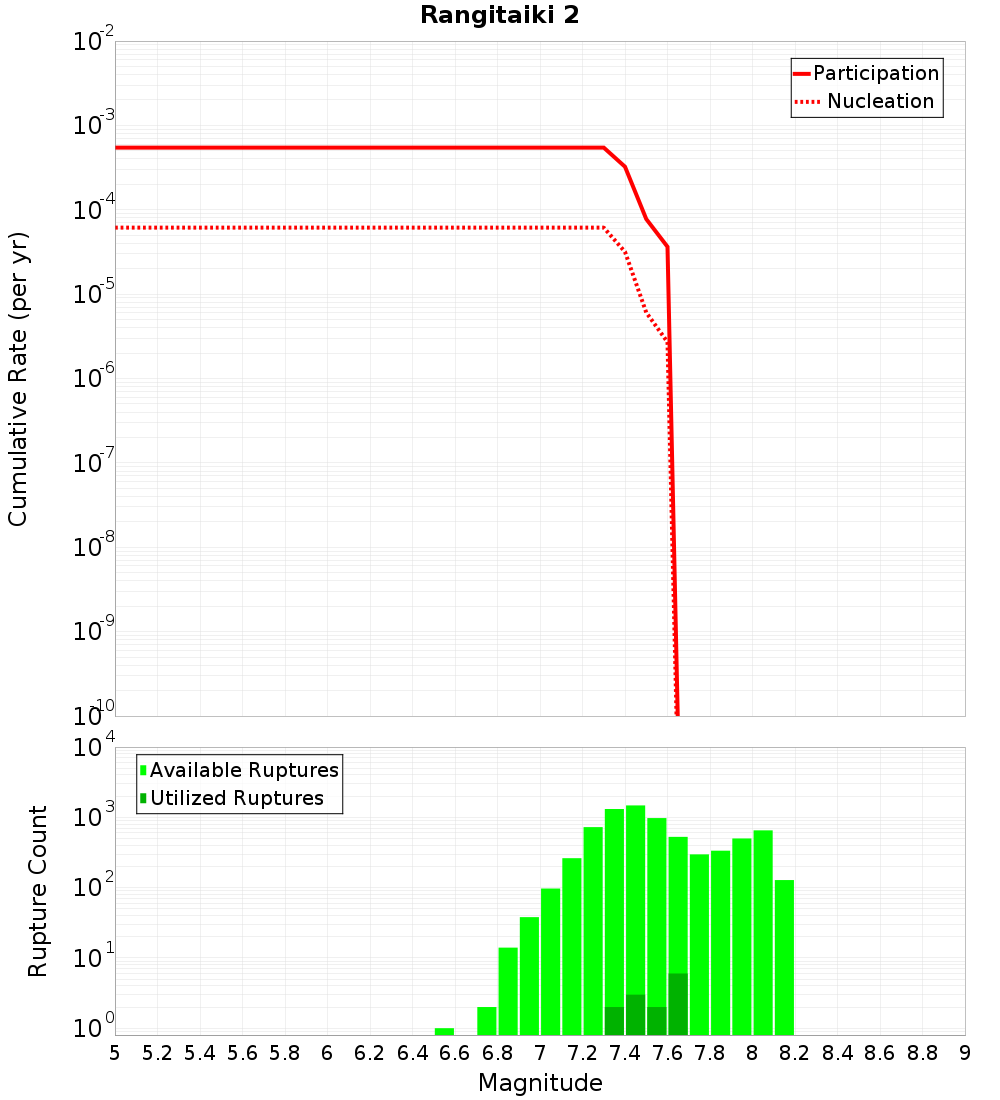

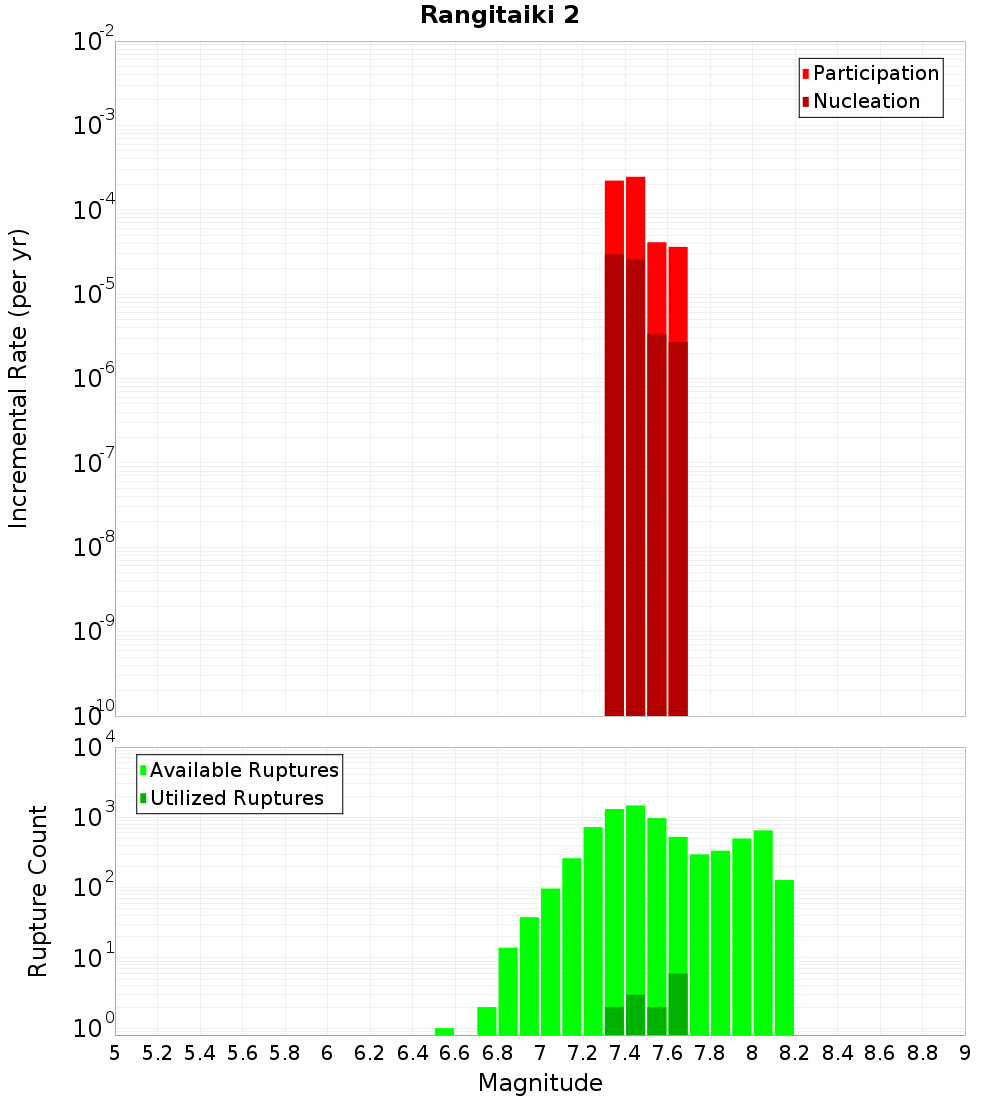

Incremental PlotCumulative Plot

Along-Strike Values

(top)

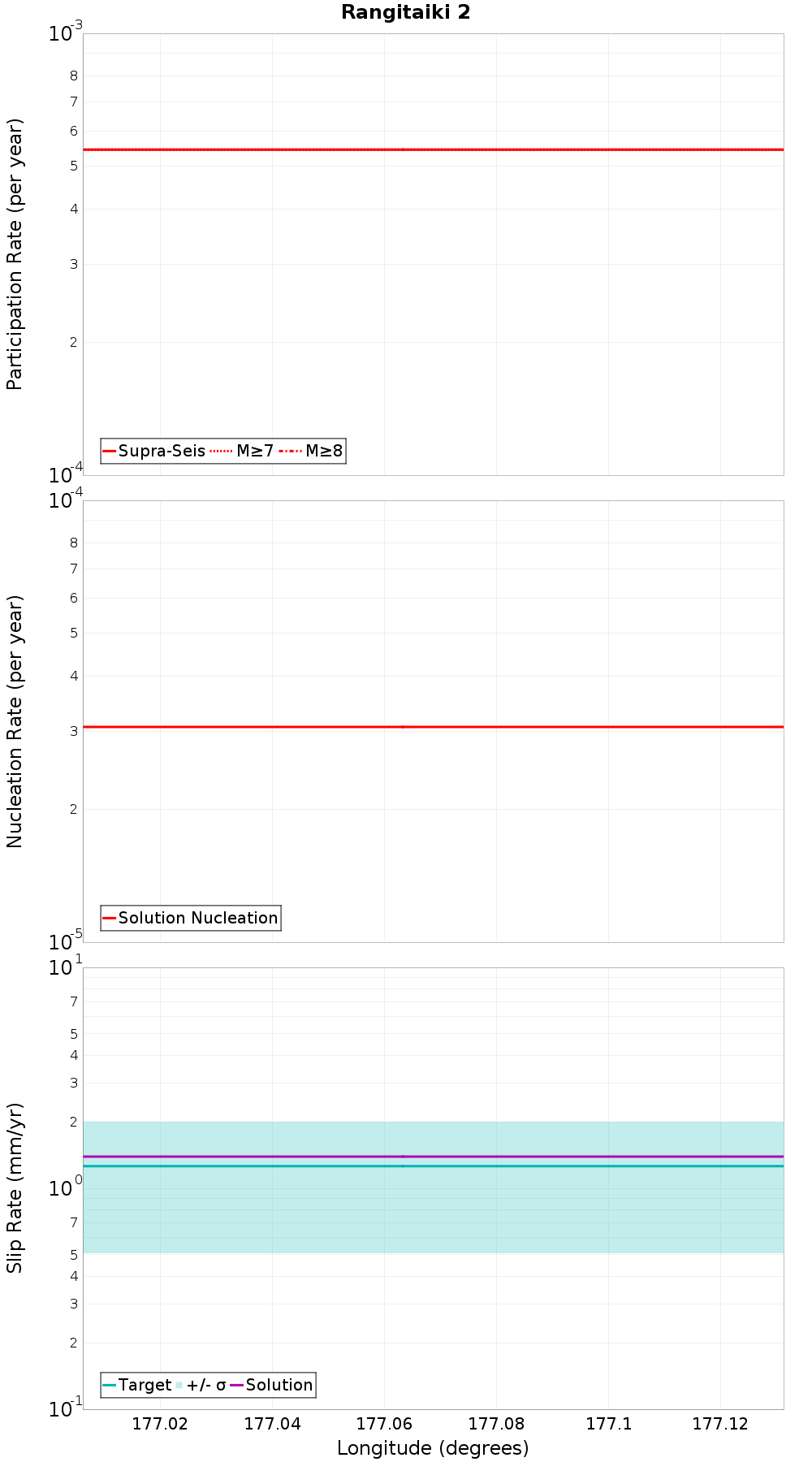

Along-strike plot

Moment-Rates and b-Values

(top)

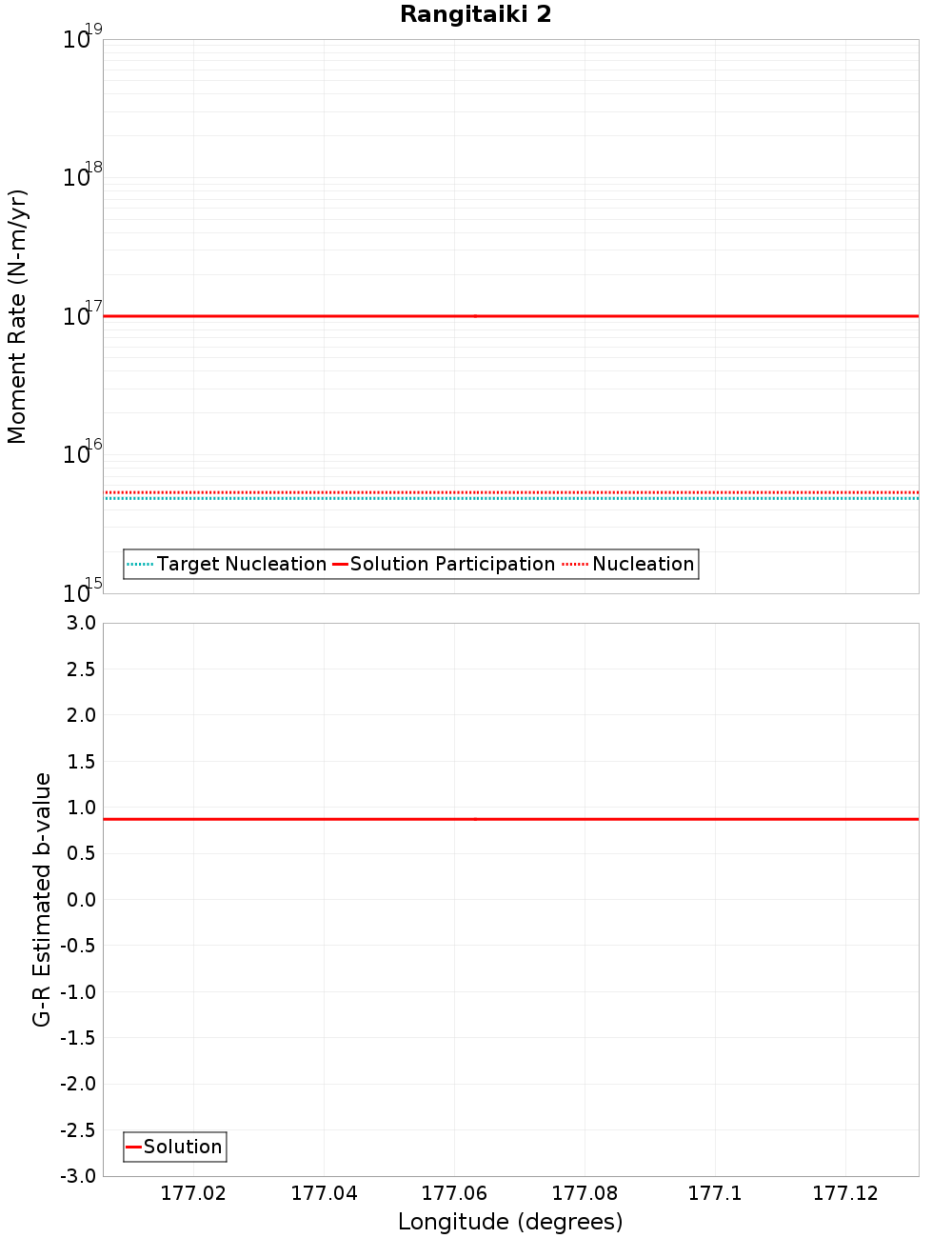

Along-strike plot

Connectivity

(top)

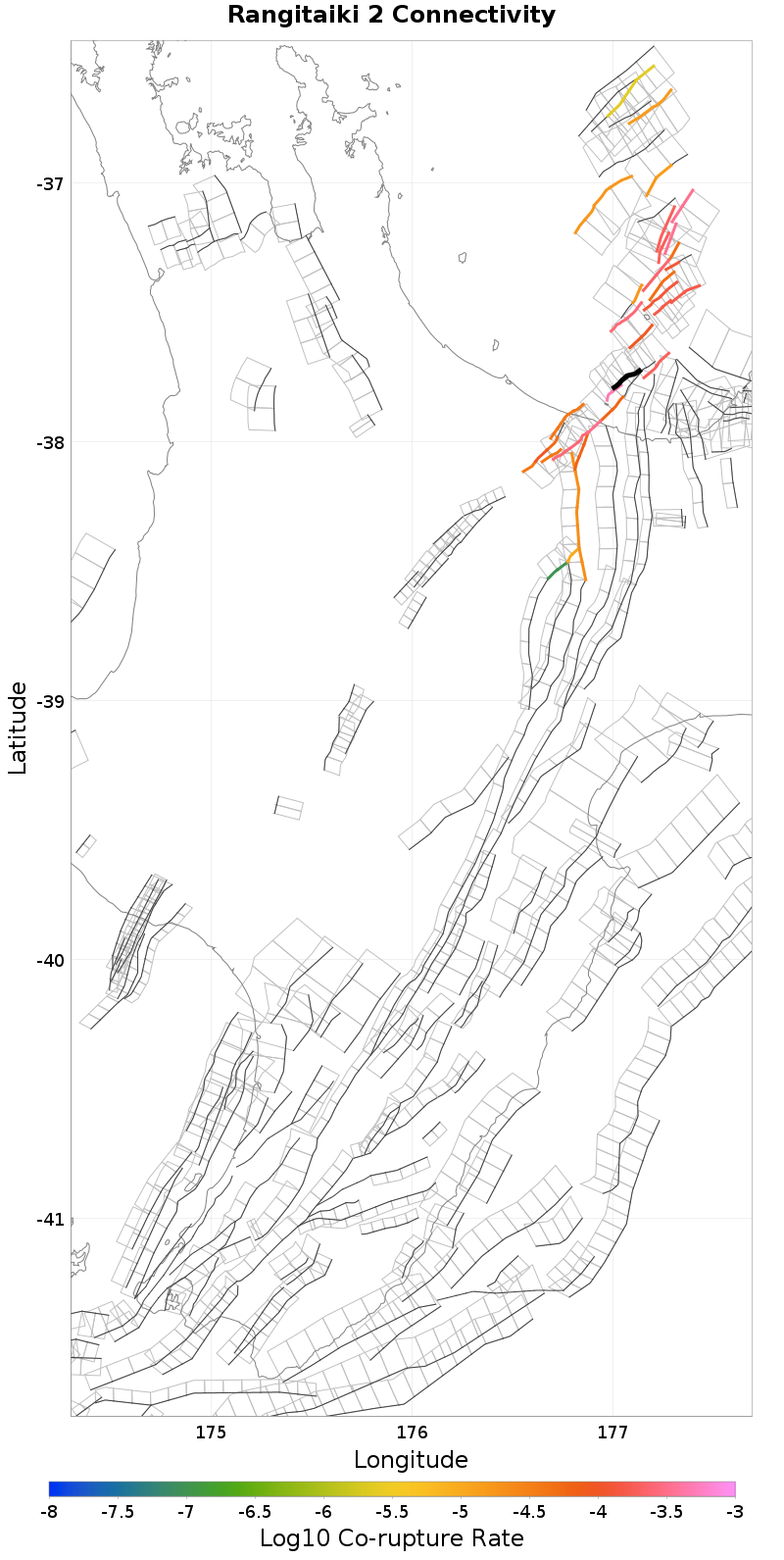

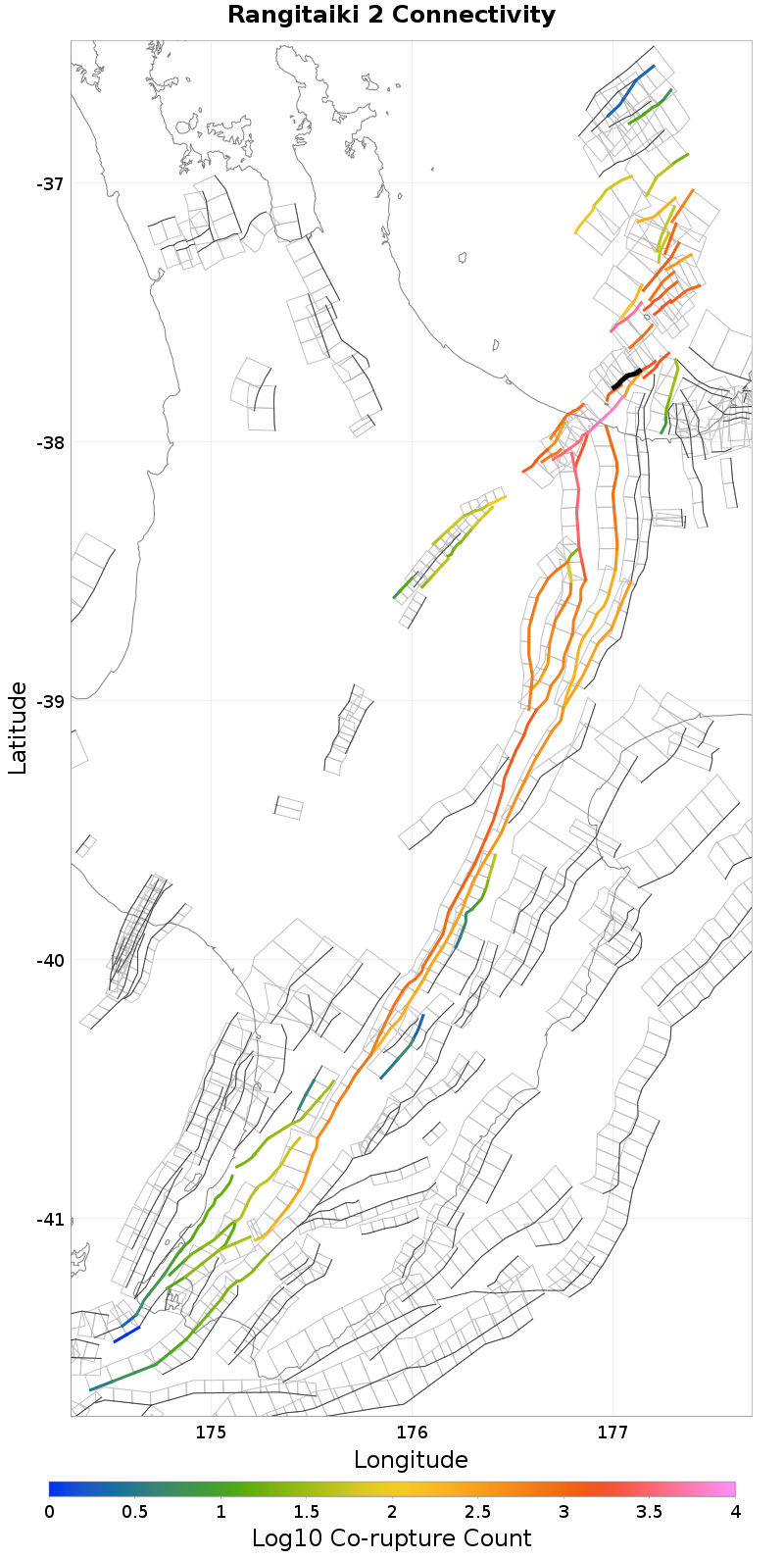

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.61 km awayWaiotahi: North, 14.87 km away
Ohiwa 1, 0.66 km awayOhae 1, 14.97 km away
White Island 1, 0.72 km awayOpotiki 3, 15.11 km away
Rangitaiki 1, 0.74 km awayMatata, 15.14 km away
White Island 2, 2.72 km awayTe Arawa 1, 16.46 km away
Waimana - Waikaremoana, 6.46 km awayWhakatane: North, 16.94 km away
Calypso 2, 8.03 km awayVolkner 3, 18.2 km away
Waimana: North, 9.4 km awayOhae 2, 19.04 km away
Edgecumbe Coastal, 14.83 km awayTuatoru 1, 19.16 km away

Whakaari 4, 0.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.61 km
Min Rate-Weighted Dist0.61 km
Co-rupture Count4,593
Co-rupture Rate2.583149E-4

Ohiwa 1, 0.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.66 km
Co-rupture Count1,515
Co-rupture Rate0.0

White Island 1, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.35 km
Min Rate-Weighted Dist4.35 km
Co-rupture Count6,296
Co-rupture Rate6.385427E-5

Rangitaiki 1, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.74 km
Min Rate-Weighted Dist0.74 km
Co-rupture Count1,181
Co-rupture Rate4.8144918E-4

White Island 2, 2.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.72 km
Min Rate-Weighted Dist2.72 km
Co-rupture Count1,670
Co-rupture Rate1.947546E-4

Waimana - Waikaremoana, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.03 km
Min Rate-Weighted Dist8.03 km
Co-rupture Count880
Co-rupture Rate9.223397E-5

Waimana: North, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count5,051
Co-rupture Rate3.212003E-4

Waiotahi: North, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate0.0

Matata, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count1,347
Co-rupture Rate3.8860435E-5

Te Arawa 1, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count1,724
Co-rupture Rate1.2953757E-4

Whakatane: North, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count998
Co-rupture Rate0.0

Volkner 3, 18.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count195
Co-rupture Rate1.7352413E-5

Ohae 2, 19.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 19.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count1,605
Co-rupture Rate1.57451E-4
