Raukumara 9 Details
| Property | Value |
|---|---|
| Rupture Count | 327 |
| Ruptures Above Sect Min Mag | 326 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.20, 8.09] |
| Length Range | [5, 434] km |
| Total Rate | 1.9843148E-5 /yr |
| Multi-Fault Rate | 1.9843148E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 60 |
Table Of Contents

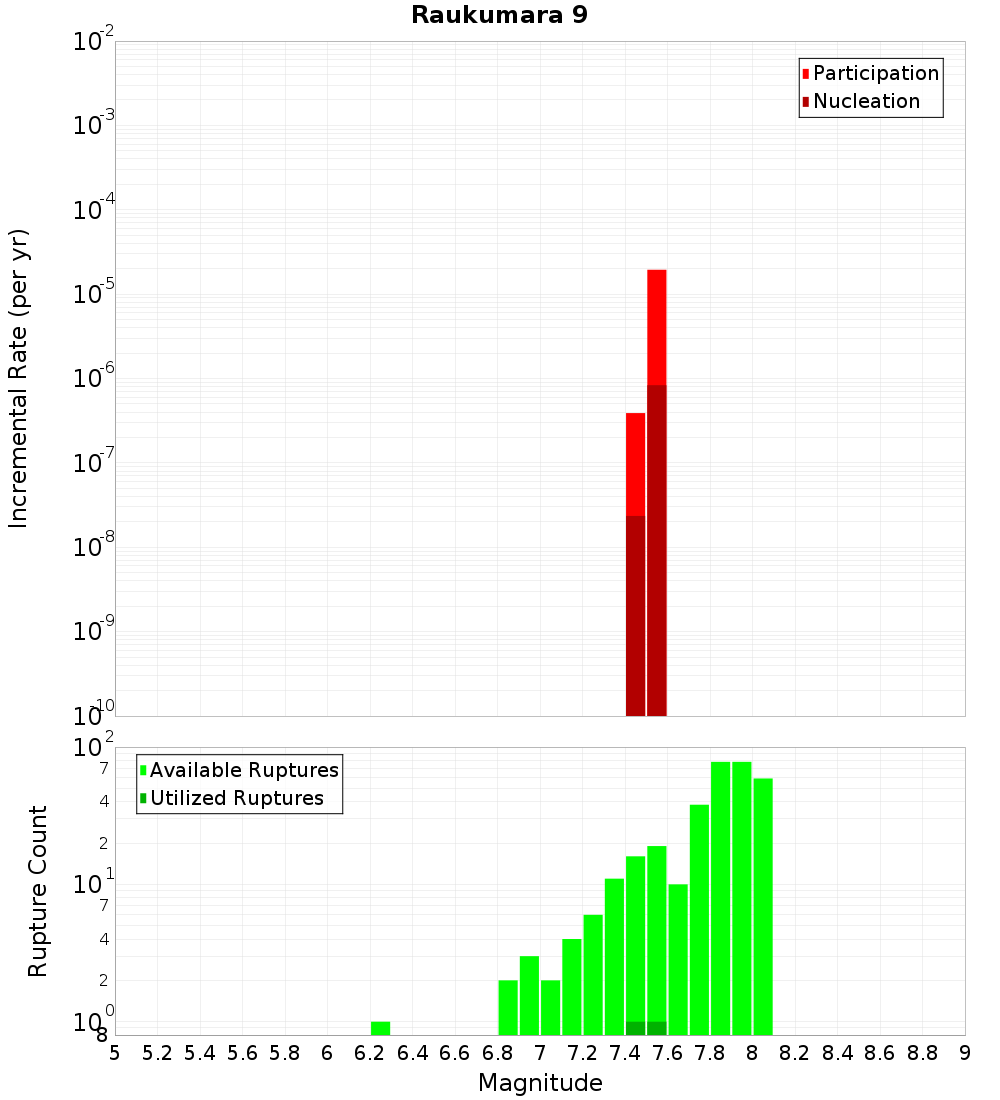

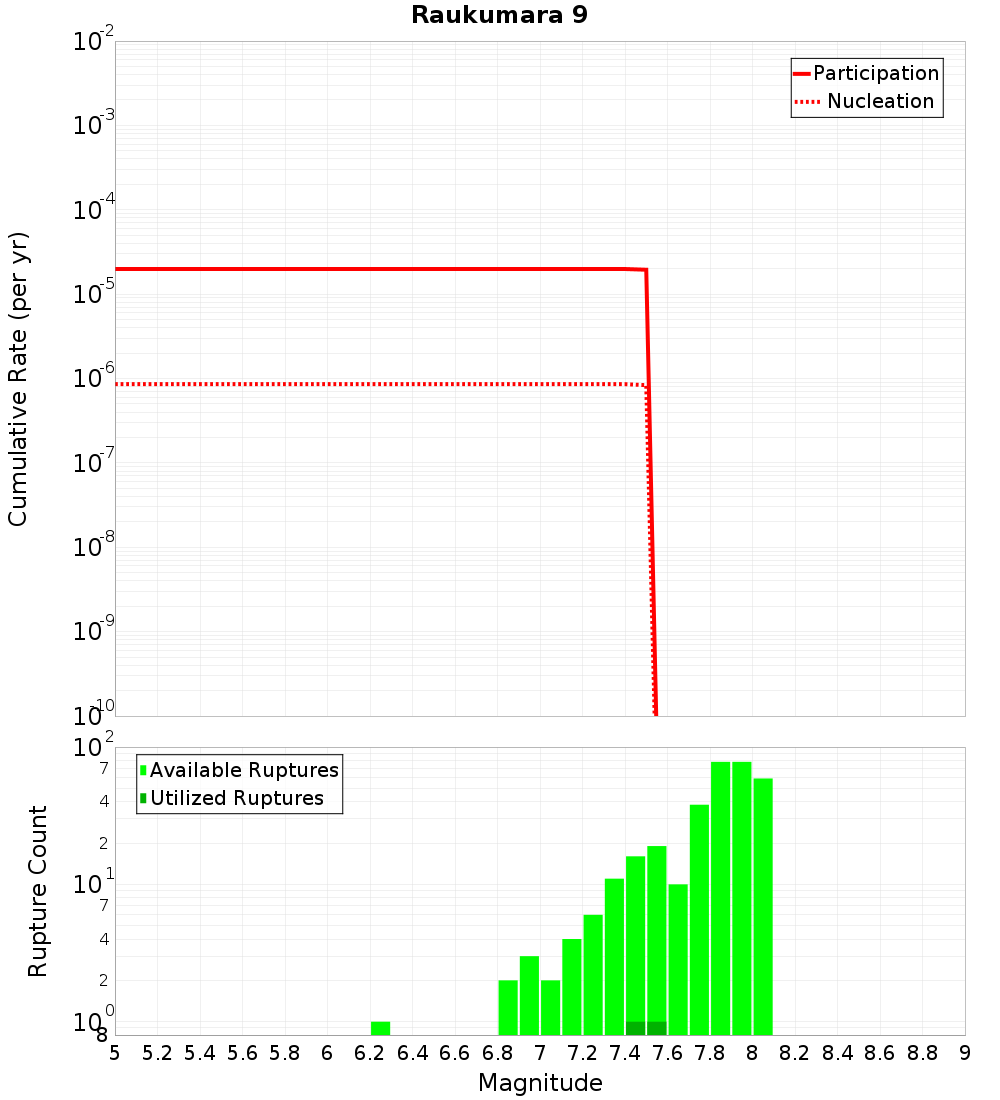

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

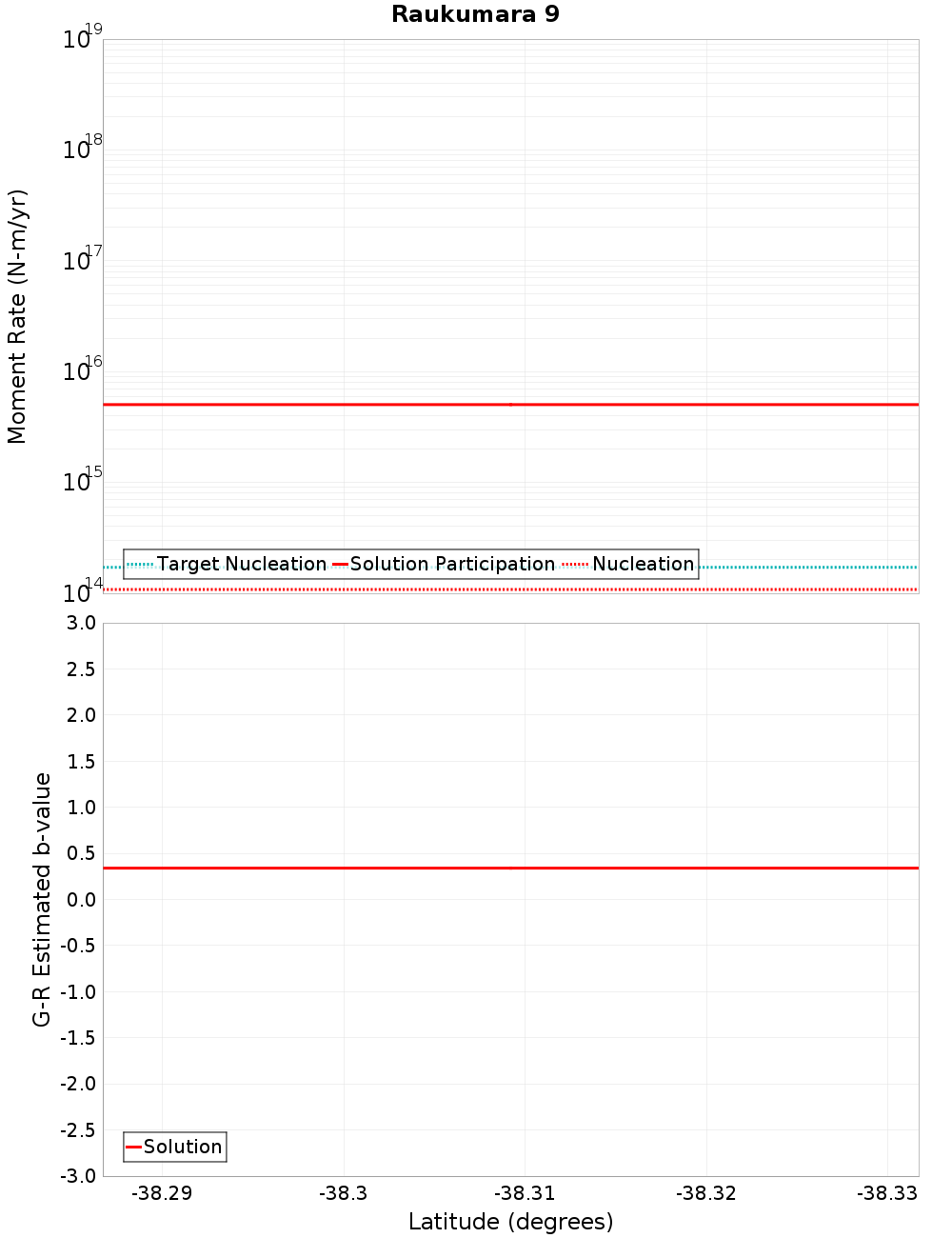

Moment-Rates and b-Values

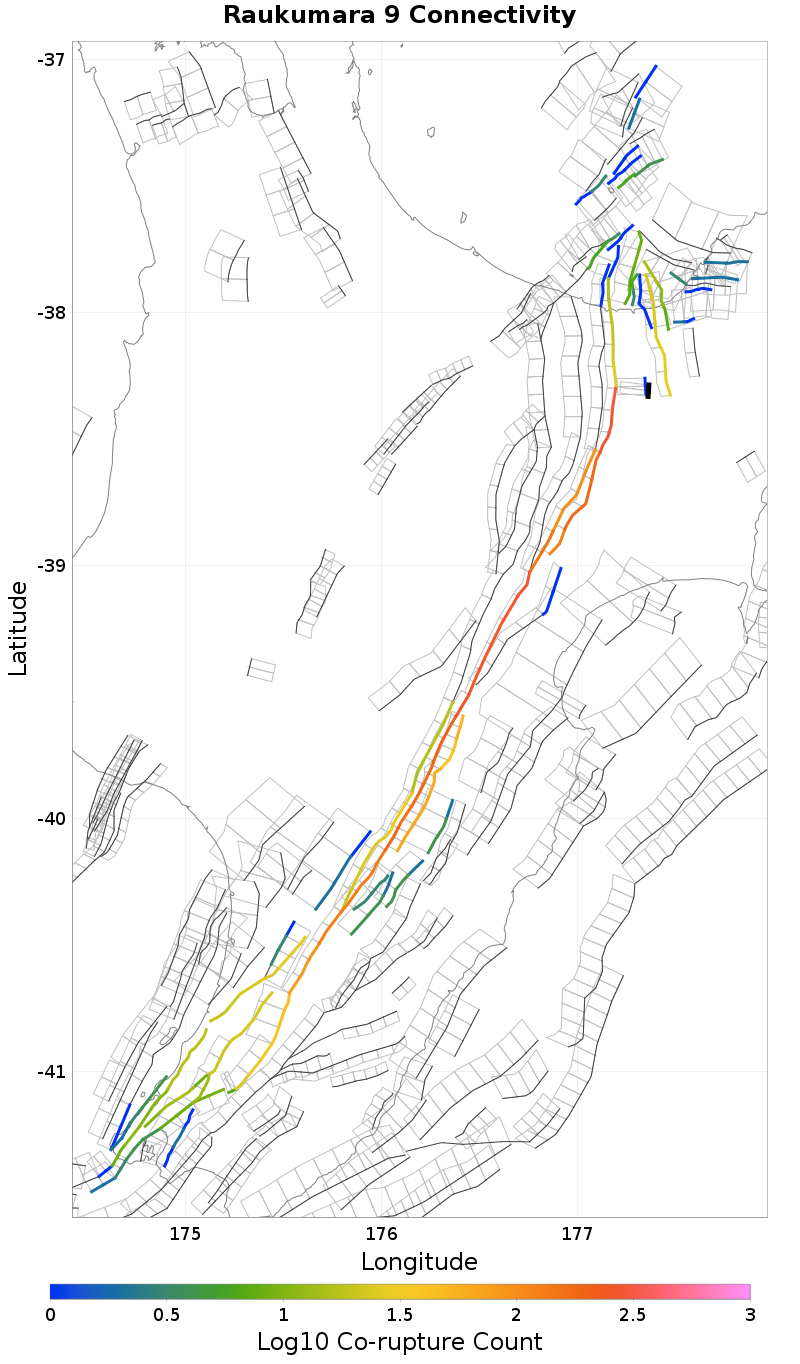

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wairata, 0.96 km away |
| Waiotahi: North, 5.74 km away |
| Kotare - Moutuhora, 7.8 km away |
| Waimana: North, 13.23 km away |
Wairata, 0.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Waiotahi: North, 5.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.74 km |
| Co-rupture Count | 307 |
| Co-rupture Rate | 0.0 |
Kotare - Moutuhora, 7.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.8 km |
| Min Rate-Weighted Dist | 7.8 km |
| Co-rupture Count | 28 |
| Co-rupture Rate | 1.9843148E-5 |
Waimana: North, 13.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
