Ruahine: North Details

Property	Value
Rupture Count	26,950
Ruptures Above Sect Min Mag	26,947
Ruptures w/ Nonzero Rates	24
Magnitude Range	[6.91, 8.28]
Length Range	[24, 655] km
Total Rate	4.622472E-4 /yr
Multi-Fault Rate	4.607408E-4 /yr (99.67%)
Directly-Connected Faults	7
All Co-Rupturing Faults	112

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

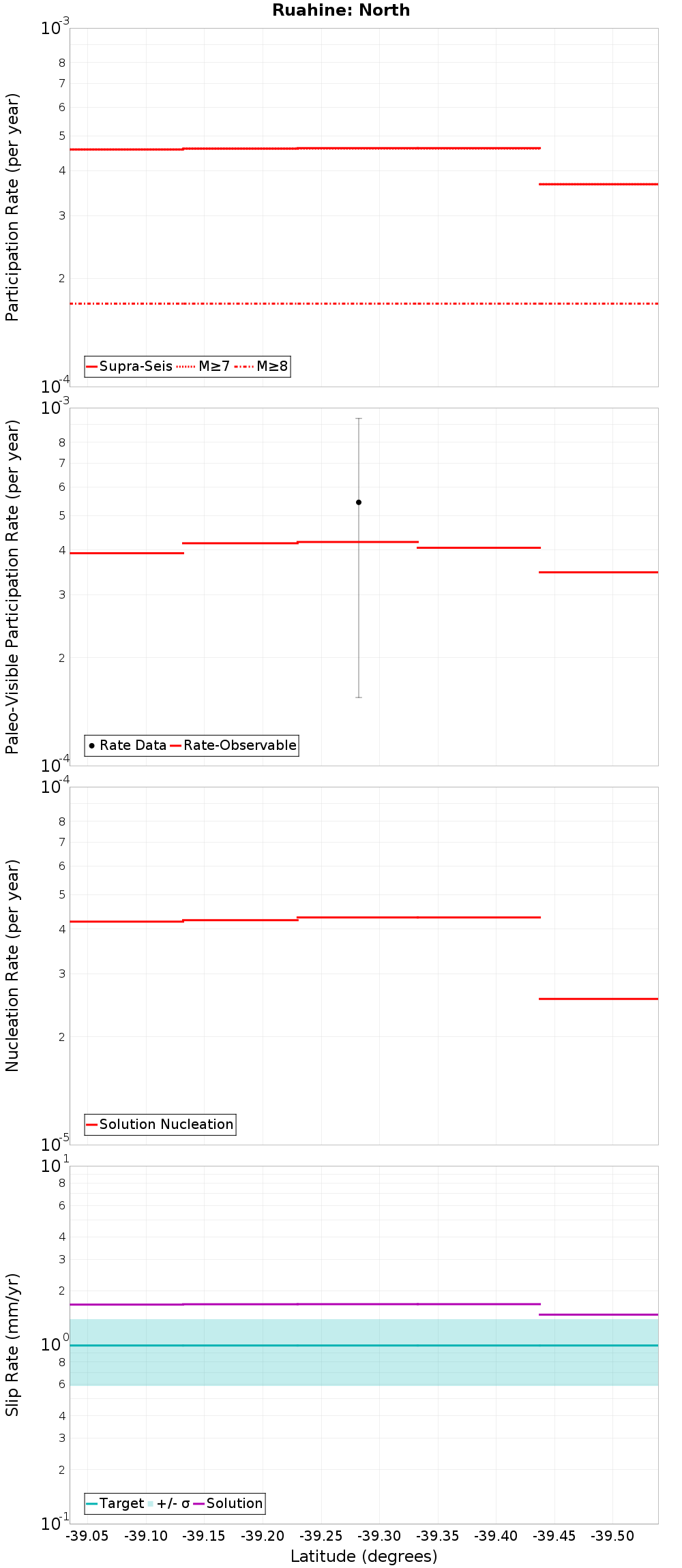

Along-Strike Values

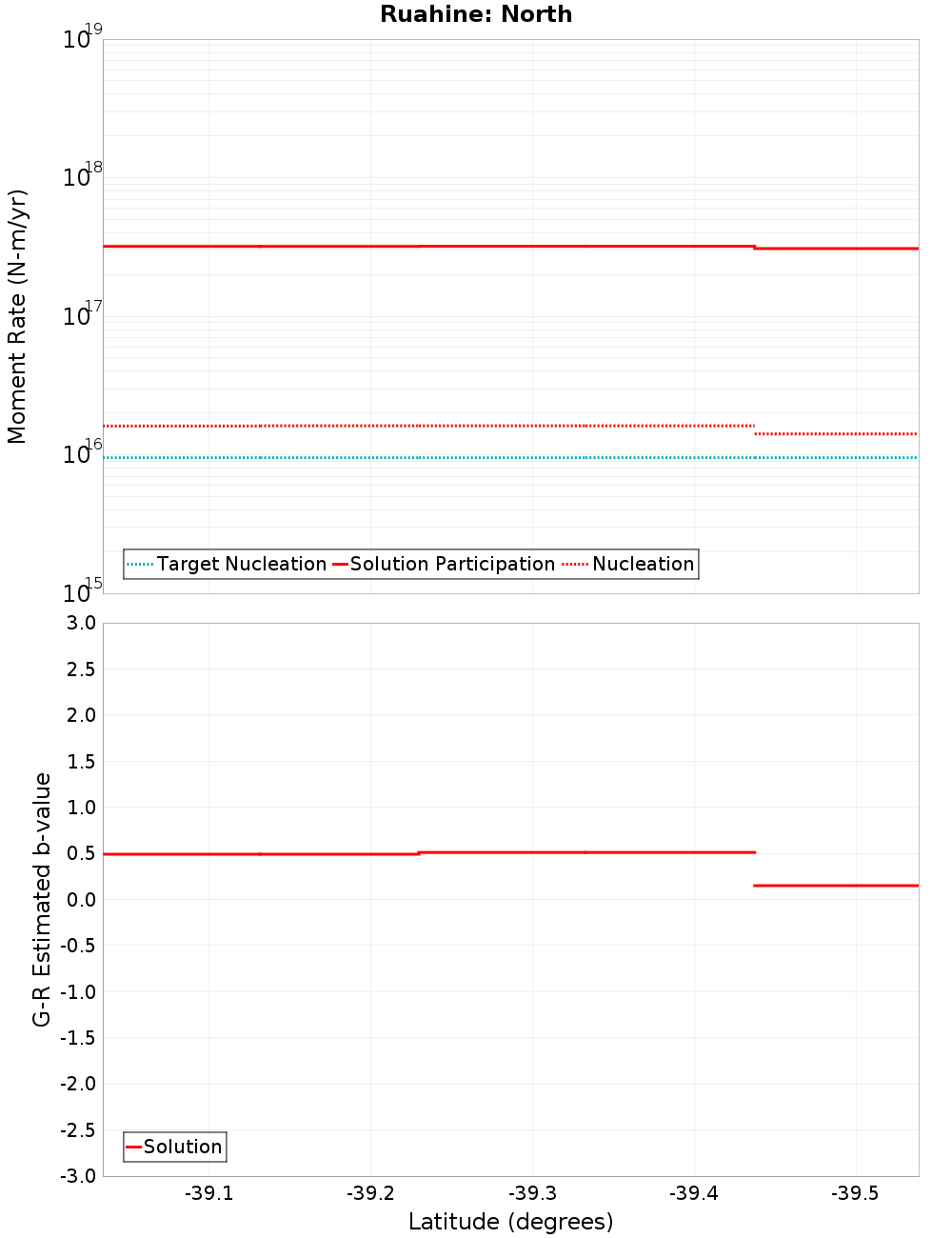

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.63 km away
Mohaka: South, 4.35 km away
Wakarara, 4.93 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 14.79 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	9,281
Co-rupture Rate	1.8192796E-4

Ruahine: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	19,033
Co-rupture Rate	1.840213E-4

Kaweka, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	1.83 km
Min Rate-Weighted Dist	5.26 km
Co-rupture Count	241
Co-rupture Rate	1.8262601E-4

Wheao: South, 2.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.63 km
Min Rate-Weighted Dist	2.63 km
Co-rupture Count	9,614
Co-rupture Rate	5.8053112E-5

Mohaka: South, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.35 km
Co-rupture Count	6,042
Co-rupture Rate	7.4861046E-6

Wakarara, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.93 km
Co-rupture Count	200
Co-rupture Rate	0.0

Mohaka: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	false
Co-rupture Count	273
Co-rupture Rate	0.0

Patoka - Rangiora, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	0.0

Te Whaiti South, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	9.06 km
Min Rate-Weighted Dist	9.06 km
Co-rupture Count	8,441
Co-rupture Rate	1.700232E-4

Whakatane: South, 11.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	false
Co-rupture Count	327
Co-rupture Rate	8.510418E-5

Waimana: South, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	false
Co-rupture Count	121
Co-rupture Rate	0.0

Awanui, 14.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0
