Te Whaiti North Details
| Property | Value |
|---|---|
| Rupture Count | 1,351 |
| Ruptures Above Sect Min Mag | 1,349 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.25, 8.26] |
| Length Range | [8, 646] km |
| Total Rate | 9.161978E-5 /yr |
| Multi-Fault Rate | 9.161978E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 84 |
Table Of Contents

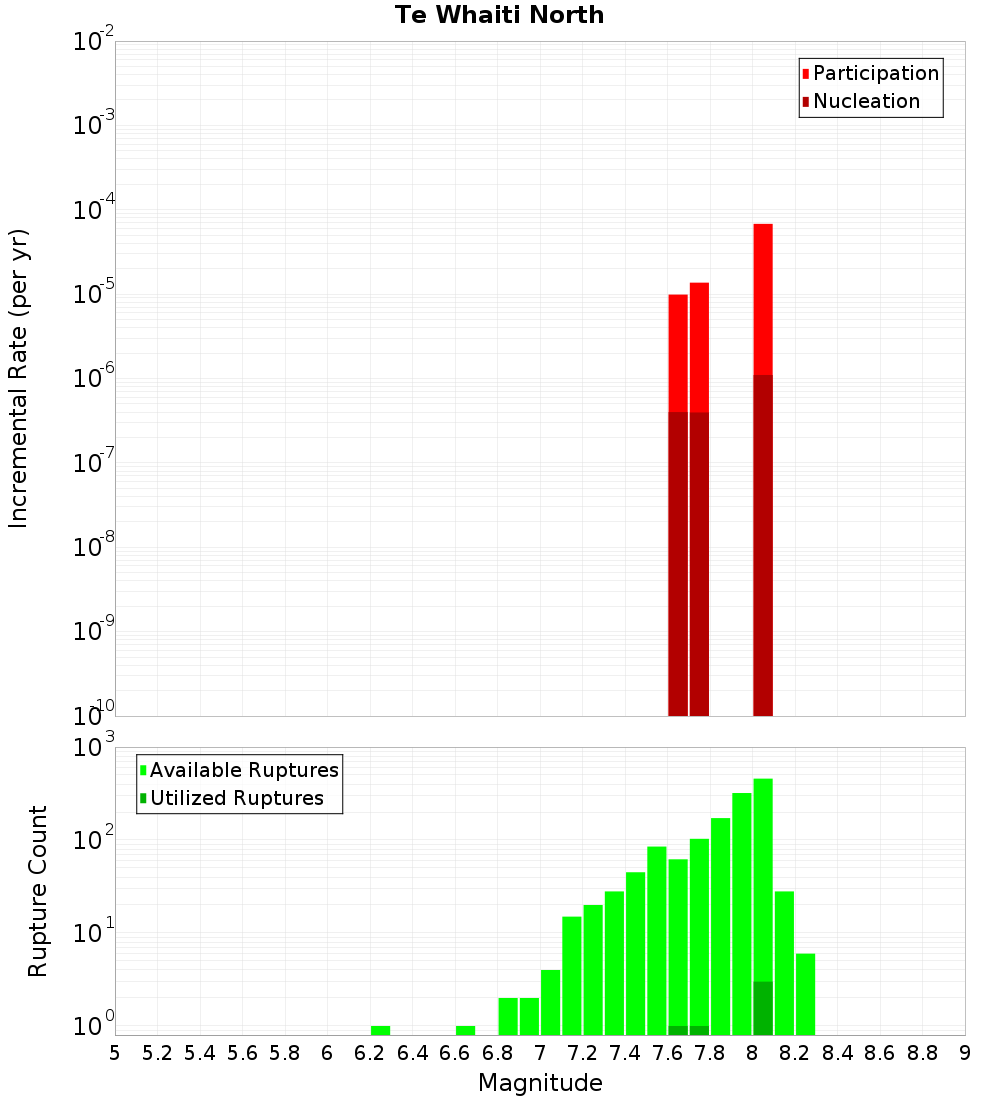

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

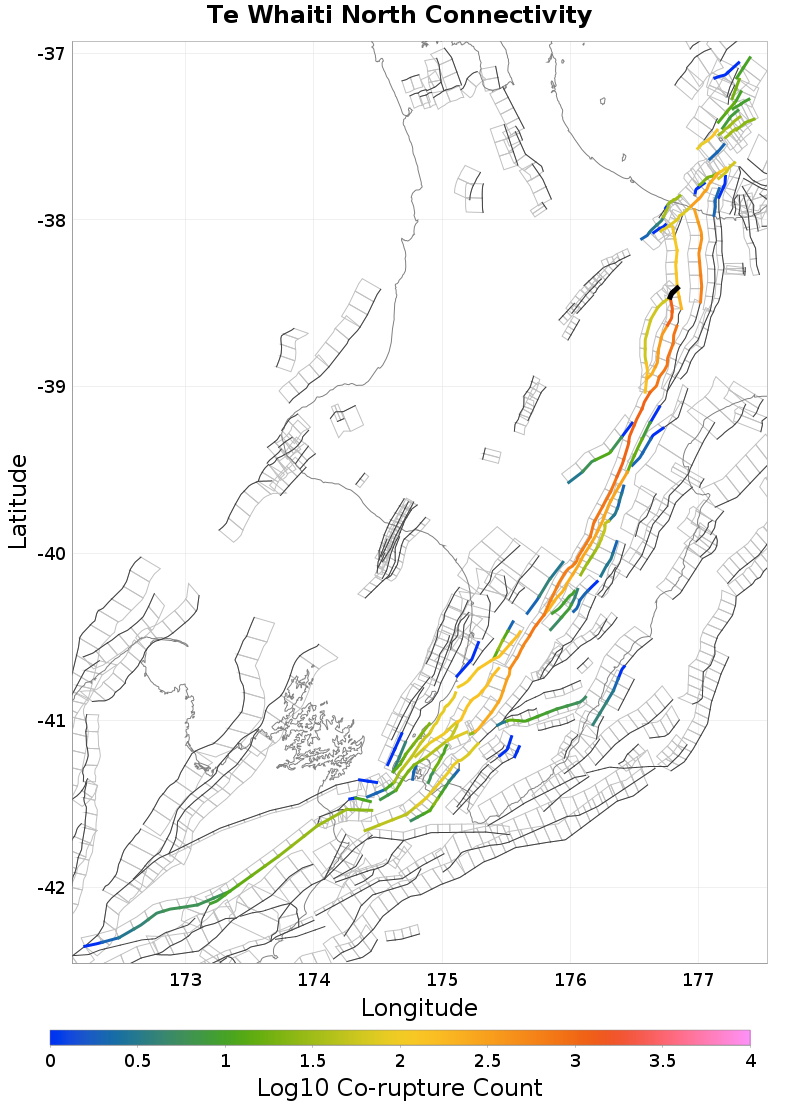

Connectivity
 |  |
|---|
Nearby Sections
Te Whaiti South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 1,142 |
| Co-rupture Rate | 6.806462E-5 |
Wheao: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 59 |
| Co-rupture Rate | 1.3678026E-5 |
Waiohau: North, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.22 km |
| Min Rate-Weighted Dist | 3.03 km |
| Co-rupture Count | 193 |
| Co-rupture Rate | 2.3555163E-5 |
Waiohau: South, 10.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 779 |
| Co-rupture Rate | 3.8625672E-5 |
Wheao: South, 11.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 147 |
| Co-rupture Rate | 1.3678026E-5 |
Whakatane: North, 13.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 13.54 km |
| Min Rate-Weighted Dist | 13.54 km |
| Co-rupture Count | 630 |
| Co-rupture Rate | 3.8625672E-5 |
Whakatane: South, 18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
