Turi: North Details
| Property | Value |
|---|---|
| Rupture Count | 115 |
| Ruptures Above Sect Min Mag | 114 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.84, 7.81] |
| Length Range | [19, 208] km |
| Total Rate | 1.324923E-4 /yr |
| Multi-Fault Rate | 1.324923E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

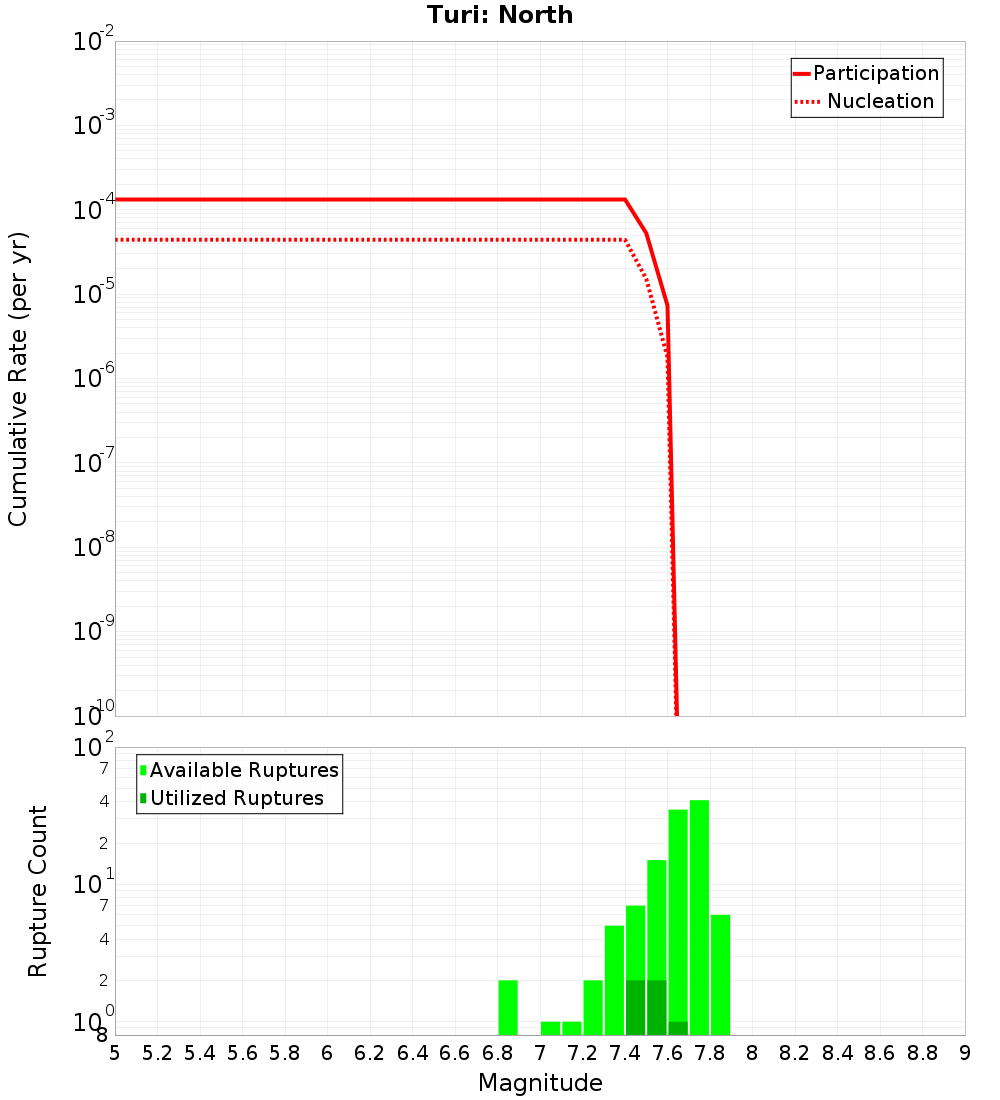

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

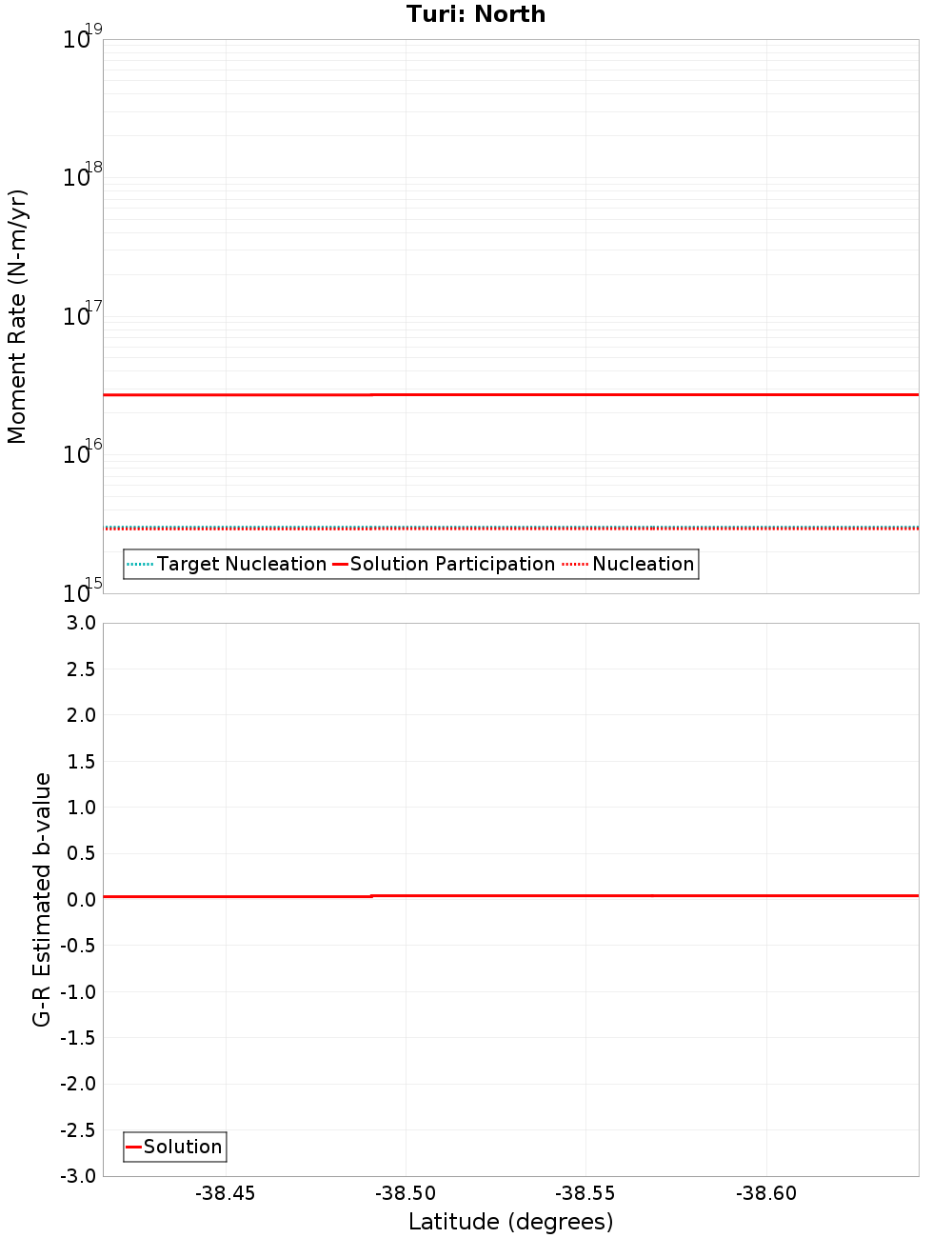

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Turi: Central, 0 km away |
Turi: Central, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 112 |
| Co-rupture Rate | 1.324923E-4 |
