Wairata Details
| Property | Value |
|---|---|
| Rupture Count | 1,119 |
| Ruptures Above Sect Min Mag | 1,118 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.35, 8.09] |
| Length Range | [7, 441] km |
| Total Rate | 1.9657655E-5 /yr |
| Multi-Fault Rate | 1.9657655E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 51 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

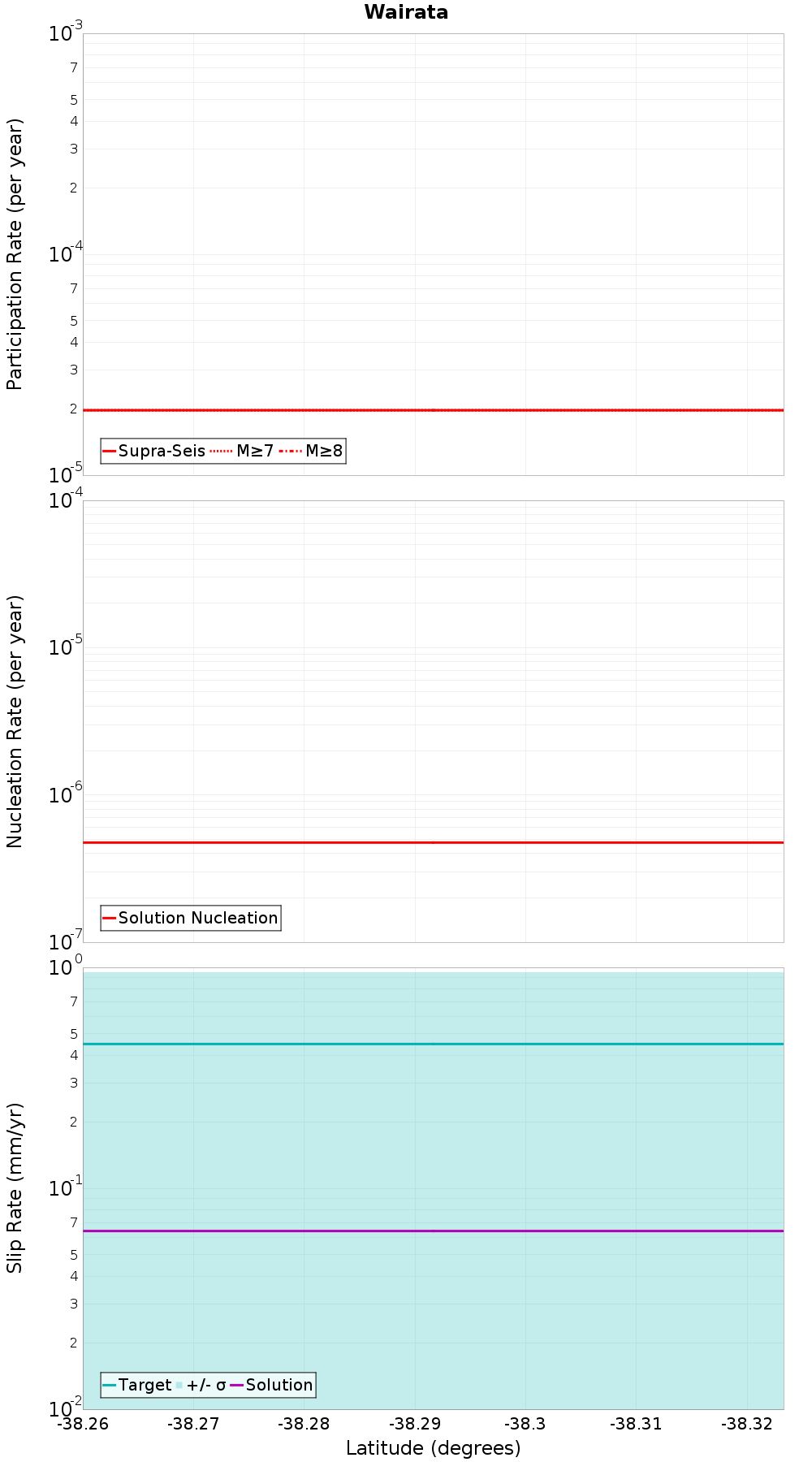

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Raukumara 9, 0.96 km away |
| Waiotahi: North, 4.18 km away |
| Kotare - Moutuhora, 9.2 km away |
| Waimana: North, 12.04 km away |
Raukumara 9, 0.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Waiotahi: North, 4.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.18 km |
| Min Rate-Weighted Dist | 4.53 km |
| Co-rupture Count | 969 |
| Co-rupture Rate | 1.955049E-5 |
Kotare - Moutuhora, 9.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana: North, 12.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 12.04 km |
| Min Rate-Weighted Dist | 13.54 km |
| Co-rupture Count | 568 |
| Co-rupture Rate | 1.0716375E-7 |
