Whakatane: South Details
| Property | Value |
|---|---|
| Rupture Count | 6,847 |
| Ruptures Above Sect Min Mag | 6,844 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.84, 8.29] |
| Length Range | [21, 681] km |
| Total Rate | 4.159311E-4 /yr |
| Multi-Fault Rate | 4.1438773E-4 /yr (99.63%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 102 |
Table Of Contents

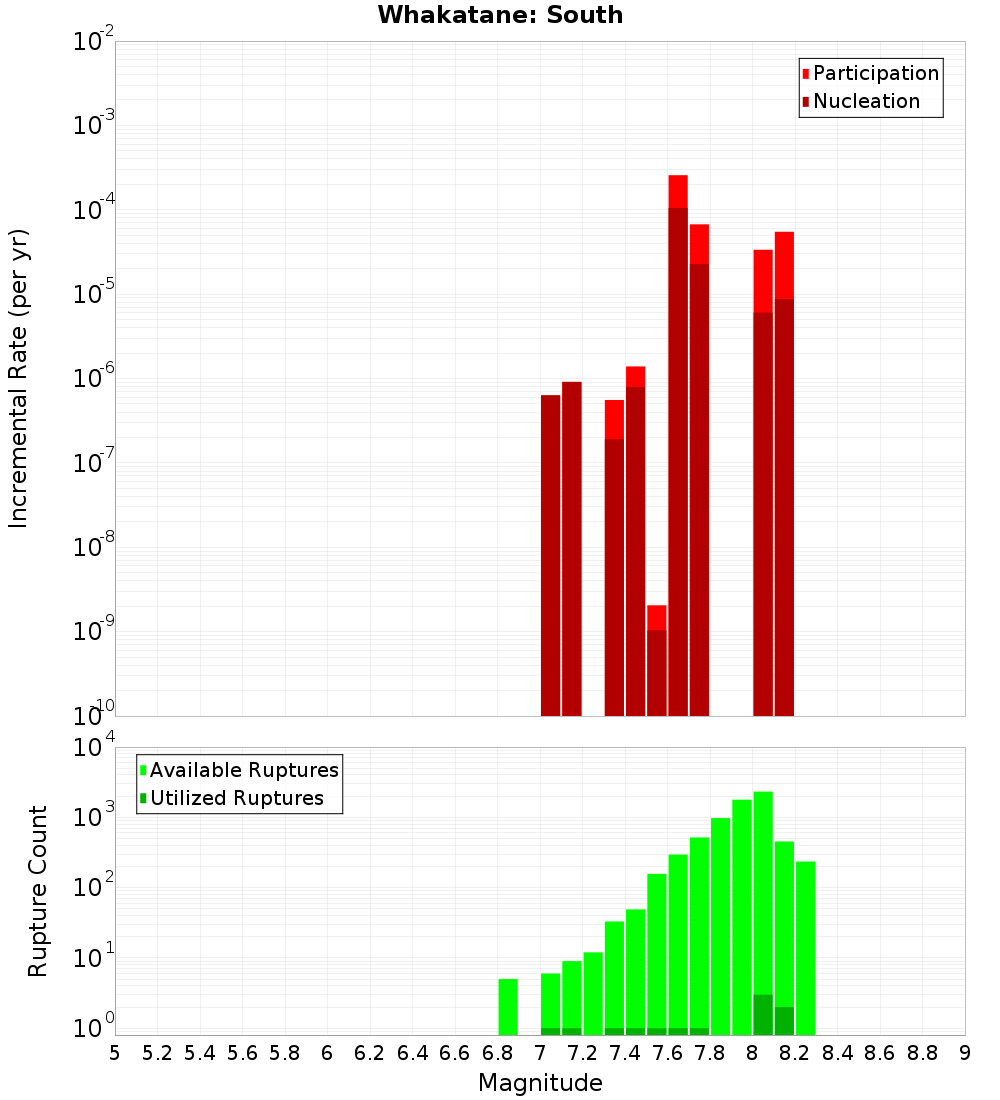

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Waimana: South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.45 km |
| Min Rate-Weighted Dist | 2.45 km |
| Co-rupture Count | 657 |
| Co-rupture Rate | 1.3923517E-6 |
Whakatane: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 3.62 km |
| Co-rupture Count | 2,973 |
| Co-rupture Rate | 1.3022182E-5 |
Mohaka: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 6,260 |
| Co-rupture Rate | 7.188297E-5 |
Waiohau: South, 4.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.23 km |
| Min Rate-Weighted Dist | 5.23 km |
| Co-rupture Count | 299 |
| Co-rupture Rate | 8.510418E-5 |
Waimana: North, 5.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.74 km |
| Min Rate-Weighted Dist | 8.39 km |
| Co-rupture Count | 286 |
| Co-rupture Rate | 2.5740056E-4 |
Waiotahi: South, 5.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 48 |
| Co-rupture Rate | 0.0 |
Waiotahi: North, 10.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Waiohau: North, 11.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ruahine: North, 11.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 327 |
| Co-rupture Rate | 8.510418E-5 |
Te Whaiti South, 11.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Patoka - Rangiora, 12.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Wheao: South, 14.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awanui, 15.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Whaiti North, 18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
