Whareama Bank Details

PropertyValue
Rupture Count665
Ruptures Above Sect Min Mag641
Ruptures w/ Nonzero Rates8
Magnitude Range[6.45, 7.85]
Length Range[15, 368] km
Total Rate2.950718E-4 /yr
Multi-Fault Rate2.950718E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults14

Table Of Contents

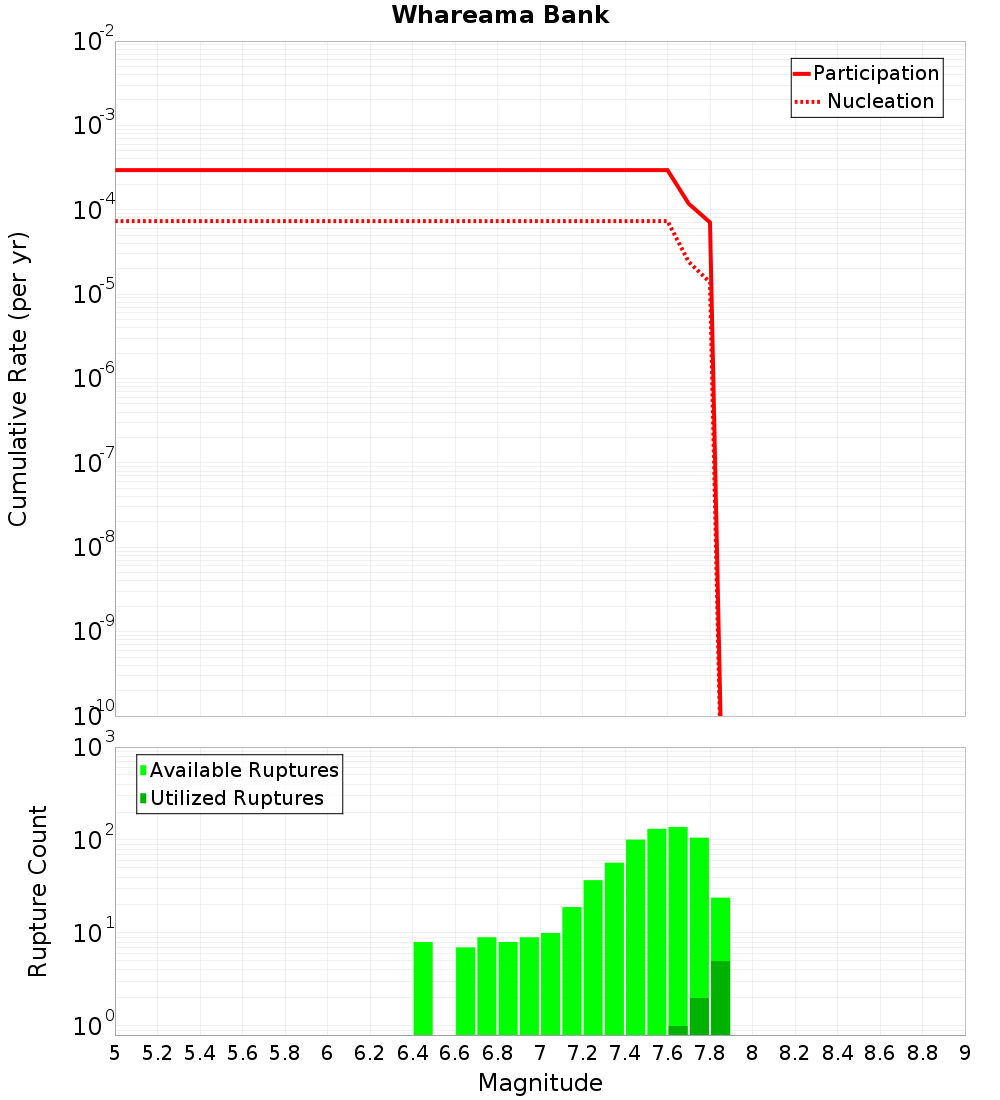

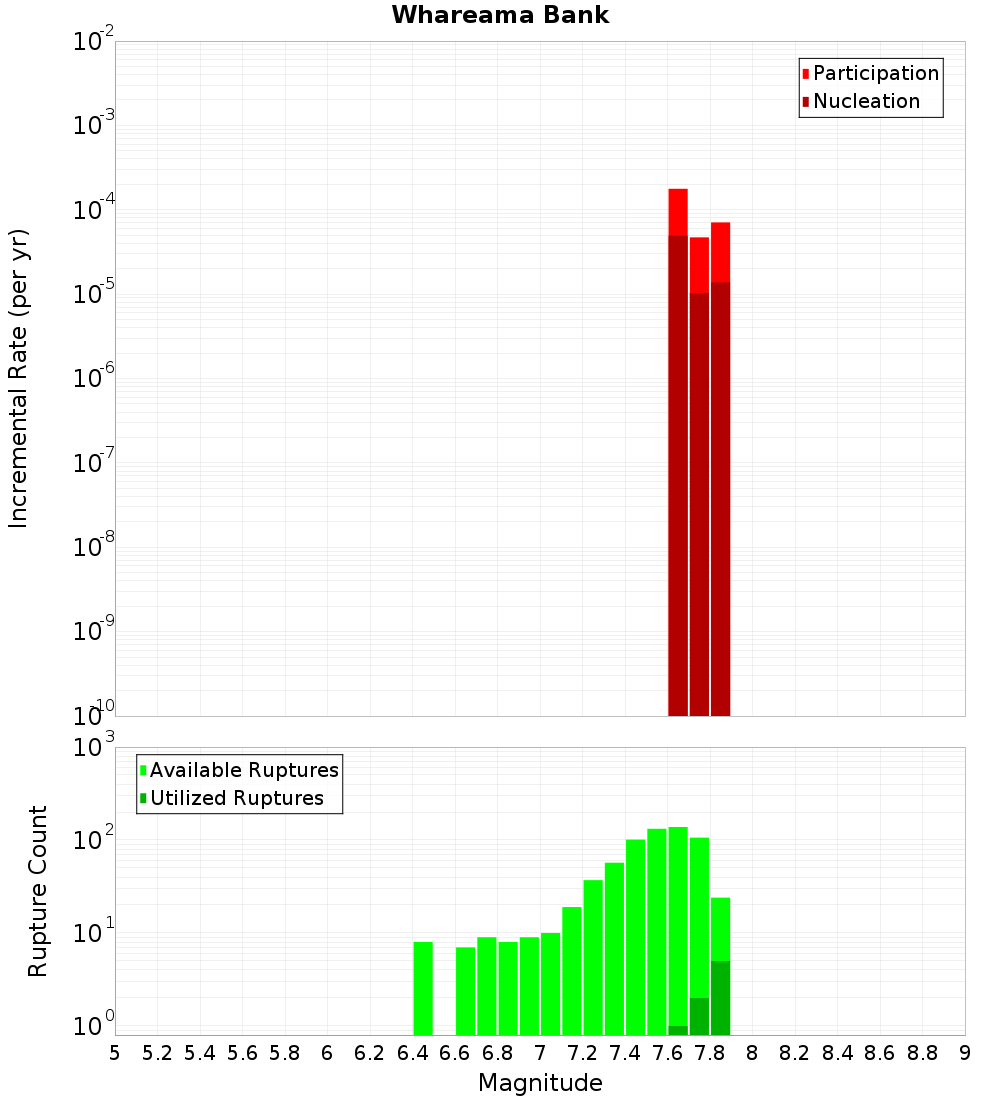

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

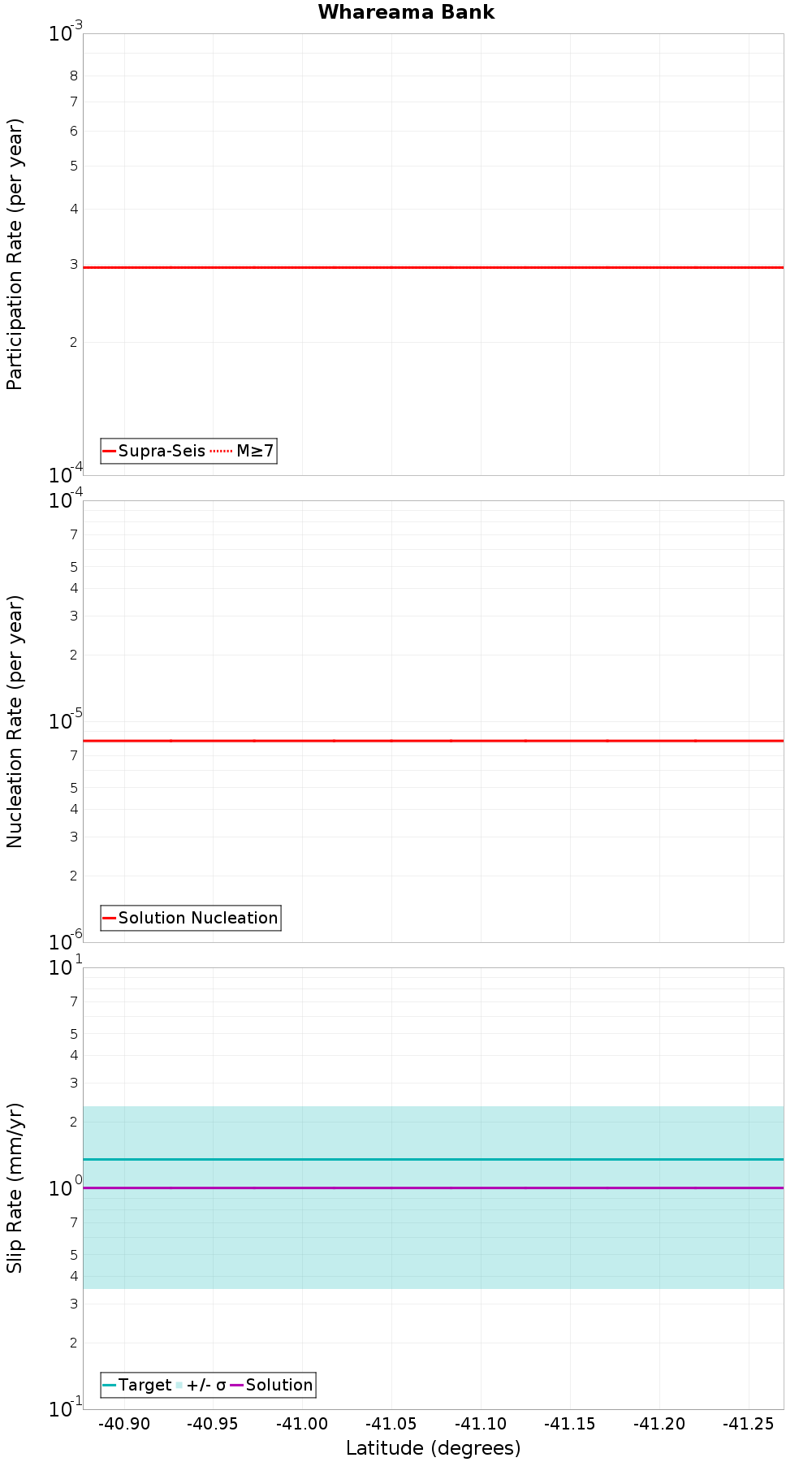

Along-Strike Values

(top)

Along-strike plot

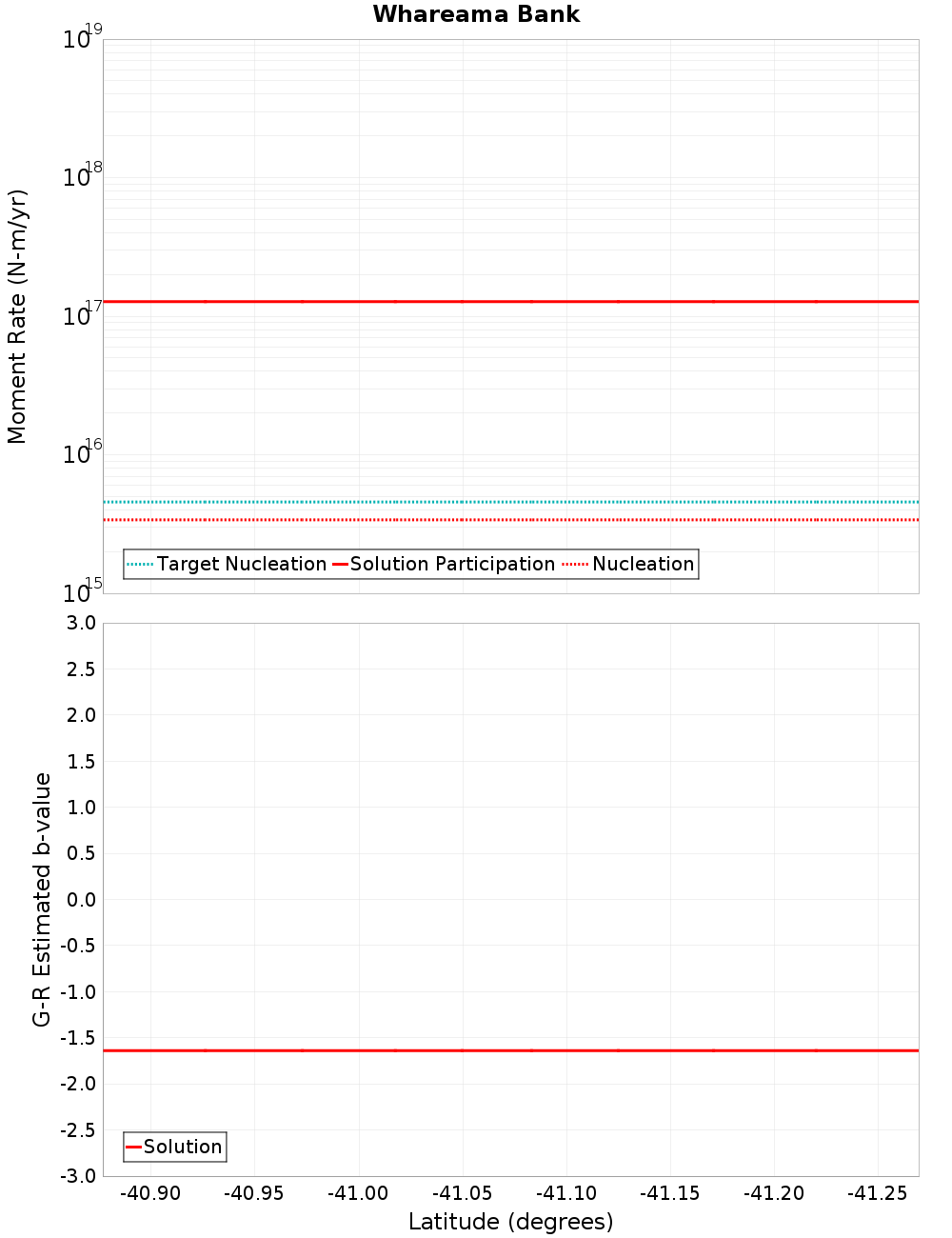

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Basin, 3.51 km away
Riversdale, 5.4 km away
Uruti North, 5.83 km away
Palliser - Kaiwhata, 6.96 km away
Riversdale North, 7.19 km away
Madden Banks, 8.19 km away
Honeycomb, 8.21 km away
Uruti Basin 2, 9.24 km away
Mataikona East, 10.73 km away
Mataikona, 12.73 km away
Uruti Point, 13.48 km away
Opouawe - Uruti, 15.37 km away
Uruti East - PorWest 1, 17.92 km away
Pahaua, 18.98 km away
Uruti Ridge 2, 19.64 km away

Uruti Basin, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Riversdale, 5.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.4 km
Min Rate-Weighted Dist5.4 km
Co-rupture Count360
Co-rupture Rate2.950718E-4

Uruti North, 5.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Palliser - Kaiwhata, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count280
Co-rupture Rate1.1790594E-4

Riversdale North, 7.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.19 km
Co-rupture Count16
Co-rupture Rate0.0

Madden Banks, 8.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.19 km
Min Rate-Weighted Dist8.19 km
Co-rupture Count533
Co-rupture Rate2.950718E-4

Honeycomb, 8.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Uruti Basin 2, 9.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mataikona East, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?true
Min Co-Rupture Dist10.73 km
Co-rupture Count32
Co-rupture Rate0.0

Mataikona, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate0.0

Uruti Point, 13.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate0.0

Opouawe - Uruti, 15.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Uruti East - PorWest 1, 17.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahaua, 18.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Uruti Ridge 2, 19.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDQ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
