Barn Details
| Property | Value |
|---|---|
| Rupture Count | 2,037 |
| Ruptures Above Sect Min Mag | 2,035 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [7.02, 8.37] |
| Length Range | [27, 807] km |
| Total Rate | 1.1331402E-4 /yr |
| Multi-Fault Rate | 1.1331402E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 50 |
Table Of Contents

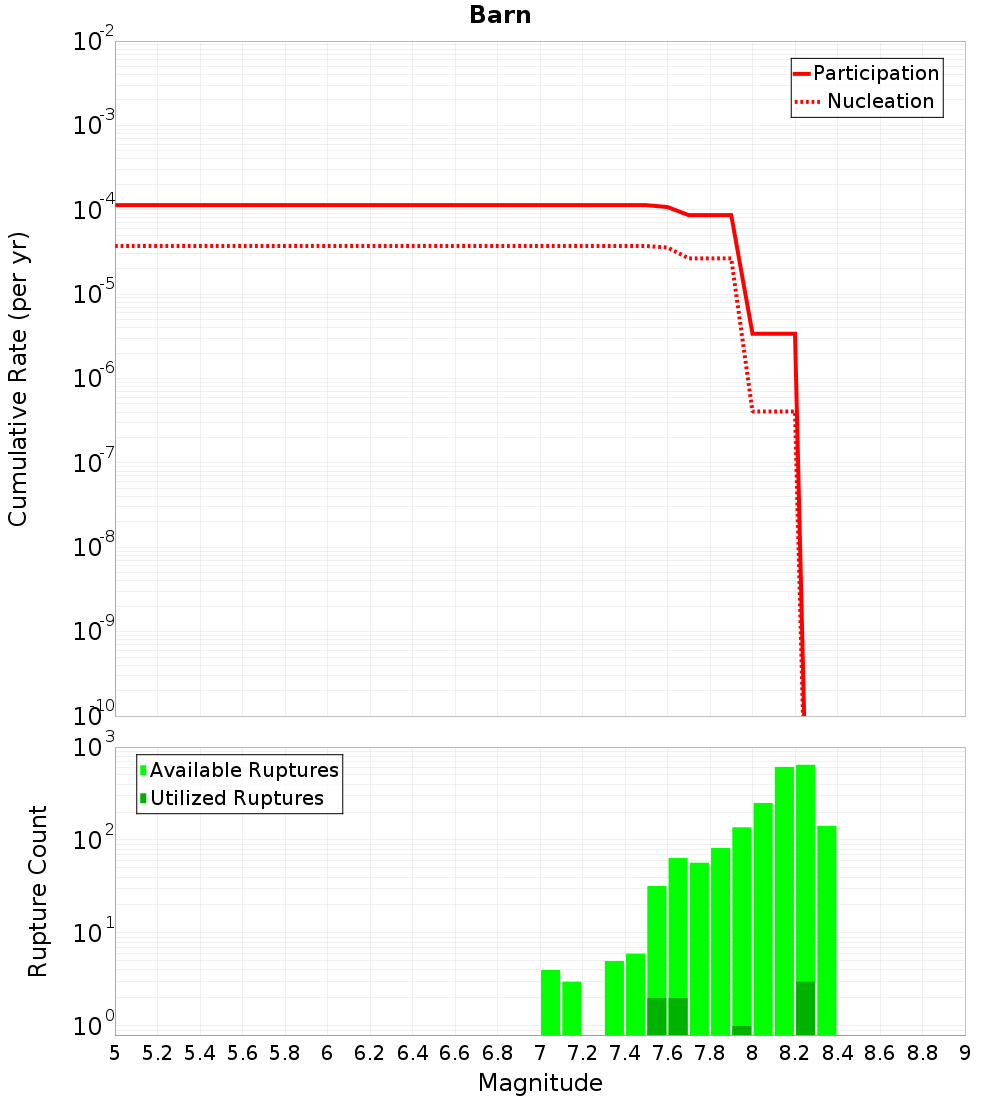

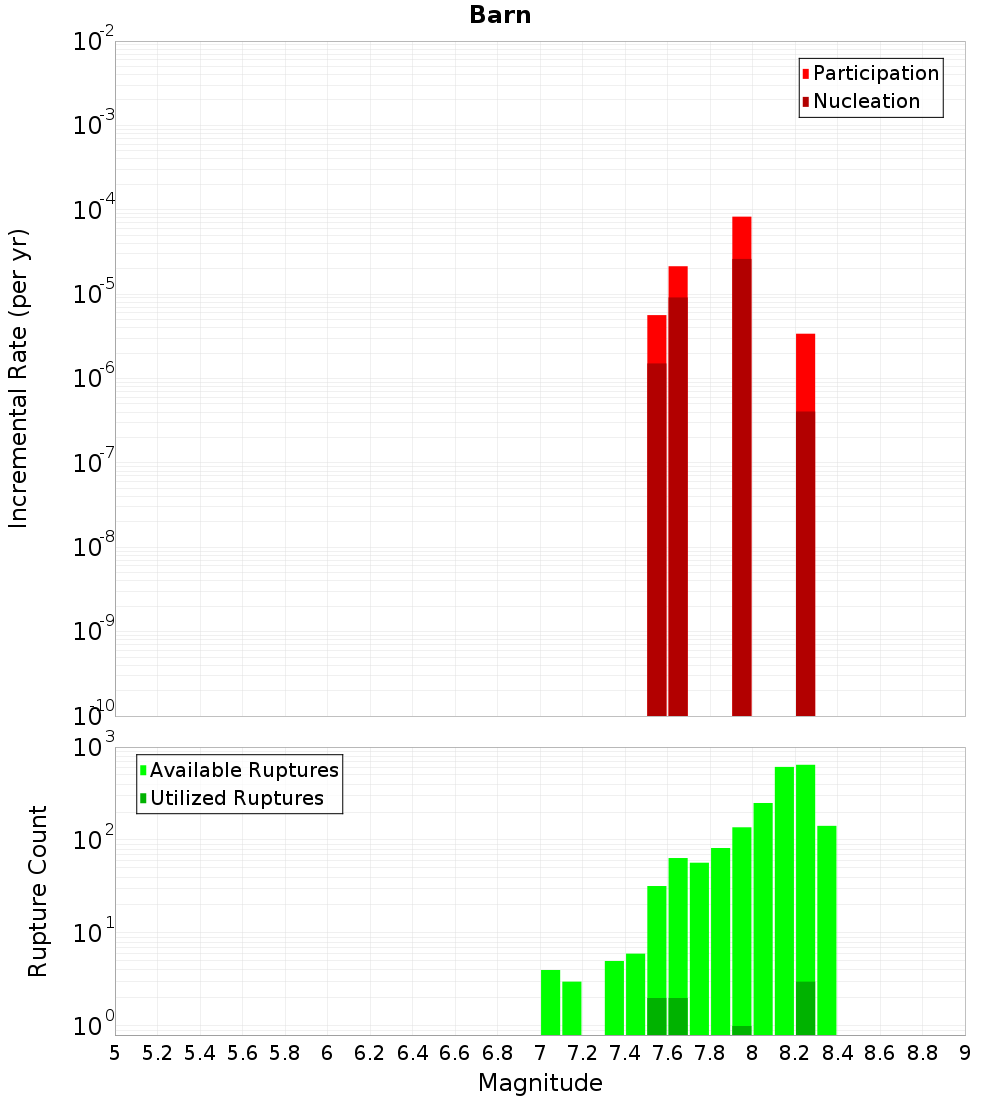

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

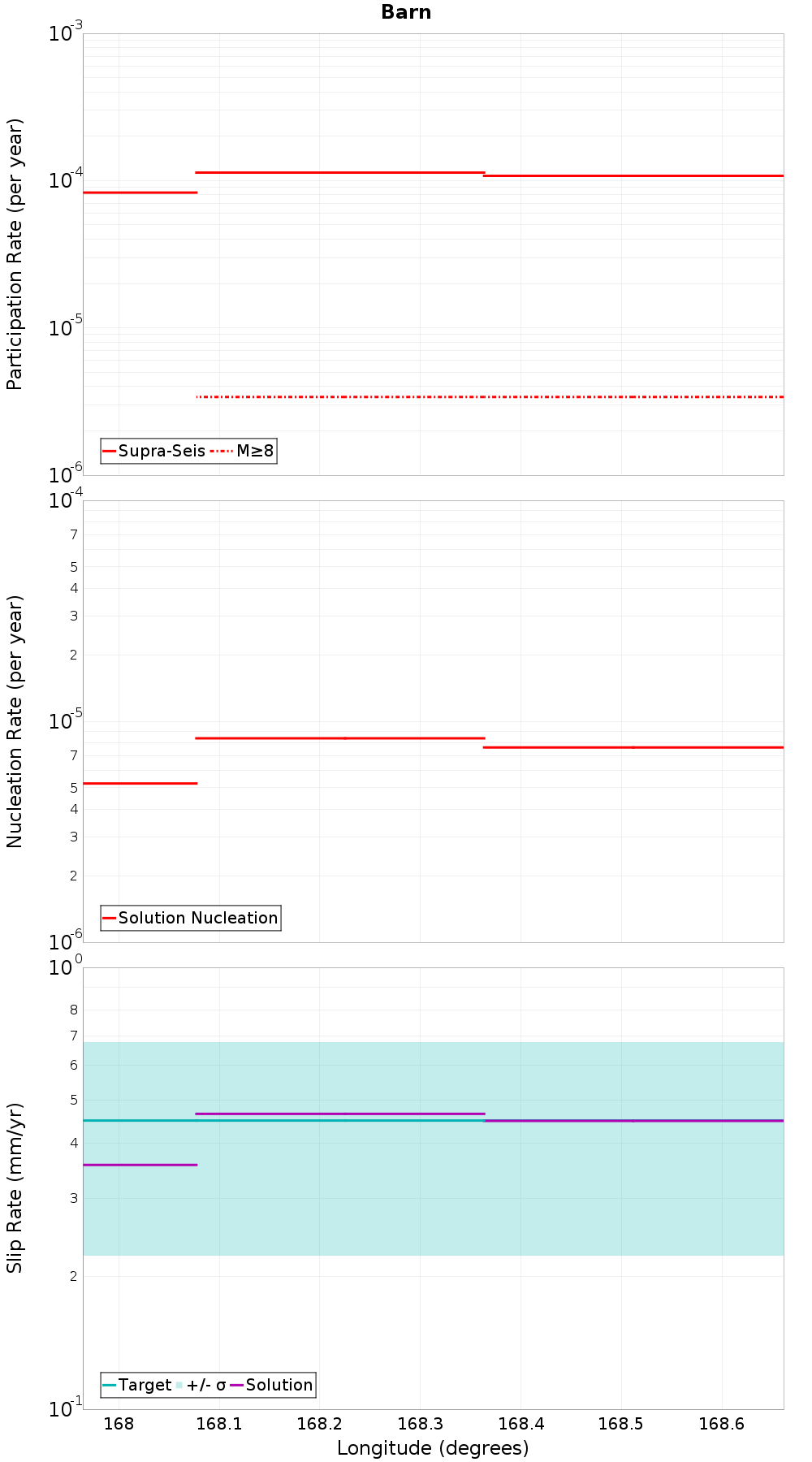

Along-Strike Values

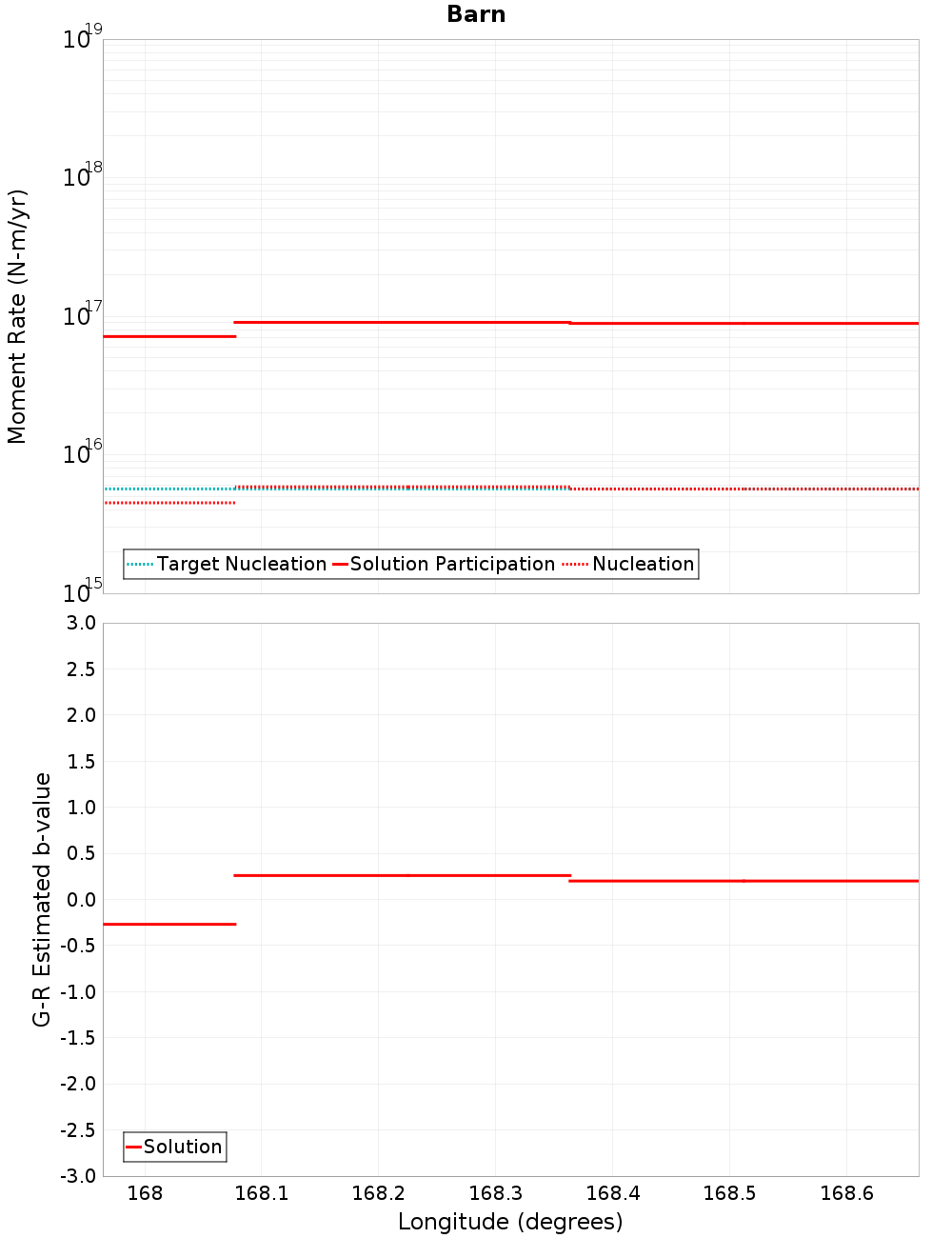

Moment-Rates and b-Values

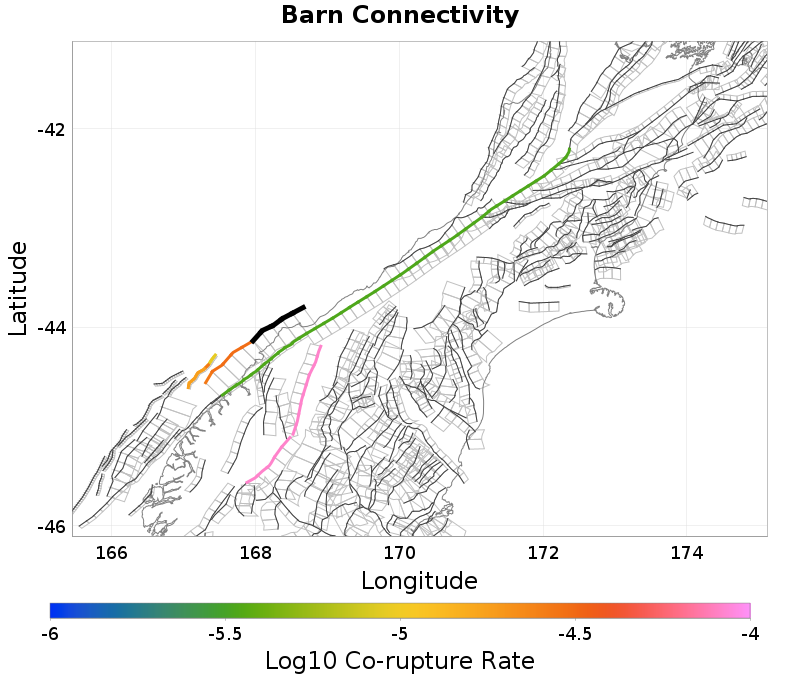

Connectivity
 |  |
|---|
Nearby Sections
Madagascar, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.16 km |
| Min Rate-Weighted Dist | 9.16 km |
| Co-rupture Count | 808 |
| Co-rupture Rate | 3.0445408E-5 |
Skippers, 2.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: George to Jacksons, 3.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.58 km |
| Co-rupture Count | 1,935 |
| Co-rupture Rate | 3.3956896E-6 |
Hollyford, 7.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: Jacksons to Kaniere, 10.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,763 |
| Co-rupture Rate | 3.3956896E-6 |
Moonlight North, 13.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 13.98 km |
| Min Rate-Weighted Dist | 13.98 km |
| Co-rupture Count | 38 |
| Co-rupture Rate | 8.286861E-5 |
Darran, 18.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDU2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
